Titan Control

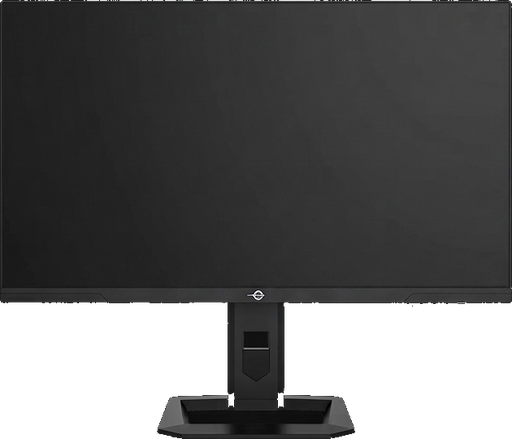

A Linux app for the Titan Army P275MV PLUS monitor. It changes the monitor's own settings over DDC/CI, the same settings as the on-screen menu (OSD): picture modes, local dimming, HDR, game overlays, PIP, LED lighting and more. Nothing is emulated in software.

Built with Rust, GTK 4 and libadwaita. It is not affiliated with Titan Army.

⚠️ Use at your own risk

This software writes settings to your monitor over DDC/CI. A wrong write can change or lock features or, in the worst case, leave the monitor in a state that needs a factory reset or service. The authors give no warranty (see the MIT license) and are not responsible for any damage.

🤖 Developed with an LLM

This repository was developed with the help of a large language model (LLM, Claude). The code, documentation and the protocol notes in docs/ were written and revised with LLM assistance and checked against a real monitor by the author, but they may still contain mistakes. Review the code before you trust it with your hardware.

Features

• Overview: the monitor with your wallpaper on its screen, resolution, refresh rate and scaling of the output, aspect ratio.
• Picture mode: all 15 modes (Standard, RTS, FPS, MOBA, Movie, Reading, Night, Eye Care, MacView, E-book, sRGB, AdobeRGB, DCI-P3, DyDs/ULL FPS, DyDs/LD) in their Default or Custom variant, and everything saved in a profile, in the order of the OSD:
  • Basic: brightness, contrast, DCR, Low Blue Light, sharpness, gamma.
  • Effects: HDR, Color Enhance, CR Enhance, Shadow Balance, Super Resolution, Night Vision, Dynamic OD.
  • Backlight: local dimming, Halo Control, DyDs.
  • Color: color temperature with User RGB gains, hue and saturation per color axis.
  • The Custom settings are read from the monitor's profile table, the same way the manufacturer's tool reads them.
• Gaming: Adaptive-Sync, Full Game (Wide / 25"), and the overlays: refresh rate counter, crosshair, stopwatch, game timer, magnifier, HawkEye Vision, break reminder.
• Inputs and audio:
  • input source, RGB output range, USB hub upstream port, volume and mute;
  • PIP/PBP with source, audio source, position, size, swap and reset.
• Lighting: rear LED on/off, mode, color, strength, front/rear colors, power LED brightness.
• Monitor:
  • OSD language, timeout, position and transparency;
  • OSD lock, button lock, break reminder;
  • power saving, USB power in sleep, Quick Boot, power off;
  • resets, model and usage time.
• Desktop integration:
  • The resolution, refresh rate and scaling of the monitor's output can be changed (KDE Plasma and COSMIC on Wayland).
  • System HDR follows the monitor's HDR setting: turning HDR on in the app also turns it on in the system, and the other way round when it is turned off (KDE Plasma).
  • The overview shows the monitor with your wallpaper (KDE Plasma).
• Tray menu: up to 5 favorite picture modes (star next to the mode) and 5 favorite settings. Hold Ctrl (or the key chosen in Preferences) to show the stars next to the settings.
• Stays in sync with the OSD: changes made with the monitor's buttons appear in the app within a few seconds.
• English and Polish, light and dark theme, autostart (optionally minimized to the tray), narrow-window layout.

The protocol, every VCP code and the tools used to find them are documented in docs/p275mv_plus.md.

Requirements

• Linux with access to the monitor's I2C bus (i2c-dev).
• GTK ≥ 4.14, libadwaita ≥ 1.7, blueprint-compiler, Rust ≥ 1.88.
• Optional:
  • kscreen-doctor (KDE Plasma) or cosmic-randr (COSMIC) for the display mode, HDR and wallpaper features;
  • a tray that supports StatusNotifierItem (on GNOME: the AppIndicator extension).

Tested with a P275MV PLUS (Enhanced) connected over DisplayPort to an AMD GPU, on KDE Plasma 6 (Wayland).

Installation

Pre-built files

Every version is published on the Releases page:

The deb and rpm install the I2C rules (uaccess udev rule and the i2c-dev module), so no group changes are needed. The AppImage and the archive installed as a user need I2C access set up by hand. Everything except the AppImage needs GTK ≥ 4.14 and libadwaita ≥ 1.7 on your system (see Requirements).

Release archive

tar -xzf titan-control-*-x86_64-linux.tar.gz
cd titan-control-*-x86_64-linux
./install.sh                     # to ~/.local (as root: /usr/local, with the I2C rules); --prefix DIR for another

Then set up I2C access unless you ran the script as root, and start Titan Control from the menu. ./uninstall.sh removes it again (your settings stay in ~/.config/titan_control). To build the archive yourself: ./scripts/make_tarball.sh (it ends up in dist/).

Building from source

1. Dependencies

# Arch Linux
sudo pacman -S gtk4 libadwaita blueprint-compiler rust

# Fedora
sudo dnf install gtk4-devel libadwaita-devel blueprint-compiler cargo

# Debian / Ubuntu (libadwaita 1.7: Debian 13, Ubuntu 25.04 or newer)
sudo apt install libgtk-4-dev libadwaita-1-dev blueprint-compiler cargo

2. I2C access

sudo modprobe i2c-dev
echo i2c-dev | sudo tee /etc/modules-load.d/i2c-dev.conf   # load it on every boot
sudo groupadd -f i2c
sudo usermod -aG i2c "$USER"

Log out and back in. If /dev/i2c-* is not owned by the i2c group on your distribution, add a udev rule:

echo 'KERNEL=="i2c-[0-9]*", GROUP="i2c", MODE="0660"' | sudo tee /etc/udev/rules.d/45-i2c.rules
sudo udevadm control --reload && sudo udevadm trigger

3. Build and install

git clone https://github.com/mkarenko/titan-control.git
cd titan-control
./scripts/install_local.sh

The script builds a release binary, installs it to ~/.local/bin/titan_control, copies the assets to ~/.local/share/titan_control/, and adds the icon and a menu entry. To only build it: cargo build --release.

Usage

Start Titan Control from the application menu (or run titan_control).

• The app finds the monitor, reads its settings and opens the window. Closing the window keeps it in the tray.
• The refresh button in the header reads everything from the monitor again: info, display mode, wallpaper and all settings.
• Settings that the monitor does not allow at the moment (see the FAQ) are greyed out.
• Monitor → Information → Installed firmware package: choose the package your monitor runs; it changes what the app allows.
• Preferences (menu ⋮): language, theme, tray icon style, autostart, start minimized, favorites key.

Reporting a problem

The app keeps a log of what it does, so a problem can be debugged. Open it with menu ⋮ → Show the log file or find it at ~/.local/state/titan_control/titan_control.log ($XDG_STATE_HOME is respected). The log holds the app, system, GTK and libadwaita versions, the monitor connection, every setting the app writes with the result of its read-back, and errors. It is cut at 1 MiB (the older part is kept as titan_control.log.1).

When you open an issue, please attach the log, say which monitor and firmware package you have, and what you did before the problem. The log contains the monitor name, but no serial number or personal data; read it before you share it. For a problem seen while the app is running, starting it from a terminal (titan_control) prints the same lines.

More

• FAQ: supported monitors, missing features, greyed-out settings, firmware and update.
• docs/p275mv_plus.md: DDC/CI protocol and every VCP code.
• firmware/: official firmware packages and the update procedure.

Development

cargo run                        # the app (a running instance is activated instead of starting a second one)
cargo test                       # unit tests
TITAN_I2C=/dev/i2c-14 cargo test profile_table -- --ignored --nocapture   # hardware test: profile table reads
cargo clippy --all-targets

UI check without a monitor (does not touch the bus or a running instance):

TITAN_CHECK_UI=1 cargo run                                    # builds the window and exits
TITAN_CHECK_UI=1 TITAN_CHECK_UI_SHOTS=/tmp/shots cargo run    # saves a PNG of every page and of Preferences
TITAN_CHECK_UI_WIDTH=600 TITAN_CHECK_UI_HEIGHT=2000 …         # window size (narrow layout, tall pages)
TITAN_CHECK_LANG=en …                                         # language of the check (en or pl)
TITAN_CHECK_STARS=1 …                                         # show the favorite stars

Support

Titan Control is free. If it is useful to you, you can buy me a coffee ☕.

Releasing

Set the new version in Cargo.toml, commit, then push a tag with the same number:

git tag v1.2.3 && git push origin v1.2.3

The Release workflow builds the tar.gz, deb, rpm and AppImage and publishes them, with checksums, as a GitHub release (a tag with a suffix, such as v1.2.3-beta.1, becomes a pre-release). The tag must match the version in Cargo.toml, or the workflow stops. The workflow can also be started by hand from the Actions tab: it then only builds the files and keeps them as downloadable artifacts.

License

MIT.
