oura-node-editor

A react component library that lets you create node based editors ! inspired by blender node editor.

Try me: oura-canvas-creator !

Documentation

Warning: Project in an experimental state, API may change a lot and npm repository is not up to date (so pull the lib and link it to your project if you wish test it!)

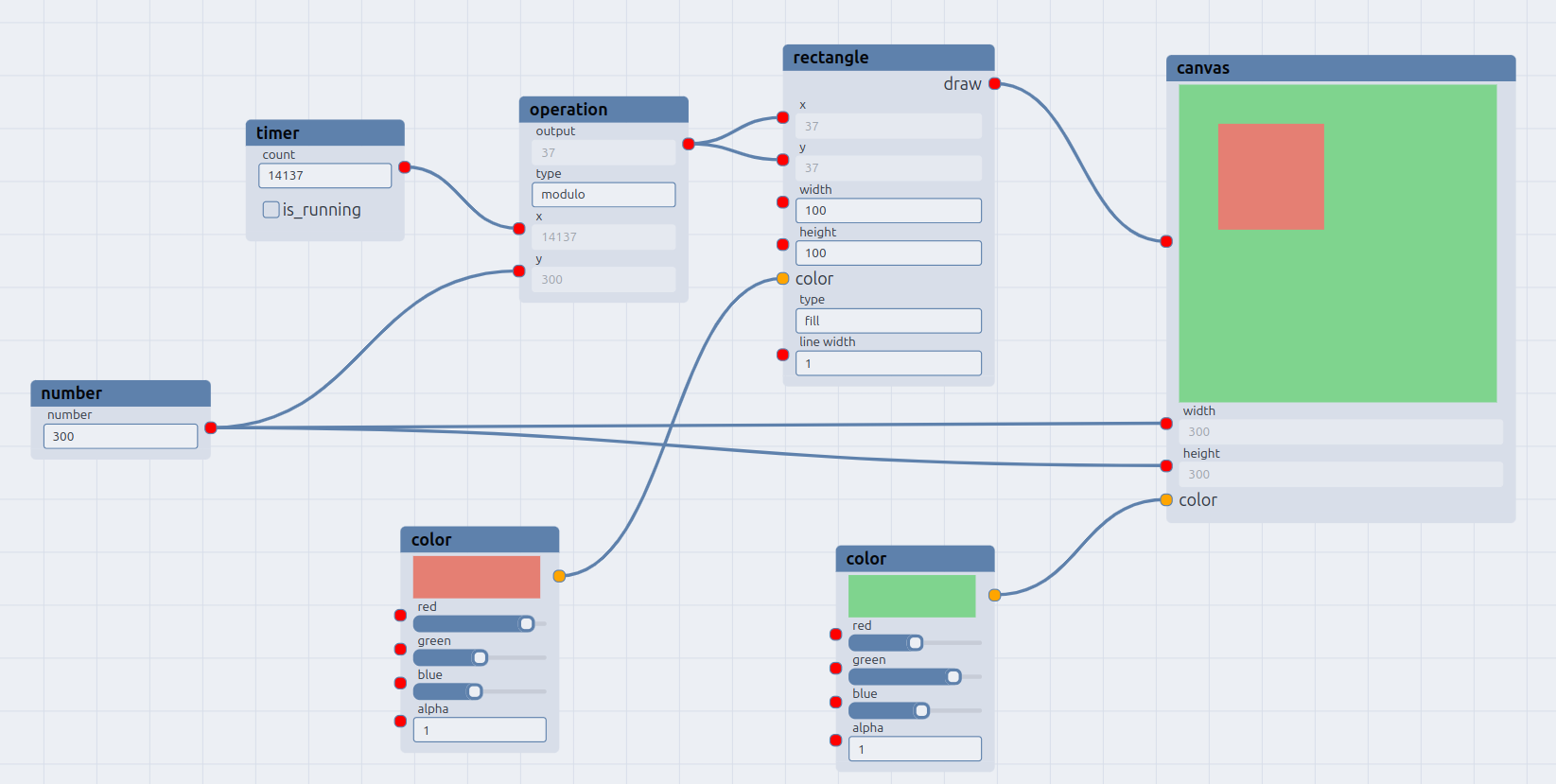

Example project that use the lib:

current features:

• Nodes can be created easelly. A node consists of a name, x/y position, a width, a selected state and 0 one or many connectors
• A connector is a composed of two elements: pin layout (no-pins, left, rigth, left and right) and connector-content
• Library provides generic connector-content: none, string, number, button, select, check-box
• Nodes can be linked between each others using links
• User can create they own connector-content (like the canvas in the oura-canvas-creator example project)
• Node can be moved and their width can be resized
• The working sheet where nodes are displayed can be zoomed in and out and dragged
• One or many nodes and links can be selected
• It is possible to extend the existing theme or create your own
• Node rendering is virtualized (eg. node are not rendered if not displayed on screen), which improves general performances

Install

npm install oura-node-editor

License MIT © Mathieu Guyot
