stochastic

Signals, not noise. A self-hosted market dashboard for US stocks with live charts, locally computed metrics, 40 deterministic and stochastic signal detectors, and email alerts that fire on bar close.

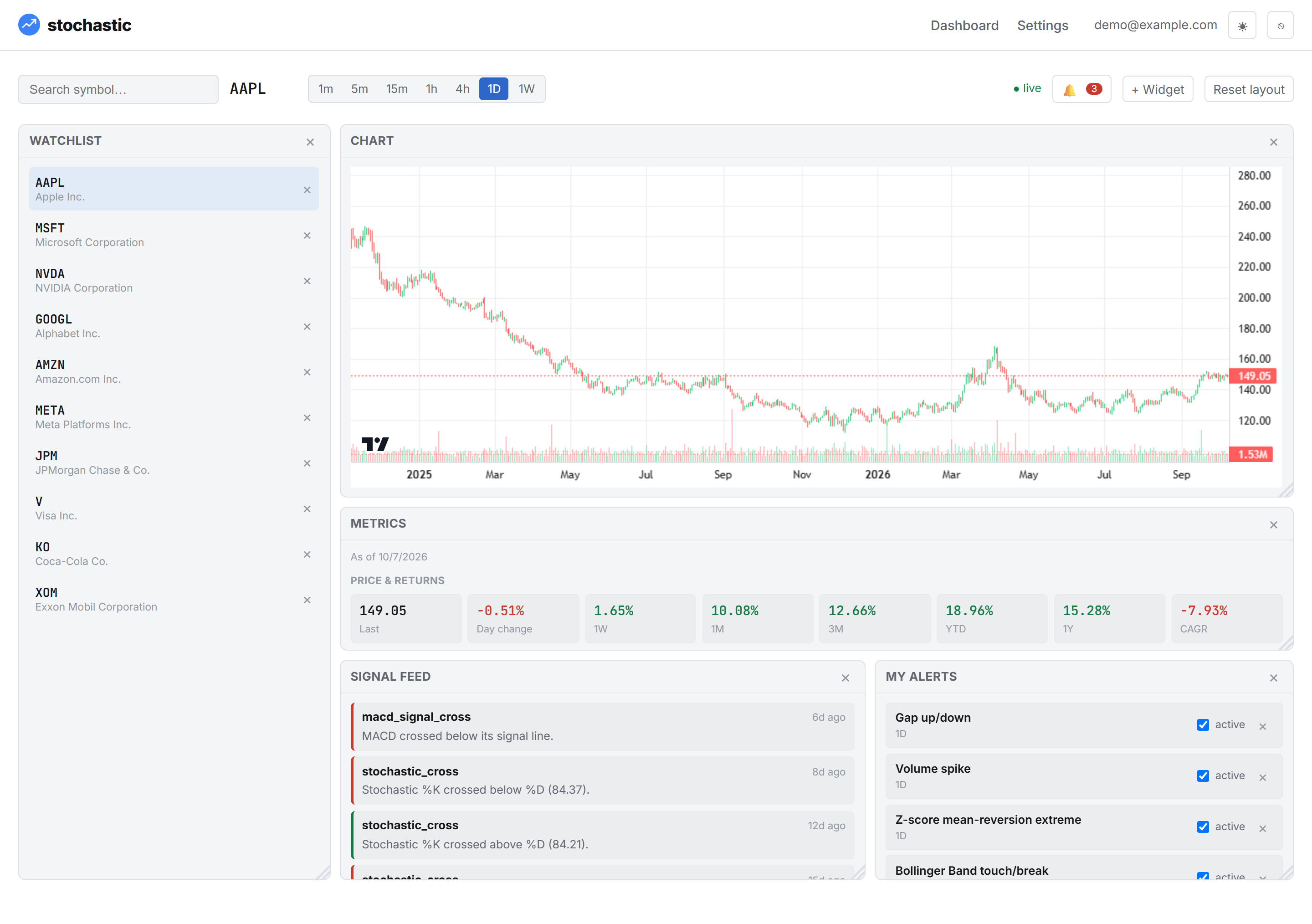

_{The default dashboard layout. The screenshot uses synthetic sample data, not real prices.}

Each user brings their own free Alpaca API key. The app has no shared data subscription. Users' keys are encrypted at rest, and every indicator, metric and signal is computed from cached OHLCV candles, so the provider only ever supplies raw bars.

Features

• Modular dashboard. Drag-and-resize widget grid with a per-user saved layout. Widgets don't call each other; they communicate only through a pub/sub data bus, so they can be added or removed independently.
  • Chart: candlesticks plus volume (Lightweight Charts), timeframes 1m / 5m / 15m / 1h / 4h / 1D / 1W, and a live 1-second poll of the focused symbol.
  • Metrics grid: about 40 stats computed from daily bars (see Metrics).
  • Signal feed and My Alerts (create, edit and delete alert rules).
  • Watchlist and symbol search covering every tradable NYSE/NASDAQ stock.
  • Orderbook: top-of-book bid/ask from Alpaca's IEX feed.
• Signal engine. 27 deterministic and 13 stochastic/statistical detectors. Each one is a pure function over closed candles with a parameter schema (see Signal catalog).
• Alerts. A rule fires only on bar close (no intra-bar repaints) and only once per rule per bar. Each rule has its own email cooldown, and each user has a daily email cap. Users can choose instant emails or a daily digest. Every email has a one-click "pause this rule" link, and in-app notifications are pushed over WebSocket.
• Bring your own key. Alpaca keys are encrypted with AES-256-GCM, shown only by their last 4 characters, and can be tested and revoked from Settings.
• Rate-limit aware. Each key's request budget is split into two independently paced lanes: live for the on-screen chart and alerts for background rule checks, each capped at about 60 requests/min. A 190/min sliding-window backstop keeps every key under Alpaca's free-tier limit of 200/min.
• Shared candle cache. Candles are stored in Postgres and shared by all users. Once any user's key has fetched AAPL 1D, every other user reads it from the cache for free.
• Full account flows. Sign up, email verification, login and password reset, with Cloudflare Turnstile bot protection and rate-limited auth routes.
• Light and dark themes, no frontend build step.

Scope: stocks only. Adapters for crypto (Binance), commodities (Twelve Data) and futures (Yahoo) are still in src/services/marketdata/, but none of them is connected to the app. The Trade Tape widget is a placeholder until a streaming feed is added. See the status note at the top of PLAN.md.

Tech stack

Getting started

Prerequisites

• Node.js 20 or newer
• PostgreSQL (any recent version; developed against 18)
• A free Alpaca account for an API key. A paper-trading account works and needs no funding.
• Optional: openssl on your PATH, used only to generate a self-signed dev certificate when you run in HTTPS mode

1. Install

git clone https://github.com/maelswarm/stochastic.git
cd stochastic
npm install

2. Configure

cp .env.example .env

Fill in at least the required variables. Generate KEY_ENCRYPTION_KEY with:

node -e "console.log(require('crypto').randomBytes(32).toString('base64'))"

Keep KEY_ENCRYPTION_KEY stable and backed up. If it changes, every stored user API key becomes unreadable.

3. Set up the database

npm run db:setup

This creates the role and database named in DATABASE_URL if they don't exist yet, then runs all migrations. Creating the role and database needs a superuser connection. The script tries postgres://postgres@<host>:<port>/postgres by default; if that doesn't work, set POSTGRES_ADMIN_URL:

POSTGRES_ADMIN_URL=postgres://postgres:<password>@localhost:5432/postgres npm run db:setup

If the role and database already exist, you can run migrations alone with npm run migrate.

4. Run

npm run dev      # nodemon, restarts on changes
# or
npm start

With PORT=3000 (the default in .env.example) the server runs in plain HTTP on a single port. Open http://localhost:3000.

5. First-run checklist

1. Sign up. Without RESEND_API_KEY, the verification email is printed to the server console. Open the link from there.
2. Connect your Alpaca key in Settings and click Test key.
3. Load the stock catalog:

   npm run seed:instruments


   The instrument list is pulled from Alpaca's /v2/assets. The app has no operator key, so the sync uses a key that a user has already connected. That's why the catalog stays empty until step 2 is done. After this first run, the sync repeats automatically every day at 00:05 server time.
4. Open the dashboard, search for a symbol and add it to your watchlist.

Metrics need at least 20 daily bars. Keep a symbol open for a moment while its history is fetched and cached.

Configuration

All configuration is read from environment variables (.env is loaded with dotenv).

Server and TLS

Deployment

For production, unset PORT so the server starts in HTTPS mode:

• HTTPS on HTTPS_PORT (default 443), plus a plain-HTTP listener on HTTP_PORT (default 80) that 301-redirects to HTTPS.
• Certificates come from TLS_CERT/TLS_KEY if set. Otherwise the server uses the Let's Encrypt certificates at /etc/letsencrypt/live/$DOMAIN/. If neither exists, it generates a self-signed certificate into ./certs/ (dev only).
• Ports 80 and 443 are privileged. Run with the needed capability (e.g. setcap cap_net_bind_service), or use high ports behind a reverse proxy.
• Set NODE_ENV=production, a real APP_BASE_URL, and the Resend and Turnstile keys.

GET /healthz returns {"status":"ok","db":"ok"} when the app can reach Postgres.

The app runs as a single process. Request budgets and the scheduler state are held in memory, so don't run multiple instances against the same database.

How it works

 Alpaca (each user's key)
        │   paced by budget.service, with "live" and "alerts" lanes per key
        ▼
 cache.service ──► candles table (Postgres, shared by all users)
        │
        ├──► metrics.service   ── computed from 1D bars ─► Metrics widget
        │
        └──► alerts/scheduler  ── on each new closed bar ─► signals/engine (catalog.js)
                                                              │
                                                              ▼
                                  alerts/dispatcher ─► alert_events + notifications
                                                     ─► WebSocket push (realtime.js)
                                                     ─► email via Resend (cooldown + daily cap)

• Live lane: the focused chart polls its symbol once per second. If the budget slot is busy, the poll is served from the cache rather than queued.
• Alerts lane: every 250 ms the scheduler builds the set of (user, instrument, timeframe) combinations that have an active alert rule. It refreshes them round-robin within each key's 1/sec allowance.
• Evaluation is separate from fetching. A rule is evaluated whenever its cached series gains a new closed bar, whether that bar came from the scheduler or from someone's live chart poll.
• Dashboard widgets (public/js/dashboard/modules/*.js) register themselves with registerWidget({ id, title, defaultSize, mount }). Each one subscribes to bus topics such as symbol:changed instead of fetching data directly.

Signal catalog

Deterministic (27): crossovers, thresholds, breakouts, candle patterns

Group	Signals
Moving averages	Golden cross, death cross, price/SMA cross
MACD	Signal-line cross, zero-line cross
RSI	Overbought/oversold, 50-midline cross
Bands and channels	Bollinger band touch/break, Bollinger squeeze release, Donchian breakout
Trend systems	Parabolic SAR flip, Supertrend flip, Ichimoku Tenkan/Kijun cross, Ichimoku cloud breakout, ADX/DMI ±DI cross
Oscillators	CCI ±100 cross, ROC zero cross, Awesome Oscillator zero cross
Volume	Volume spike, OBV breakout, Chaikin Money Flow sign flip, MFI overbought/oversold, VWAP cross
Price action	52-week high/low break, gap up/down, bullish engulfing, bearish engulfing

Stochastic (13): oscillator family and statistical/stochastic-process models

Group	Signals
Stochastic oscillators	%K/%D cross, overbought/oversold, Stochastic RSI cross, Williams %R cross
Mean reversion	Z-score extreme, mean-reversion regime (Ornstein-Uhlenbeck half-life)
Regimes	Hurst exponent regime shift, volatility regime expansion, ATR spike, ADF stationarity flip
Models	Kalman filter trend flip, Monte Carlo touch probability (GBM), correlation breakdown vs SPY

Signals are defined in src/services/signals/catalog.js. The alert-rule UI is generated from each signal's parameter schema, so adding a signal is a single catalog entry.

Metrics

All metrics are computed on the daily series, whatever timeframe the chart is showing:

• Price and returns: last price, day change, 1W/1M/3M/6M/YTD/1Y returns, CAGR, gap %
• Volatility and risk: realized volatility (20d/60d), Parkinson and Garman-Klass volatility, ATR and ATR%, max and current drawdown, downside deviation, historical VaR(95), beta and correlation vs SPY
• Risk-adjusted: Sharpe, Sortino, Calmar
• Trend and momentum: RSI(14), Stochastic %K/%D, MACD histogram, ADX, distance from 52-week high/low, % vs SMA50/SMA200, SMA200 slope
• Volume and liquidity: 20-day average volume, relative volume, dollar volume, VWAP deviation
• Statistical: 20d/60d z-score, skewness, kurtosis, Hurst exponent, OU half-life, lag-1 autocorrelation

Project structure

src/
  server.js              entrypoint: HTTP/HTTPS, WebSocket, schedulers
  app.js                 Express wiring (helmet CSP, sessions, rate limits, routes)
  realtime.js            WebSocket hub (topic subscriptions, session-cookie auth)
  config/env.js          environment loading and validation
  db/                    pool, migration runner, migrations/*.sql, repositories/
  routes/                auth, dashboard, and /api/* (symbols, candles, metrics,
                         signals, alerts, orderbook, settings)
  services/
    marketdata/          Alpaca adapter, candle cache, budgeter, BYOK keys, instrument sync
    indicators/          pure indicator and statistics functions (unit-tested)
    signals/             signal catalog and evaluation engine
    alerts/              poll scheduler and notification dispatcher
  views/                 EJS templates
public/
  js/dashboard/          grid, data bus, widget registry, modules/*
  css/, vendor/
scripts/                 setup-db.js, seed-instruments.js
test/                    indicator and signal tests (node:test)

Scripts

Testing

npm test

The tests use Node's built-in node:test runner and need no database or network. They check the indicator library against known values and edge cases (e.g. a flat price series, near-zero standard deviation) and fire representative signals on synthetic candle series.

Disclaimer

stochastic is a charting and analysis tool, not investment advice. Signals are mechanical pattern detections on market data that may be delayed, incomplete or wrong. Alpaca's free tier serves the IEX feed, which covers only part of total US market volume. Use it at your own risk.

License

MIT © maelswarm

The vendored TradingView Lightweight Charts™ library in public/vendor/ is licensed separately under the Apache License 2.0. Its license header is kept in the file.
