PerspectiveGraph

Catch the attack path in the pull request that opens it - then ship the fix as a PR.

On every pull request, PerspectiveGraph (open source, Apache 2.0) answers one question against a graph of your real environment - built from the scanners you already run (Trivy, Semgrep, Cloud Custodian, Falco):

Does this change open a path from the internet, through excessive privilege, to something valuable?

When it does, the PR check goes red - a required status you can block the merge on - and you get the fix as its own one-click pull request. The reachable attack path is caught and closed in code review, where it's cheapest, not months later in production. This is shift-left attack-path analysis: not a scanner bolted onto CI, not a runtime CNAPP you log into after the fact - the reachability question, answered in the developer's workflow.

That gate is powered by a full attack-path correlation engine, so the same graph also gives you the rest: a queryable dashboard of your ~5 critical attack paths (not 10,000 flat findings), triage, runtime confirmation, an AI summary, and always-current architecture maps. But the wedge is the pull request.

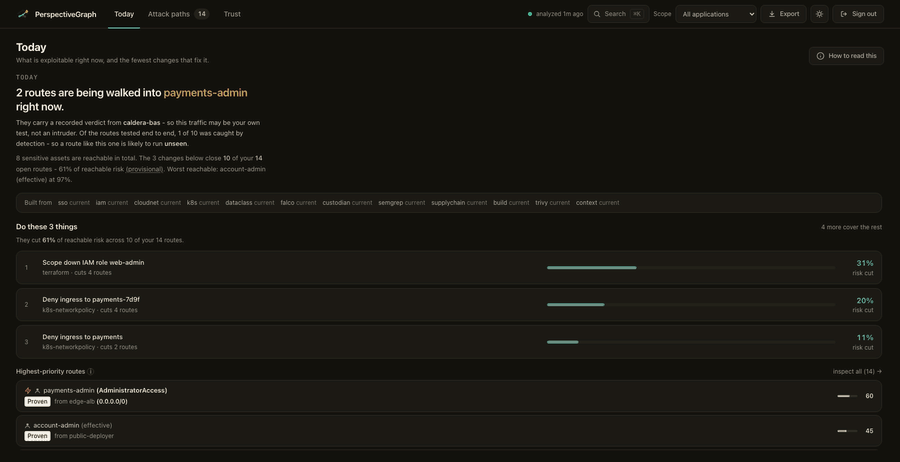

Twelve seconds of make demo, signed in: what is exploitable now → the ranked routes → one route's kill chain and the fix it generates → whether the scores can be trusted. Sample scanner output and seeded verdicts, not a real environment.

Try it without installing anything: demo.a3thinker.it. The same dashboard on the same sample scanner output, published read-only - every route, kill chain, graph and generated fix is there to explore, and nothing can be changed. It carries no seeded verdicts, so its Trust page reports insufficient data: with no recorded outcomes, that is the honest answer. It runs on a single free VM, so treat it as best-effort: the badge above says whether it is up.

What this has not done yet

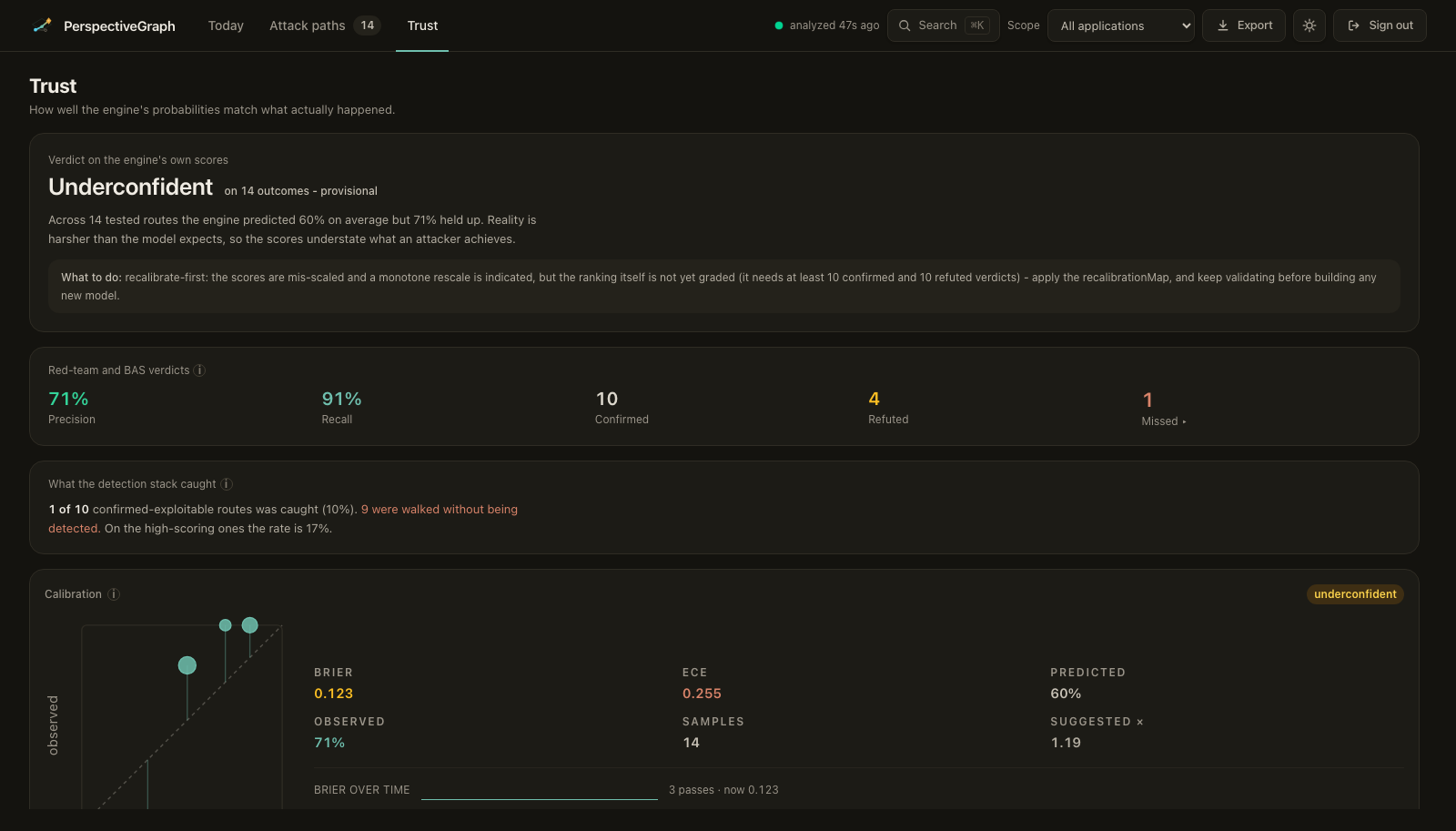

The engine reports probabilities, credible intervals and its own calibration - Brier score, ECE, a reliability diagram. None of that has been calibrated against field data. Nobody has yet run it over a real estate, tested the paths it surfaced, and fed the verdicts back. The machinery for that closed loop is built and tested; the loop has not been closed with real outcomes.

So read a score as "what this model believes, and how sure it says it is", not as a measured frequency. A path at 0.7 has not been shown to be exploited seven times in ten - it has been shown to be what the model concludes from the evidence it was given, and the interval beside it says how thin that evidence is.

That is a statement about maturity, not about intent: the calibration harness exists precisely so that number can be earned rather than asserted, and the CloudGoat benchmark grades the path-finding itself on public, reproducible scenarios today. If you run this on a real environment and record what you find, that is the contribution that matters most.

Check your own account in 30 seconds

No deployment, no Docker, nothing ingested. One static binary asks AWS's own policy evaluator which of your roles can reach administrator - applying the service control policies, permission boundaries and condition keys that a policy reader on its own does not see:

# macOS (Apple silicon); swap darwin_arm64 for linux_amd64, linux_arm64 or darwin_amd64
curl -sSL https://github.com/luiacuaniello/perspectivegraph/releases/latest/download/perspectivegraph_darwin_arm64.tar.gz | tar xz
./perspectivegraph redteam -roles -region eu-west-1

It is read-only and free: every check is one iam:SimulatePrincipalPolicy call, a dry run that evaluates policy without performing anything, so it creates nothing and costs nothing. It needs iam:SimulatePrincipalPolicy and iam:ListRoles - both inside SecurityAudit. Binaries for linux/macOS (amd64, arm64) and Windows are on the releases page, signed with cosign and carrying SLSA build provenance, both attached to the release. The signature covers SHA256SUMS, so one check covers every archive; the provenance names the workflow run that built them:

cosign verify-blob --bundle SHA256SUMS.sigstore.json \
  --certificate-identity-regexp 'https://github.com/luiacuaniello/perspectivegraph/.*' \
  --certificate-oidc-issuer https://token.actions.githubusercontent.com \
  SHA256SUMS && sha256sum -c SHA256SUMS --ignore-missing

cosign verify-blob-attestation --bundle perspectivegraph.intoto.jsonl --new-bundle-format \
  --type https://slsa.dev/provenance/v1 \
  --certificate-identity-regexp 'https://github.com/luiacuaniello/perspectivegraph/.*' \
  --certificate-oidc-issuer https://token.actions.githubusercontent.com \
  perspectivegraph_darwin_arm64.tar.gz

Releases before these files existed carry the same signature as SHA256SUMS.bundle, which every release still publishes.

Add -compare and it also runs the engine over the same account and exits non-zero where the two disagree - each disagreement is a false positive or a miss, in the engine or in your assumptions. That check is how the permission-boundary bug described in the manual was found, and how it stays closed.

That command is also stage 0 of a fuller trial: how to evaluate this walks from here to a verdict in stages that each end in an answer - and says what the trial will not tell you before you spend a fortnight finding out.

See the whole engine in 90 seconds

make demo

Pulls the published, cosign-signed images, feeds them sample Trivy / Semgrep / Custodian / Falco / Kubernetes / IAM / SSO output, waits for the analyzer, and prints the top attack path with its generated fix. Dashboard on http://localhost:3000. Needs Docker, jq and curl - no Go or Node toolchain, and nothing is compiled: measured at 23 seconds from an empty image cache. Tear down with make down.

Building it yourself instead is make demo-build, which is the same demo from your working tree. The images the fast path runs are the release artefacts, so you can check what you are about to run before you run it - the cosign verify command is at the top of docker-compose.demo.yml.

Prefer not to build? The release images are published to GHCR (latest also tracks the newest release; the pinned tag is the one to use if you care about reproducibility):

docker pull ghcr.io/luiacuaniello/perspectivegraph:v1.16.1 # x-release-please-version
docker pull ghcr.io/luiacuaniello/perspectivegraph-dashboard:v1.16.1 # x-release-please-version
docker pull ghcr.io/luiacuaniello/perspectivegraph-postgres:v1.16.1 # x-release-please-version

On Kubernetes, the Helm chart is published the same way - no clone needed, and a version you can pin and verify. It is listed on Artifact Hub as an official package from a verified publisher, which is Artifact Hub's way of saying the chart is published by the people who wrote the software rather than by a third party repackaging it:

helm install perspectivegraph oci://ghcr.io/luiacuaniello/charts/perspectivegraph \
  --version 1.16.1 # x-release-please-version

They are signed with cosign keyless and carry an SPDX SBOM plus a SLSA build provenance attestation - verify before you run, rather than taking the supply chain on trust:

cosign verify \
  --certificate-identity-regexp 'https://github.com/luiacuaniello/perspectivegraph/.*' \
  --certificate-oidc-issuer https://token.actions.githubusercontent.com \
  ghcr.io/luiacuaniello/perspectivegraph:v1.16.1 # x-release-please-version

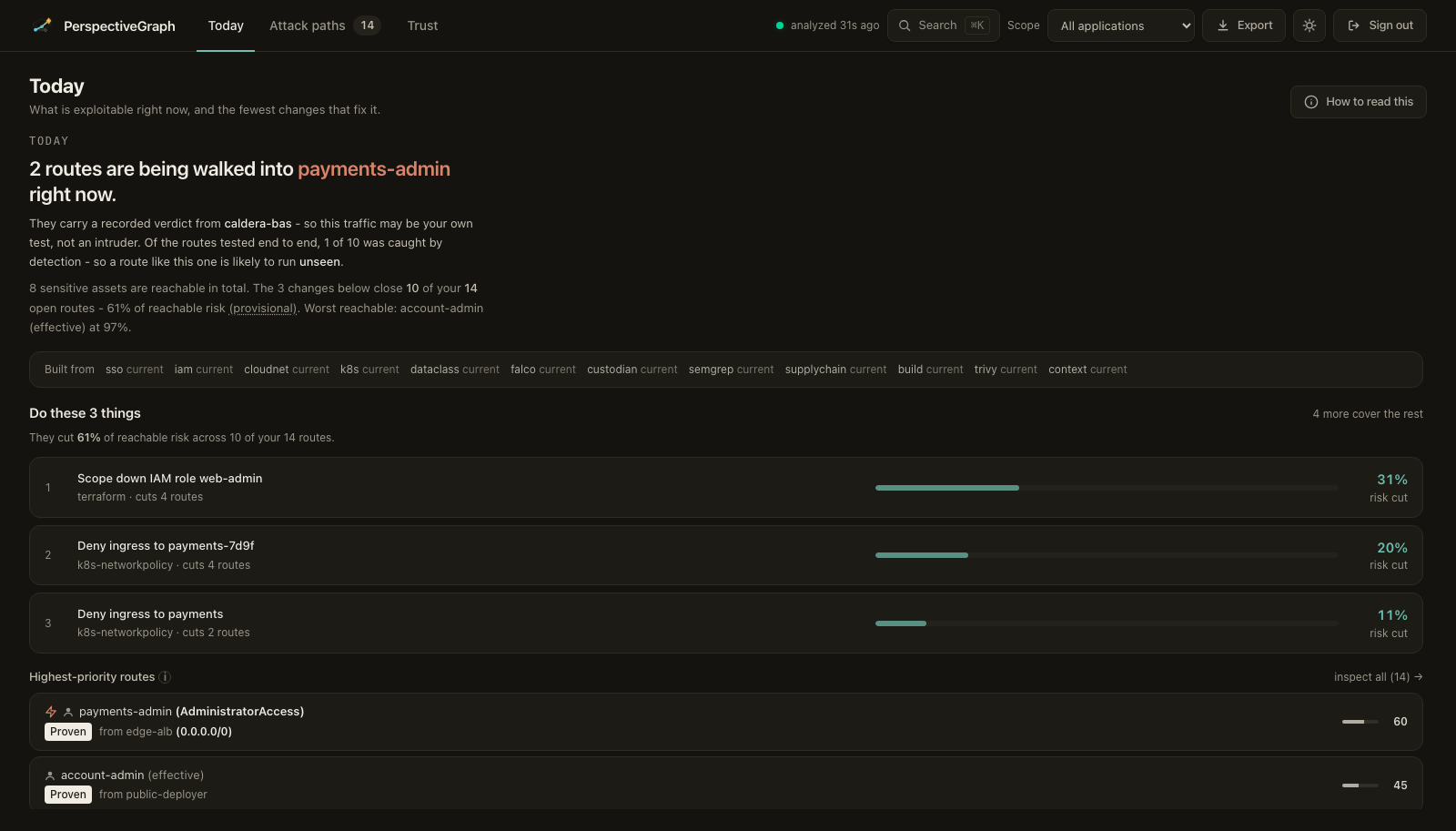

The dashboard opens on the decision, not the inventory: what is being exploited right now, the fewest changes that remove the most risk, and how much the numbers can be trusted.

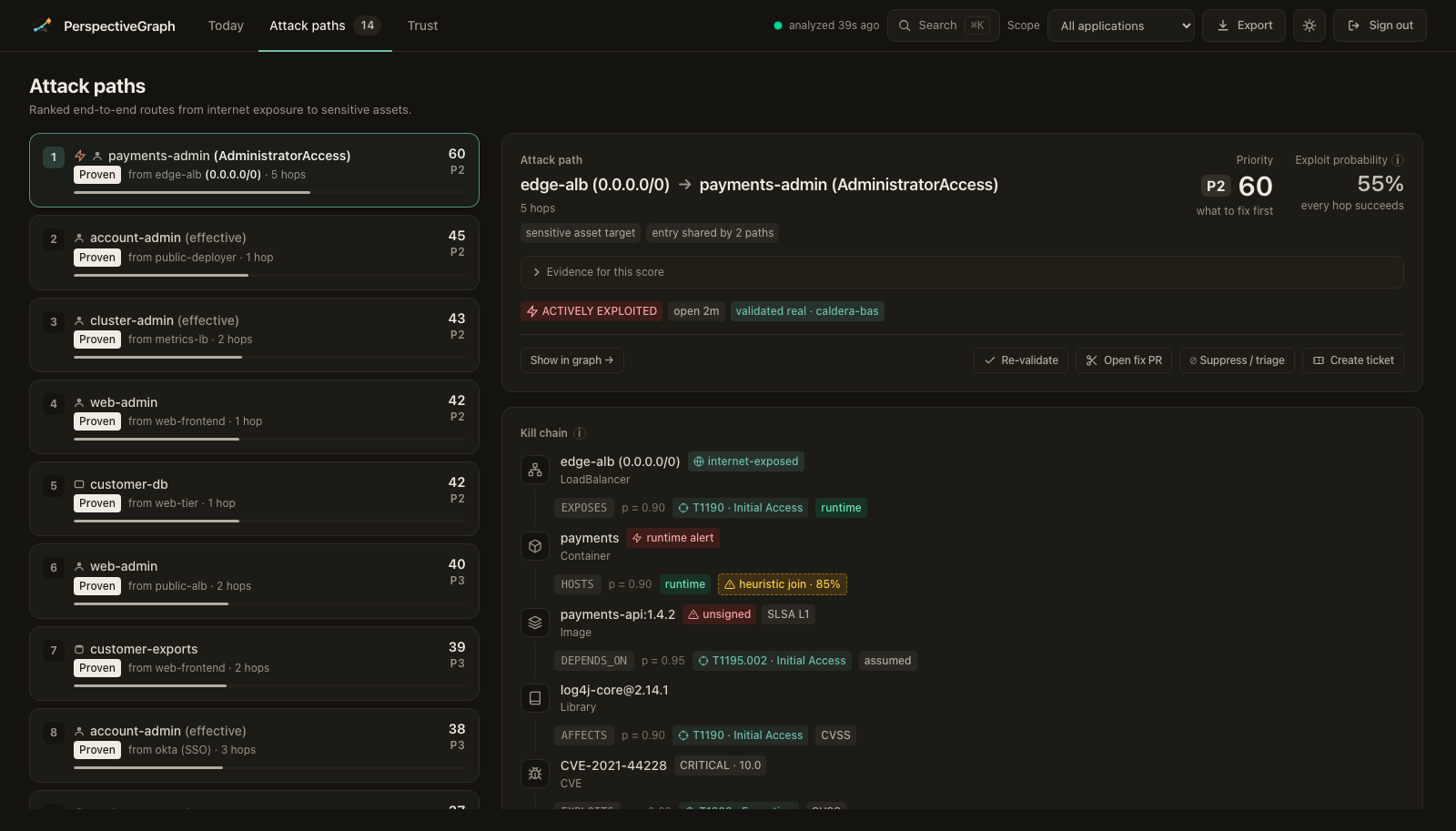

Routes are ranked by a composite triage priority - what the route reaches, whether runtime confirmed it, how exposed the entry is - not by raw exploit score, so a lower-scoring route can and does outrank a higher-scoring one.

Every screenshot on this page is make demo, signed in with a token: sample scanner output and seeded verdicts, not a real environment. That is why the calibration panel returns a verdict of "underconfident" - across 14 seeded outcomes the engine predicted 60% where 71% held up. Those outcomes were generated to exercise the instrument, not to flatter it. On a fresh install the same page reads "insufficient data" and withholds a verdict until real outcomes exist, because a risk score you cannot check is worth less than an honest blank.

Why?

Modern security teams don't suffer from a lack of tools - they suffer from noise, fragmentation, and missing context.

Block the pull request that opens the path

No deployment required. The runner reads your estate read-only, ingests this pull request's scan, and answers in-process with the same engine:

- uses: luiacuaniello/perspectivegraph@v1
  with:
    mode: local
    aws-region: eu-west-1     # read-only; give the job an OIDC role with SecurityAudit
    report: trivy.json

An estate is not optional, and that is the point: without one there are no attack paths, only a flat list of findings - the thing this replaces. If you collect your estate on its own schedule, pass estate: estate.json (what perspectivegraph awscollect -json writes) instead of aws-region.

Already running the engine? Point at it and it keeps the graph across pull requests, plus triage, history and the dashboard:

- uses: luiacuaniello/perspectivegraph@v1
  with:
    api: https://perspectivegraph.internal
    ingest: https://perspectivegraph.internal:8081
    report: trivy.json
    hmac-secret: ${{ secrets.PG_INGEST_HMAC }}

Both modes run the same normalizer, the same pathfinder and the same triage priority, and return the same verdict - a test asserts they agree path-for-path on identical input.

The check goes red when this commit puts a sensitive asset within reach. Not when it adds a critical CVE - a critical on a host nothing routes to does not fail the build, and a medium on a container that now reaches the production database does. That is a different question from the one your other scanners answer, and answering it needs a live estate, which is why the action talks to a running engine instead of scanning the runner.

It has three outcomes, and the third is the point. Every two-state gate ever written gives a pipeline whose scanner output never arrived the same green tick as one that is genuinely clean. Here that is unknown, and it fails the build by default:

Set allow-unknown: true while you roll the gate out. Leaving it on afterwards turns a broken ingest back into a green check, which is the one thing this gate is for.

The same thing without GitHub Actions - the action is a thin wrapper over one command:

perspectivegraph gate -local -aws-region eu-west-1 \
  -report trivy.json -slug owner/name -sha "$COMMIT_SHA"

Two things to settle before wiring it up.

Fork pull requests. The gate needs secrets, and GitHub gives a fork's pull_request run none - so a fork PR cannot be analysed and fails closed as unknown. Do not reach for pull_request_target to work around it: that event runs with your secrets against the contributor's code, and in local mode your secrets are cloud credentials. Run the gate on push to your own branches instead, and let fork PRs go without it.

Public repositories. When it blocks, the check prints the route - real asset names, the CVE linking them, the sensitive asset at the end - into the job log and summary, which on a public repository are public. Use soft-fail and post the detail somewhere private, or keep the gate on a private repository.

Full input reference in action.yml; the underlying query is prVerdict in the API schema.

Let an agent query it

A language model is weak at exactly what this engine is good at: it cannot enumerate fourteen thousand edges reliably, it does not run Dijkstra, and asked for "the attack paths in my account" it will produce plausible routes that do not exist. So the engine speaks MCP - an agent calls it and reasons over answers it could not have invented.

make mcp    # or: perspectivegraph mcp --api http://localhost:8080

No engine running? Point it at the live demo instead: perspectivegraph mcp --api https://demo.a3thinker.it answers every tool - simulate_fix included - from the sample data, with no credential.

{"mcpServers": {"perspectivegraph": {
  "command": "perspectivegraph",
  "args": ["mcp", "--api", "http://localhost:8080"]}}}

Eight tools: get_posture, list_attack_paths, explain_attack_path, routes_to_target, list_fixes, simulate_fix, search_assets, get_score_trust. The one worth the integration is simulate_fix - it re-runs the whole simulation with the given edges cut and reports what actually changes, settling "would this help" with a deterministic counterfactual instead of an argument.

The surface is read-only: nothing suppresses a path, opens a PR or records a verdict, because an agent that can silently accept a risk is a liability rather than a feature. Every tool declares that on the wire (readOnlyHint), so a host can decide what to run unattended without taking this paragraph's word for it - and a test fails if a tool is ever added without that decision. The descriptions also tell the model the scores are expert estimates, and to call get_score_trust before quoting one as a probability. Every tool is also run against the real engine in the test suite, not only a stub, so a query naming a field the schema lacks fails the build instead of an agent's call. search_assets asks the engine whether full-text search is on: without OpenSearch an agent is told so, instead of receiving an empty result that reads as "no asset by that name".

The server is in the official MCP Registry as io.github.luiacuaniello/perspectivegraph, published from every stable release, and on Glama, which builds it, inspects the tools it exposes and grades their definitions - a grade of the MCP surface, not of the engine's scores:

Project status & maturity

The short version, if you read nothing else. The engine and its public API are complete, documented and tested. The AWS connector is verified against a real account. The path scores are not calibrated against real exploited outcomes yet, and the order they produce has not been graded against them either - the instruments for both exist, the field verdicts do not. What is measured today is whether a surfaced path is real (the benchmark below). So: use it to find and cut routes, and don't put its risk percentage in front of a board. What is and isn't claimed is spelled out in positioning. It collects no telemetry: out of the box it opens no outbound connection at all - GitHub, the AI assistant and the KEV/EPSS feeds each stay dark until you set a key or flag (THREATINTEL is off by default).

The benchmark, as of v1.16.1. make bench-cloudgoat runs four CloudGoat-shaped scenarios in CI and grades the engine on each:

Precision and recall are 1.00 on all four. Read that for what it is: four scenarios, two of them negative controls - a regression gate against known shapes, not a measurement of field accuracy on your estate.

The long version follows. PerspectiveGraph is 1.x and in active development, built in the open. The GraphQL schema is frozen and drift-guarded and the CLI/config surface is documented, so a breaking change goes through a major version rather than arriving in a patch - see the API stability policy. What's next is in the roadmap; read this before you rely on it:

• Engine: feature-complete. The correlation engine, agentless connectors, triage, SSO, the PR merge-gate, the AI assistant, and the scale work are all implemented and covered by tests. The public API contract (GraphQL, ingest events, config, CLI) is documented and the GraphQL schema is frozen + drift-guarded - see the API stability policy.

• Connector: validated against a real AWS account; scores: not yet field-calibrated. The live connector, its read-only grant (SecurityAudit covers every call), cross-account AssumeRole, and the network↔identity join (instance --ASSUMES--> role) are verified against a real account - that last edge was in fact a gap only real-account testing exposed (the fixtures already contained edges AWS makes you derive). The reachability-precision claim is verified there too: make reachability-lab-aws stands up two instances behind the same wide-open security group, one in a subnet routed to an internet gateway and one in a subnet with no default route, and the engine marks only the first as exposed - suppressing the second with the reason, on real AWS rather than fixtures. What is not yet done is calibrating the path scores against real exploited outcomes: the self-calibration flywheel has run end-to-end only on deliberately-vulnerable synthetic targets (a log4shell app, a kind RBAC scenario). Treat the scores as directionally honest, not production-calibrated. One half of that gap is now closed against real AWS for free: make redteam-aws grades the engine's privilege-escalation claims with AWS's own policy evaluator - a read-only dry run that creates nothing and applies the SCPs and condition keys the engine's policy reader skips. That grading has already paid for itself: make boundary-lab-aws stands up two roles with an identical privesc policy that differ only in a permissions boundary, and it caught the engine calling both escalating where AWS allowed one and denied the other. That false positive is now fixed - the connector carries the boundary through and the evaluator intersects it - and the lab is the regression test, running the engine and AWS side by side on a real account and failing if they disagree. It deliberately does not rescale the path scores, and the manual explains why it cannot: those verdicts are one-sided, and a censored sample is not a measurement. The make validate-aws, make validate-harness-aws, and make validate-harness* harnesses are the path to closing that on your own environment. For an offline, CI-gated check that the engine actually finds the right paths, make bench-cloudgoat grades it against a battery of CloudGoat-shaped ground-truth scenarios (precision/recall) - including the reachability-precision case (an open SG on a private-subnet box must not form a path) and the credential-origin case (a leaked-key privesc is invisible until SEED_IAM_USERS is on). It runs under make test, so a regression that loses or invents a path fails the build.

• Deployment: demo-grade defaults, with a production switch. The backend is hardened wherever it runs (distroless, non-root, read-only rootfs, all capabilities dropped, digest-pinned 0-CVE images, opt-in TLS). Under docker compose the bundled dependencies - the dashboard's nginx, NATS, the demo Postgres - run as their images ship, because the demo has to stay one command. Under Helm every workload, init containers included, satisfies the restricted Pod Security Standard, asserted in CI on both value sets, so a namespace that enforces it admits the chart unmodified. The demo defaults are otherwise deliberately open. Set PG_ENV=production and the backend refuses to start unless both the API and ingest are authenticated - the permissive default cannot be reached by forgetting to configure it. A production rollout still needs your own hardening beyond that: an external PostgreSQL+AGE - managed only on Azure, self-managed on AWS and GCP, because neither offers the AGE extension (the matrix) - secrets in a manager (not env vars), TLS on by default, backups, and HA for the leader-gated scheduler. If you terminate at a reverse proxy or ingress, set TRUSTED_PROXY_CIDRS to it: per-IP controls (rate limit, brute-force lockout, the address in the audit trail) otherwise key on the connecting peer - correct and unspoofable, but behind a proxy that is one key for everybody, so one attacker's failed logins lock out every user. X-Forwarded-For is believed only from the proxies named there, and only the hops they added. For people use OIDC, so revoking access is your IdP's job rather than a token rotation - see the operations & hardening runbook, SECURITY.md, and the threat model.

• Support: the newest release, and nothing behind it. There are no backports and no LTS branch - at six minor releases in the eight days after 1.0, a maintenance branch would be a promise one maintainer breaks. What is promised instead is a clock on security fixes (Critical 7 days, High 30, from confirmation) and an upgrade specified rather than hoped for: semver over an enumerated stable surface, a drift-guarded schema, no migration step, and rollback by redeploying the previous digest. SUPPORT.md is the policy, including how to run this where change control applies.

• Scope. It answers the reachable attack-path question in the developer workflow. It is not a scanner, a CNAPP, or a compliance product, and it does not replace them.

• How it is written. Developed by a human working with Claude (Anthropic): the design decisions and what ships are the maintainer's, a large share of the implementation and its tests came out of that collaboration. Said plainly for the same reason the engine reports its own calibration - a claim you can check beats one you have to accept. Check it: make test, make bench-cloudgoat, govulncheck ./..., gosec ./.... See CONTRIBUTING.

Issues and PRs are welcome. Nothing here is claimed beyond what the tests and the listed validation cover.

Documentation

The manual is the full reference: the scoring model, every integration, deployment, hardening and the runbook for pointing it at your own environment.

• Evaluation - trying it on your own estate, in stages that each end in an answer
• Manual - architecture, scoring, quick start, deploy, operate
• Positioning - what is claimed, what is not, and how to check
• Support - which versions get fixes, how fast, and how to run this under change control
• Upgrading - the releases that need an action from you, and what it is
• Roadmap - what's next, and what it deliberately isn't becoming
• Threat model · Operations · API stability · Scale
• Governance · Maintainers · Adopters - who decides, who maintains, who runs it
• Attack-path benchmark - the CI-gated precision/recall battery

Verify the claims rather than taking them: make test, make bench-cloudgoat (precision/recall against known-vulnerable scenarios), govulncheck ./....

License

Apache License 2.0.
