Ito: natural-sounding streaming text-to-speech for a $5 chip

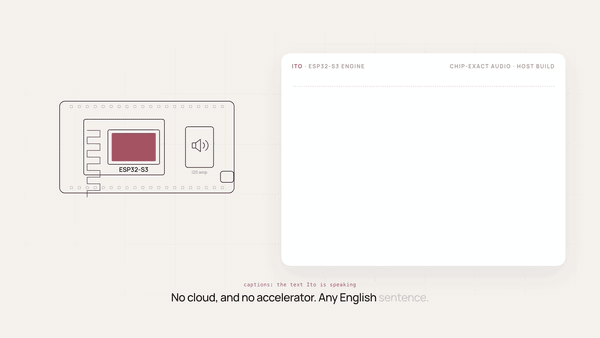

Click the animation to watch the 50-second video with sound (the GIF is silent). Every voice in it is Ito's own output from the chip engine.

Ito is English text-to-speech that runs entirely on an ESP32-S3 (240 MHz dual-core Xtensa LX7, 8 MB PSRAM, 16 MB flash), with no cloud and no neural accelerator. It streams: audio starts after a short first chunk (25 ms) is ready, and the work before it does not grow with the sentence length. The voice is distilled from a large open TTS model into 4.4 M parameters. Built by Lokutor, the makers of Oído (speech recognition on the same chip).

Status (2 October 2026). The on-chip engine is verified on a laptop and in Espressif's QEMU emulator: the firmware's audio is bit-identical to the host build of the engine, and every sample in samples/ is that engine's exact output. Nothing has run on a physical board yet. Time to first audio and real-time factor are estimated from exact instruction counts (QEMU) and an assumed PSRAM bandwidth. Real-time playback is not established: in the central estimate the board is slightly slower than real time. An earlier version of this page claimed 130–210 ms and real time at 0.5–1 GOPS; that was too optimistic (see esp32/README.md §4). The firmware measures the real numbers at boot; we will publish them here after we run it on boards.

Licensing in one line. The code is GPLv3; the voice model that makes it talk is non-commercial (CC BY-NC-SA 4.0 + terms). Hobby, research and education use is welcome. For anything commercial, or if you are a small team that wants to build with it, talk to us: we like collaborating.

Hear it: samples next to sanoTTS and the teacher, with a blind mode · Watch: the 50 s video, with sound · Weights: lokutor-ai/ito

Listen

Ito's chip output for eight sentences it never saw in training, rendered by the host build of the on-chip engine with the chip's exact arithmetic:

The float-model clips used in the listening test (sentences 01, 03, 04 and 06 were rated), next to the teacher's, are in results/blind9/audio/.

Listening tests

Blind test #9 (2 October 2026). There were 24 clips in random order with the system names hidden, rated 1–5 for naturalness. Each system read the same four new conversational sentences (a question, a long sentence, hard words, and a question with hard words).

Please read these numbers with their limits:

• There was one listener, an expert (Lokutor's founder), and four sentences per system. This is a strong direction, not a statistically powered MOS study. With n = 4, differences under about half a point are noise.
• The rated Ito clips are the float PyTorch model, through the same streaming path as the chip. They used a small optional text-to-style predictor. The shipped chip uses a fixed mean style instead, so that the time to first audio does not grow with sentence length. In a paired comparison on held-out sentences, the predictor changed the log-mel distance to the reference by only −0.009. The quantised engine scores PESQ 4.52 against the float model. The exact chip configuration has not been rated in a blind test yet.
• All clips were trimmed and loudness-normalised to −20 LUFS at 24 kHz. Ratings, key, sentences and automatic metrics are in results/blind9/.

Earlier, blind test #8 (one listener, four held-out sentences) compared two earlier Ito variants with the teacher. The scores were teacher 4.00, variant A 3.25, variant B 3.00. In #6 and #7 the gap to the teacher had been 2.25 to 2.5 points, and in #9 it is 0.75. Details are in results/blind8/.

Automatic metrics on the eight sentences above (UTMOS; Whisper word error rate after number normalisation):

UTMOS cannot hear intonation, so treat it as a check, not a verdict. On 60 held-out sentences, Ito's pitch range is 0.94 of the teacher's: the per-utterance spread of log-F0 relative to the teacher.

Benchmark against other small and embedded TTS systems: see bench/ (being merged). Prior art: see docs/prior_art.md (being merged).

Size and compute

The open question is the effective PSRAM bandwidth and how much of it overlaps compute (GDMA). The identified fixes if it is too slow are working GDMA overlap, a leaner scratch so 16-frame chunks fit (half the weight traffic), and fewer float operations. The firmware's boot benchmark measures the real numbers and prints BOARD_SUMMARY. The estimate model and full tables are in esp32/README.md.

How it works

 text ─► espeak-ng phonemes (on the host) ─► token ids ─────────────────────────────────────── over serial to the chip
                                                 │
   ┌──────────────────────── acoustic front (1.62 M) ────────────────────────┐   ┌────────── vocoder (2.79 M) ─────────┐
   │ embedding ─► 3 conv layers ─► forward GRU ─► duration head (FiLM style) │   │ [log-mel | log-F0 | voiced]          │
   │      ─► length regulation (80 frames/s)                                 │   │  ─► 7-tap conv + harmonic F0 source  │
   │      ─► prosody net: log-F0, voicing, energy                            │──►│  ─► 5 ConvNeXt blocks                │──► 24 kHz
   │      ─► mel head: 100-bin log-mel                                       │   │  ─► magnitude + phase ─► iSTFT       │    audio
   └─────────────────────────────────────────────────────────────────────────┘   └──────────────────────────────────────┘

• Distillation. Ito learned its voice from a large open model, StyleTTS 2, speaking in the voice of a LibriTTS-R reader. The small student predicts durations, pitch, energy and a mel spectrogram from phonemes.
• Separate front and vocoder. The acoustic front predicts the mel spectrogram. A Vocos-style ConvNeXt + iSTFT vocoder with a harmonic F0 source turns it into audio.
• Streaming by construction. The GRU runs forward only, so the text side runs incrementally. Everything at frame rate is a convolution with a bounded right context: 23 frames in total, including the iSTFT overlap-add. This is lookahead over features derived from the text, which is already known, so it adds no audio latency. Each 100 ms chunk is computed from ring buffers. The streamed output is bit-identical to whole-utterance output on the chip, and equal to float precision (about 120 dB) in PyTorch.
• The engine (esp32/engine) is new portable C99 code. It uses int8 and int16 GEMMs on the S3's vector unit through esp-nn, per-row activation scales (so streaming stays bit-exact), its own transcendental functions built from basic arithmetic (bit-identical on host and chip), and a mixed-radix FFT. It reads weights from PSRAM with tiled staging and can use both cores.

Training code and recipe are not public; contact us for research collaborations (contact@lokutor.com).

Quickstart

Get access to the voice model (once). The weights are distributed through the gated Hugging Face repository lokutor-ai/ito. Open it, accept the terms (free for research, education and personal projects), then log in on your machine:

pip install -e .                 # also installs huggingface_hub
huggingface-cli login            # or: hf auth login, or export HF_TOKEN=...

Everything below downloads the weights it needs on first use. Details and offline use: models/README.md.

Python (CPU is fine). Needs Python ≥ 3.9.

ito-tts "Good morning! The coffee is ready." -o hello.wav              # female voice (default)
ito-tts --voice male "Good morning! The coffee is ready." -o hello_male.wav  # male voice

Two voices: female (LibriTTS-R speaker 4970; ito_female.pt / ito_female_esp32s3.bin) and male (LibriTTS-R speaker 5105; ito_male.pt / ito_male_esp32s3.bin). Each chip file holds one voice.

from ito import Ito
tts = Ito.load()                                   # female voice; downloads ito_female.pt on first use
tts_g = Ito.load(voice="male")                     # male voice: ito_male.pt
wav = tts.synthesize("Could you grab some quinoa on your way home?")   # float32 numpy, 24 kHz
for chunk in tts.stream("A sentence of any length."):                  # 100 ms chunks, as on the chip
    ...

--style predicted uses the optional text-to-style predictor, as in the blind test (female voice only). --stream uses the chunked path.

On a laptop, with the chip's exact arithmetic (no board):

cd esp32/host && make && make test && cd ../..      # make test fetches ito_female_esp32s3.bin into models/
python esp32/tools/chip_wav.py "Good morning! The coffee is ready." hello_chip.wav
python esp32/tools/chip_wav.py --voice male "Good morning! The coffee is ready." hello_chip_male.wav   # male voice

make test VOICE=male runs the same host test on the male voice's chip file.

On a board. You need an ESP32-S3-DevKitC-1 N16R8 and an I2S DAC or amplifier: BCLK→GPIO15, LRCK→GPIO16, DIN→GPIO17 (PCM5102A or MAX98357A).

pip install esptool pyserial
esp32/tools/fetch_weights.sh                       # ito_female_esp32s3.bin from Hugging Face into models/ (flash.sh also does it)
esp32/tools/flash.sh /dev/ttyUSB0                  # prebuilt app + female voice (ito_female_esp32s3.bin)
VOICE=male esp32/tools/flash.sh /dev/ttyUSB0       # ... or the male voice: flashes ito_male_esp32s3.bin at 0x200000
python -m serial.tools.miniterm /dev/ttyUSB0 115200   # press RST: self-test, benchmark, 3 demo sentences, READY
python esp32/tools/say.py "Hello from a five dollar chip." --port /dev/ttyUSB0

say.py turns the text into phonemes on your computer and sends token ids over serial. Please send us the boot log: it contains the first real speed measurements.

In the emulator (ESP-IDF 5.5, Espressif QEMU ≥ 9.2.2): esp32/tools/build_fw.sh && esp32/tools/qemu/run_qemu.sh.

Training

Training code and recipe are not public. Contact us for research collaborations: contact@lokutor.com.

Repository

ito/             Python package: front.py, vocoder.py, layers.py, synth.py (inference + streaming), text.py (G2P), cli.py
eval/            stream_check.py (streaming vs whole-utterance synthesis, on the CPU)
esp32/           engine/ (C99 engine), firmware/ (ESP-IDF app), host/ (host build, tests, ito_cli), tools/ (flash, say,
                 chip_wav, build, QEMU, estimates), prebuilt/ (app image, code only), README.md
models/          README.md (how to get the weights from Hugging Face), LICENSE-WEIGHTS, TERMS.md
samples/         chip-exact output for eight unseen sentences
results/         blind9/ and blind8/ (listening tests), chip/ (host tests, QEMU log, op profile, estimates)
bench/           benchmark against other small TTS systems (being merged)
docs/            prior_art.md (being merged)

Limitations

• English only, two voices (D female, G male); one voice per chip weights file.
• Speed is estimated until board measurements are published.
• The chip uses one fixed speaking style. Expressiveness comes from the text through the front, but there is no per-sentence style control.
• The pitch range is still slightly narrower than the teacher's (0.94).
• Requires an ESP32-S3 with 8 MB PSRAM (N16R8 recommended); the weights alone are 4.9 MB.
• Grapheme-to-phoneme runs on the host (espeak-ng), not on the chip.
• Ito's output is synthetic speech in the voice of a real (LibriTTS-R) speaker. Please disclose that it is synthetic (see NOTICE).

License

Ito has two parts, under two licenses:

• Code (ito/, esp32/, eval/): GNU GPL v3 (LICENSE). The GPL allows commercial use of the code. For products that cannot meet GPLv3 terms (for example, devices that do not let users install modified firmware), Lokutor offers commercial licenses: see COMMERCIAL.md.
• The voice models (female voice: ito_female.pt, ito_female_esp32s3.bin; male voice: ito_male.pt, ito_male_esp32s3.bin; distributed only through Hugging Face, and the Ito audio in samples/ and results/): CC BY-NC-SA 4.0 (models/LICENSE-WEIGHTS, legal code), plus Lokutor's terms of use. The GPL on the code does not cover the model. Any commercial use of the model needs a written license from Lokutor. That includes products, paid services, internal business use, and generating audio for commercial content. The same applies to weights that are fine-tuned, distilled, quantized or otherwise derived from Ito, and the terms of use exclude training commercial TTS models on Ito's output.
• Attributions for the teacher model and the data are in NOTICE. Ito's output is synthetic speech in the voice of a real (LibriTTS-R) speaker: please say so when you share it.

We'd love to hear from you. Lokutor is open to collaborations. We offer no-cost licenses for small companies, startups, makers selling small batches, education and research, and we also have other voices, other languages and speech recognition for the same chip. Write to contact@lokutor.com.
