Crocodile Distributed Task Scheduling System

English | 中文

Introduction

A distributed task scheduling system based on Golang that supports http requests, run golang、python、python3、shell、bat

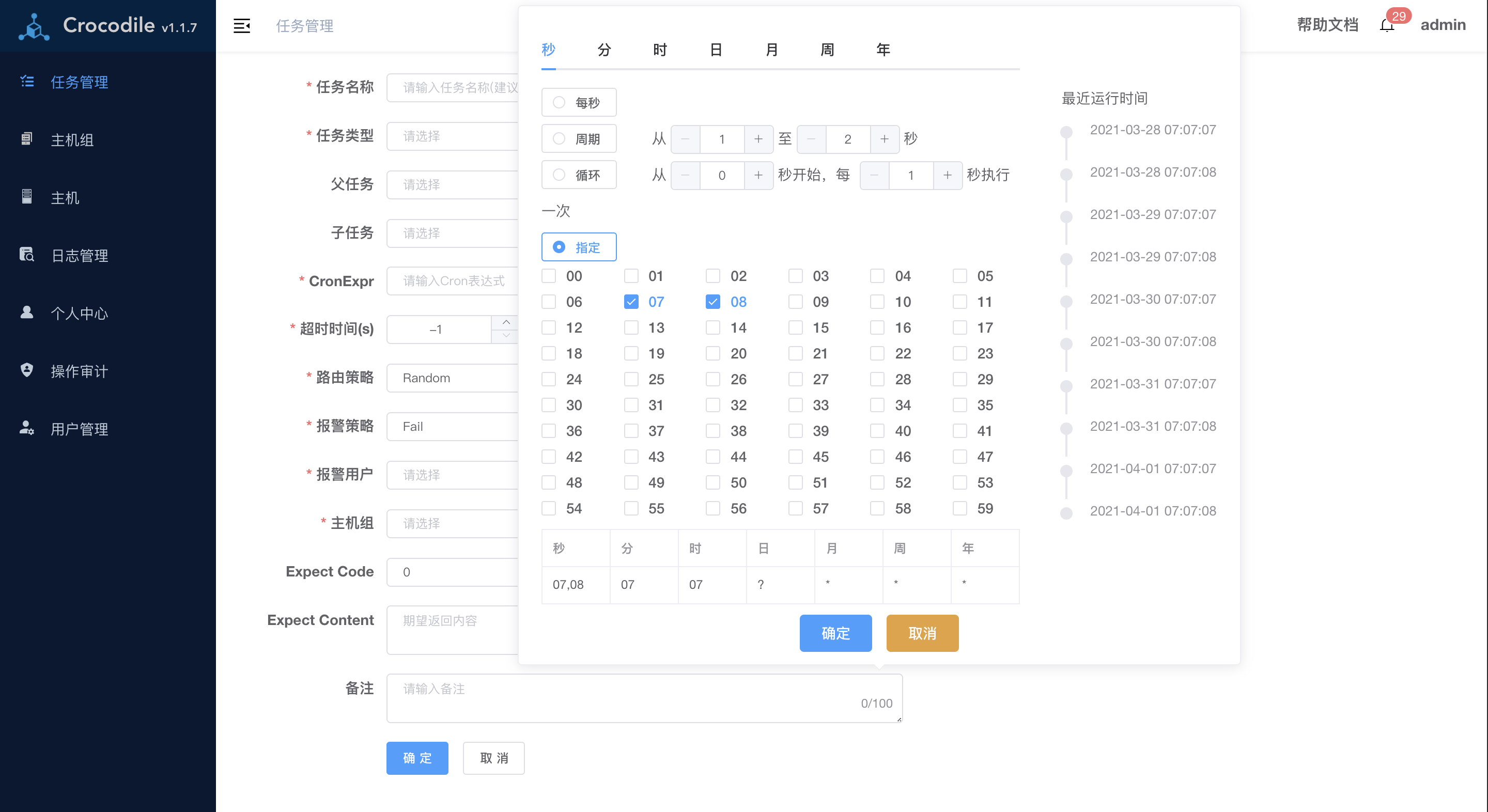

Screenshot

Click Me

                                                  +----------+
        +-------------+                           ||--------||
        ||-----------||                           ||        ||
        ||           ||                           || Worker ||
        ||   调度中心 ||                           ||         ||
        ||           ||      RPC调用(gRPC)        ||---------||
        ||-----------|| +-----------------------> ||-------- ||
        ||-----------||                           ||        ||
        ||           || <-----------------------+ || Worker ||
  +---> ||   调度中心 ||      任务实时日志            ||        ||
任 |    ||           ||                           ||--------||
务 |    ||-----------|| <------+                  ||--------||
完 |     +------------+        |                  ||        ||
成 |         ^    |            |                  || Worker ||
持 |       实|任   |            |数                ||        ||
久 |       时|务   |获          |据                 +----------+
日 |       志|状   |取          |存
志 |       日|态   |锁          |储
   |        v     v            v
   |      +-------+-+      +----+---+
   |      |         |      |        |
   +----- |  Redis  |      | MySQL  |
          |         |      |        |
          +---------+      +--------+

Features

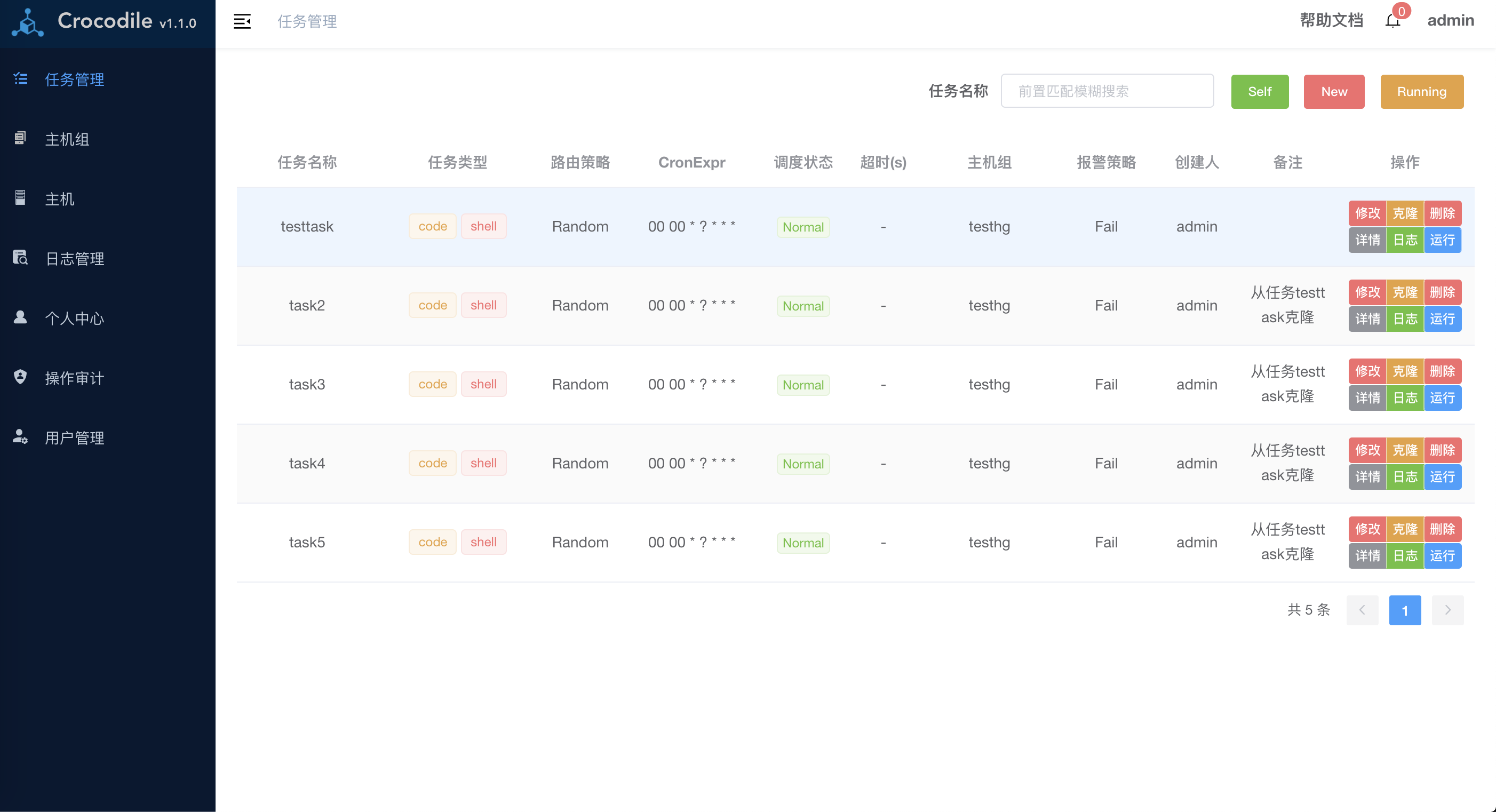

• Add, modify, delete, clone and run tasks on the web node

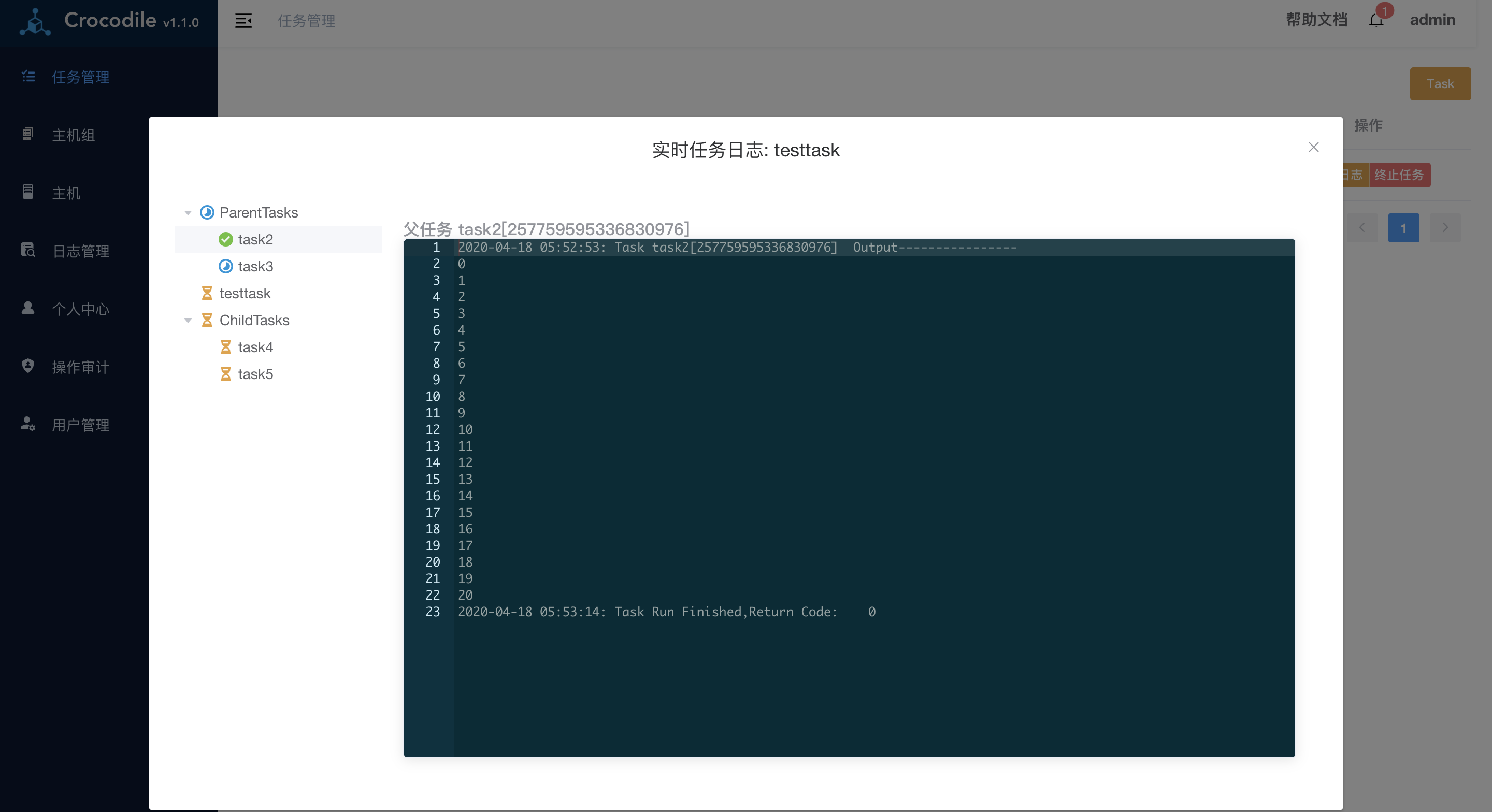

• View real-time logs of running tasks and tasks in real time, and can terminate running tasks
• Multiple task types:
      - Perform http request tasks
      - Run shell, python, golang、python3、nodejscodes (of course other languages ​​can also be supported, please provide if necessary)
• Father and child tasks:
      When the parent task or child task is set, the parent task-> main task-> subtask will be run first. If any task fails, the entire process will be interrupted immediately. You can also set the parent task or subtask Or serial run
• Scheduling Algorithm:
      Supports four scheduling algorithms: random, rotation, worker weight, minimum worker number to call Worker to run tasks,
• Custom alarm strategy:
      Can be set to alert multiple users when the task success, failure, or run is completed
      Set the return code or return content of the task to compare whether the actual return code or return content of the task is the same to determine whether the task runs successfully.

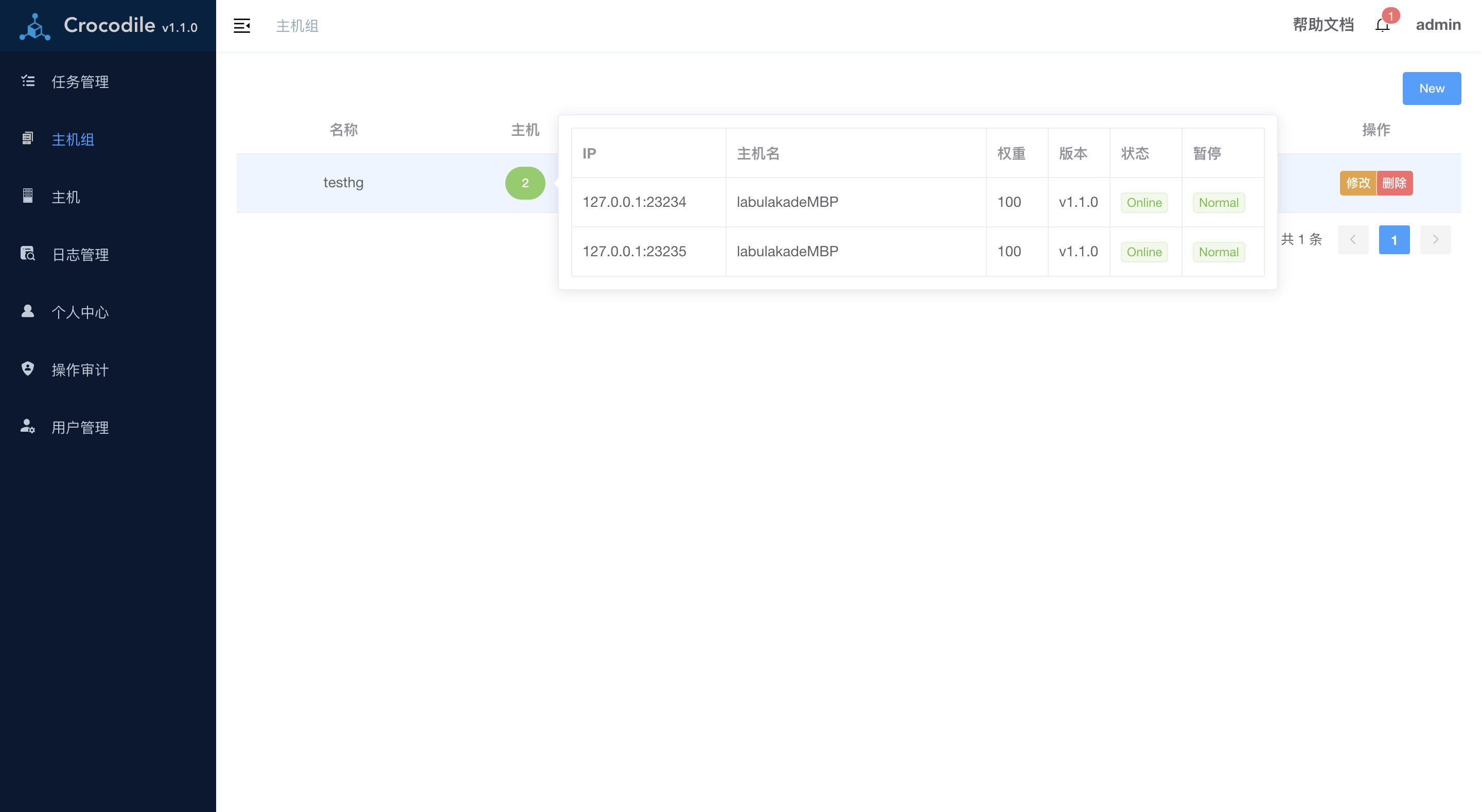

• Host group:
      A task can only be bound to any host group. The running of the task will select a task in this host group to run the task through the task's routing strategy
• Host:
      A host group can be bound to multiple hosts, the host is the node that actually runs the task, and the dispatch center automatically discovers after registration
• security strategy
      Certificate encryption encrypts communication data     Access token

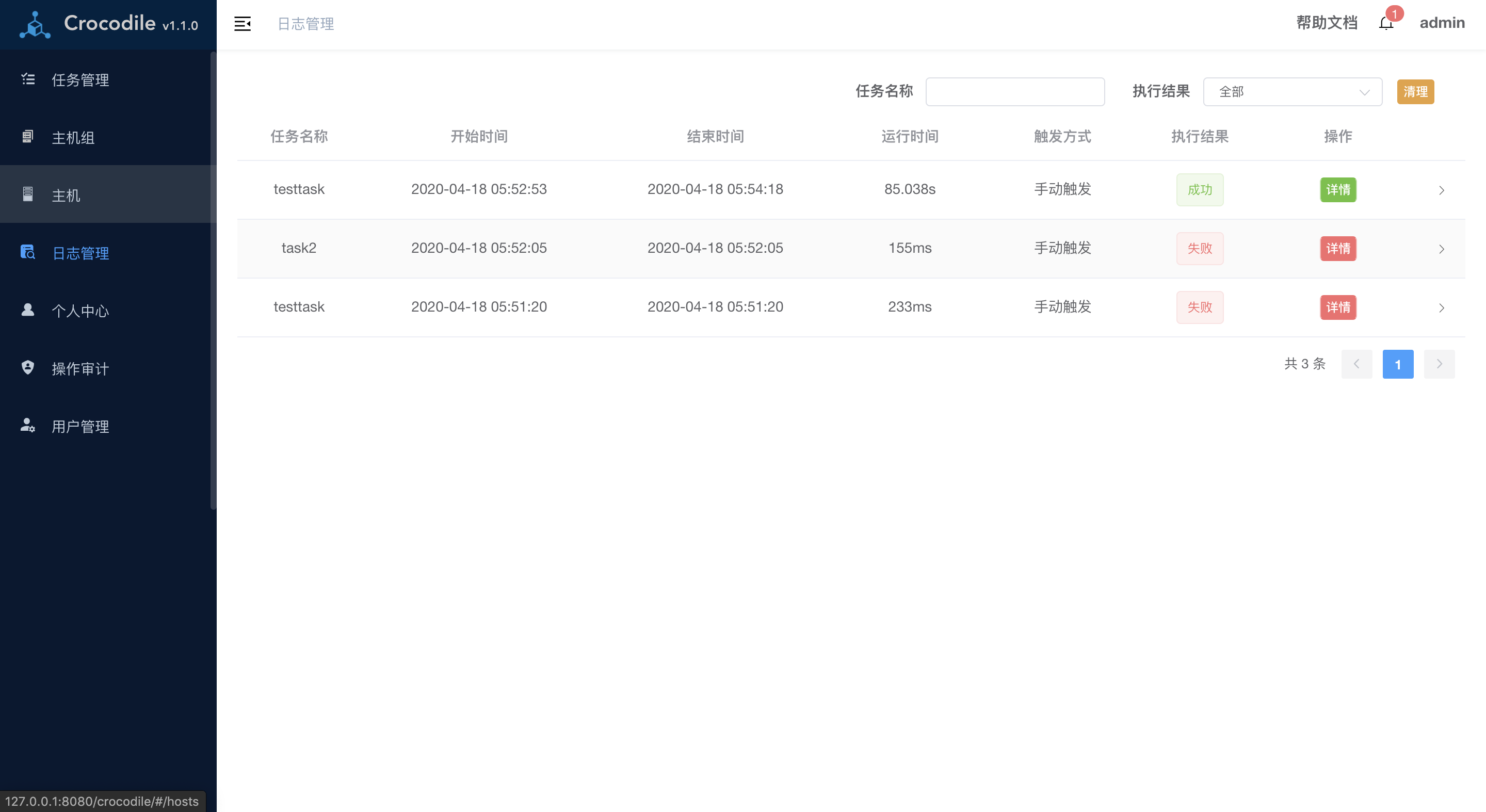

• Task log management, clean up logs
• Alarm notification support platform
  • Mail
  • WeChat
  • DingDing
  • Slack Channel
  • Telegram Bot
  • WebHook URL

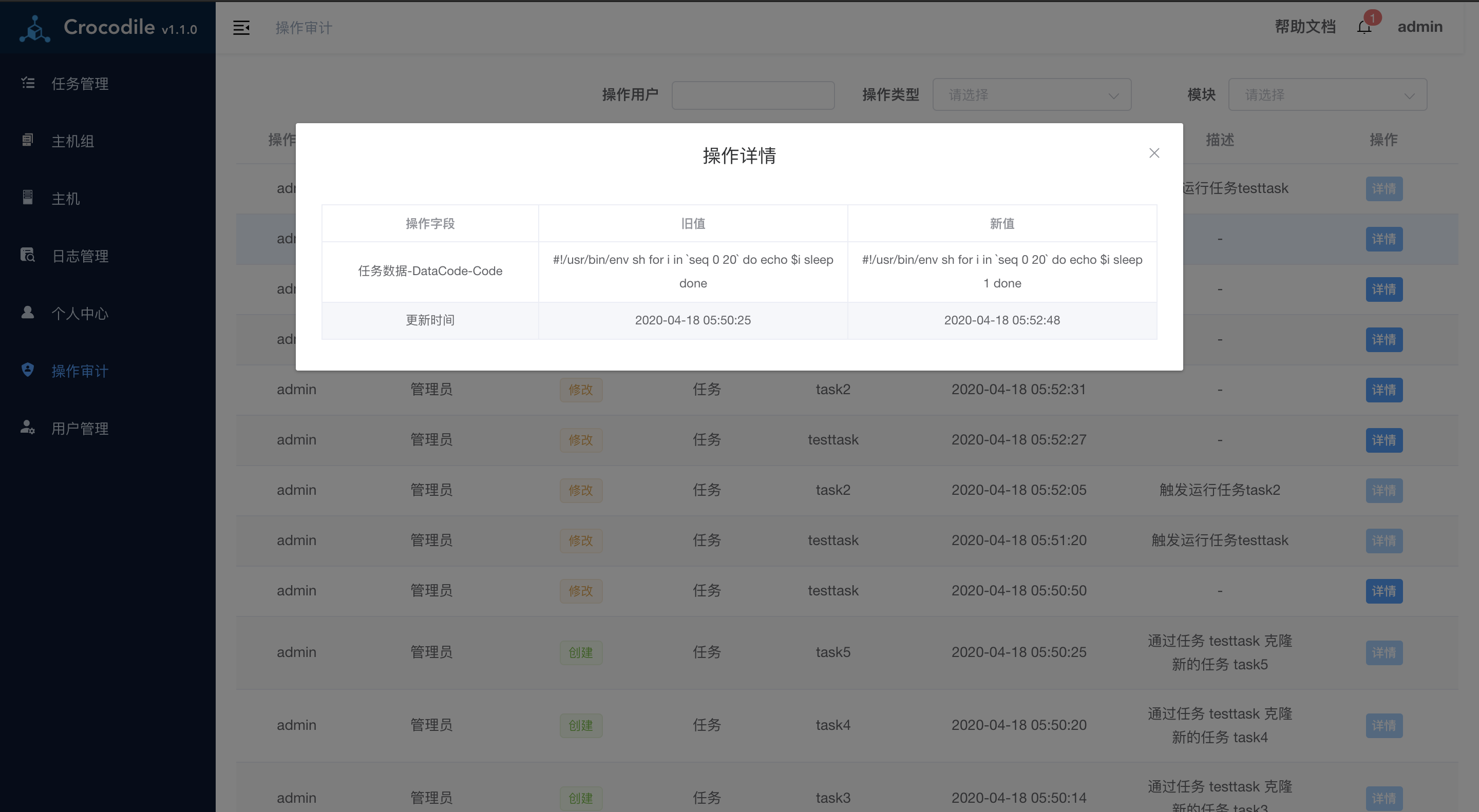

• Detailed task audit function
      All operations on data changes to users will be recorded

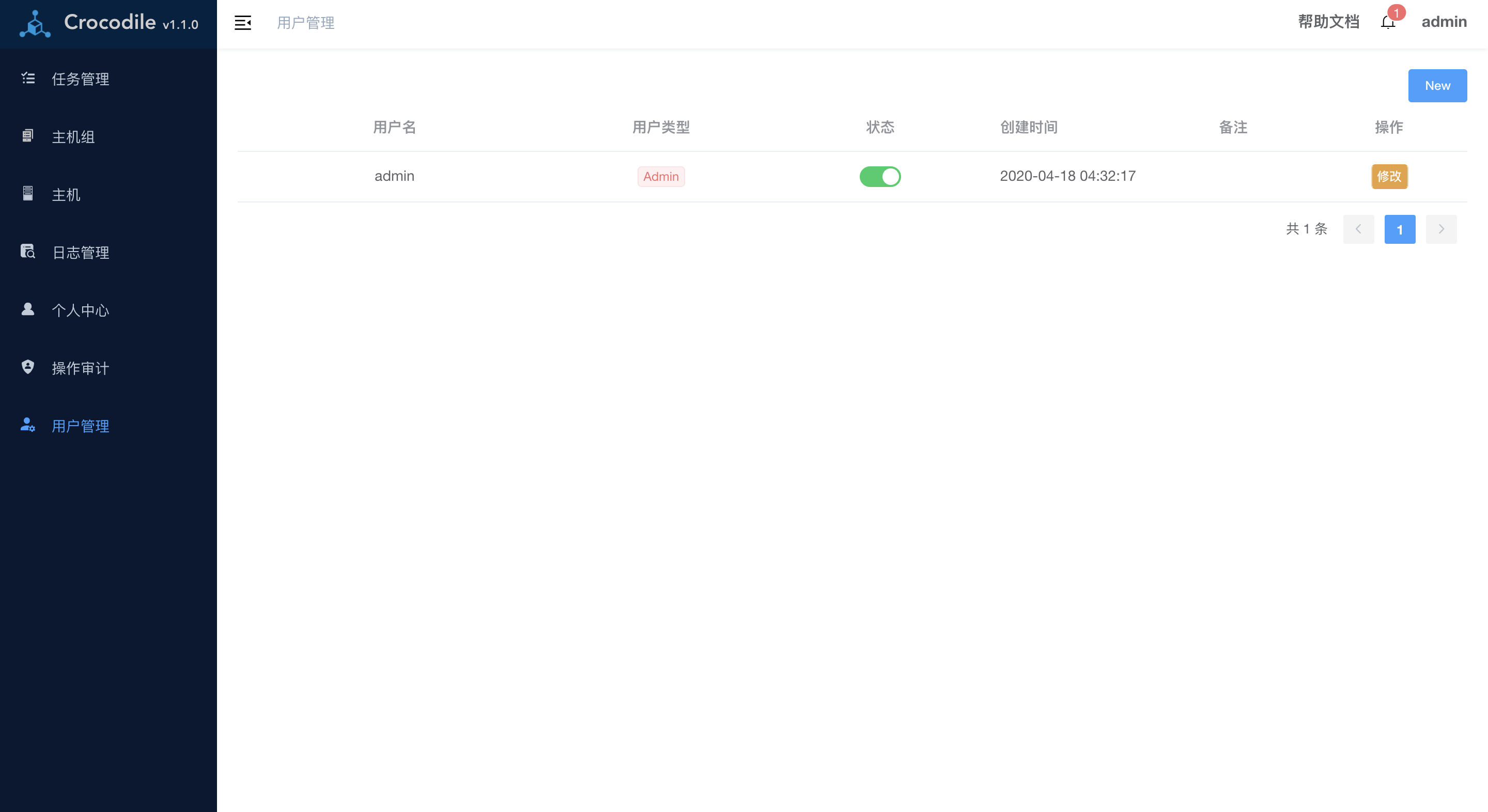

• Permission control
  • Administrator
            Have all operating rights
  • general user
            New tasks and host groups can be created, but only tasks or host groups that have been created can be operated, but audit records and all users cannot be viewed
  • Guest
    Only viewing authority, no operation modification authority, but can not view audit records, all users

Supported platforms

• Linux
• Mac
• Windows

Quick Start

git clone https://github.com/labulaka521/crocodile
cd crocodile
docker-compose up -d

Then open urlhttp://yourip:8080,you need to input a admin user and password to install it, than you will come in this system

Running

• Click to download,uncompress it
• installredis、mysql,then change config file core.toml
• If you need to enable certificate authentication between scheduling nodes, please generate a certificate,
      Run the command to generate cert certificate

  crocodile cert


     Then two files cert.pem and key.pem will be generated locally in the current directory. After saving these two files, fill in the path of the file in the value configuration file. Each node needs these two files

• Run as a scheduler center
      Multiple dispatch centers can be started to prevent single points of failure from causing dispatch to hang up

  ./crocodile server -c core.toml


• Run as a Worker (host) node

  /crocodile client -c core.toml


• View version compilation information

  ./crocodile version


• Configuration Alarm

Development

• Frontend
  • Install yarn
  • Go to the web directory, first download the dependency yarn, and then run the front-end yarn run dev separately
  • Package to go, execute make frontrnd,
• Backend
  • Run make runs as a schdeule center
  • Run make runc as worker node

The sql directory is also packaged in go-bindata. During installation, the sql creation statement will be read from the file generated by go-bindata. If the sql is modified, re-execute make bin-data

Doc

Wiki

Donate

If this project could help you, I hope you could donate me by alipay

License

Crocodile is under the MIT license. See the LICENSE file for details.
