Plug in and Play Implementation of Tree of Thoughts: Deliberate Problem Solving with Large Language Models that Elevates Model Reasoning by atleast 70%
See the code
Paper · Authors' implementation · Swarms

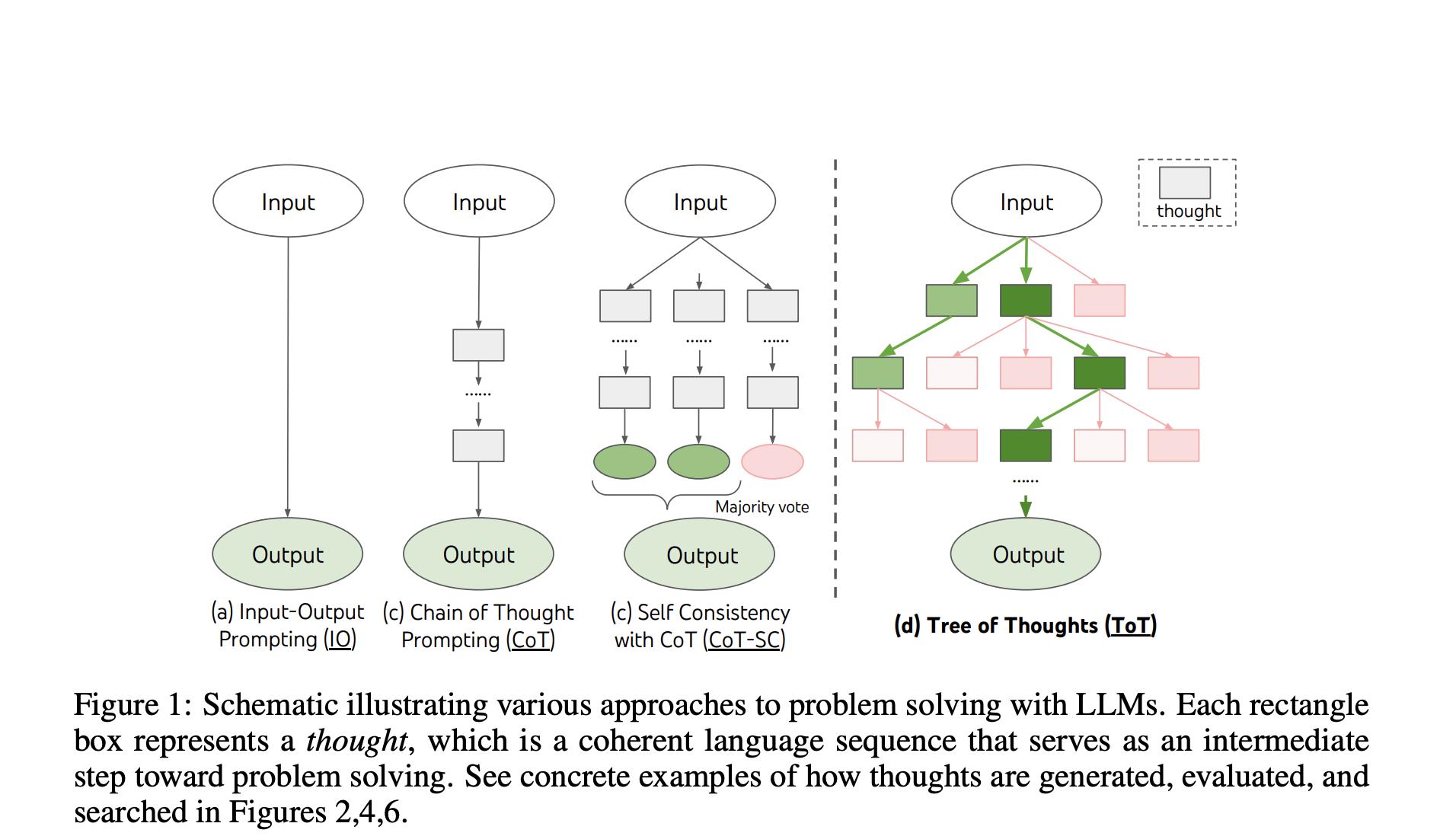

Tree of Thoughts (ToT) makes a language model reason by search instead of in a single pass. The model proposes several candidate next steps, scores each one, prunes the weak branches, and backtracks when a line of reasoning fails. In the paper, GPT-4 with chain-of-thought prompting solved 4% of Game of 24 puzzles; with Tree of Thoughts it solved 74%.
[!NOTE] Tree of Thoughts now ships as part of the Swarms framework as
TreeOfThoughts. The examples and docs below use that implementation.
TreeOfThoughts grows a tree of partial solutions:
num_thoughts candidate next steps, either all in one call ("propose") or one call per step ("sample")."value") or by comparing candidates and voting ("vote")."bfs") or depth-first with backtracking ("dfs"), pruning candidates that score below value_threshold.Every model output is a function call validated against a Pydantic schema, so the search never parses free-form prose. Calls at the same level of the tree run concurrently.
pip3 install -U swarms
Add your API key to a .env file in your working directory. Swarms loads it on import.
OPENAI_API_KEY="your_openai_api_key"
WORKSPACE_DIR="agent_workspace"
model_name accepts any LiteLLM model that supports function calling, so you can set ANTHROPIC_API_KEY, GROQ_API_KEY or another provider's key instead.
from swarms import TreeOfThoughts
agent = TreeOfThoughts(
model_name="gpt-5.4",
search_algorithm="dfs",
max_depth=3,
thought_description="One arithmetic operation on two of the remaining numbers.",
evaluation_criteria="Can the remaining numbers still reach 24?",
)
answer = agent.run("Use 4, 9, 10 and 13 with + - * / to make 24.")
print(answer)
run(task) returns the answer. The full search is kept on agent.last_result:
result = agent.last_result
for number, step in enumerate(result.steps, 1): # the best reasoning path
print(f"{number}. {step}")
print(result.solved) # True if a final step cleared value_threshold
print(result.nodes_expanded) # nodes that had candidates generated
print(result.llm_calls) # model calls, including the final answer
print(result.usage["total_tokens"]) # token usage for this search
tree = result.to_dict() # the whole tree as JSON-serializable data
| Parameter | Default | Description |
|---|---|---|
model_name | "gpt-5.4" | Any LiteLLM model string. The model must support function calling. |
search_algorithm | "bfs" | "bfs" keeps the best breadth nodes per level. "dfs" follows the best child first and backtracks. |
generation_strategy | "propose" | "propose" asks for all candidates in one call. "sample" makes one independent call per candidate. |
evaluation_strategy | "value" | "value" rates each candidate on its own. "vote" compares candidates and scores them by votes. |
num_thoughts | 3 | Candidate steps generated per expanded node. |
breadth | 2 | BFS beam width. Ignored by DFS. |
max_depth | 3 | Maximum steps on a path. Steps at this depth must complete the task. |
n_evaluate_samples | 1 | Evaluator calls per candidate (value) or per comparison (vote). More samples give steadier scores. |
value_threshold | 0.5 | Candidates scoring below this are pruned. |
max_expansions | None | Cap on nodes expanded per search, to bound cost. |
thought_description | None | What one step looks like for your task. Shown to the generator. |
evaluation_criteria | None | How to judge progress for your task. Shown to the evaluator. |
system_prompt | built-in | Replace it to give every call a domain persona. |
temperature | None | Sampling temperature. None uses the provider's default. |
max_workers | 8 | Maximum concurrent model calls. |
output_type | "final" | How run formats its output. "final" returns the answer string. |
verbose | False | Log every evaluated candidate. |
agent_kwargs | None | Extra Agent arguments for every call, such as max_tokens, llm_api_key or llm_base_url. |
| Setting | Use | When |
|---|---|---|
search_algorithm | "bfs" | Several partial solutions are worth keeping at once (scheduling, multi-step calculations). |
"dfs" | Case analysis and planning, where you commit to a line and backtrack on a contradiction. | |
generation_strategy | "propose" | Constrained steps, where one call can list distinct options. |
"sample" | Open-ended steps, where independent calls give more variety. | |
evaluation_strategy | "value" | Steps can be checked on their own (arithmetic, logic, units). |
"vote" | Quality is relative, so comparing candidates beats rating them (estimation, writing). |
thought_description and evaluation_criteria adapt the search to a domain more than any other setting. Cost grows with num_thoughts, breadth, max_depth and n_evaluate_samples; use max_expansions to cap it.
Each example states its expected answer in its docstring, and each uses a different combination of settings.
| Example | Search | Expected answer |
|---|---|---|
| bfs.py | BFS, beam of 3 | (10 - 4) * (13 - 9) = 24 |
| dfs.py | DFS with backtracking, max_expansions cap | (10 - 4) * (13 - 9) = 24 |
| Example | Problem | Search | Expected answer |
|---|---|---|---|
| relativistic_threshold.py | Threshold energy for antiproton production | DFS, value_threshold=0.6 | 6 m_p c² ≈ 5.63 GeV |
| hohmann_transfer.py | Hohmann transfer from a 300 km orbit to GEO | BFS, beam of 3, 2 ratings averaged per candidate | Δv ≈ 3.90 km/s, ≈ 5.27 h |
| particle_in_a_box.py | Photon from an n = 3 → 1 transition in a 1 nm well | BFS, generation_strategy="sample" | ≈ 412 nm |
| Example | Problem | Search | Expected answer |
|---|---|---|---|
| logic_grid.py | Match four researchers to floors, fields and drinks | BFS, beam of 3 | Unique assignment, given in the docstring |
| missionaries_and_cannibals.py | Get everyone across the river safely | DFS, one round trip per step, max_expansions=20 | 11 crossings |
| cheryls_birthday.py | Deduce a date from what others know | BFS, evaluation_strategy="vote", 3 votes | July 16 |
| Example | Problem | Search | Expected answer |
|---|---|---|---|
| domino_tilings.py | Count domino tilings of the 8 × 8 board | BFS, sample, 2 ratings averaged per candidate | 12,988,816 |
| mordell_curve.py | All integer solutions of y² = x³ − 2, with proof | DFS, value_threshold=0.7, custom system_prompt | (3, ±5) |
| putnam_integral.py | ∫₀¹ ln(1 + x) / (1 + x²) dx (Putnam 2005 A5) | BFS, beam of 2 | (π / 8) ln 2 ≈ 0.2722 |
python examples/physics/hohmann_transfer.py
More examples in mathematics, physics and logic, each with a checkable answer, are in the Swarms Tree of Thoughts examples.
You can also get Tree of Thoughts-style reasoning from a single prompt, with no code. Paste one of these into any chat model and put your question at the end.
Imagine three different experts are answering this question. All experts will
write down 1 step of their thinking, then share it with the group. Then all
experts will go on to the next step, etc. If any expert realises they're wrong
at any point then they leave. The question is...
Simulate three brilliant, logical experts collaboratively answering a question.
Each one verbosely explains their thought process in real-time, considering the
prior explanations of others and openly acknowledging mistakes. At each step,
whenever possible, each expert refines and builds upon the thoughts of others,
acknowledging their contributions. They continue until there is a definitive
answer to the question. For clarity, your entire response should be in a
markdown table. The question is...
Imagine three highly intelligent experts working together to answer a question.
They will follow a tree of thoughts approach, where each expert shares their
thought process step by step. They will consider the input from others, refine
their thoughts, and build upon the group's collective knowledge. If an expert
realizes their thought is incorrect, they will acknowledge it and withdraw from
the discussion. Continue this process until a definitive answer is reached.
Present the entire response in a markdown table. The question is...
Three experts with exceptional logical thinking skills are collaboratively
answering a question using a tree of thoughts method. Each expert will share
their thought process in detail, taking into account the previous thoughts of
others and admitting any errors. They will iteratively refine and expand upon
each other's ideas, giving credit where it's due. The process continues until
a conclusive answer is found. Organize the entire response in a markdown table
format. The question is...
result.to_dict()Thanks to the authors of the paper for sharing this work with the world:
And thanks to Phil Wang (lucidrains) for inspiring me to devote myself to open source AI research.
@misc{yao2023tree,
title = {Tree of Thoughts: Deliberate Problem Solving with Large Language Models},
author = {Shunyu Yao and Dian Yu and Jeffrey Zhao and Izhak Shafran and Thomas L. Griffiths and Yuan Cao and Karthik Narasimhan},
year = {2023},
eprint = {2305.10601},
archivePrefix = {arXiv},
primaryClass = {cs.CL}
}
