Open EmbeddingGemma

Implementation of EmbeddingGemma 2, Google DeepMind's 740M parameter multimodal embedding model, in Pytorch

Text, code, images, video and audio (and any interleaving of them) all go through one bidirectional Gemma 4 style encoder and come out as a single 768 dimensional unit vector. The whole thing is one file, and the model itself does not depend on transformers. Module and parameter names mirror the official checkpoint, so the released safetensors load directly.

Install

$ git clone https://github.com/kyegomez/Open-EmbeddingGemma
$ cd Open-EmbeddingGemma
$ pip install torch safetensors huggingface_hub transformers

safetensors and huggingface_hub are only needed for from_pretrained, and transformers only for the tokenizer

Usage

import torch
from open_eg.main import EmbeddingGemma2, EmbeddingGemma2Config

model = EmbeddingGemma2(EmbeddingGemma2Config(vision = None, audio = None)) # text only, 270M

ids = torch.randint(0, 262_144, (2, 1024))
mask = torch.ones_like(ids)

out = model(ids, attention_mask = mask)

out.embeddings       # (2, 768) - mean pooled, l2 normalized
out.token_embeddings # (2, 1024, 768)

With the official weights

from transformers import AutoTokenizer
from open_eg.main import EmbeddingGemma2

tokenizer = AutoTokenizer.from_pretrained('google/embeddinggemma-2')
model = EmbeddingGemma2.from_pretrained('google/embeddinggemma-2', modalities = ('text',)).eval()

queries = model.encode_text(['What causes the northern lights?'], tokenizer, prompt_name = 'SearchQuery')

docs = model.encode_text([
    'The northern lights are caused by charged particles from the sun hitting the atmosphere.',
    'Pytorch is a deep learning framework.'
], tokenizer, prompt_name = 'Document')

scores = queries @ docs.T # (1, 2) cosine similarities

Task prompts live in PROMPTS. Use SearchQuery, QuestionAnswering, FactChecking, CodeRetrieval, Classification, Clustering or SentenceSimilarity for queries and Document for the corpus (MTEB style aliases are included too)

Matryoshka truncation to 512, 256 or 128 dimensions

from open_eg.main import truncate_embeddings

docs_256 = model.encode_text(texts, tokenizer, prompt_name = 'Document', truncate_dim = 256)

# or after the fact - keeps the leading dimensions and renormalizes

docs_128 = truncate_embeddings(docs, 128)

Image and text, embedded into the same space

import torch
from open_eg.main import EmbeddingGemma2, PROMPTS, preprocess_image, build_multimodal_input_ids

model = EmbeddingGemma2.from_pretrained('google/embeddinggemma-2', modalities = ('text', 'image')).eval()

tokenize = lambda text: tokenizer(text, add_special_tokens = False)['input_ids']

image = torch.randint(0, 256, (3, 480, 640), dtype = torch.uint8) # (c, h, w)

pixels, positions, num_image_tokens = preprocess_image(image, max_soft_tokens = 280) # 70 | 140 | 280 | 560 | 1120

ids = build_multimodal_input_ids([
    PROMPTS['Document'] + 'waterproof trail runners ',
    ('image', num_image_tokens)
], tokenize = tokenize)

out = model(
    torch.tensor([ids]),
    pixel_values = pixels[None],
    image_position_ids = positions[None]
)

out.embeddings # (1, 768)

Video and audio

from open_eg.main import sample_video_frames, preprocess_video, preprocess_audio, num_audio_soft_tokens

model = EmbeddingGemma2.from_pretrained('google/embeddinggemma-2').eval() # all modalities, 740M

video = torch.rand(90, 3, 360, 640) # (frames, c, h, w) in [0, 1]
waveform = torch.randn(16_000 * 3)  # mono, 16kHz

frames = sample_video_frames(video, video_fps = 30.)                       # 1 fps, at most 32 frames
video_pixels, video_positions, tokens_per_frame = preprocess_video(frames) # up to 140 soft tokens per frame

audio_features, audio_mask = preprocess_audio([waveform])  # log-mel, clips up to 30s
num_audio_tokens = num_audio_soft_tokens(audio_mask[0])    # 25 per second

ids = build_multimodal_input_ids([
    PROMPTS['Document'] + 'a dog barking at the mailman ',
    ('video', tokens_per_frame, len(frames)),
    ('audio', num_audio_tokens)
], tokenize = tokenize)

out = model(
    torch.tensor([ids]),
    pixel_values_videos = video_pixels,
    video_position_ids = video_positions,
    input_features = audio_features,
    input_features_mask = audio_mask
)

out.embeddings # (1, 768)

Run it in bfloat16 or float32. float16 overflows the activations, so from_pretrained refuses it

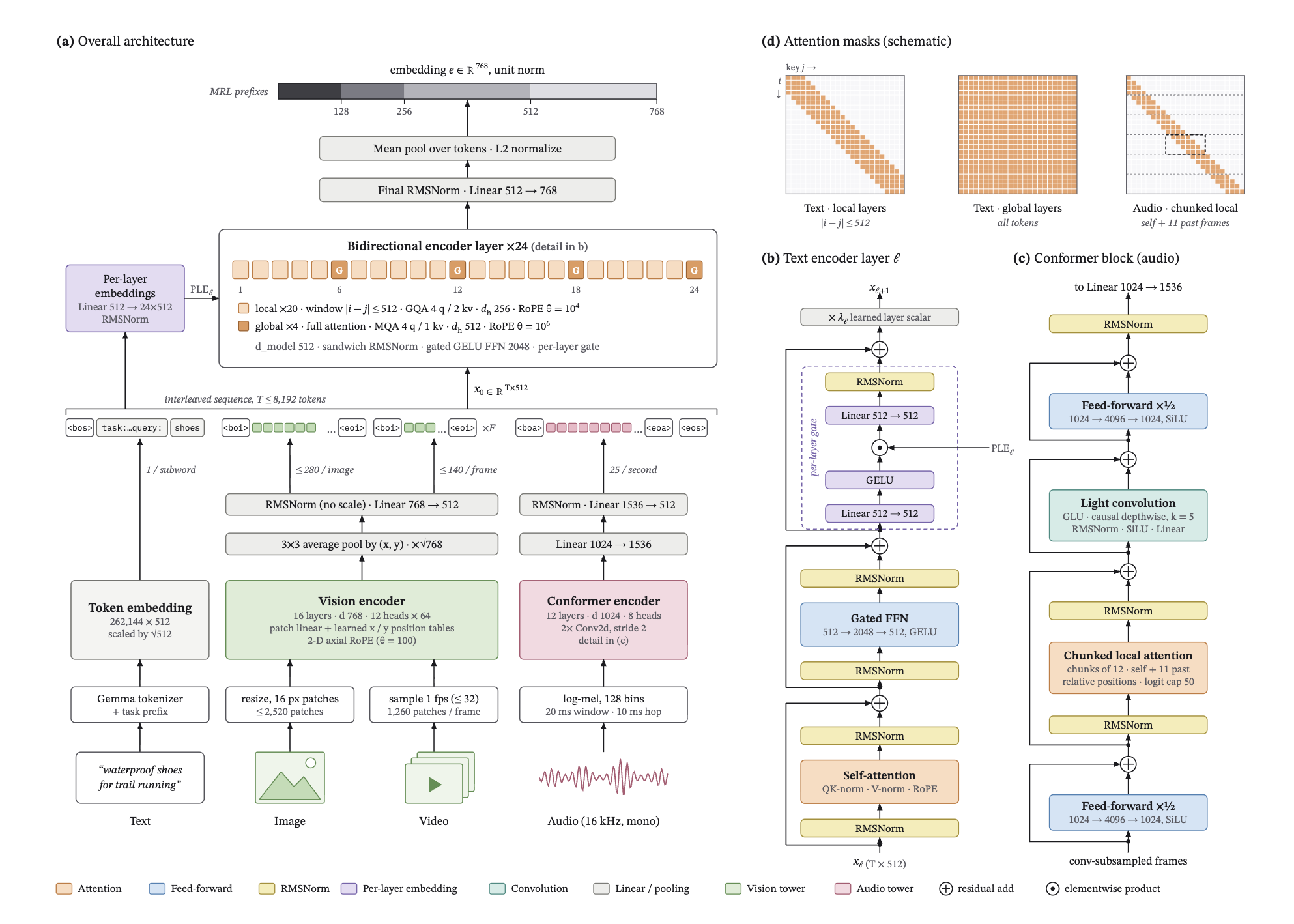

Architecture

• Text (270M = 130M transformer + 140M embedder). 24 bidirectional layers with d 512 and a 5:1 local to global ratio. Local layers attend within |i - j| <= 512 using GQA (4 query / 2 kv heads, head dim 256, RoPE θ 1e4). Every 6th layer is global, with full attention and MQA (4 query / 1 kv head, head dim 512, RoPE θ 1e6). Also QK-norm, V-norm, attention scale of 1, sandwich norms, gated GELU feedforward, and projection-only per-layer embeddings that gate every layer
• Vision (170M). 16 layer ViT on 16px patches, with learned x / y position tables plus axial 2D RoPE. Patches are 3x3 average pooled down to at most 280 soft tokens per image (140 per video frame)
• Audio (300M). 12 layer USM-style conformer on 128 bin log-mel. 4x conv subsampling gives 25 tokens per second, followed by chunked local attention with Transformer-XL relative positions and logit soft-capping
• Head. Final RMSNorm, then linear 512 → 768, mean pool and L2 normalize. Matryoshka-trained at 768 / 512 / 256 / 128

Each encoder's soft tokens are projected to 512 and spliced into the token sequence in place of the <|image|>, <|video|> and <|audio|> placeholders. The interleaved sequence (up to 8192 tokens) then runs through the text encoder as one

Test

$ python -m open_eg.main

This prints the full size parameter budget, then runs a tiny random model through every code path and checks text, vision and audio padding invariance

    text_embedder:   140.5M
 text_transformer:   130.5M
           vision:   167.8M
            audio:   305.6M
            total:   744.4M

Todo

• bidirectional text encoder with 5:1 local / global attention and per-layer embeddings

• vision tower, shared by images and video frames

• conformer audio tower

• interleaved multimodal sequences

• matryoshka truncation

• from_pretrained for the official safetensors

• numerical parity test against the reference transformers implementation

• training, with contrastive loss, geometric embedding distillation and spread-out regularizer

• package for pip install
