HeronLoom combines iterative clustering, LLM-based analysis, graph construction, and analytical search in a single pipeline. It tracks how topics and narratives evolve over time, identifies the signals driving those changes, and makes every conclusion traceable to the underlying corpus.

Built for corpora of up to 50,000 posts or documents. The pipeline favours clustering quality and analytical depth over raw throughput — larger corpora may work but have not been systematically validated.

✨ What makes it different

• Reconstructs how ideas change — tracks topics, arguments, turning points, and changing interpretations across the corpus, instead of just producing a static list of topics.
• Explains change over time — goes beyond what people discussed to show what changed, when it changed, and what happened afterward.
• Preserves conflicting interpretations — keeps competing explanations visible instead of reducing them to a single narrative.
• Separates claims from verified facts, and signals from outcomes — repeated claims, theories, and interpretations aren't treated as evidence just because they are frequent or highly engaged with. When a signal is used to anticipate an outcome, the prediction is kept separate from the evidence of what actually happened.
• Evidence-based confidence — every conclusion shows what supports it, what remains uncertain, and where the evidence comes from, down to the original posts, timestamps, and quotes.
• Built for noisy short-form text — fragmentation, repetition, slang, sarcasm, mixed sentiment, and rapidly changing context make short-form content difficult to analyze reliably with text similarity or aggregate scores alone.

🌐 Demo

A complete run on Reddit WallStreetBets Posts by Gabriel Preda, using raw posts from September 29, 2020 to April 1, 2021. After date filtering, the pipeline processes 43,976 posts covering the January 2021 GameStop short squeeze. No categories, keyword seeds, or manual annotations are provided to the system. Every cluster, name, narrative chain, and pool shown below is produced by the pipeline.

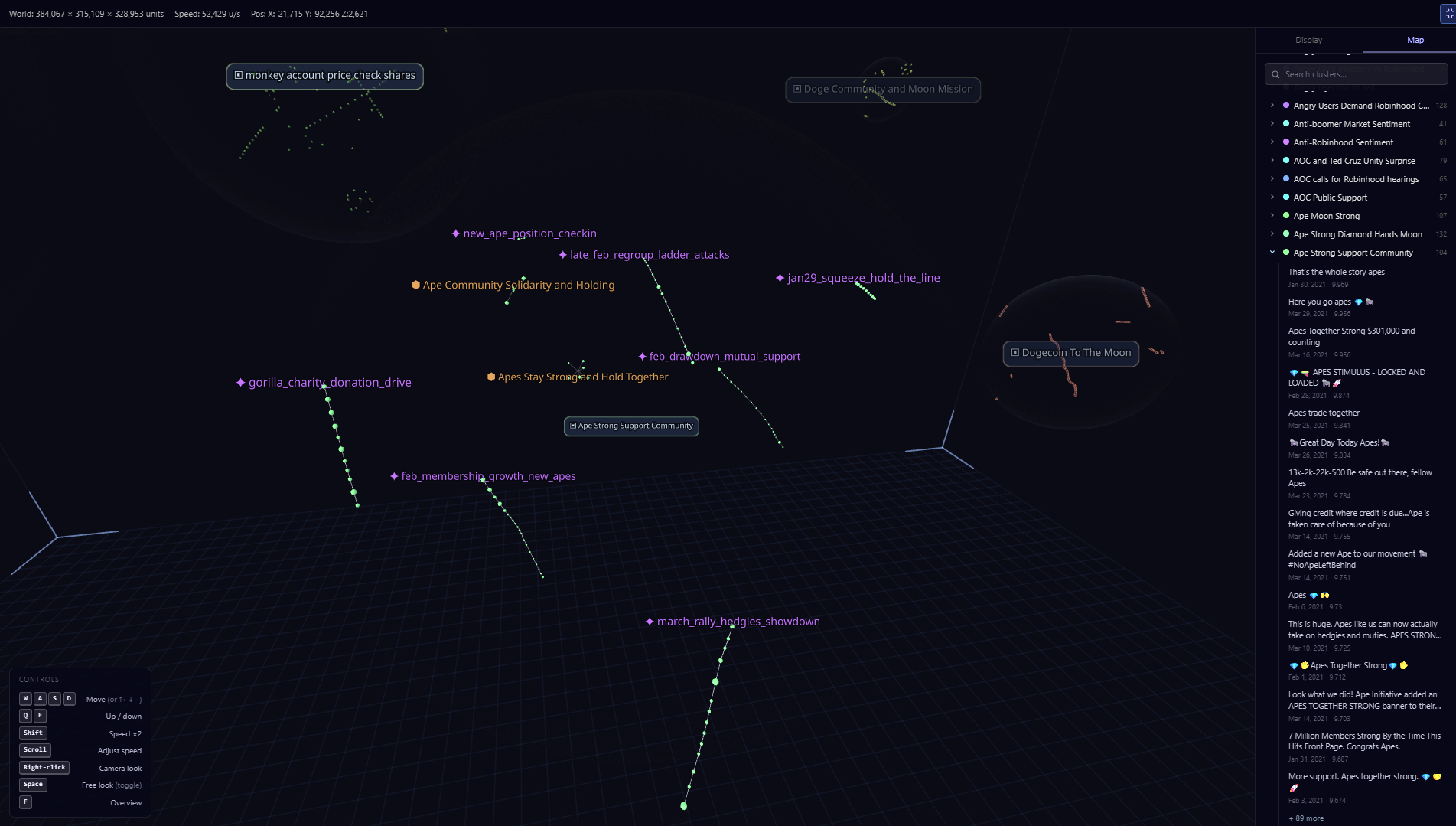

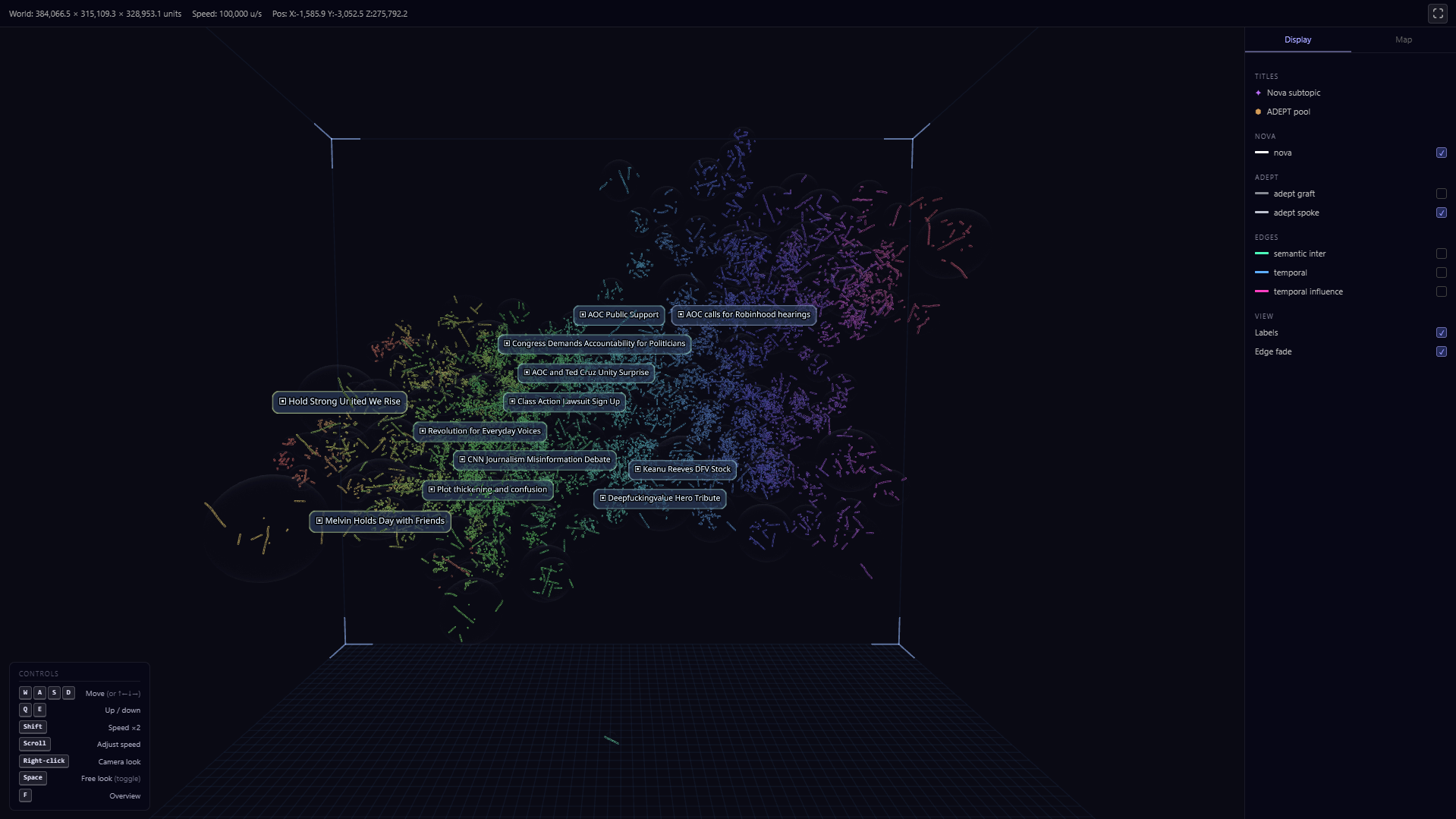

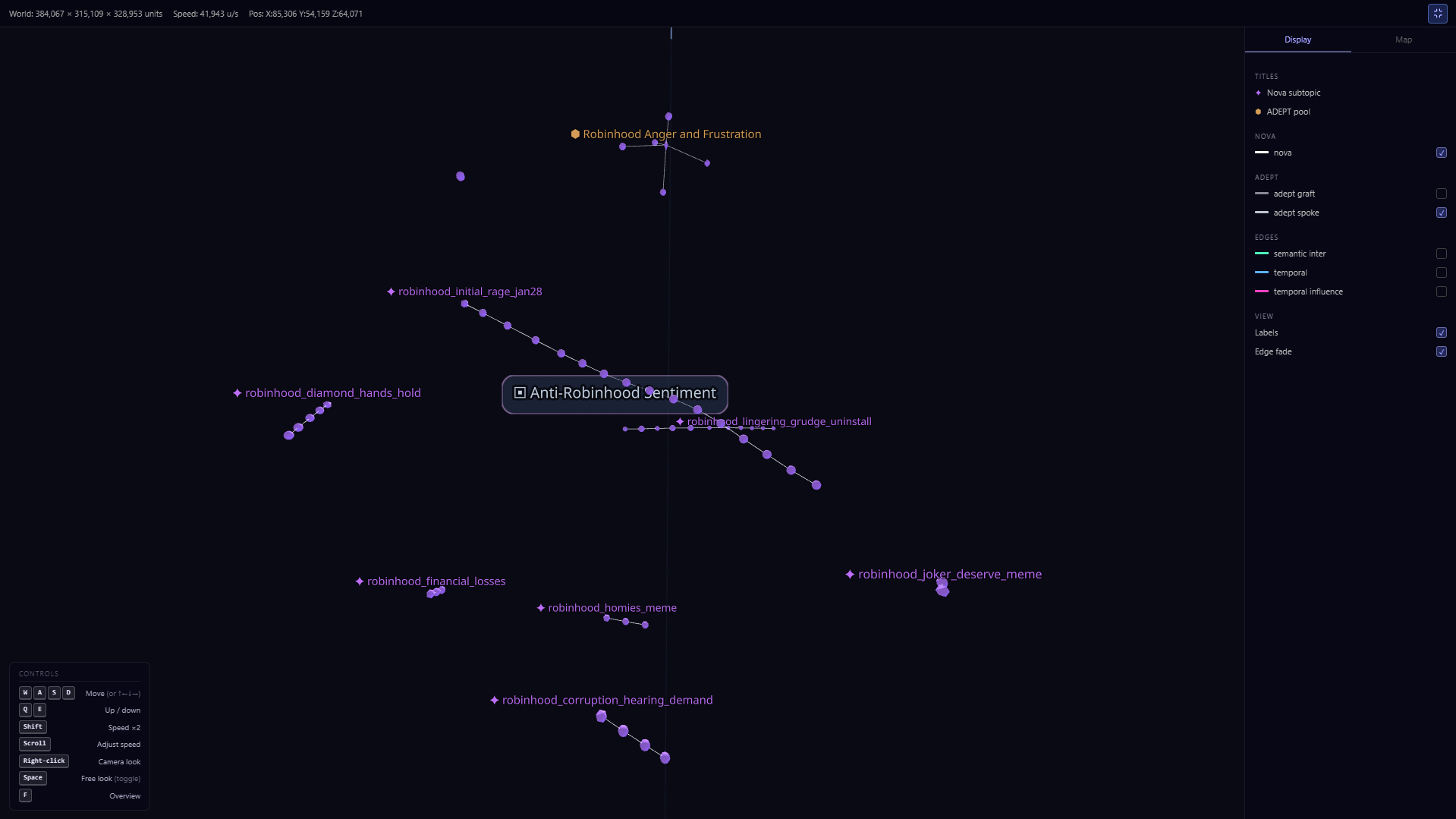

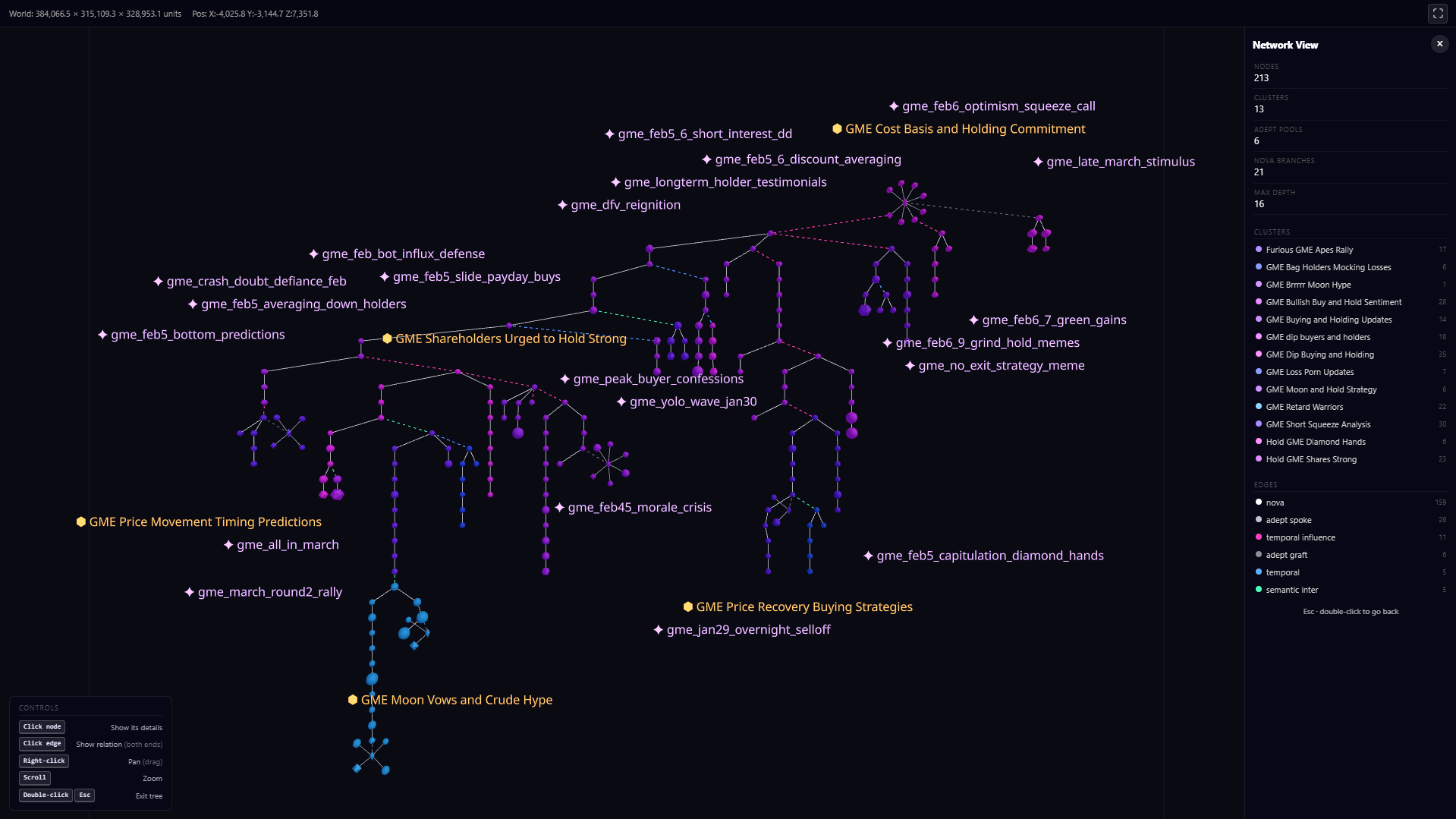

Open the live 3D graph →

Two real questions asked to the system using this corpus — full answers with confidence scores below, no editing:

• Analyze trends + measure sentiment:
  What were the main topics and sentiment in the 48h after Robinhood's trading restrictions?
• Predict what comes next:
  What do you think will happen next, after March 2021, to GameStop's stock, to Robinhood and Citadel, and to the hedge funds that bet against GameStop?

Note: Because the corpus (r/wallstreetbets) may contain offensive language, source quotes have been removed from these two examples. The quotes are retrieved from the corpus and are not part of the LLM's response.

📥 Install

Requirements

• Python 3.11+
• Ollama, for the embedding and cluster-naming models.
• An OpenAI- or Anthropic-compatible API endpoint for the heavy model, unless a local endpoint is configured. For large corpora, a model with a 1M-token context window is recommended.
• An NVIDIA GPU can accelerate computation:
  • PyTorch for clustering (recommended). Select your CUDA version and run the corresponding install command.
  • CuPy for edge computation — pick the wheel matching your CUDA Toolkit: pip install cupy-cuda13x (or 11x / 12x).

1. Clone the repository

git clone https://github.com/korries/HeronLoom.git
cd HeronLoom

2. Create a virtual environment

python -m venv .venv
source .venv/bin/activate

On Windows:

.venv\Scripts\activate

3. Install dependencies

python -m pip install -U pip
python -m pip install -r requirements.txt

Optional, for GPU acceleration — installing this later, in a new terminal? Activate the virtual environment again first (step 2): you should see (.venv) at the start of your prompt. Example for CUDA 13.2:

python -m pip install torch torchvision --index-url https://download.pytorch.org/whl/cu132
python -m pip install cupy-cuda13x

4. Configure environment variables

cp .env.example .env

5. Pull the required Ollama models

ollama pull qwen3-embedding:8b
ollama pull qwen3.5:9b

Configure model slots in config/config.yaml before the first run. API keys go in .env, never in configuration files. Provider setup, model selection, and parallelism: Configuration.

🚀 Quick start

Place your files in data/raw/ — see Input format below.

Then launch the dashboard:

python dashboard.py

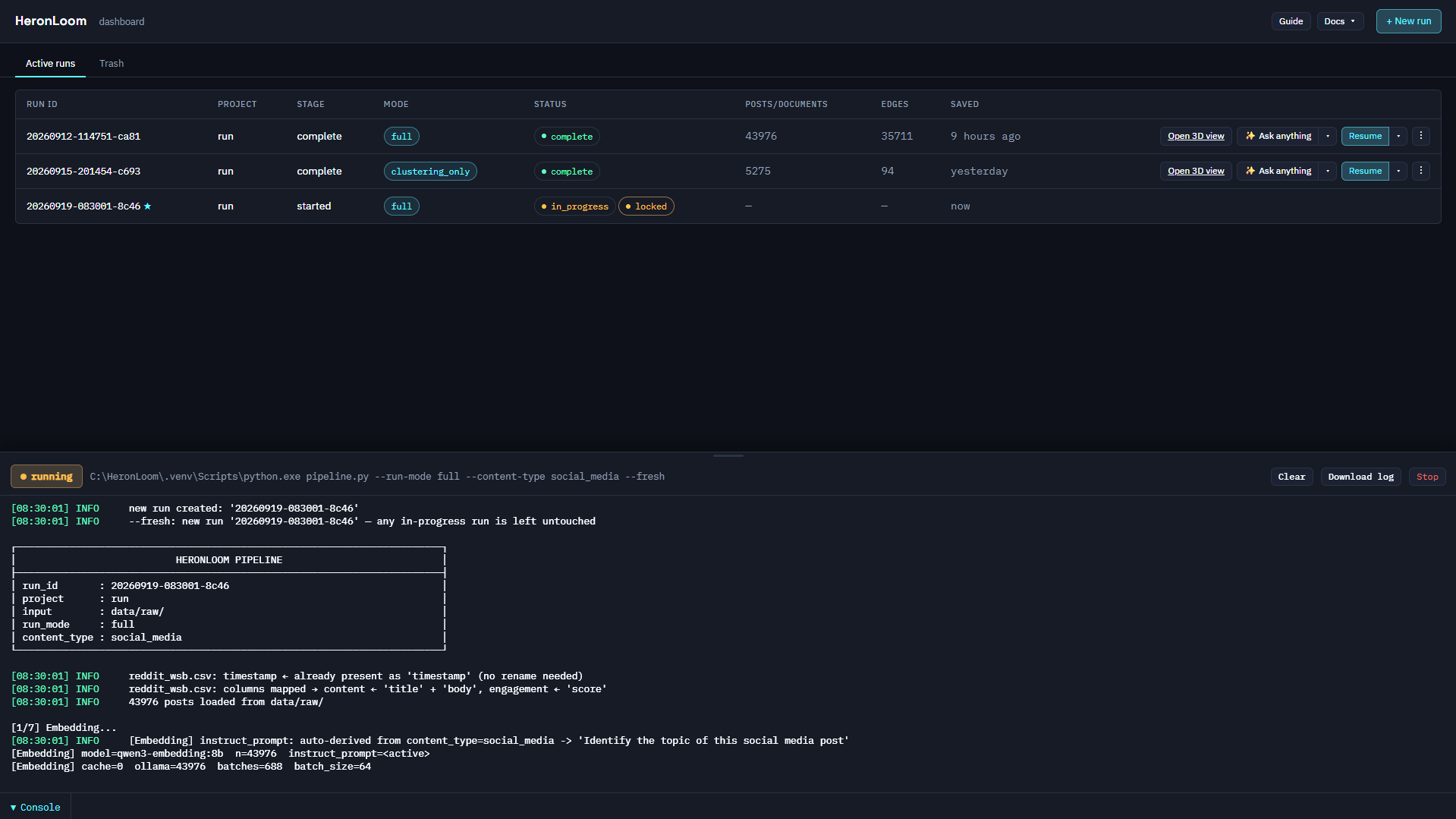

Open http://127.0.0.1:8000 and select New run. From there: launch the run, ask questions, and open the 3D graph, all on the same page. See Dashboard.

For scripting or automation, use the CLI instead — same data/raw/ folder, no dashboard needed:

python pipeline.py --input data/raw/
python reload.py search <run_id> "What were the main topics of discussion and the overall sentiment in the 48 hours following Robinhood's trading restrictions in late January 2021?"

A clustering_only mode is also available, for clustering purposes exclusively — it skips the LLM analysis stages (Nova & ADEPT).

For the full flag reference, run python pipeline.py --help for the pipeline or python reload.py --help for resume, restart, relabel, and search. See CLI reference for details.

🔎 How it works

1. Ingestion & embeddings — Input files are normalized into a common corpus format with automatic field detection and embedded with Qwen3-Embedding.
2. Cluster-count estimation — The number of clusters is determined automatically with GMM-BIC or set manually.
3. Iterative refinement (ADR) — The initial clustering is refined over several passes using discriminant projection and GMM re-clustering (details).
4. Cluster naming — Labels are generated by the configured naming model, with a c-TF-IDF fallback.
5. Nova & ADEPT (full mode only) — Nova organizes each cluster into subtopics and narrative structure. ADEPT groups unassigned content into pools using Density Peak Clustering. See Nova & ADEPT.
6. Graph construction — Edges capture temporal, semantic, and analysis-derived relationships within and between clusters (edge definitions).
7. 3D layout — ForceAtlas2 renders the graph as an interactive Three.js scene.

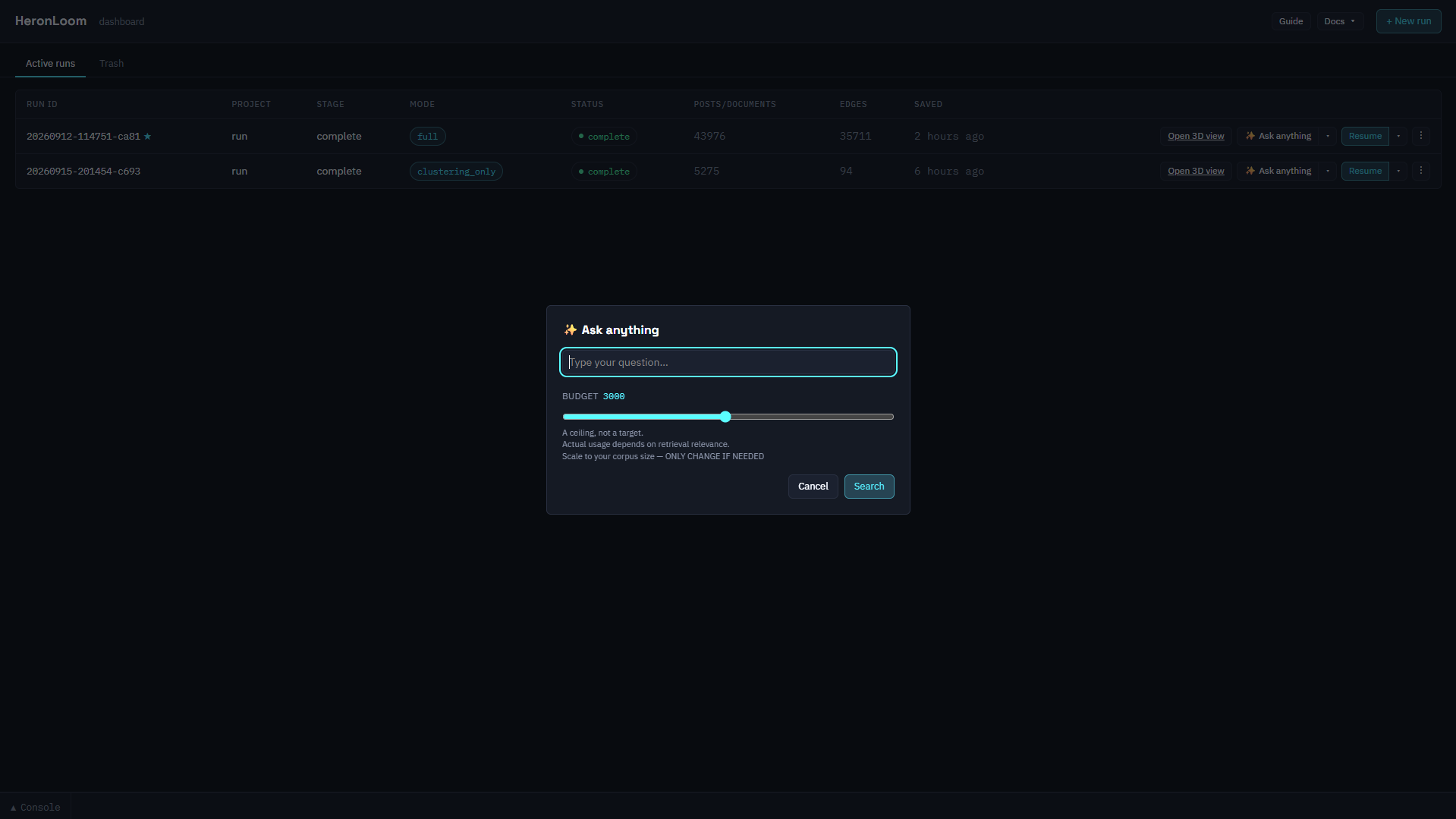

8. Ask anything — Once a run is finished, ask a natural-language question in any language and get answers with relevant corpus evidence, citations, and a confidence score. See Search.

A stage-flow diagram is in Architecture.

Input format

Accepted: .json, .csv, .tsv, .txt, .md, .pdf. Only text content is required.

{
  "id": "post_001",
  "content": "Text of the post.",
  "timestamp": "2026-06-01T14:30:00Z",
  "engagement": 142
}

id, timestamp, and engagement are optional; timestamps and engagement enrich the graph when present. Non-standard field names can be mapped via field_mapping in config.yaml.

Clustering

HeronLoom's refinement loop is adapted from TopiCLEAR's ADR loop (Fujita et al., 2026): clusters are repeatedly refined instead of being fixed after a single pass. TopiCLEAR itself builds on the Adaptive Dimension Reduction (ADR) framework introduced by Ding & Li (2007), which alternates between an LDA-based discriminant projection and k-means/GMM clustering within that subspace.

HeronLoom replaces the original closed-form LDA step with LDA-GO (Shen & Dong, 2025), which learns the discriminant subspace through gradient-based optimization instead. This matters most on high-dimensional text embeddings — and especially when the number of clusters is large relative to the sample size — where the closed-form LDA solution routinely hits an invertibility failure and becomes unreliable. LDA-GO avoids that failure mode and makes the loop converge reliably in production.

The integration of LDA-GO into the TopiCLEAR-style refinement loop, along with the surrounding implementation and stability engineering, represents HeronLoom's own contribution.

Full mathematical treatment: Algorithms.

Security

The dashboard listens on 127.0.0.1 by default. Binding it to 0.0.0.0 to expose it on a network does not add authentication on its own — read Security first.

📚 Documentation

• Configuration
• Dashboard
• CLI reference
• Performance
• Render
• Search
• Architecture
• Algorithms
• Nova & ADEPT

🙏 Acknowledgements

Thanks to the authors of TopiCLEAR and LDA-GO for their open-source contributions.

📄 License

HeronLoom is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0). See the LICENSE file.

Third-party code and dependencies keep their own licence terms. See Third-party notices.
