Unity-UI-Rounded-Corners

These components and shaders allow you to add rounded corners to UI elements!

---

How to install

Option 1: Package Manager (Unity 2019.3 and higher)

URL to copypaste:

https://github.com/kirevdokimov/Unity-UI-Rounded-Corners.git

Option 2: Package Manager (Manual)

• Open %projectname%/Packages/manifest.json
• Add the following to the dependencies section:

"com.nobi.roundedcorners": "https://github.com/kirevdokimov/Unity-UI-Rounded-Corners.git"

How to use

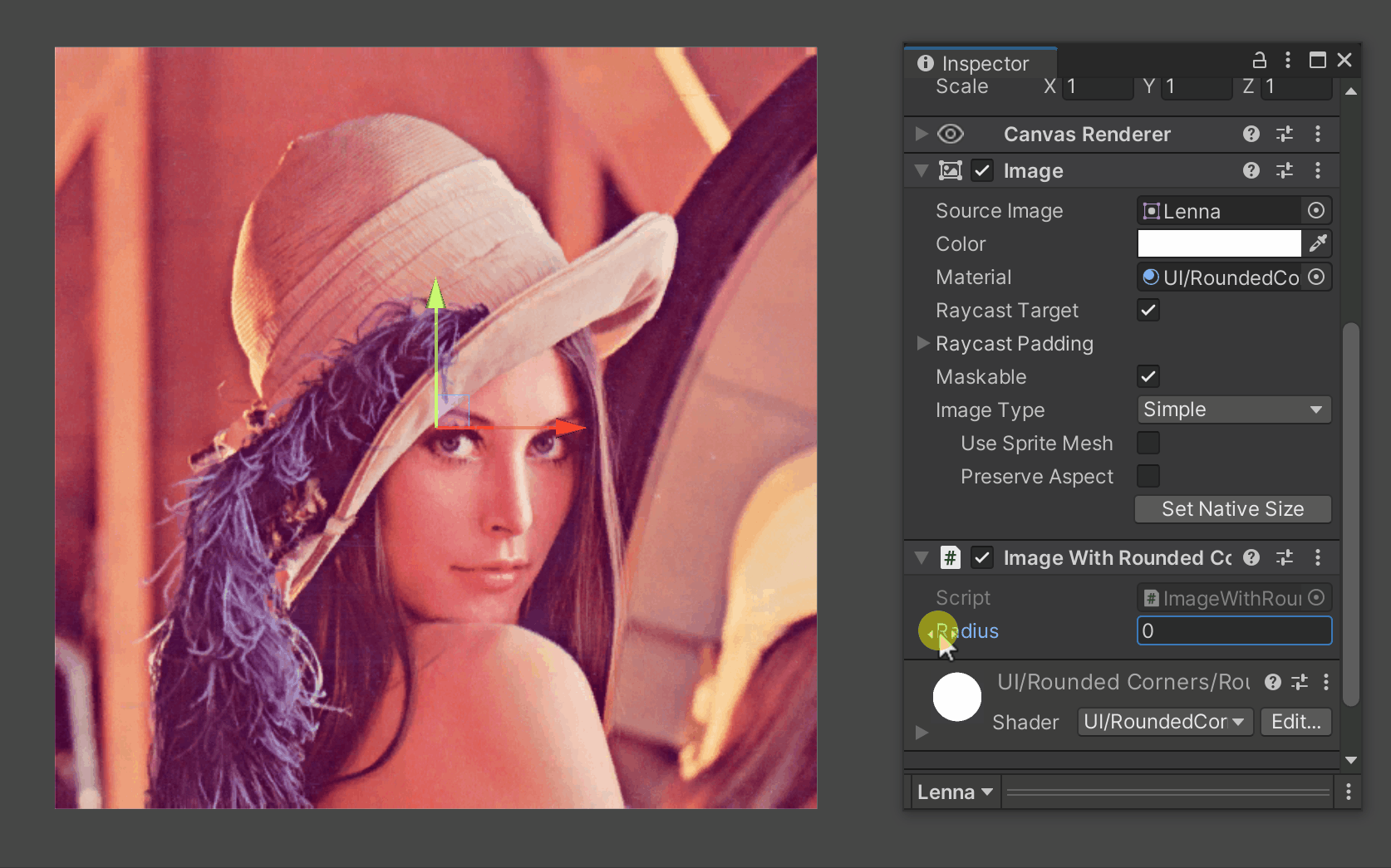

Symmetrical roundness

• Add ImageWithRoundedCorners component to a GameObject with an Image
• Adjust Radius property

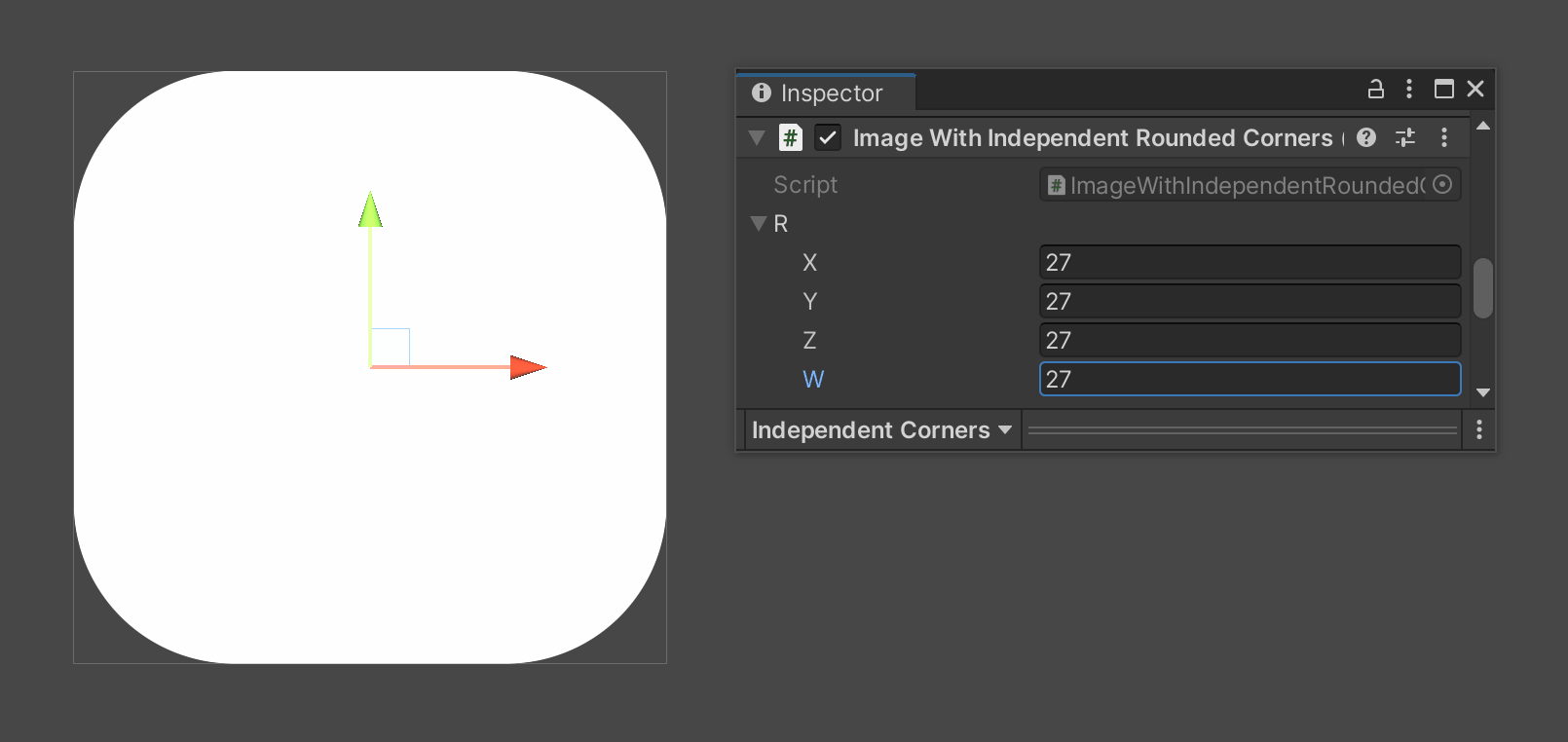

Certain roundness value for each corner

• Add ImageWithIndependentRoundedCorners to a GameObject with an Image
• Adjust r Vector4 property. Each vector component represent radius, clockwise, starting with top-left corner

Important thing

If you need to add or change the image at runtime, call Validate() and then Refresh() to update the materials.

Features

Changing roundness separately or all at once

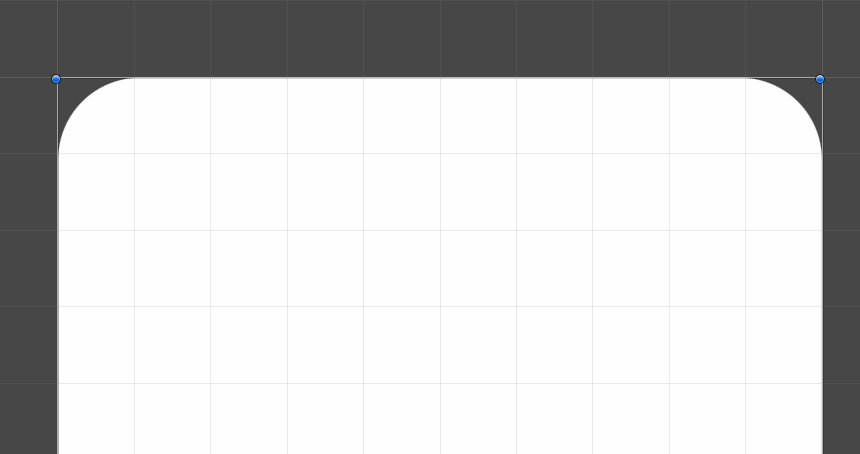

Keeps round while resizing

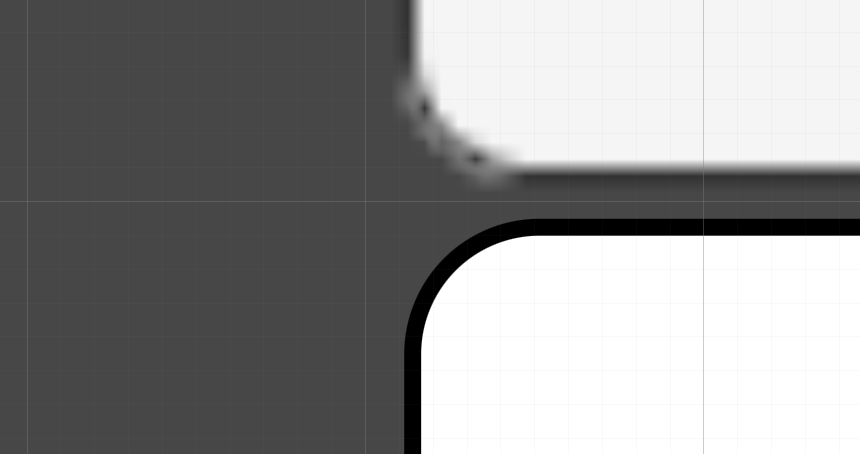

Better quality than sprites

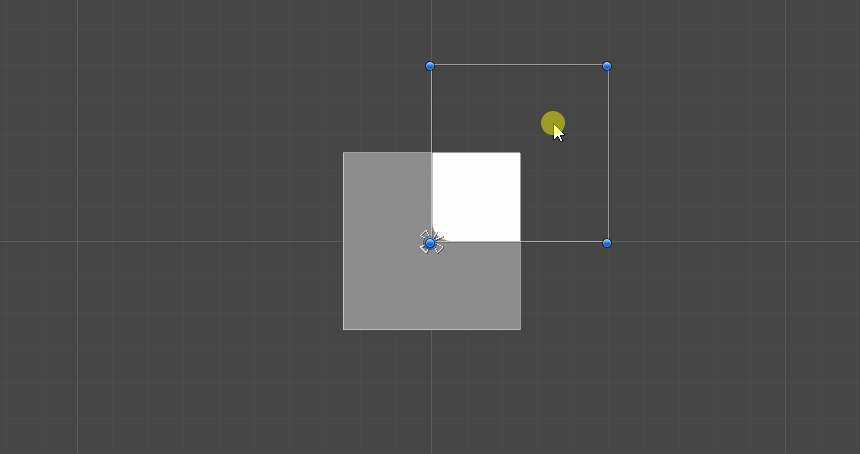

Supports Unity Mask

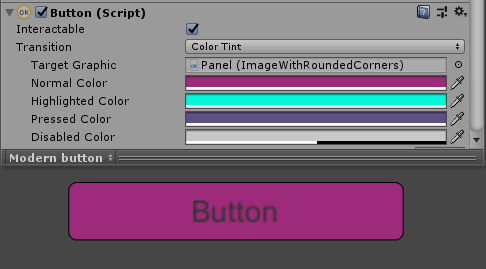

Supports Tint
