DSEG Font Family

Overview

DSEG is a free font which imitate LCD Display (7SEG, 14SEG, Weather icons etc.). DSEG have special features:

• Includes the roman-alphabet and symbol glyphs.

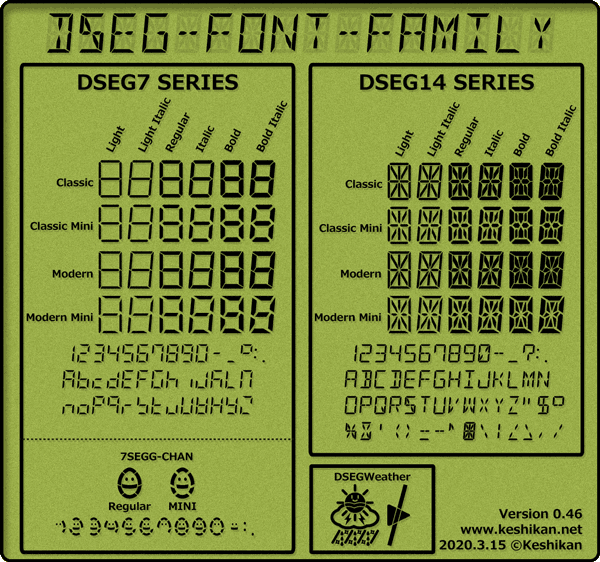

• Many types(over 50) are available.
• Licensed under SIL OPEN FONT LICENSE Version 1.1. You can use DSEG for non-commercial and commercial purposes.

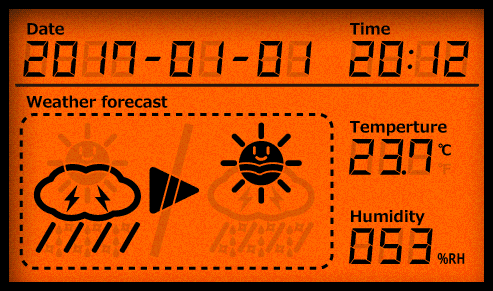

Sample

Usage

• Colon and Space have same width.



• Period has zero width.



• All-off (Exclamation)



• All-on ("8" or Tilda)



Others

For more information, visit DSEG support page.

• English:https://www.keshikan.net/fonts-e.html
• Japanese:https://www.keshikan.net/fonts.html

How to Install

Download release binary

release binary

Attention:Beta version may have compatibility issues with previous versions.

Build from source(*.sfd)

Install FontForge and Google woff2, and type below.

 $ make

Install in Ubuntu(18.04 or later)

$ sudo apt-get install fonts-dseg

Install from npm

$ npm i dseg

Changelog

• v0.50beta

  • Changed source file structure.
  • Added and Changed some glyphs. Thanks to [graphemecluster]

• v0.46(2020-03-15)

  • Added "DEGREE SIGN"(U+00B0).
  • Added "LOW LINE"(U+005F) on DSEG7.
  • Fixed an issue where the period(U+002E) width had negative value.

• v0.45(2018-01-09)

  • Added makefile and build script. (Merged #8 #9 . Thanks to alexmyczko)

• v0.44(2018-01-02)

  • Modified colon character position for balancing in Italic style. See below.

  • Added License metadata to *.ttf .
  • Changed file name of *.sfd to match it's font-name.

• v0.43(2017-08-15)

  • Added package.json and registerd npmjs.com. (merged #5. Thanks to nils-werner)

• v0.42(2017-04-27)

  • Added WOFF2 file format.
  • Added extended metadata block to *.woff and *.woff2.

• v0.41(2017-01-07)

  • Assigned all-segment-off status to exclamation mark(U+0021).

• v0.40(2017-01-06)

  • First released in Github.
  • Added weather icons "DSEGWeather".
  • The license has been changed to the SIL OPEN FONT LICENSE Version 1.1.

• v0.1x-0.30(2014-09-07 to 2017-01-07)

  • Older version(not recommended).
  • The license is original, not OFL1.1. When use this, read the attached document please.
  • Download v0.30

License

• Any font files(*.ttf, *.woff, *.sfd) are licensed under the SIL OPEN FONT LICENSE Version 1.1
