Ecler Manager & Streamer

Two tools for Ecler VEO-XTI1C / VEO-XRI1C H.264 video-over-IP extenders:

• The manager — see what every screen is showing, and switch channels from a browser instead of a ladder.
• The streamer — render a web dashboard headlessly and send it to a channel, so no PC needs to be plugged into a transmitter at all.

These extenders ship with no management tool. A receiver that loses its stream — which happens after a power event — is fixed by climbing to the unit and pressing its channel button. They are, however, on the network and speak a control protocol, so none of that is necessary.

How proven is this? The manager has run continuously against 30 receivers since early September 2026 and has done every switch, rename and commissioning job on that fleet. The streamer is newer: built mid-September, it currently drives three channels on one machine, has survived reboots unattended, and has not yet replaced the hardware transmitters in daily service. Both carry tests that run without any hardware.

Pure Python standard library, 3.8 or newer — the full test suites are run against 3.8, 3.9 and 3.14. No pip install, no build step, no dependencies. The streamer additionally needs ffmpeg, Xvfb and chromium, which do the rendering and encoding.

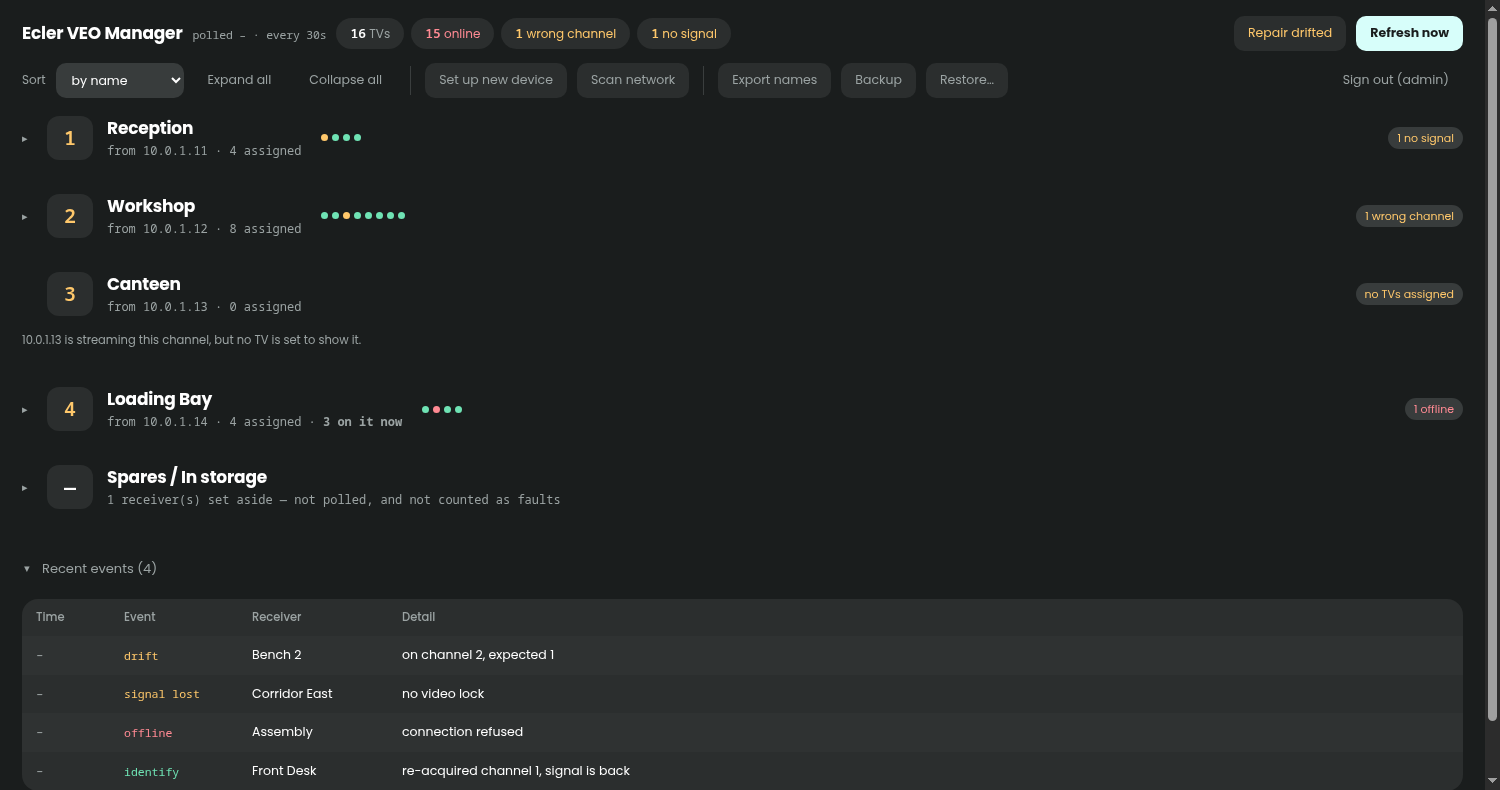

The manager's main view. One line per channel, with a dot per TV. A whole building fits on a screen, and you can still see which TV is unwell without opening anything — amber on Reception is a receiver with no picture, amber on Workshop is one on the wrong channel, red on Loading Bay is one that stopped answering. Channel 3 is flagged no TVs assigned: a transmitter streaming to nobody. Receivers deliberately set aside sit in Spares / In storage, not polled and not counted as faults. A channel with a problem opens itself unless you have collapsed it yourself, as here.

The event log answers the question that actually matters over time — how often does this happen? Every drift, signal loss, switch and re-acquire, timestamped.

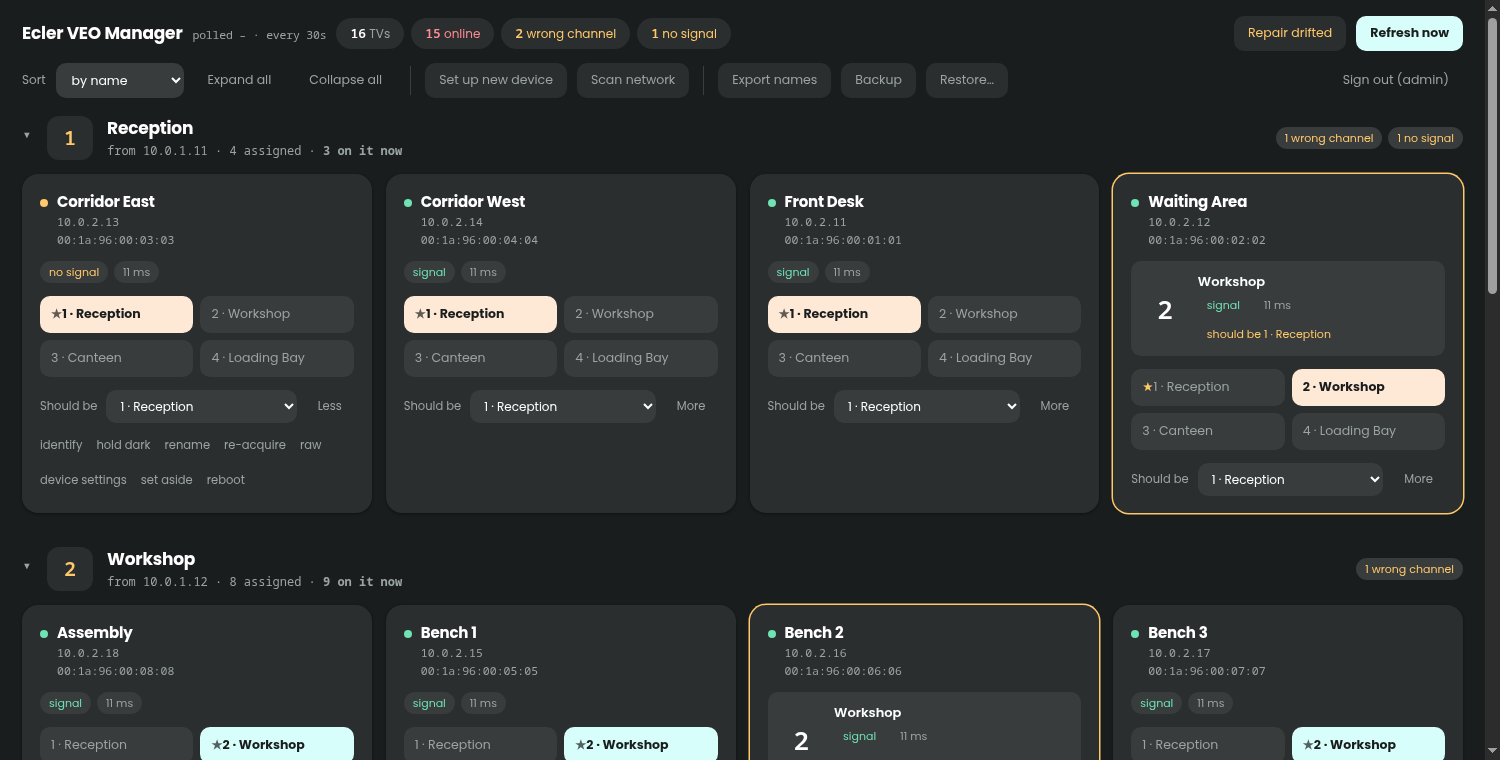

A card, and what it can do. Name, address and MAC, a signal chip from the device's own video-lock state, and how long it took to answer. The channel buttons switch it — the one it is on now is filled, ★ marks where it should be — and Should be sets the expected channel, which is what turns drift detection on. Behind More: identify blinks the screen, hold dark parks it until you release it, re-acquire forces it to re-join its stream, raw shows the exact bytes the device last replied with, and device settings opens address and name changes. Every action is read back from the device rather than assumed.

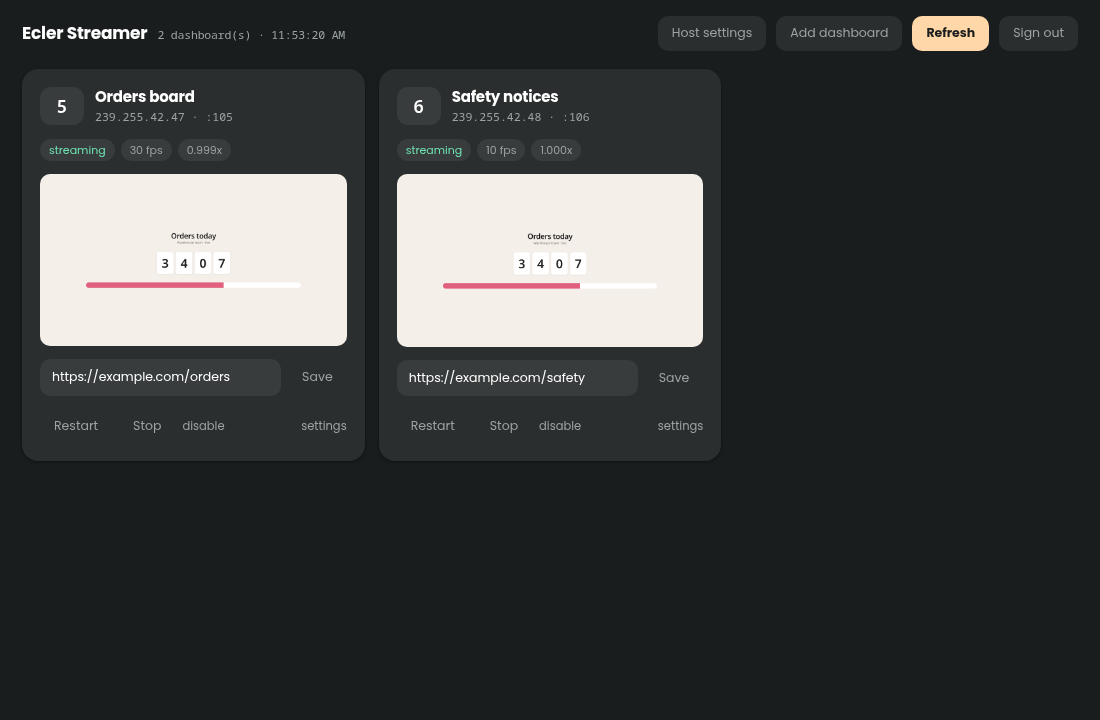

The streamer. One card per dashboard: paste a URL, enable it, and a headless browser renders it while ffmpeg encodes and multicasts it to that channel. The thumbnail is a live grab of what the channel is actually showing, which is the one thing a status line cannot tell you. fps and speed come from the encoder itself, and a red dropped chip appears only when frames are genuinely being lost.

(Click any image for the full size. All names and addresses in them are invented.)

What it does

The manager

• Shows every receiver's channel and signal state, grouped by the transmitter it is meant to be watching. Distinguishes wrong channel from right channel, no picture — a distinction the front panel cannot make.
• Switches channels from the browser, verified by reading the channel back off the device afterwards.
• identify blinks one TV, and hold dark parks it until you release it, so a receiver can be matched to a physical screen without a ladder.
• re-acquire forces a receiver to re-join its multicast stream — the remote equivalent of unplugging it, and the fix for a screen that is on the right channel but blank.
• Opt-in self-healing puts a drifted TV back, or re-acquires one that has lost its stream, after N consecutive bad polls.
• Finds devices the config does not know about, and commissions a factory-default unit: name, channel, address, reboot, and adopt once it answers at its new address.
• Backup and restore the whole configuration, and an optional login.

The streamer

• Renders any URL on a virtual display and streams it to a channel as H.264 over multicast — replacing a PC wired to a transmitter.
• A live thumbnail per channel, taken through the same pipeline the stream uses, so you can see what is on a screen without walking to it.
• Health from the encoder itself — frames per second, pace, and dropped frames — because with several channels running the question stops being is it up and becomes which one is falling behind.
• systemd owns the streams; the web UI only starts, stops and restarts them. It can crash or be upgraded without interrupting a frame, and a stream comes back by itself after a reboot.

See streamer/README.md to run it.

Quick start

1. Prove the protocol against one of your units (30 seconds)

Read-only; it changes nothing.

python3 tools/probe.py <a-receiver-ip>

Near the bottom you want:

parsed channel    : 1
parsed video lock : True

If it says COULD NOT PARSE but the raw get_group_id block above shows a sensible number, the reply is phrased in a way the parser does not recognise yet — the raw bytes are printed, and parse_int in eclermanager/veo.py is easy to extend. If port 9999 times out, see docs/troubleshooting.md.

2. Find out what is on the network

cp devices.example.txt devices.txt      # your inventory: "<ip> <name>" lines
python3 tools/scan.py 10.0.1.1-254 10.0.2.1-254 \
    --names devices.txt \
    --transmitter 10.0.1.1 --transmitter 10.0.1.2 \
    --write-config config.json

One TCP connection per address to port 9999, read-only get_* commands. It writes a starting config, so there is no hand-typing of thirty entries.

A receiver with no PoE will not answer and simply will not appear — which is how you tell in-service units from spares without opening a cupboard. What it cannot see is whether a TV is attached or switched on.

Keep ranges to subnets that might hold devices. Sweeping tens of thousands of empty addresses is an ARP flood, and has been measured knocking a whole fleet off its streams for ~35 seconds. Sweeps over 8192 addresses are refused unless forced.

3. Check the generated config

$EDITOR config.json

Name the channels and check expected_group_id on each TV: the scan adopts whatever each receiver happened to be showing, so any pre-existing drift became its expectation.

4. Run it

python3 run.py            # → http://127.0.0.1:8477/

--host 0.0.0.0 to let colleagues reach it — but read the warning it prints, and see Login.

Or run it in Docker

docker compose up -d        # then http://<this host>:8477/

Both ways are supported and neither is the "real" one — see docs/docker.md for volumes, credentials, and why the compose file uses host networking (short version: discovery has to see the receivers' VLAN, and a NAT'd bridge cannot).

The streamer is deliberately not containerised; its lifecycle model is systemd and it needs a real interface to send multicast from.

Try it without hardware

python3 tools/mock_veo.py --fleet 4 --chaos 20
python3 run.py --config your-mock-config.json

The emulator reproduces the real wire format, including the awkward parts, and --chaos makes devices drift and lose their streams the way real ones do.

Documentation

The protocol, in brief

The full account is in docs/protocol.md. The essentials:

• set_group_id <0-63> over TCP 9999 selects a receiver's channel; the "channel" on the front panel is Ecler's Group ID. Documented in the manual.
• get_group_id and get_video_lock report the current channel and whether the stream has locked. Not in Ecler's documentation, but present on the firmware and what makes a dashboard possible.
• Replies are framed by the prompt the device sends after each answer, not by a pause in the bytes. Framing on timing pairs each reply with the wrong command — silently, and the values look plausible.
• Some units reject the documented CRLF and answer LF only, closing the connection otherwise. The line ending is learned per host.
• set_static_ip stores an address that applies at reboot, while get_ip_config reports the running one — so the only verification is that the device answers at the new address afterwards.
• A unit serves one control session at a time. Connecting, closing and immediately reconnecting leaves it accepting TCP while answering nothing.

Layout

Two products in one repository, deployed independently: the manager installs from the root, the streamer from streamer/. A pull on either machine brings both down and only one gets installed.

run.py                        manager entry point
eclermanager/veo.py           the control protocol and its quirks
eclermanager/config.py        config load / validate / save
eclermanager/discovery.py     network sweep, and "is this really a VEO?"
eclermanager/poller.py        polling, drift detection, self-healing, actions
eclermanager/server.py        JSON API, static files, login gate
eclermanager/auth.py          password hashing and signed session cookies
eclermanager/static/          the dashboard and login page
deploy/                       systemd units, install and update scripts
tools/                        see docs/usage.md and docs/troubleshooting.md
tests/

streamer/run.py               streamer web service
streamer/stream.py            what systemd runs, one instance per channel
streamer/eclerstreamer/       config, systemd control, API, UI
streamer/tools/teststream.py  builds and runs the ffmpeg pipeline
streamer/tools/pagesource.sh  puts a page on a virtual display
streamer/deploy/              units, sudo rule, installer
streamer/tests/

Tests

python3 -m unittest discover -s tests            # manager
node tests/smoke_dashboard.js                    # its dashboard's JS

python3 -m unittest discover -s streamer/tests   # streamer
node streamer/tests/smoke_ui.js                  # its page's JS

No hardware needed. The manager's cover the protocol quirks above against emulated devices that reproduce them — including a unit that rejects CRLF, one that is slow to answer, and one whose replies would shift by a command under timing-based framing.

The streamer's pin the settings that were expensive to find — constant-rate output, the quality floor, no B-frames, the pacing rules — and the systemd directives that broke it quietly: a sandbox that made its config read-only, one that stopped it reaching systemd at all, and a restart policy that looped on a misconfiguration for ever.

Both JavaScript smoke tests run the real page against a stubbed DOM and fire every button, because node --check proves only that a file parses, not that a handler exists.

To check a Python version rather than assume it:

python3 tools/check_python.py          # whichever interpreter you have

It compiles every file, imports every module — the tools included, which the suites never touch — runs both suites and checks each CLI answers --help. The header of that file shows how to run it across versions in containers without installing any of them. Both incompatibilities it found were invisible by reading: socket.timeout only became an alias of TimeoutError in 3.10, so a slow device read as offline on 3.8 and 3.9; and Path.is_relative_to arrived in 3.9.

Contributing

See CONTRIBUTING.md. The short version: I can only test against VEO-XRI1C / VEO-XTI1C on firmware V1.01.r0, so if your unit parses differently, python3 tools/probe.py <ip> and the raw output in an issue is worth more than a description.

Licence

MIT. See LICENSE.
