xcode-build

A Claude Code mod that turns xcodebuild and swift build output into a live pane of errors grouped by file, and hands Claude the diagnostics instead of the raw log.

Why

When a Bash command fails with long output, Claude Code gives the model the start and the end and cuts out the middle. A failing xcodebuild puts the compiler errors in the middle, between hundreds of lines of SwiftCompile and Copy steps. Claude learns that the build failed and which files failed, but not why.

Measured on Xcode 27.1 with a five-file Swift package and three compile errors:

What it does

• Reads Xcode's result bundle. Adds -resultBundlePath to xcodebuild commands that name none, then reads errors, warnings and test failures from the bundle with xcresulttool. The bundle goes to the temporary folder and is deleted once read.
• Condenses what Claude reads. The tool result becomes the verdict, every error as file:line:column: error: message, the failed tests, and a count of warnings per file. The transcript keeps the raw output.

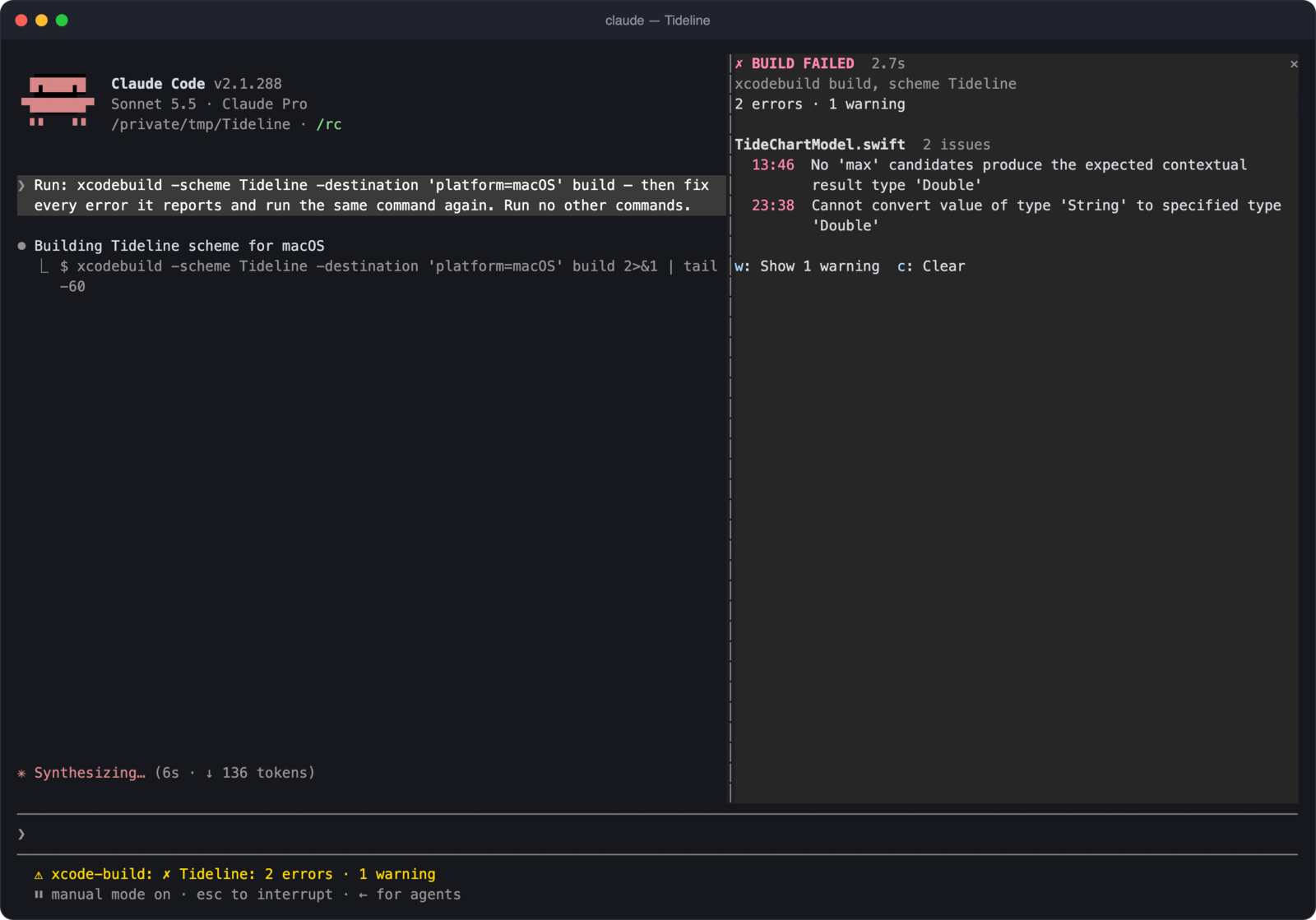

• Shows a pane. Errors grouped by file, failed tests, a toggle for warnings, a running timer while a build is in flight, and the last few builds.
• Sets the status line on a failure and shows a toast on a success.
• Draws a compact transcript row. The verdict and the first three errors, in place of the raw log. This applies to a build drawn as its own row; in the fullscreen layout Claude Code folds shell commands into one line ("Ran 1 shell command"), and the row is not drawn there.

It also reads swift build and swift test from their log output, and a build piped through tail, xcbeautify or xcpretty is still read from the result bundle.

How this compares to Apple's Xcode MCP

Xcode ships its own MCP server (xcrun mcpbridge) that lets Claude build, test and read parsed results through Xcode's tools. From Xcode 27 it can run headless, with Xcode closed, after a one-time sudo xcrun mcp-server enable.

If Claude builds through that server, you don't need this mod's log condensing: the MCP already returns structured results. The two solve the problem at different points:

Use the MCP if you have it set up and Claude uses it to build. This mod helps when Claude reaches for xcodebuild in the shell, which it often does, and it adds the pane either way.

When the MCP isn't an option

• No admin rights. Headless mode is turned on with sudo, and approving an agent or folder needs it too. Many company-managed Macs don't give developers admin access.
• MCP servers restricted. An organisation can control which MCP servers Claude Code may use, and some block any that haven't been reviewed.
• A broader grant. The MCP lets an agent drive Xcode itself. This mod adds one flag to an xcodebuild command Claude was already allowed to run, reads the result locally with Apple's xcresulttool, and sends nothing over the network.
• Older Xcode. Before Xcode 27 the MCP needs Xcode open.

Why a live pane in the terminal

• You see what Claude sees. The pane shows the same errors Claude was handed, so you can tell at a glance whether it is fixing the right thing.
• No scrolling. Build output otherwise sits folded in the transcript. The verdict, error count and files stay visible while the conversation moves on.
• Progress while you wait. A timer runs during the build, then the pane turns red or green.
• History. The last few builds are listed, so you can watch a fix go from two errors to one to green.
• Tests and warnings in the same place. Failed tests show their assertion message, and warnings are one keypress away.
• No window switching. It sits beside the conversation, which matters most over SSH or when Xcode isn't open.

An MCP server returns data to the model and cannot draw interface in Claude Code. That part is specific to mods.

Requirements

• macOS with Xcode and its command line tools (xcodebuild, xcrun).
• Claude Code with mod support. Built and tested on 2.1.288; check yours with claude --version and update with claude update.
• For the result bundle, an Xcode whose xcresulttool has get build-results (tested on Xcode 27.1). Without it the mod falls back to reading the log.

Install

Clone the repository somewhere it can stay:

git clone https://github.com/griches/claude-xcode-mod.git ~/.claude/mods/claude-xcode-mod

Try it for one session

cd /path/to/your/xcode/project
claude --plugin-dir ~/.claude/mods/claude-xcode-mod

Load it in every session

Add the folder to CLAUDE_CODE_PLUGIN_DIRS in the env block of ~/.claude/settings.json. The path must be absolute; ~ is allowed.

{
  "env": {
    "CLAUDE_CODE_PLUGIN_DIRS": "~/.claude/mods/claude-xcode-mod"
  }
}

If the variable already names other folders, separate them with :. Restart Claude Code afterwards. This also covers sessions started from the desktop app.

Check it loaded (optional)

Type /xcode-build in a session. If the mod is loaded, the pane opens and says "No builds yet." You only need to do this once, to confirm the install.

Use

There is nothing to switch on. Once the mod is loaded it works by itself whenever Claude runs xcodebuild, swift build or swift test, however you ask:

Build the app and fix any errors.

Each time Claude builds:

• Claude reads the parsed errors in place of the raw log.
• The status line shows a failure, and a toast shows a success.
• The pane opens by itself on terminals at least 144 columns wide. On narrower terminals it stays closed until you type /xcode-build, and then shows above the prompt.

The commands and keys are only for the pane:

Options

Each option is a row in Claude Code's config menu (/config).

Permissions

The mod changes the command Claude runs by appending one flag: -resultBundlePath '<temporary folder>/claude-xcode-build/<id>.xcresult'. An allow rule such as Bash(xcodebuild:*) still matches. A rule that names one exact command will no longer match and Claude Code will ask; set resultBundle to false to leave commands untouched.

Update and uninstall

git -C ~/.claude/mods/claude-xcode-mod pull

To uninstall, remove the folder from CLAUDE_CODE_PLUGIN_DIRS and delete the clone.

Troubleshooting

• /xcode-build is not a command. The mod did not load. Run claude plugin validate ~/.claude/mods/claude-xcode-mod, check the path in your settings, and check claude --version.
• The pane does not open by itself. Your terminal is narrower than 144 columns, or autoOpen is not always. Type /xcode-build.
• A build is not picked up. See Limits. claude --debug logs why a hook was skipped.
• Claude still reads the raw log. The mod only condenses when it found errors or failed tests, or the build succeeded. A failure with no diagnostics passes through unchanged.

Limits

• Only builds Claude runs through the Bash tool are seen. Builds you start in Xcode are not.
• A build inside a script, make, fastlane, bash -c or $(...) is not recognised, and neither is one run in the background.
• A command with several xcodebuild invocations is read from its log only.
• When a failing build yields no diagnostics, Claude reads the raw log unchanged.
• swift build has no result bundle, so a long failing log that Claude Code cuts in the middle can still lose its errors.
• The mod API is early access and may change between Claude Code releases.

Develop

claude plugin validate .
claude plugin test .

hooks/register.tsx holds the hooks; shell.ts finds builds in a command, xcresult.ts and log.ts read results, and format.ts words them. The fixtures in tests/fixtures.ts are excerpts of real Xcode output.

License

MIT
