InkSight: Offline-to-Online Handwriting Conversion by Teaching Vision-Language Models to Read and Write

Blagoj Mitrevski† • Arina Rak† • Julian Schnitzler† • Chengkun Li† • Andrii Maksai‡ • Jesse Berent • Claudiu Musat

^† First authors (random order)   |   ^‡ Corresponding author: [email protected]

---

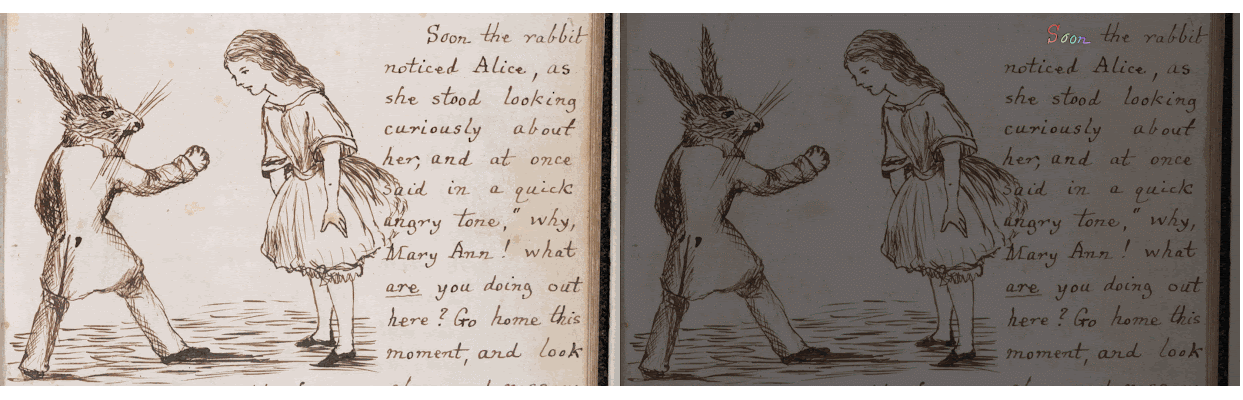

Animated teaser

Overview

InkSight is an offline-to-online handwriting conversion system that transforms photos of handwritten text into digital ink through a Vision Transformer (ViT) and mT5 encoder-decoder architecture. By combining reading and writing priors in a multi-task training framework, our models process handwritten content without requiring specialized equipment, handling diverse writing styles and backgrounds. The system supports both word-level and full-page conversion, enabling practical digitization of physical notes into searchable, editable digital formats. In this repository we provide the model weights of Small-p, dataset, and example inference code.

Key capabilities:

• Offline-to-online handwriting conversion from photos
• Multi-language support with robust background handling
• Word-level and full-page text processing
• Vector-based digital ink output for editing and search

Latest Updates

• June 2025: Paper accepted to TMLR (Transactions on Machine Learning Research)
• October 2024: Model weights and dataset released on Hugging Face
• October 2024: Featured on Google Research Blog
• February 2024: Interactive demo launched

Quick Start

Online Demo

Try InkSight on Hugging Face Space: Interactive Demo

Jupyter Notebook

Explore our example notebook with step-by-step inference examples.

Dataset

Access our comprehensive dataset: InkSight Dataset on Hugging Face

Installation

Using uv (Recommended)

uv is a fast Python package and project manager that provides excellent dependency resolution and virtual environment management.

# Install uv if you haven't already
curl -LsSf https://astral.sh/uv/install.sh | sh

# Clone and set up the project
git clone https://github.com/google-research/inksight.git
cd inksight
uv sync

# Start the configured notebook
uv run jupyter notebook colab.ipynb

Using Conda

git clone https://github.com/google-research/inksight.git
cd inksight
conda env create -f environment.yml
conda activate inksight

The uv environment uses TensorFlow 2.20 and TensorFlow Text 2.20. The notebook configures TensorFlow before its first import to preserve the pre-2.18 XLA GEMM lowering and deterministic autotuning used by the released checkpoint. For the same configuration in a Python script, import TensorFlow through the InkSight utility:

from utils.tensorflow import tf

Local Playground Setup

For development or custom inference, run the Gradio playground locally:

git clone https://huggingface.co/spaces/Derendering/Model-Output-Playground
cd Model-Output-Playground
pip install -r requirements.txt
python app.py

Resources

📊 Dataset

• InkSight Dataset - Comprehensive collection of model outputs and expert traces
• Dataset Documentation - Detailed dataset description, format specifications, and usage guidelines

🤖 Models

• Small-p model (CPU/GPU) - Optimized for standard inference
• Small-p model (TPU) - TPU-optimized version

💻 Code Examples

• Inference Notebook - Word and page-level inference examples
• Sample Outputs - Visual examples of model results

The inference code demonstrates both word-level and full-page text processing using open-source alternatives to commercial OCR APIs, including support for docTR and Tesseract OCR.

License and Citation

License

This code is released under the Apache 2.0 License.

Citation

If you use InkSight in your research, please cite our paper:

@article{
mitrevski2025inksight,
title={InkSight: Offline-to-Online Handwriting Conversion by Teaching Vision-Language Models to Read and Write},
author={Blagoj Mitrevski and Arina Rak and Julian Schnitzler and Chengkun Li and Andrii Maksai and Jesse Berent and Claudiu Cristian Musat},
journal={Transactions on Machine Learning Research},
issn={2835-8856},
year={2025},
url={https://openreview.net/forum?id=pSyUfV5BqA},
note={}
}

Additional Resources

• Project Page - Comprehensive project overview with examples and technical details
• Google Research Blog - Featured article explaining the research

---

This is not an officially supported Google product.
