What is Proxelar?

Proxelar is a single-binary MITM proxy for developers who need to see and change what an app is doing on the wire without running a full security suite.

Your app  ──►  Proxelar :8080  ──►  Upstream service
                    │
              Inspect · Intercept · Rewrite · Mock

It is useful for debugging APIs, inspecting browser or mobile traffic, testing WebSocket clients, injecting headers, mocking local services, replaying captured requests, and automating request/response transforms with Lua.

Proxelar is intentionally developer-oriented: terminal-first, scriptable, Rust-native, and usable as a CLI tool or as the proxyapi library.

---

Why use it?

• One local binary — install with Homebrew, winget, Cargo, Docker/Podman, or GitHub releases.
• Four interfaces — TUI, plain terminal output, browser GUI, or a headless REST API.
• Lua scripting — on_request and on_response hooks can rewrite, block, short-circuit, or mock traffic.
• Interactive intercept — pause requests, edit method/URI/headers/body, forward, drop, or replay.
• HTTPS MITM — local CA generation, per-host certificates, and a built-in certificate install page.
• Forward and reverse modes — inspect configured clients or put Proxelar in front of a local service.
• Native protocol core — HTTP/1, HTTP/2, and feature-gated HTTP/3 without Hyper in the proxy data path.
• Six capture modes — forward, reverse, WireGuard, SOCKS5, DNS inspection/rewrite, and fixed-target raw UDP.
• WebSocket inspection — capture connections and browse frames by direction, opcode, and payload preview.
• Portable sessions — save/reload native captures or import/export HAR, curl, and raw HTTP files with secret redaction.
• Rules and automation — map local/remote URLs, mock and redirect requests, hot-reload Lua, or drive the bearer-token REST API.

---

Installation

Homebrew (macOS / Linux)

brew install proxelar

winget (Windows)

winget install --id EmanueleMicheletti.Proxelar --exact

Cargo

cargo install proxelar

Docker / Podman

# Web GUI
docker run --rm -it -v ~/.proxelar:/root/.proxelar -p 8080:8080 -p 127.0.0.1:8081:8081 ghcr.io/emanuele-em/proxelar --interface gui --addr 0.0.0.0

# Terminal
docker run --rm -it -v ~/.proxelar:/root/.proxelar -p 8080:8080 ghcr.io/emanuele-em/proxelar --interface terminal --addr 0.0.0.0

The -v ~/.proxelar:/root/.proxelar mount reuses your existing trusted CA certificate so you do not get browser warnings after trusting the CA once. The container always keeps its state at /root/.proxelar; if your host state directory differs (because XDG_CONFIG_HOME is set), mount that path instead of ~/.proxelar.

---

Quick Start

1. Start the proxy

proxelar

2. Configure a client

Set HTTP and HTTPS proxy to 127.0.0.1:8080 in your browser, OS, mobile device, app, or tool.

3. Install the CA certificate for HTTPS

Visit http://proxel.ar while routing traffic through Proxelar. It serves the generated root certificate and install instructions.

Traffic appears in the TUI immediately.

# quick smoke test
curl -x http://127.0.0.1:8080 http://httpbin.org/get
curl -x http://127.0.0.1:8080 https://httpbin.org/get

---

Example: mock an API response

Create mock_user.lua:

function on_request(request)
    if request.method == "GET" and string.find(request.url, "/api/user/me") then
        return {
            status = 200,
            headers = { ["Content-Type"] = "application/json" },
            body = '{"id":1,"name":"Local Test User"}',
        }
    end
end

Run Proxelar in front of a local service:

proxelar -m reverse --target http://localhost:3000 --script mock_user.lua

Then call http://127.0.0.1:8080/api/user/me to receive the mocked response.

More scripts are in examples/scripts/, including auth injection, CORS headers, HTML rewriting, cookie stripping, redirects, traffic logging, and JSON body edits.

Portable addons use a versioned proxelar-addon.json manifest with semantic versioning, declared hooks/native-code requirements, and SHA-256 coverage for every package file. Proxelar rejects traversal, symlinks, undeclared files, and tampered content before installation or execution:

proxelar addon verify ./examples/addons/header-tagger
proxelar addon install ./examples/addons/header-tagger
proxelar addon list
proxelar --addon header-tagger

See examples/addons/header-tagger/ for a minimal distributable package. Existing manifest-free --script directories remain supported for local development.

---

Interfaces

proxelar              # interactive TUI (default)
proxelar -i terminal  # plain terminal output

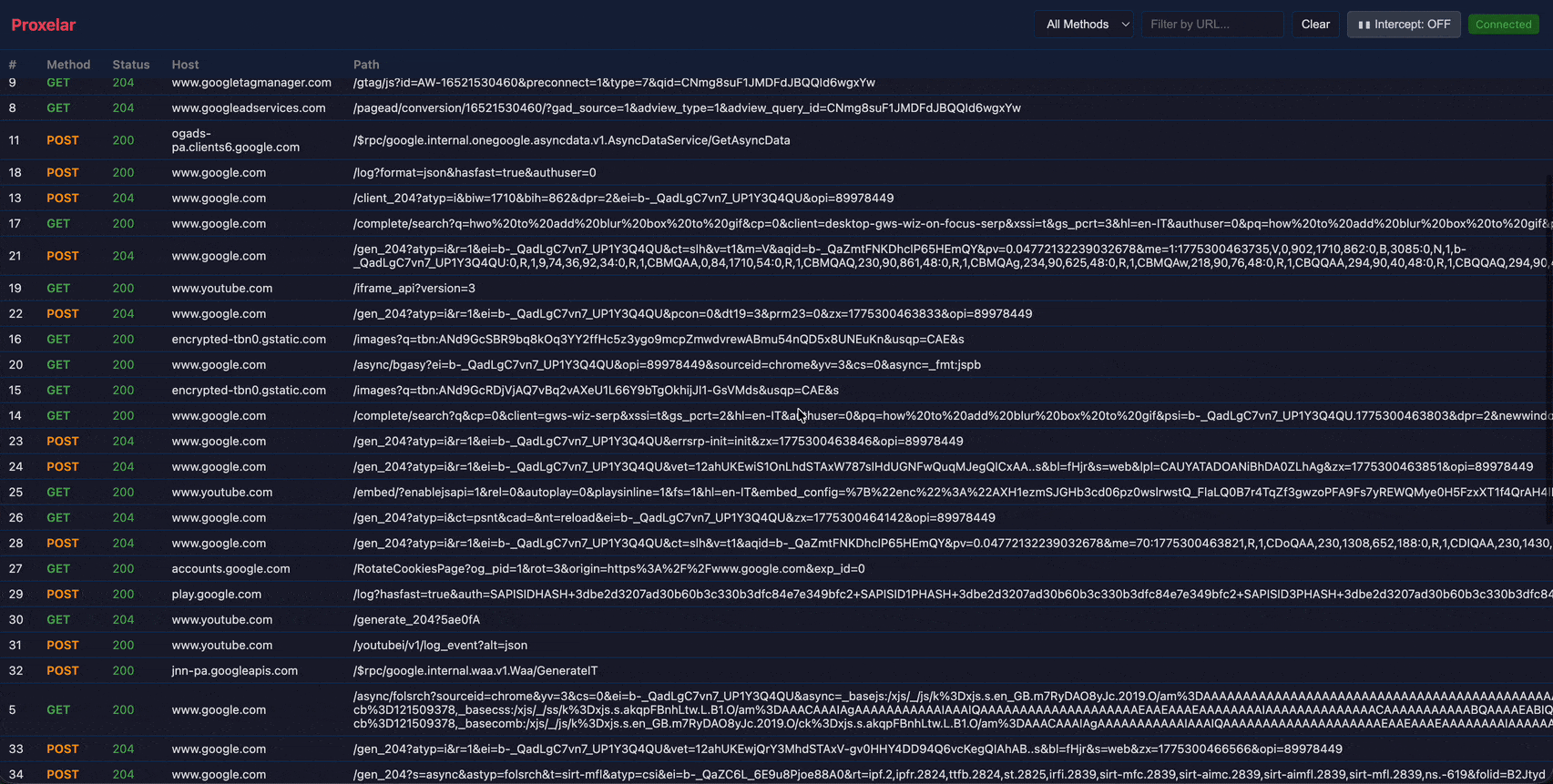

proxelar -i gui       # web GUI at http://localhost:8081
proxelar -i api       # headless REST API at http://localhost:8081

Common options:

proxelar -m reverse --target http://localhost:3000   # reverse proxy
proxelar -m reverse --target http3://localhost:4433  # UDP-only H3 reverse proxy
proxelar -b 0.0.0.0 -p 9090                         # custom bind/port
proxelar --script examples/scripts/block_domain.lua  # with a Lua script
proxelar --body-capture-limit 1048576                # cap captured/editable body bytes
proxelar --upstream-trust default+ca:/path/ca.pem    # trust an extra upstream CA
proxelar --save-session debug.proxelar.json           # save on Ctrl+C
proxelar -i gui --launch-browser                      # isolated Chromium proxy profile
proxelar -m wireguard -b 0.0.0.0 -p 51820 \
  --wireguard-endpoint 192.168.1.10:51820             # mobile/IoT capture

All CLI options

Flag	Description	Default
-i, --interface	terminal · tui · gui · api	tui
-m, --mode	forward · reverse · wireguard · socks5 · dns · udp	forward
-p, --port	Listening port	8080
-b, --addr	Bind address	127.0.0.1
-t, --target	http://, https://, or http3:// upstream URI for reverse; HOST:PORT for UDP	—
--gui-port	Web GUI port	8081
--ca-dir	Directory for CA cert/key, addons, and other proxelar state	$XDG_CONFIG_HOME/proxelar if set, else ~/.proxelar
-s, --script	Lua script file or addon directory (init.lua)	—
--addon	Load a validated installed addon by name	—
--addons-dir	Local addon catalog used by runtime and addon commands	CA_DIR/addons
--body-capture-limit	Maximum body bytes buffered for capture/editing; use free, unlimited, or none for unlimited	free
--upstream-trust	Upstream TLS trust policy: default, default+ca:/path/ca.pem, ca-only:/path/ca.pem, or insecure	default
--upstream-proxy	Chain through http://HOST:PORT or socks5://HOST:PORT	—
--load-session, --import-har	Load prior traffic before capture	—
--save-session, --export-har, --export-curl, --export-raw	Write captures on clean shutdown	—
--rules, --map-local, --map-remote	Declarative routing, mocks, redirects, and rewrites	—
--api-token	Fixed bearer token for the GUI/headless API; random when omitted	random
--launch-browser	Launch an isolated Chromium-family profile using the proxy	off
--wireguard-endpoint	Public/LAN HOST:PORT written to the generated client config	derived from bind route
--theme	TUI color theme: default/dark/light, system, a bundled name (cyberdream, cyberdream-light), or a custom name without a path or .toml suffix	default

--upstream-trust insecure disables upstream certificate and hostname verification. Use it only for controlled debugging.

---

Configuration

Proxelar keeps its CA certificate/key, addons, and other local state in one directory, resolved in this order:

1. --ca-dir <DIR> — explicit override, always wins
2. $XDG_CONFIG_HOME/proxelar — used when that env var is set to a non-empty absolute path
3. ~/.proxelar — default when neither of the above applies

# Uses ~/.proxelar (no XDG_CONFIG_HOME set)
proxelar

# Uses $XDG_CONFIG_HOME/proxelar, e.g. ~/.config/proxelar
XDG_CONFIG_HOME=~/.config proxelar

# Always uses the given path, regardless of XDG_CONFIG_HOME
proxelar --ca-dir /path/to/proxelar-state

This directory isn't just for the CA certificate — addons and other local proxelar state live there too, so pointing --ca-dir (or XDG_CONFIG_HOME) somewhere else moves everything at once, not just certs.

---

Theming

The TUI's colors are configurable via CA_DIR/config.toml, where CA_DIR is the state directory resolved as described above.

theme = "cyberdream"

theme accepts:

• default / dark / light — the built-in palette (plain ANSI colors, so it already adapts to whichever light/dark scheme your terminal itself uses)
• system detects the terminal/OS appearance at startup and picks theme_dark or theme_light below (both default to default if unset)
• a bundled name: cyberdream, cyberdream-light, cyberdream-muted, rose-pine, rose-pine-dawn, tokyonight, tokyonight-day, dracula, alucard, catppuccin-mocha, catppuccin-latte
• a custom name resolved from CA_DIR/themes/<name>.toml

To select a light or dark theme at startup (appearance changes while running do not switch themes):

theme = "system"
theme_dark = "cyberdream"
theme_light = "cyberdream-light"

To tweak a handful of colors without creating a theme file:

[colors]
status_bar_bg = "#222222"
status_bar_fg = "#eeeeee"

A custom theme file only needs to specify the colors it changes — everything else falls back to the default palette. Colors are "#rrggbb" hex or a named ANSI color ("red", "light_green", "dark_gray", ...). Unknown keys or invalid colors print a warning and fall back rather than failing to start. --theme <name> on the command line overrides config.toml.

Writing a custom theme

Create each theme file at CA_DIR/themes/<name>.toml. The filename without .toml is the theme name:

CA_DIR/
├── config.toml
└── themes/
    ├── my-dark-theme.toml
    └── my-light-theme.toml

Each file only needs to specify the colors it changes — everything else falls back to the default palette:

# CA_DIR/themes/my-dark-theme.toml
status_bar_bg = "#222222"
status_bar_fg = "#eeeeee"
method_get = "#8fbc8f"
row_error = "#ff6b6b"

Use just the dark theme:

# config.toml
theme = "my-dark-theme"

Or just the light one:

# config.toml
theme = "my-light-theme"

Or select between them at startup based on your terminal/OS appearance:

# config.toml
theme = "system"
theme_dark = "my-dark-theme"
theme_light = "my-light-theme"

For the authoritative list of every colorable key, see known_theme_keys() in proxelar-cli/src/theme.rs, or look at one of the bundled theme presets under proxelar-cli/src/themes/ for a real, fully filled-in example.

Bundled theme credits

The bundled themes are palette ports of these projects — full credit to their authors:

• cyberdream / cyberdream-light / cyberdream-muted — cyberdream.nvim
• rose-pine / rose-pine-dawn — Rosé Pine
• tokyonight / tokyonight-day — Tokyo Night
• dracula / alucard — Dracula
• catppuccin-mocha / catppuccin-latte — Catppuccin

---

How it compares

See the full comparison for details.

---

Current limitations

Proxelar is usable today, but it intentionally has a narrower scope than a full security suite:

• HTTP/1 and HTTP/2 are supported across TCP proxy modes. HTTP/3 interception is intentionally limited to reverse and WireGuard modes: https:// reverse targets listen on TCP and UDP on the same port, while http3:// is UDP-only and uses H3 in both directions. There is no heuristic QUIC detection or timeout-based protocol fallback.
• The direct HTTP/3 driver preserves informational responses, streaming bodies, ordered duplicate headers, and request/response trailers. QUIC early data, datagrams, and active migration are disabled.
• Generic TCP streams are captured as directional chunks, and fixed-target or WireGuard UDP traffic records request/response datagrams. Protobuf has a lossless wire-field JSON editor and MessagePack has a JSON editor; descriptor-backed field names and raw-TCP schemas are not yet available.
• WireGuard mode currently generates one client identity per CA directory. Proxelar does not modify system proxy settings; --launch-browser uses a reversible, isolated browser profile instead.
• HTTPS interception requires trusting Proxelar's local CA. Certificate-pinned apps and many Android apps will not trust user-installed CAs.
• Remote web GUI use is not a hardened multi-user deployment mode; keep it local or tunnel it carefully.

See Known limitations and the roadmap.

---

Documentation

Full documentation: proxelar.micheletti.io

• Quick start
• Inspect browser and curl traffic
• Mock or modify a local API
• Lua scripting API
• CA trust and uninstall
• Sessions and export
• Rules and headless API

---

Contributing

Contributions are welcome. See CONTRIBUTING.md and ROADMAP.md.

License

MIT
