Introduction

EEZ Bench Box 3 (BB3) represents a new category of modular Test and Measurement (T&M) equipment. It provides a complete open-source hardware and software framework that bridges the gap between – and combines the best features of – DIY hobbyist tools and professional benchtop equipment. BB3 was inspired by the EEZ H24005 power supply project (OSHWA UID HR000001), which attracted many enthusiasts with its broad feature-set, rich user interface, DIY-friendliness, and fully open-source design. It initially comes with two DC power modules (hence the name of repository modular-psu) and will be expanded with new T&M modules (e.g. multi-channel power source, 2/4-quadrant power module, multi-channel temperature sensor module, data logger, switch matrix, digital I/O expander, function generator, data acquisition module, etc.). BB3 is made up of the following components:

• BP3C EEZ DIB backplane with power output coupling capability of first two modules
• AUX power supply board with AC input protection, soft-start/power-up control, DC fan controller and +5 V / +12 V power outputs
• MCU board based on STM32F769IIT6 32-bit ARM Cortex-M7
• DCP405, 0 - 40 V / 50 mA / 5 A DC power source module
• DCM224, dual sync buck 1 - 24 V / max. 4.9 A module (retired)

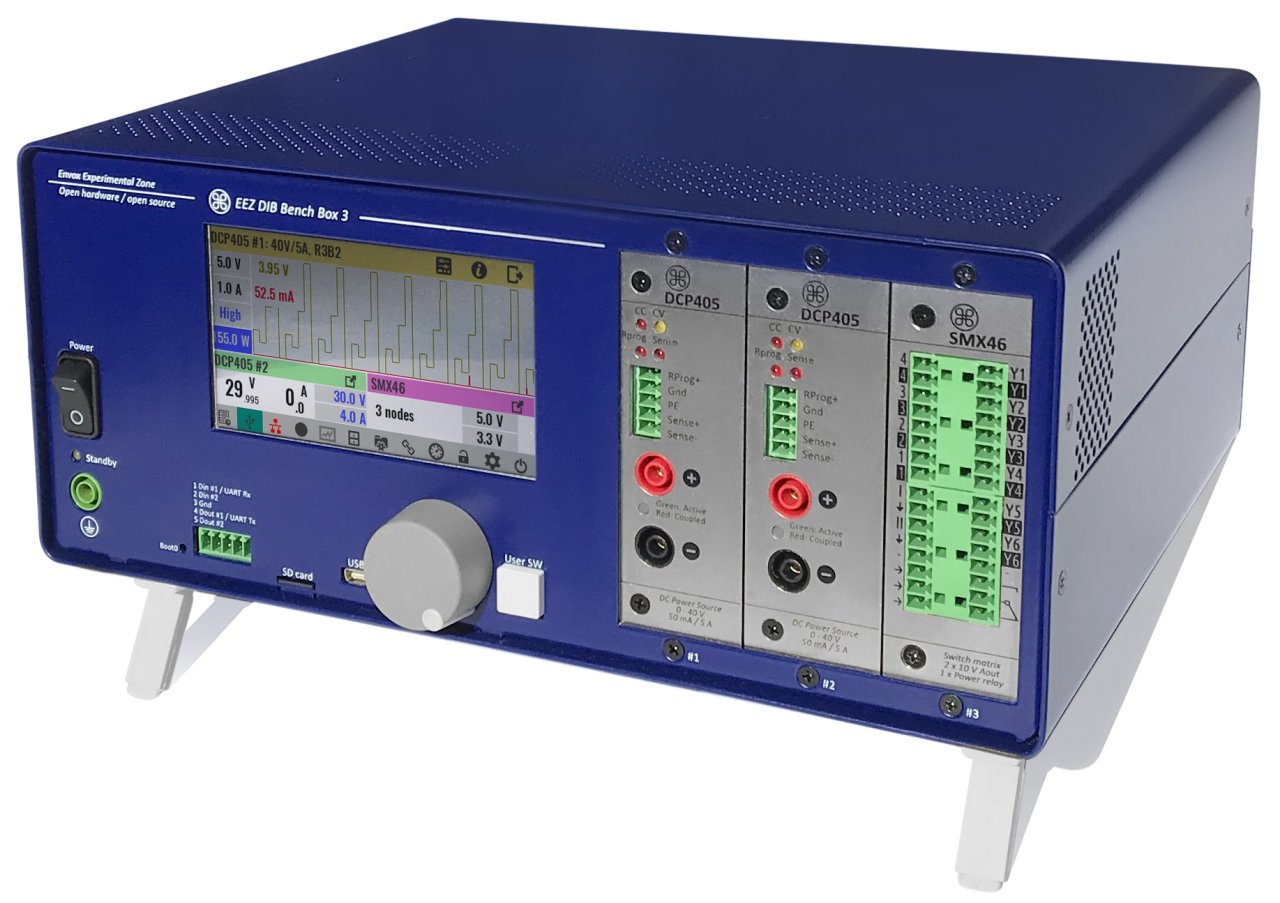

• Metal enclosure for housing up to 3 modules with 4.3" TFT LCD. Dimensions: 290 (W) x 123 (H) x 240 (D) mm

Supported technologies

• EEZ Flow (Visual programming tool for test and measurement automation)
• SCPI (Reference Guide in PDF)
• MicroPython (script examples, an example video)
• MQTT (an intro video)
• Node-RED integration (an intro video)

Other DIB modules

• MIO168 Mixed I/O module
• PREL6 power relays module
• SMX46 programmable switch matrix module
• MUX14D dual 7:1 reed relay 2-wire multiplexer

Related topics and links

• EEZ BB3 firmware
• EEZ Studio
• EEZ DIB v1.2 specification
• EEZ DIB peripheral modules KiCad 8.x project template
• Discord server
• X (ex Twitter)
• YouTube channel
• EEVblog forum discussion
• Crowd Supply crowdfunding landing page
• EMC certificate, LVD cerificate
• Sigrok
• Liberpay donations

Where to buy?

• EEZ Web store (out of stock)
• Mouser (kit only, excl. EU/UK)
• Crowd supply (kit only, excl. EU/UK)

---

Please note that some previous board types and revisions that could be still usable in some cases can be found under previous design folder.
