comfyui_facetools

These custom nodes provide a rotation aware face extraction, paste back, and various face related masking options.

Patch notes

• 2024-06-20 - fixed issue 13
• 2024-06-14 - Sent yolo to cuda device if available (credits: kilroythethird, thanks for the suggestion!)
• 2024-06-14 - Dropped the requirement from insightface completely.
• 2024-05-22 - Updated GenderFaceFilter node.
• 2024-05-19 - Added BiSeNetMask and JonathandinuMask nodes. Careful about JonathandinuMask, it's more accurate than BiSeNet, but it takes more memory; you can get out of memory more easily with it.
• 2024-03-10 - Added nodes to detect faces using face_yolov8m instead of insightface.

Example Workflows

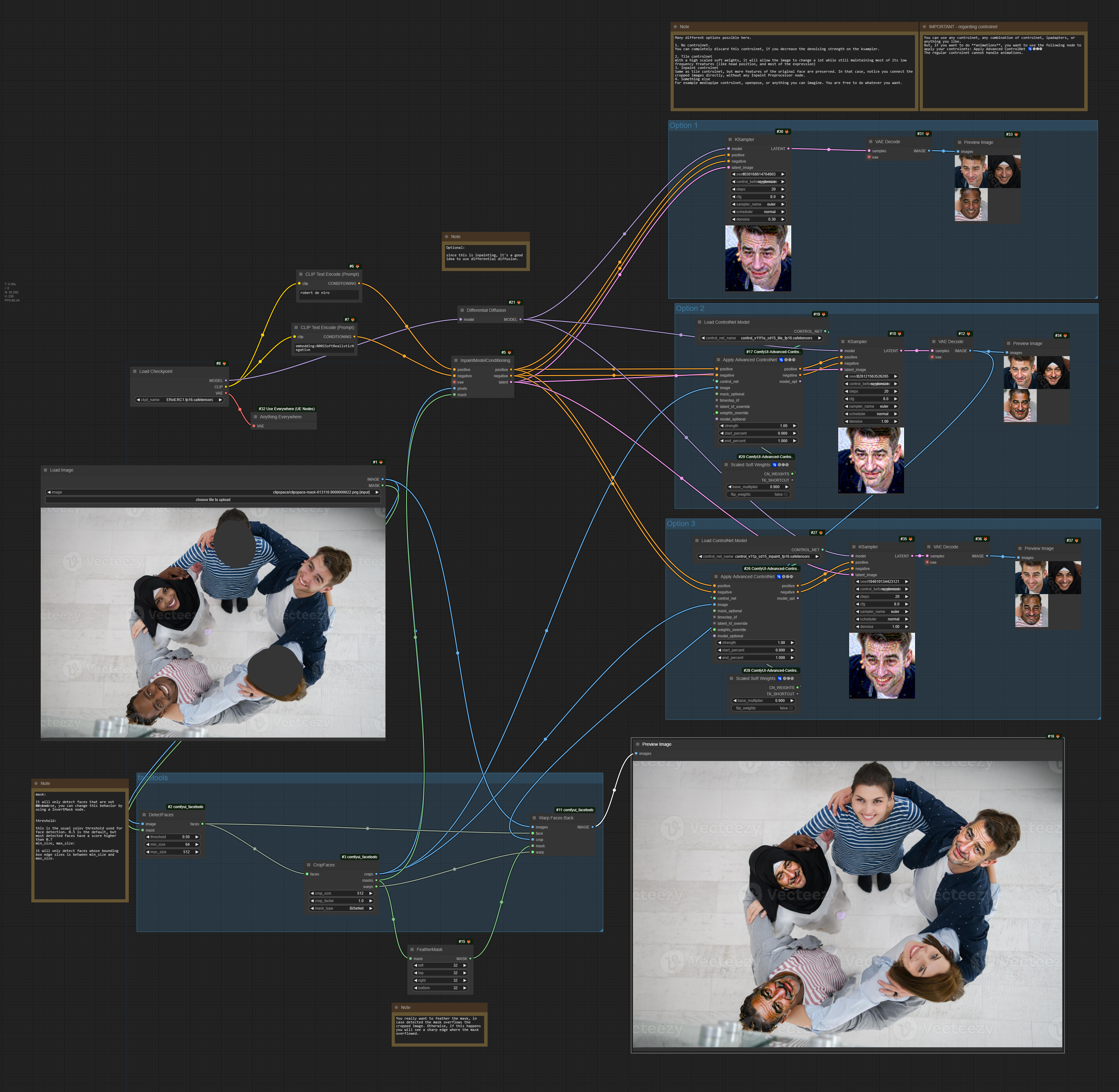

• Full inpainting workflow with two controlnets which allows to get as high as 1.0 denoise strength without messing things up.

Nodes

• AlignFaces
  • inputs:
    • insightface: Use the Load InsightFacenode from ComfyUI_IPAdapter_plus
    • image
    • threshold: minimal confidence score for detection
    • min_size: minimum face size for detection
    • max_size: maximum face size for detection
  • outputs:
    • faces
• FaceDetails
  • inputs:
    • faces
    • crop_size: size of the square cropped face image
    • crop_factor: enlarge the context around the face by this factor
    • mask_type:
      • simple_square: simple bounding box around the face
      • convex_hull: convex hull based on the face mesh obtained with MediaPipe
      • BiSeNet: occlusion aware face segmentation based on face-parsing.PyTorch
  • outputs:
    • crops: square cropped face images
    • masks: masks for each cropped face
    • warps: 2x3 warp matrix to paste the cropped face back into the original image
• WarpFacesBack
  • input:
    • images: this is the original image
    • face
    • crop: cropped face images
    • mask: masks for the cropped faces
    • warp: 2x3 warp matrix
• OrderedFaceFilter
  • works similarly to ImpactSEGSOrderedfilter
• GenderFaceFilter
  • needs more work, as InsightFace gender classifier isn't very accurate.
• MergeWarps
  • I made some changes in FaceDetailer and WarpFacesBack since I've created this one, so it probably doesn't work anymore. Needs more testing and more work.

Installation

• Download bluefoxcreation/FaceAlignment model into ComfyUI/models/landmarks
• (Only if you want to use occlusion aware masks) Download BiSeNet model into ComfyUI/models/bisenet

DEPRECATED:

• You need ComfyUI-Impact-Pack for Load InsightFace node and comfyui_controlnet_aux for MediaPipe library (which is required for convex_hull masks) and MediaPipe Face Mesh node if you want to use that controlnet.
