Awesome Semantic Segmentation (Updated through 2026)

A curated list of useful resources around semantic segmentation :tada:

Last updated: April 2026

Semantic segmentation is a computer vision task in which every pixel is assigned a semantic label. It answers the question:

What is in this image, and where is it located at the pixel level?

It is a core building block in autonomous driving, robotics, remote sensing, medical imaging, AR/VR, industrial inspection, document understanding, geospatial analysis, and embodied AI.

Modern semantic segmentation has evolved from fully convolutional networks (FCNs) to multi-scale CNNs, high-resolution CNNs, hybrid CNN/Transformer models, mask-classification frameworks, and more recently foundation / promptable / open-vocabulary segmentation models.

A few practical notes for 2026:

• mIoU is still the main benchmark metric, but Dice/F1, boundary F-score, latency/FPS, memory, calibration, and out-of-domain robustness matter in real systems.
• The field is no longer centered only on PASCAL VOC 2012. Common modern benchmarks include ADE20K, Cityscapes, COCO-Stuff, Mapillary Vistas, BDD100K, LoveDA, and domain-specific medical / remote-sensing datasets.
• Recent research increasingly overlaps with instance segmentation, panoptic segmentation, open-vocabulary segmentation, interactive segmentation, and video segmentation.

Useful leaderboard / trend trackers:

• Papers with Code: Semantic Segmentation
• Cityscapes Benchmark Suite
• MIT Scene Parsing Benchmark / ADE20K

Evaluate with: mIoU, pixel accuracy, Dice/F1, boundary quality, speed (FPS / latency), memory footprint, calibration, and robustness to domain shift / corruption.

---

How to read this list

Priority legend

• S-tier: must-read / must-know papers for most readers
• A-tier: strong follow-up papers that shape modern practice
• B-tier: specialized but valuable once you know the basics

Suggested reading order

• Read first: foundational papers or the best entry points
• Read next: important improvements or modern replacements
• Read later: specialized directions such as open-vocabulary, continual, domain generalization, or promptable segmentation

---

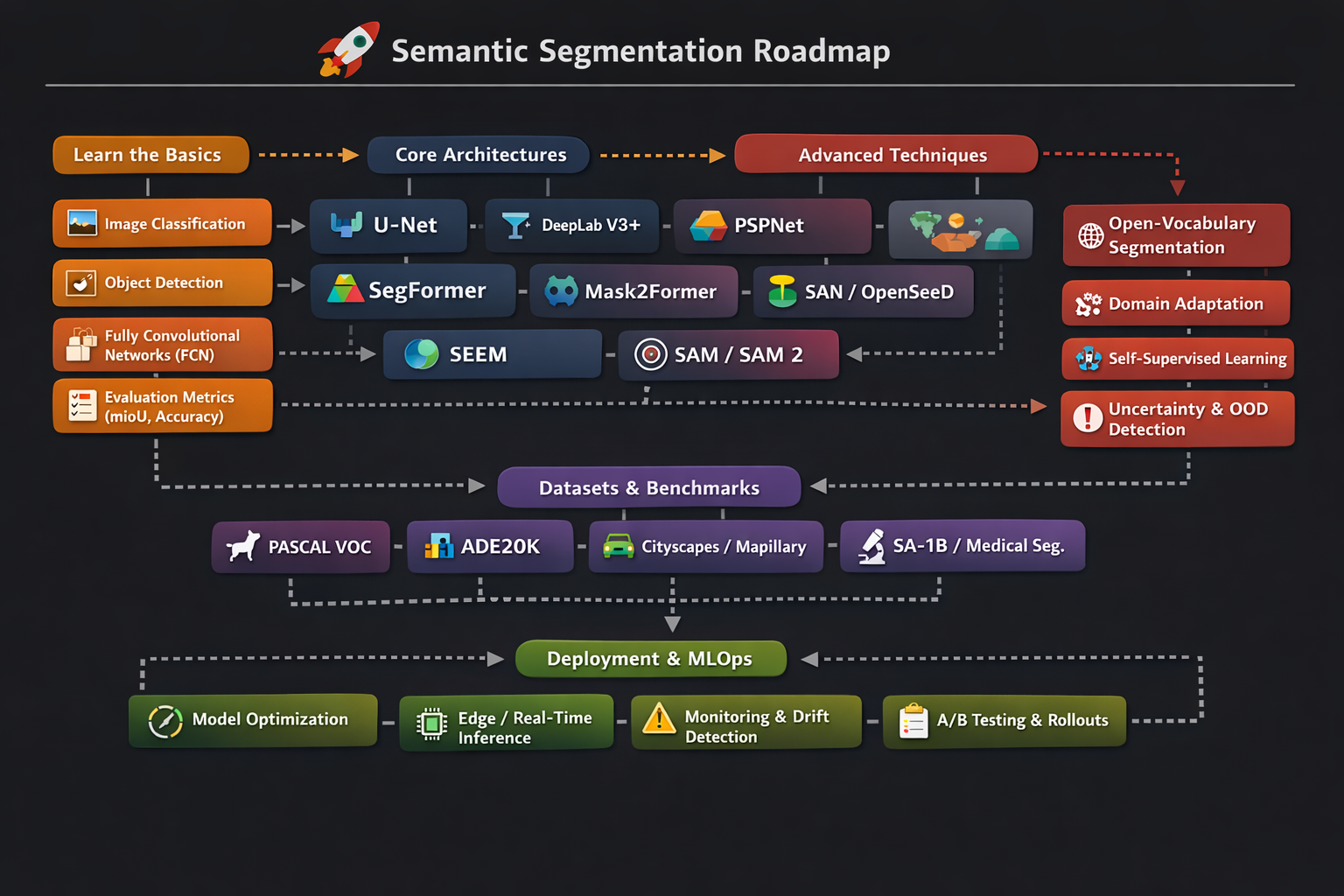

Recommended reading order (start here)

---

Timeline / breakthroughs of semantic segmentation

This section is meant to answer: what really changed in each era, and why did it matter? If you are new to the field, read the rows from top to bottom before diving into the larger paper list.

Key inflection points to remember

• FCN (2014/2015) turned segmentation into end-to-end dense prediction, replacing hand-crafted pipelines with a single trainable network.
• U-Net (2015) made encoder-decoder + skip connections the default mental model for segmentation, especially when localization matters.
• DeepLab / PSPNet (2016-2018) established the importance of multi-scale context, atrous convolution, and sharper boundaries.
• ENet / ICNet / BiSeNet (2016-2019) made it clear that latency and memory are first-class constraints, not afterthoughts.
• SETR / Segmenter / SegFormer (2020-2021) marked the Transformer transition, bringing stronger global context modeling.
• MaskFormer / Mask2Former / OneFormer (2021-2023) reframed segmentation from per-pixel classification to mask classification / universal segmentation.
• SAM / SAM 2 (2023-2024) shifted the field toward promptable foundation segmentation, massively affecting annotation workflows and zero-shot use cases.
• SAM 3 and concept-driven segmentation (2025-2026) push the frontier toward language / concept-conditioned segmentation across images and video, though this is still newer and less standardized than FCN→DeepLab→SegFormer style baselines.

Timeline of major breakthroughs

A compact reading path by era

1. History and core intuition: FCN → U-Net → PSPNet → DeepLabV3+
2. Deployment and strong practical baselines: BiSeNet → HRNet → OCR
3. Transformer era: SETR → SegFormer
4. Universal segmentation: MaskFormer → Mask2Former → OneFormer
5. Foundation / promptable / open-vocabulary frontier: SAM → SAM 2 → SAN / OpenSeeD → SAM 3

---

State-of-the-art and milestone methods for semantic segmentation

The exact top-ranked model changes frequently by benchmark and training recipe. The table below is intentionally curated around representative milestone methods and 2021–2026 trends, while keeping earlier classics for context.

---

Architecture families and real-time models

Real-time / deployment-oriented architectures

Specialized directions

• Medical segmentation: U-Net, U-Net++, Attention U-Net, nnU-Net, nnU-Net v2
• Remote sensing: LoveDA benchmark, iSAID, SegFormer/Mask2Former/HRNet-based pipelines
• Open-vocabulary segmentation: SAN, OpenSeeD, SEEM
• Promptable / interactive segmentation: SAM, SAM 2, SEEM
• Universal segmentation: Mask2Former, OneFormer, OMG-Seg

---

Research papers (curated reading list)

This section is intentionally paper-centric rather than repo-centric. It is ordered to help you decide what to read before / after.

1) Foundational papers (read these first)

2) Strong CNN-era follow-ups (read next)

3) Modern Transformer / universal segmentation papers

4) Open-vocabulary / foundation / promptable segmentation papers

5) Specialized papers to read later

---

Review list of semantic segmentation

General reviews and surveys

• 2025 — Domain Generalization for Semantic Segmentation: A Survey
• 2025 — A Survey on Training-free Open-Vocabulary Semantic Segmentation
• 2024 — Semi-Supervised Semantic Segmentation Based on Pseudo-Labels: A Survey
• 2024 — Image semantic segmentation of indoor scenes: A survey
• 2024 — Deep learning-based real-time semantic segmentation: a survey
• 2024 — Domain generalization for semantic segmentation: a survey
• 2023 — A Survey on Continual Semantic Segmentation: Theory, Challenge, Method and Application
• 2023 — Few-Shot Semantic Segmentation: a review of methodologies and open challenges

Older but still useful references

• A 2021 guide to Semantic Segmentation
• Evolution of Image Segmentation using Deep Convolutional Neural Network: A Survey (2020)
• An overview of semantic image segmentation
• Recent progress in semantic image segmentation (2018)
• A Survey of Semantic Segmentation (2016)
• CS231n Lecture: Detection and Segmentation

---

Case studies / competitions / practical references

Autonomous driving and street-scene parsing

• Cityscapes Benchmark Suite
• Mapillary Vistas
• BDD100K toolkit and tasks

Remote sensing / earth observation

• LoveDA dataset and benchmark
• iSAID dataset
• DeepGlobe challenge

Medical / biomedical segmentation

• Medical Segmentation Decathlon
• MONAI Label
• HuBMAP + HPA - Hacking the Human Body
• SenNet + HOA - Hacking the Human Vasculature in 3D

Older competition write-ups that are still educational

• Dstl Satellite Imagery Competition, 3rd place winners: Blog, Code
• Carvana Image Masking Challenge, 1st place winners: Blog, Code
• MICCAI 2017 Robotic Instrument Segmentation: Code + explanation
• 2018 Data Science Bowl nuclei segmentation: 1st place, 2nd, 3rd
• Airbus Ship Detection Challenge: 4th place, 6th
• Severstal Steel Defect Detection: 1st place

---

Most used loss functions

Core losses

• Pixel-wise Cross Entropy / Soft Cross Entropy
  Standard multi-class supervised objective; often the default baseline.
• Dice / Soft Dice loss
  Very common when class imbalance is severe; especially popular in medical segmentation.
• Jaccard / IoU loss
  Directly aligns better with IoU-style evaluation objectives.
• Focal loss
  Helps when easy negatives dominate or rare classes are hard to learn.
• Lovasz-Softmax loss
  Optimizes a differentiable surrogate of the IoU / Jaccard objective.

Common imbalance-aware or boundary-aware losses

• Tversky loss / Focal Tversky loss
  Useful for highly imbalanced foreground-background settings.
• Boundary loss / Surface loss / Boundary IoU-oriented objectives
  Helpful when contour quality matters (medical, lane, crack, document, remote sensing).
• OHEM / Bootstrapped Cross Entropy
  Reweights optimization toward hard pixels.
• Combo losses
  In practice, many strong systems use CE + Dice, CE + Lovasz, or Dice + Focal.

Practical rule of thumb

• Start with Cross Entropy for clean balanced datasets.
• Try CE + Dice when foreground is sparse or small.
• Add Lovasz if the target metric is IoU-heavy.
• Add boundary-aware terms when shape/contour matters.
• Track per-class metrics, not only global mIoU.

---

Datasets

General-purpose scene parsing / street scenes

Remote sensing / aerial imagery

Medical / foundation-scale / other useful datasets

---

Frameworks for segmentation

General-purpose research / production frameworks

Domain-specific frameworks

Older but still educational frameworks / repos

• Semantic Segmentation Suite
• divamgupta/image-segmentation-keras
• Tramac/awesome-semantic-segmentation-pytorch

---

Related techniques

Classical dense-prediction building blocks

• Atrous / Dilated Convolution
• Transpose Convolution
• Unpooling
• A technical report on convolution arithmetic
• CRF for semantic segmentation

Modern directions (2021–2026)

• Transformer backbones and hierarchical vision transformers
• Mask classification instead of only per-pixel classification heads
• Promptable segmentation with points / boxes / text / scribbles / masks
• Open-vocabulary segmentation with vision-language pretraining (e.g. CLIP-based)
• Foundation-model-assisted annotation with SAM / SAM 2 / interactive labeling tools
• Universal segmentation across semantic / instance / panoptic / video tasks
• Domain adaptation / domain generalization / test-time adaptation
• Semi-supervised, few-shot, continual, and active-learning segmentation
• Distillation, quantization, pruning, and edge deployment
• Multimodal dense prediction using language, video, audio, and 3D cues

---

---

Segmentation in production

Production segmentation is usually more of a systems problem than an architecture problem. A strong production system needs a stable label contract, reliable data pipelines, correct pre/post-processing, measurable latency/cost/SLOs, and a feedback loop for hard-example mining and relabeling. In many real deployments, a conservative baseline plus a strong data engine beats a fragile SOTA model.

When segmentation is the right abstraction

Common production archetypes / serving patterns

Core concepts and design patterns

• Label contract / ontology design
  Decide early what each class means, which boundaries count, how occlusion is handled, and whether there is an unknown / ignore region. Production failures often start with inconsistent annotation policy rather than bad modeling.

• Train-serve symmetry
  The exact resize policy, channel order, normalization, interpolation rule, tiling overlap, padding, and post-processing used in validation must match serving. Many production regressions are caused by mismatched preprocessing rather than model changes.

• Resize vs tile vs ROI crop
  For very large inputs, image scaling alone often destroys small structures. In practice, teams often prefer sliding-window / overlapping tiles or a coarse detector + high-res segmenter cascade.

• Post-processing is part of the model
  Morphology, connected-components filtering, hole filling, CRF-like refinement, topology fixes, temporal smoothing, and class-priority rules should be versioned and evaluated like model code.

• Abstention / reject option
  In regulated or safety-sensitive settings, it is often better to emit "needs review" than a confident wrong mask. Confidence thresholds, uncertainty proxies, or disagreement-based review rules are useful.

• Temporal and spatial consistency
  For video or robotics, frame-wise masks can flicker even when mIoU is high. Production systems often add temporal smoothing, tracking constraints, or map priors.

• Data engine over architecture churn
  Hard-example mining, slice-based evaluation, relabeling loops, and drift review usually produce larger gains than repeatedly swapping architectures.

• Two-speed system design
  A common pattern is: fast online model for serving, heavier model or human review offline for QA, relabeling, or dispute resolution.

Metrics that matter in production

Case studies and production playbooks

1) Autonomous driving / robotics perception

Representative references: BDD100K paper, BDD100K dataset, TensorRT quick start, Fast INT8 inference for autonomous vehicles

Typical pattern

• Use segmentation for drivable area, free space, lanes, road edges, curbs, sidewalk, ego-lane context, or as one component in a multitask perception stack.
• Prefer real-time edge deployment with lightweight architectures such as BiSeNet / PIDNet / DDRNet / light SegFormer variants.
• Optimize with INT8 / TensorRT / accelerator-aware runtimes and benchmark p95 latency, not only mean FPS.
• Add temporal smoothing, multi-frame voting, or tracking priors to reduce mask flicker.
• Keep a fallback path for safety-critical features when segmentation confidence is low.

Main risks

• Night / rain / fog / glare domain shift
• Weak rare-class recall (construction zones, debris, temporary markings)
• Calibration drift across cameras and firmware
• Benchmark-overfitting that does not transfer to real roads

Good practice

• Evaluate by weather / time-of-day / geography slices.
• Track drivable-area false negative rate and lane-boundary quality, not only mIoU.
• Treat segmentation as one sensor in a redundant perception stack, not the single source of truth.

2) Medical imaging / clinical workflow

Representative references: nnU-Net paper, nnU-Net repo, nnU-Net Revisited, MONAI Deploy App SDK, MONAI segmentation deployment tutorial, MONAI Label

Typical pattern

• Start from nnU-Net or a strong U-Net-family baseline before trying more complex architectures.
• Build a pipeline around DICOM ingestion, series selection, preprocessing, inference, visualization, human review, and result export.
• Use MONAI Deploy or similar operator-based application packaging for end-to-end workflow assembly.
• In many clinics, the model is used as decision support / contour proposal, with radiologist or clinician review before final acceptance.

Main risks

• Scanner/site/protocol shift
• Wrong-but-plausible masks that look visually acceptable
• Leakage through patient-level split mistakes
• Missing provenance, audit trail, or versioning in regulated workflows

Good practice

• Split data by patient / site / scanner, not by slice only.
• Track Dice plus boundary/surface metrics when contour quality matters.
• Keep human review gates, audit logs, and model/data version metadata.
• Prefer robust baselines and rigorous validation before claiming architectural gains.

3) Industrial inspection / manufacturing quality

Representative references: NVIDIA TAO Toolkit, TAO docs, TAO defect-detection case study, AWS edge defect detection example

Typical pattern

• Use segmentation for scratch / crack / contamination / coating / wafer / surface defect localization when exact affected area matters.
• Common deployments use edge inference near the line to avoid network latency and keep data local.
• A practical pipeline is often golden-image / change-detection / anomaly screening -> semantic or instance segmentation -> rule-based decision.
• Retraining is often needed per camera, product family, lighting setup, and line condition.

Main risks

• Very small defects relative to frame size
• Severe class imbalance and weak positive coverage
• Lighting / lens / fixture drift causing false positives
• False alarms that create scrap, rework, or manual review overhead

Good practice

• Design the optical setup and labeling policy together with the ML stack.
• Use high-resolution ROI crops or cascades for tiny defects.
• Track business metrics such as missed-defect rate, false reject rate, and operator review time.
• Plan for frequent recalibration and data refresh after line changes.

4) Geospatial / earth observation segmentation

Representative references: TorchGeo paper, TorchGeo tutorial, TorchGeo docs

Typical pattern

• Tile very large rasters into overlapping windows, run inference, then stitch masks back while preserving CRS / affine transform / GeoTIFF metadata.
• Use segmentation for land cover, water, building footprint, crop, burn scar, flood, or change-detection style tasks.
• Combine model predictions with geospatial post-processing: smoothing, polygonization, topology checks, minimum-area thresholds.

Main risks

• Seasonal and regional domain shift
• Cloud / haze / snow / shadow artifacts
• Resolution mismatch across sensors
• Border artifacts from naive tiling

Good practice

• Benchmark several tile sizes and overlaps; this matters a lot.
• Keep geospatial metadata correct end-to-end.
• Monitor per-region / per-season performance, not just a global score.
• Expect post-processing and GIS integration to be part of the product, not an afterthought.

5) Foundation-model-assisted annotation and segmentation ops

Representative references: SAM paper, SAM 2 paper, SEEM, OpenSeeD

Typical pattern

• Use promptable models to accelerate annotation, QA, bootstrapping, and interactive editing.
• Convert prompt-generated masks into task-specific semantic classes through human review, ontology mapping, and relabeling.
• Distill the workflow into a smaller task-specific production model if latency, cost, or semantics are strict.

Main risks

• Beautiful masks with wrong semantics
• Inconsistent class mapping across annotators
• Hidden failure modes on transparent, thin, or ambiguous structures
• Overreliance on generic foundation models in high-stakes settings

Good practice

• Treat foundation models as annotation accelerators or assistive systems, not automatic truth.
• Measure the downstream impact on label quality and review time, not only mask appearance.
• Version prompts, ontologies, and QA rules just like model code.

Practical patterns that work well

• Baseline -> slice analysis -> data engine -> architecture swap later
  Start from a stable baseline (DeepLabV3+, HRNet/OCR, SegFormer, nnU-Net, Mask2Former depending on task). Improve data quality and slice performance before chasing new architectures.

• Cascade for efficiency
  Use a cheap stage to find candidate regions and a higher-resolution segmenter only where needed.

• Shadow mode before hard rollout
  Run the model silently next to the human or legacy system, compare decisions, and mine disagreements.

• Human-review routing
  Send low-confidence, out-of-distribution, or policy-sensitive cases to manual review instead of forcing full automation.

• Version everything
  Model weights, thresholds, tiling scheme, interpolation mode, label map, post-processing, prompt templates, calibration artifacts, and evaluation slices should all be versioned.

• Online monitor + offline relabel loop
  Production success usually depends on quickly collecting failure cases and adding them back into the training set.

Common failure modes / anti-patterns

• Optimizing only global mIoU and missing small-object or boundary failures
• Changing resize / crop policy in serving without revalidating
• Using the fanciest model while ignoring ontology ambiguity and label noise
• Treating post-processing as ad hoc code outside the evaluation loop
• Assuming foundation-model masks are semantically correct without QA
• Ignoring site / device / camera / scanner / weather slice breakdowns
• Measuring average FPS instead of tail latency and memory pressure
• Forgetting that in many domains the real target is risk reduction, review efficiency, or area estimation accuracy, not benchmark rank

Quick checklist before rollout

• Is the label contract frozen and documented?
• Are train/validation/test splits correct for the domain (patient/site/device/time aware)?
• Do offline preprocessing and online preprocessing match exactly?
• Are there slice metrics for the likely drift axes?
• Is there an abstain / review path?
• Are thresholds, post-processing, and confidence rules versioned?
• Are p95 latency, memory, startup, and cost/image acceptable on target hardware?
• Is there a plan for hard-example mining, relabeling, and rollback?

Production reading order

1. Read first: nnU-Net — best example of strong baseline thinking and system-level rigor in medical segmentation.
2. Read first: TensorRT quick start and MMDeploy for MMSegmentation — good entry point for practical GPU deployment.
3. Read early: MONAI Deploy App SDK — good reference for packaging segmentation workflows, not just models.
4. Read early: TorchGeo tutorial — useful example of segmentation on large geospatial data with output packaging.
5. Read after: TAO Toolkit / TAO docs — strong practical reference for industrial/edge workflows.
6. Read after: SAM and SAM 2 — essential for annotation and assistive workflows, but do not confuse annotation productivity with fully solved production semantics.

Notes for practitioners

• For a robust baseline, start with DeepLabV3+, HRNet/OCR, or SegFormer.
• For semantic + instance + panoptic with one family, try Mask2Former or OneFormer.
• For open-vocabulary / text-guided segmentation, inspect SAN, OpenSeeD, and SEEM.
• For interactive annotation pipelines, start from SAM / SAM 2 plus human QA.
• For medical imaging, check nnU-Net and MONAI / MONAI Label first.
• For real-time deployment, benchmark BiSeNetV2, PIDNet, DDRNet, PP-LiteSeg, or light SegFormer variants.
• For remote sensing, test SegFormer, HRNet/OCR, or Mask2Former before designing more specialized models.
• For research onboarding, read in this order: FCN -> U-Net -> PSPNet -> DeepLabV3+ -> HRNet/OCR -> SegFormer -> Mask2Former -> OneFormer / SAN / SAM.

If I had to pick one, the hardest problem in segmentation today is open-world robust generalization: getting the model to produce pixel-accurate masks with the right semantics for objects it did not see during training, in domains it was not trained on, while remaining calibrated about uncertainty. That is the point where open-vocabulary segmentation, domain shift, annotation noise, long-tail classes, and safety all collide. Recent open-vocabulary work explicitly frames pixel-level image–text alignment as the bottleneck, and newer “vocabulary-free” work shows that even specifying the right class names is itself a hard problem in real scenes. Domain-generalization surveys also keep highlighting that segmentation systems break under unseen environments because training assumes i.i.d. data, which rarely holds in practice.

Why this is so hard: segmentation is not only “what is this object,” but also “where does it start and end, at pixel precision.” That makes annotation expensive and noisy, especially around thin structures, occlusions, fuzzy boundaries, and partially visible objects. Recent work on noisy annotations emphasizes that segmentation labels often contain incomplete masks, over-extended masks, and ambiguous boundaries even in manually labeled datasets. At the same time, semantic segmentation has a strong long-tail problem: common classes dominate, while rare classes and small objects get weak representations and are easy to miss.

In research, I would rank the hardest subproblems like this. First: robust open-world generalization. Second: reliable semantics for rare, unseen, or linguistically ambiguous categories. Third: precise boundaries under weak or noisy supervision. Fourth: trustworthy uncertainty estimation and OOD detection, especially in safety-critical domains such as driving. Recent robust-segmentation challenge results focus specifically on uncertainty under natural adversarial conditions, which is a strong signal that the field still treats reliability as unresolved rather than solved.

In production, the hardest part is usually a little different. It is often not squeezing out another 1–2 mIoU on a benchmark; it is keeping performance stable when the world changes: camera pipeline changes, lighting/weather changes, label policy drifts, new object types appear, and annotation quality varies. For video systems, an extra challenge is temporal consistency: per-frame segmentation may look good statically but flicker badly over time, and efficient video methods still have to trade off consistency, accuracy, and compute.

So the cleanest answer is: the hardest single problem in segmentation is to generalize correctly and reliably beyond the training distribution, at pixel precision, under ambiguous semantics and imperfect labels. Everything else—boundary quality, rare classes, open vocabulary, uncertainty, and deployment drift—is a manifestation of that core difficulty.

Feel free to show your :heart: by giving a star :star:

:gift: Check Out the List of Contributors — Feel free to add your details here!
