softether_exporter

Prometheus exporter for SoftEther VPN server

Exported Metrics

Query Example

Outgoing unicast packet rate of HUB1 is below.

rate(softether_outgoing_unicast_packets{hub="HUB1"}[1m])

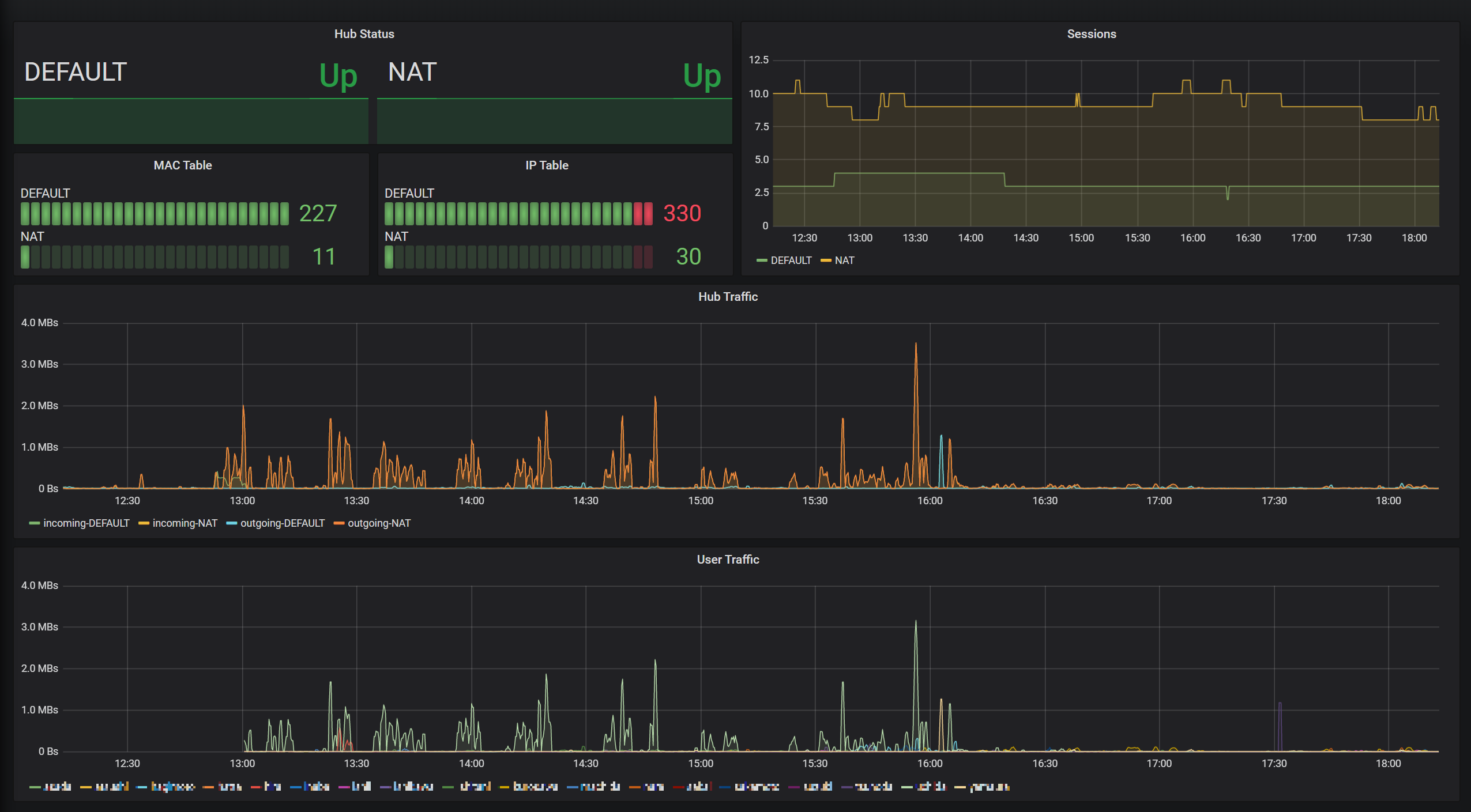

Grafana Dashboard

SoftEther VPN

Install

Download from release page, and extract to any directory ( e.g. /usr/local/bin ). See the example files in example directory as below.

If the release build doesn't fit your environment, you can build and install from source code.

cargo install softether_exporter

Requirement

softether_exporter uses vpncmd or vpncmd.exe to access SoftEther VPN server. The binary can be got from SoftEther VPN Download.

Usage

softether_exporter 0.1.5

USAGE:
    softether_exporter [FLAGS] [OPTIONS] --config.file <config>

FLAGS:
    -v, --verbose    Show verbose message
    -h, --help       Prints help information
    -V, --version    Prints version information

OPTIONS:
        --web.listen-address <listen-address>
            Address on which to expose metrics and web interface [default: :9411]

        --config.file <config>                   Config file

The format of <config> is below.

vpncmd = "/usr/local/bin/vpncmd" # path to vpncmd binary
server = "localhost:8888"        # address:port of SoftEther VPN server

[[hubs]]
name     = "HUB1" # HUB name
password = "xxx"  # HUB password

[[hubs]]
name     = "HUB2"
password = "yyy"
