ForgeMT

ForgeMT is a multi-tenant platform for self-hosted GitHub Actions runners on AWS. It gives platform teams an IaC-driven way to operate ephemeral EC2 runners and ARC/Kubernetes runner scale sets for many tenant repositories.

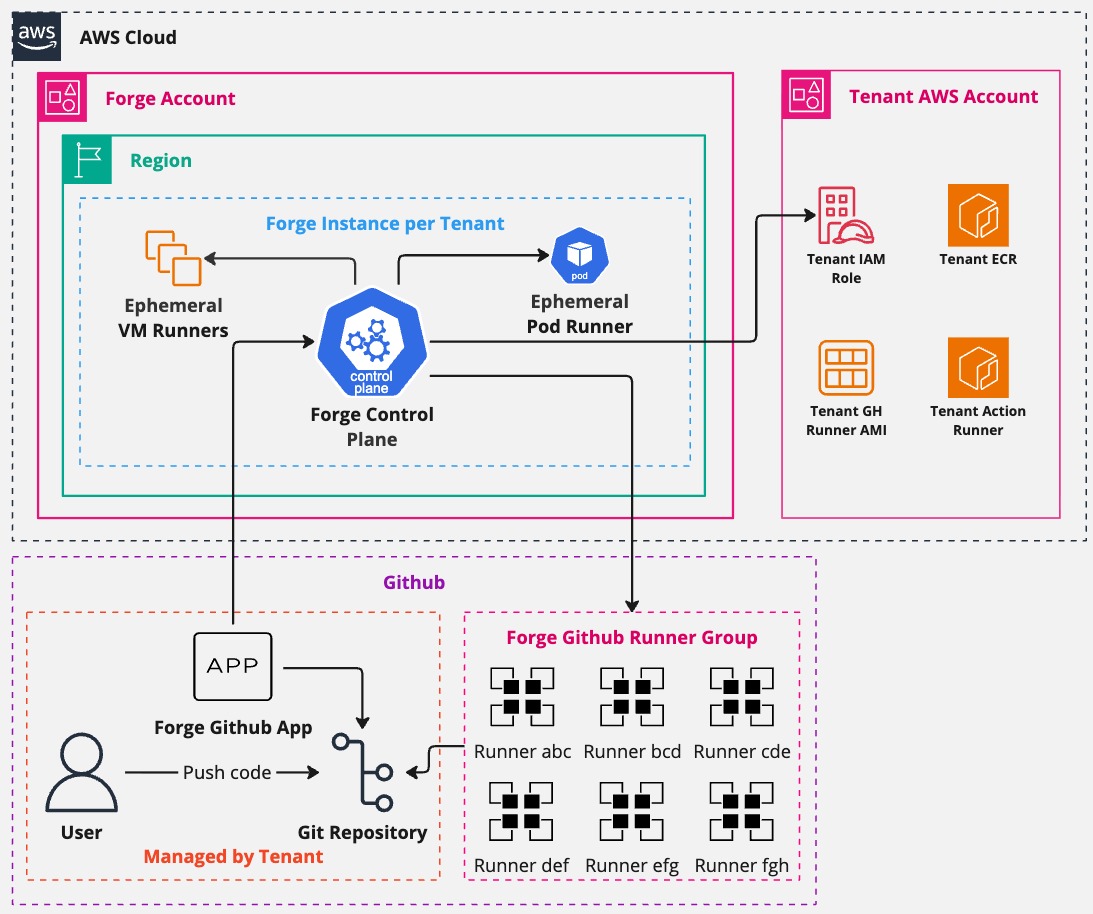

Think of ForgeMT as the runner control plane and operating model, not only a Terraform module. The platform team owns GitHub App integration, runner images, AWS placement, tenant configuration, lifecycle cleanup, and optional observability. Tenant teams consume approved runs-on labels and AWS role access from their workflow YAML.

What You Get

• Ephemeral self-hosted GitHub Actions runner capacity in AWS.
• EC2 runner lanes for full VM isolation, custom AMIs, Windows, macOS, ARM64, or heavier builds.
• ARC runner lanes for Kubernetes-based runner scale sets on EKS.
• Tenant boundaries for labels, IAM/OIDC role access, networks, images, runner specs, and GitHub App scope.
• Copyable Terragrunt deployment examples for platform, infra, helpers, and integrations.
• Day-2 operating patterns for runner images, ECR images, cleanup, Renovate, smoke tests, and optional Splunk/Teleport/OpenTelemetry/OpenCost integrations.

When To Use It

Use ForgeMT when you need:

• self-hosted GitHub Actions runners inside your AWS accounts.
• tenant boundaries for labels, IAM roles, networks, images, and runner specs.
• reviewed IaC changes for tenant onboarding instead of manual runner setup.
• one operating model for EC2 runners, ARC runners, or both.
• repeatable cleanup, image, upgrade, and validation workflows.

Do not start by deploying every module. The smallest useful install is one GitHub.com organization, one tenant, one runner lane, and one smoke workflow. Add helpers, EKS, Splunk, Teleport, OpenCost, OpenTelemetry, and webhook relay modules only when your operating model needs them.

Before You Deploy

Have these answers before applying the examples:

Pick EC2 first when you already have a runner AMI or need VM-level isolation. Pick ARC first when EKS is already available and the first workloads fit a Kubernetes runner model. You can skip EKS for an EC2-only first deployment.

Module Layout

ForgeMT modules are grouped by operating responsibility:

Splunk is optional. If your company does not use Splunk, skip the Splunk example folders, all modules/integrations/splunk_* modules, and modules/integrations/splunk_dependency_monitor.

Quick Start

Start with the platform path:

1. Read Platform Engineer Quick Start and Minimal Install.
2. Choose the first lane: EC2, ARC, or both.
3. Copy examples/deployments/platform into your operations IaC repo.
4. Replace the AWS, GitHub, VPC, runner image, and tenant values.
5. Create or register the GitHub App and store the private key in SSM.
6. Run terragrunt init, terragrunt plan, and terragrunt apply.
7. Queue one smoke workflow with the generated runner labels.

The first install path is the platform example:

examples/deployments/platform

After replacing the values and storing the real GitHub App PEM in SSM, run from the tenant folder:

cd examples/deployments/platform/terragrunt/environments/prod/regions/eu-west-1/vpcs/main/tenants/acme
terragrunt init
terragrunt plan
terragrunt apply

For the full sequence, including backend bootstrap and GitHub App registration, use Bootstrap and Minimal Install.

Read next:

• ForgeMT documentation
• Motivation
• Architecture
• Examples
• Operations
• Security

Tenant Usage

After the platform team onboards a tenant, repository owners request the runner with labels generated by ForgeMT:

---
name: Forge smoke

on:
  workflow_dispatch:

jobs:
  smoke:
    runs-on:
      - self-hosted
      - type:small
      - x64
      - ec2
      - tnt:acme
    steps:
      - run: echo "Forge runner is online"

Tenant teams should use Tenant Usage for label, AWS role, ECR, and troubleshooting patterns.

Learn More

Technical background:

• Forge: scalable, secure multi-tenant GitHub runner platform
• Scaling GitHub Actions on AWS with ForgeMT's security and multi-tenancy
• No Silver Bullets: engineering a multi-tenant CI platform a small team can run

Implementation foundations:

• terraform-aws-github-runner
• actions-runner-controller

Contributing

Contributions are welcome via issues or pull requests. See CONTRIBUTING.md for details.

License

Apache 2.0. See LICENSE.

Contact

Track progress or open issues on GitHub: https://github.com/cisco-open/forge/issues
