Folio

A PDF library for Go — layout engine, HTML to PDF, text shaping for left-to-right, right-to-left, Indic, and CJK scripts, redaction, forms, digital signatures, barcodes, page import, and PDF/A compliance.

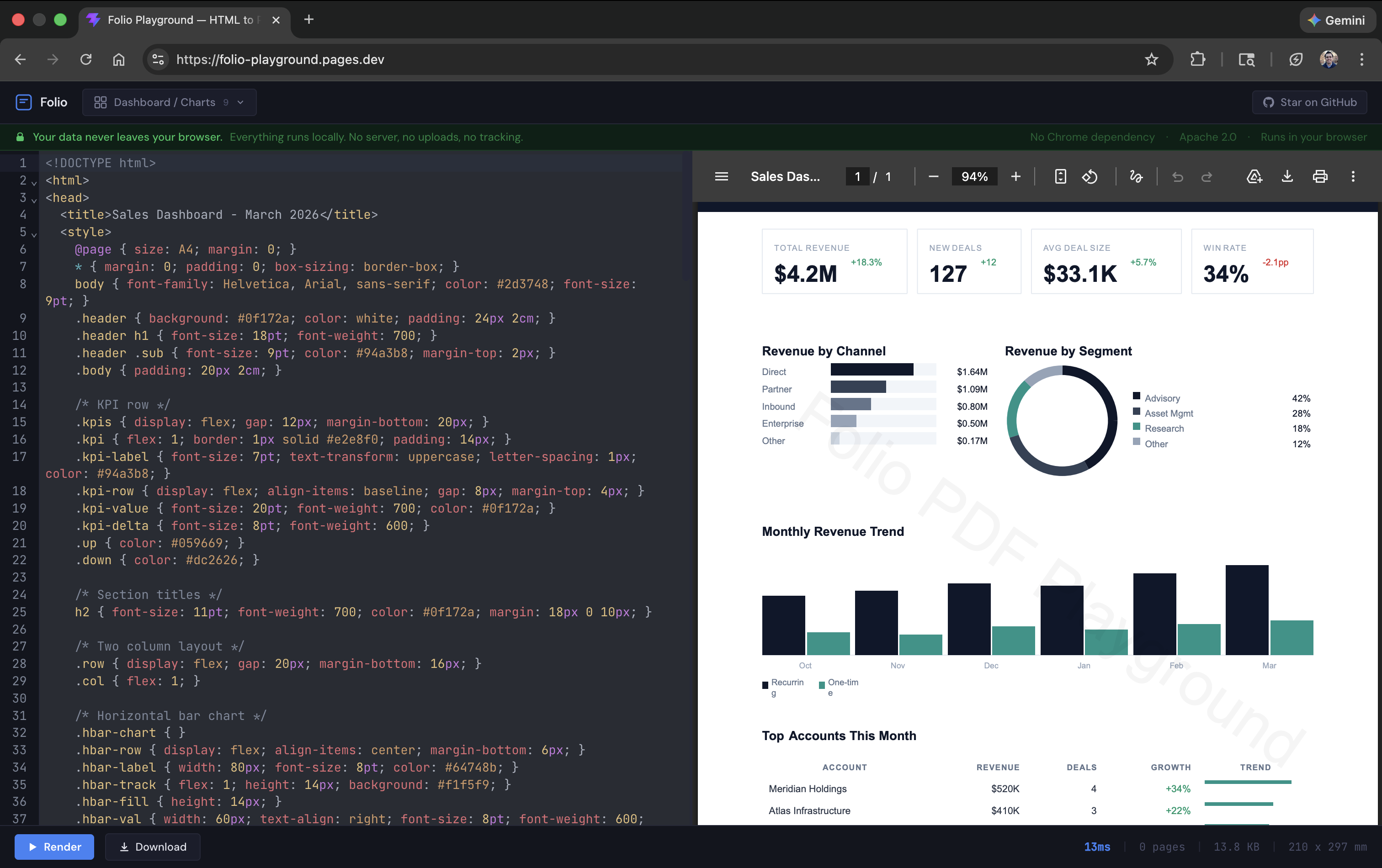

Try it live in your browser

---

Install

go get github.com/carlos7ags/folio

Requires Go 1.25+. Three external dependencies, all from the Go x/ extended standard library: golang.org/x/image (font parsing, TIFF decoding), golang.org/x/net (HTML parsing), and golang.org/x/text (Unicode bidirectional algorithm for RTL text).

Language SDKs

---

Quick Start

package main

import (
    "github.com/carlos7ags/folio/document"
    "github.com/carlos7ags/folio/font"
    "github.com/carlos7ags/folio/layout"
)

func main() {
    doc := document.NewDocument(document.PageSizeA4)
    doc.Info.Title = "Hello World"
    doc.SetAutoBookmarks(true)

    doc.Add(layout.NewHeading("Hello, Folio!", layout.H1))
    doc.Add(layout.NewParagraph(
        "A PDF generated from Go code.",
        font.Helvetica, 12,
    ))

    doc.Save("hello.pdf")
}

---

HTML to PDF

Pass an HTML string to a document with AddHTML and folio wires the converted content into it — normal-flow elements, @page size and margins, running headers/footers, and absolutely/position:fixed elements alike. Runs in-process — no subprocess, no headless browser, no external service.

import "github.com/carlos7ags/folio/document"

doc := document.NewDocument(document.PageSizeLetter)
doc.AddHTML(`
    <h1>Invoice #1042</h1>
    <p>Bill to: <strong>Acme Corp</strong></p>
    <table border="1">
        <tr><th>Item</th><th>Amount</th></tr>
        <tr><td>Consulting</td><td>$1,200</td></tr>
    </table>
`, nil)
doc.Save("invoice.pdf")

AddHTML is the canonical entry point. When you need the raw conversion result to inspect or transform it first, use html.ConvertFull and add it back with doc.AddConvertResult(result) — adding result.Elements by hand drops absolutes, margin boxes, and @page config.

Supports 40+ HTML elements, inline and <style> block CSS, flexbox, CSS grid, SVG, named/hex/rgb colors, @page rules, multi-level list numbering via CSS counters, and tables with colspan/rowspan.

For the full list of recognized CSS properties, accepted value forms, and known unsupported features, see docs/CSS_SUPPORT.md.

Try HTML to PDF live in your browser

---

Layout Engine

Folio uses a plan-based layout engine — layout is a pure function with no mutation during rendering. Elements can be laid out multiple times safely, which makes page break splitting clean and predictable.

doc := document.NewDocument(document.PageSizeLetter)
doc.Info.Title = "Quarterly Report"
doc.Info.Author = "Finance Team"
doc.SetAutoBookmarks(true)

doc.Add(layout.NewHeading("Q3 Revenue Report", layout.H1))

doc.Add(layout.NewParagraph("Revenue grew 23% year over year.",
    font.Helvetica, 12).
    SetAlign(layout.AlignJustify).
    SetSpaceAfter(10))

tbl := layout.NewTable().SetAutoColumnWidths()
h := tbl.AddHeaderRow()
h.AddCell("Product", font.HelveticaBold, 10)
h.AddCell("Units", font.HelveticaBold, 10)
h.AddCell("Revenue", font.HelveticaBold, 10)

r := tbl.AddRow()
r.AddCell("Widget A", font.Helvetica, 10)
r.AddCell("1,200", font.Helvetica, 10)
r.AddCell("$48,000", font.Helvetica, 10)
doc.Add(tbl)

doc.Save("report.pdf")

Layout Elements

---

Styled Text

p := layout.NewStyledParagraph(
    layout.NewRun("Normal text ", font.Helvetica, 12),
    layout.NewRun("bold ", font.HelveticaBold, 12),
    layout.NewRun("colored and underlined", font.Helvetica, 12).
        WithColor(layout.ColorRed).
        WithUnderline(),
)
doc.Add(p)

---

Internationalization

Folio ships script-specific shapers and the OpenType tables they consume:

The layout engine segments text by Unicode script (UAX #24), splits by grapheme cluster (UAX #29), and dispatches to the appropriate shaper. HTML inherits the same pipeline; add dir="rtl" or direction: rtl to flip paragraph and list direction.

See examples/rtl and examples/indic for runnable demos.

---

Tables

tbl := layout.NewTable().SetAutoColumnWidths()
// Or explicit widths:
tbl.SetColumnUnitWidths([]layout.UnitValue{
    layout.Pct(30), layout.Pct(70),
})

// Header rows repeat automatically on page breaks
h := tbl.AddHeaderRow()
h.AddCell("Name", font.HelveticaBold, 10)
h.AddCell("Value", font.HelveticaBold, 10)

r := tbl.AddRow()
cell := r.AddCell("Styled cell", font.Helvetica, 10)
cell.SetBorders(layout.AllBorders(layout.DashedBorder(1, layout.ColorBlue)))
cell.SetBackground(layout.ColorLightGray)
cell.SetVAlign(layout.VAlignMiddle)

---

Barcodes

import "github.com/carlos7ags/folio/barcode"

qr, _ := barcode.NewQR("https://example.com")
doc.Add(layout.NewBarcodeElement(qr, 100).SetAlign(layout.AlignCenter))

bc, _ := barcode.NewCode128("SHIP-2024-001")
doc.Add(layout.NewBarcodeElement(bc, 200))

ean, _ := barcode.NewEAN13("590123412345")
doc.Add(layout.NewBarcodeElement(ean, 150))

---

Interactive Forms

import "github.com/carlos7ags/folio/forms"

form := forms.NewAcroForm()
form.Add(forms.NewTextField("name", [4]float64{72, 700, 300, 720}, 0))
form.Add(forms.NewCheckbox("agree", [4]float64{72, 670, 92, 690}, 0, false))
form.Add(forms.NewDropdown("role", [4]float64{72, 640, 250, 660}, 0,
    []string{"Developer", "Designer", "Manager"}))

doc.SetAcroForm(form)
doc.Save("form.pdf")

---

Digital Signatures

import "github.com/carlos7ags/folio/sign"

signer, _ := sign.NewLocalSigner(privateKey, []*x509.Certificate{cert})
signed, _ := sign.SignPDF(pdfBytes, sign.Options{
    Signer:   signer,
    Level:    sign.LevelBB,
    Reason:   "Approved",
    Location: "New York",
})
os.WriteFile("signed.pdf", signed, 0644)

Supports PAdES B-B, B-T (timestamped), and B-LT (long-term validation with embedded OCSP responses and CRLs). Also supports external signers (HSM, KMS) via the Signer interface. Uses Go stdlib crypto.

---

Reading and Merging PDFs

import "github.com/carlos7ags/folio/reader"

// Read
r, _ := reader.Load("document.pdf")
fmt.Println("Pages:", r.PageCount())
page, _ := r.Page(0)
text, _ := page.ExtractText()

// Merge
r1, _ := reader.Load("doc1.pdf")
r2, _ := reader.Load("doc2.pdf")
m, _ := reader.Merge(r1, r2)
m.SaveTo("merged.pdf")

---

Redaction

Permanently remove sensitive text from PDFs — not just a visual overlay, but actual removal of text operators from content streams.

// By text search
m, _ := reader.RedactText(r, []string{"John Doe", "555-12-3456"}, nil)
m.SaveTo("redacted.pdf")

// By regex (e.g. SSNs)
re := regexp.MustCompile(`\d{3}-\d{2}-\d{4}`)
m, _ := reader.RedactPattern(r, re, &reader.RedactOptions{
    OverlayText: "REDACTED",
    StripMetadata: true,
})
m.SaveTo("redacted.pdf")

Character-level precision — partial words within a line are removed without affecting adjacent text. See examples/redact/ for a full demo.

---

Page Import

Load existing PDFs as templates and add dynamic content on top — the standard workflow for invoices, receipts, certificates, and letterheads.

r, _ := reader.Load("template.pdf")
imp, _ := reader.ExtractPageImport(r, 0)

doc := document.NewDocument(document.PageSizeLetter)
p := doc.AddPage()
p.ImportPage(imp.ContentStream, imp.Resources, imp.Width, imp.Height)
p.AddText("Invoice #1042", font.HelveticaBold, 14, 72, 700)
doc.Save("filled.pdf")

All resources (fonts, images, color spaces) are resolved and self-contained in the imported page. See examples/import-page/ for a receipt-filling demo.

---

Headers, Footers, Watermarks

doc.SetFooter(func(ctx document.PageContext, page *document.Page) {
    text := fmt.Sprintf("Page %d of %d", ctx.PageIndex+1, ctx.TotalPages)
    page.AddText(text, font.Helvetica, 9, 280, 30)
})

doc.SetWatermarkConfig(document.WatermarkConfig{
    Text:     "DRAFT",
    FontSize: 72,
    Opacity:  0.15,
    Angle:    45,
})

---

Standards and Compliance

doc.SetTagged(true)   // PDF/UA — screen readers, text extraction

doc.SetPdfA(document.PdfAConfig{Level: document.PdfA2B}) // archival

doc.SetAutoBookmarks(true) // auto-generate from headings

doc.SetPageLabels(
    document.PageLabelRange{PageIndex: 0, Style: document.LabelRomanLower},
    document.PageLabelRange{PageIndex: 4, Style: document.LabelDecimal},
)

---

Colors

layout.ColorRed               // 16 named colors
layout.RGB(0.2, 0.4, 0.8)    // RGB
layout.CMYK(1, 0, 0, 0)      // CMYK for print
layout.Hex("#FF8800")         // hex string
layout.Gray(0.5)              // grayscale

---

CLI

go install github.com/carlos7ags/folio/cmd/folio@latest

folio merge -o combined.pdf doc1.pdf doc2.pdf
folio info document.pdf
folio text document.pdf
folio blank -o empty.pdf -size a4 -pages 5

---

C Shared Library

Folio exports a C ABI (libfolio.so / .dylib / .dll) with 372 functions, usable from Python, Ruby, C#, Java, or any language with FFI support.

CGO_ENABLED=1 go build -buildmode=c-shared -o libfolio.so ./export/

#include "folio.h"

uint64_t doc = folio_document_new(595.28, 841.89);
uint64_t page = folio_document_add_page(doc);
folio_page_add_text(page, "Hello from C", folio_font_helvetica(), 24, 72, 750);
folio_document_save(doc, "hello.pdf");
folio_document_free(doc);

Pre-built binaries for Linux, macOS, and Windows are attached to each GitHub release.

---

Performance

All benchmarks run the full pipeline: HTML parsing, CSS cascade, layout, and PDF serialization. Each document uses real styling: grid, flexbox, border-radius, alternating rows, and page breaks. No headless browser, no external process.

Benchmarks on Apple M1 Pro (go test -bench):

Reproduce locally:

go test -run='^$' -bench=. -benchmem ./document/

Output size

The writer offers five opt-in passes via document.WriteOptions. The zero value preserves byte-identical output; each toggle refuses on encrypted documents.

doc.SaveWithOptions("out.pdf", document.WriteOptions{
    UseXRefStream:       true, // §7.5.8 cross-reference stream
    UseObjectStreams:    true, // §7.5.7 compressed object streams
    OrphanSweep:         true, // drop unreachable objects
    CleanContentStreams: true, // §7.8 empty q/Q, identity cm
    DeduplicateObjects:  true, // merge byte-identical objects
    RecompressStreams:   true, // re-Flate at BestCompression
})

Savings depend on document shape. Text-heavy documents generated by the layout engine are already Flate-compressed, so the win is modest. Documents assembled by importing pages from parsed source PDFs see the largest reduction because imported content streams arrive in raw form:

Run examples/optimize to reproduce these numbers.

---

Architecture

Element.PlanLayout(area) -> LayoutPlan (immutable)
PlacedBlock.Draw(ctx, x, y) -> PDF operators

• No mutation during layout — elements can be laid out multiple times safely
• Content splitting across pages via overflow elements
• Intrinsic sizing via MinWidth/MaxWidth for auto-column tables
• Deterministic output — byte-for-byte reproducible PDFs
• Three external dependencies — golang.org/x/image, golang.org/x/net, golang.org/x/text

---

Package Structure

folio/
  core/             PDF object model
  content/          Content stream builder
  document/         Document API (pages, outlines, PDF/A, watermarks, page import, WriteOptions)
  font/             Standard 14 + TrueType/OpenType embedding, subsetting, GSUB, GPOS
  image/            JPEG, PNG, TIFF, WebP, GIF
  layout/           Layout engine: elements, rendering, bidi, Arabic/Devanagari shaping, CJK
  barcode/          Code128, QR, EAN-13
  forms/            AcroForms (text, checkbox, radio, dropdown, signature)
  html/             HTML + CSS to PDF conversion
  svg/              SVG to PDF rendering
  sign/             Digital signatures (PAdES, CMS, timestamps)
  reader/           PDF parser, text extraction, merge, redaction, page import
  tmpl/             html/template integration: execute a template, then convert
  unicode/grapheme/ UAX #29 grapheme clusters
  export/           C shared library (372 exported functions)
  cmd/folio/        CLI tool

---

Examples

Each examples/ subdirectory is a self-contained go run demo:

---

Roadmap

• GPOS LookupType 6 (mark-to-mark) for stacked diacritics (#206)
• Multi-face font.Fallback for paragraphs mixing four or more scripts (#192)
• Template library — invoice, report, certificate, resume
• Hosted cloud API — POST HTML, get PDF
• .NET SDK via P/Invoke

---

Contributing

Contributions welcome. Please open an issue before submitting large PRs.

git clone https://github.com/carlos7ags/folio
cd folio
go test ./...

---

License

Apache License 2.0 — see LICENSE.
