GraphRAG-Code 🚀

Python-native Code Knowledge Graph using bidirectional Personalized PageRank

A directed-graph PPR engine that ranks structurally related code and extracts exact source blocks (not just metadata). A single tunable weight selects between two query modes: downstream dependency context and upstream blast-radius.

Author: Bydecom · graphrag-code

Why GraphRAG-Code? (The "Why")

In 2026, dumping entire raw files into LLM Agents is highly inefficient, leading to high token costs and increased hallucination rates.
GraphRAG-Code solves this by combining Abstract Syntax Tree (AST) parsing with Personalized PageRank run in both edge directions (forward on the graph, backward on a reversed graph) on an optimized, in-memory graph. The two passes are merged with a tunable backward_weight.

graph TD
    Source[Source Code] -->|"Tree-sitter AST"| Indexer[SQLite DB]
    Indexer -->|"In-Memory Load"| Engine[rustworkx Graph]
    Engine -->|"Bidirectional PPR"| MCP[FastMCP Server]
    MCP -->|"stdio Protocol"| Client[Cursor Agent]

📊 Benchmark Status (honest)

Older, small-codebase numbers are not used as headline evidence anymore. The current, reproducible benchmark story is RQ1 below (LLM-free structural retrieval), with full methodology + threats-to-validity in docs/RESEARCH.md.

🧪 RQ1 — Structural Retrieval (deterministic, no LLM)

A reproducible, LLM-free retrieval eval (eval_retrieval.py) compares three arms against a graph-derived ground truth (transitive closure). The durable, repo-independent finding is on precision for blast-radius queries: a forward-only PageRank spends most of its budget on irrelevant nodes, while Bidirectional PPR stays sharp — empirical evidence that the backward pass is a necessary component, not decoration.

Measured on the real requests, click, and httpx packages (15 auto-seeds each, post symbol-dedup). Held-out case files (outside top-15 seeds): eval/cases/. Bidirectional matches a naive 1-hop baseline on precision and far exceeds the single-direction ablation. We deliberately do not headline Recall@k: against a full transitive-closure ground truth it is dominated by closure size on large graphs. Reproduce: python eval_retrieval.py --codebase-dir <pkg> --task blast_radius --k "3,5,10". Full methodology: docs/RESEARCH.md §4.

Install (from source)

git clone https://github.com/bydecom/graphrag-code
cd graphrag-code
pip install -e .

graphrag-code-index --db graphrag_code.sqlite src
graphrag-code-mcp   # MCP stdio server (configure in Cursor / Claude Desktop)

🔥 Core Differentiators:

• Bidirectional PPR Merge (two query modes): An engineering extension of the Repo Map concept. It runs Forward PPR (downstream dependencies) and Backward PPR (on the reversed graph) as two independent passes, then merges them with a tunable backward_weight. The default 0.2 leans toward downstream implementation context, while get_impact raises it to 0.9 to surface upstream callers (blast radius). It is therefore two weight-selected modes, not one symmetric "see everything" query.
• Source Code Block Extraction: Injects exact code blocks (snippets) into the LLM context using AST coordinates rather than just spitting out symbol metadata.
• Interface Expansion (P0-2): Traversing interface boundaries automatically via inheritance/dependency mapping (e.g., tracking consumers of implemented classes).
• Orphan / Dead-Code Detection: Because edges are derived purely from real import, call, contains, and handles (route→handler) relationships, modules and classes that nothing references stay disconnected from the main graph. A class that floats alone is the graph honestly telling you it is never imported or instantiated anywhere — a free static smell-detector for dead or dynamically-invoked code.
• Route Semantic Edges: Flask/FastAPI-style decorators (@app.route, @app.get, …) become first-class route nodes linked to their handler via handles edges — visible in the graph export as purple diamonds (e.g. route:/users → get_users).
• Python-Native: Highly optimized for the Python ecosystem (FastAPI, Django, Data Science).
• Zero-Ops MCP Server: Complies with the Model Context Protocol (MCP). Plugs directly into Cursor or Claude Desktop in seconds.

---

🛠 Quick Start

To run the pipeline natively using Python 3.10+:

# Install from source (pip install -e .)

# Parse the codebase and generate the Knowledge Graph
graphrag-code-index --db graphrag_code.sqlite src

# Set your LLM API Key (Gemini recommended)
export GEMINI_API_KEY="your-api-key"

# Launch the interactive Terminal Agent
graphrag-code-agent

---

📊 Native IDE Integration

If you use Cursor IDE or Claude Desktop, GraphRAG-Code exposes standard Model Context Protocol (MCP) tools out-of-the-box.
👉 See detailed instructions in docs/CURSOR_CLAUDE_INTEGRATION.md.

🧰 MCP Tools

Ambiguous names (e.g. a validate defined in two files) return a disambiguation prompt listing fully-qualified names instead of silently picking one — so blast-radius answers and benchmark seeds stay correct.

---

🏗 Architecture

The system utilizes tree-sitter to parse Python files into a graph of syntax nodes, stores it incrementally using SQLite, and loads it into a high-performance in-memory C-backed graph (rustworkx) to run PPR calculations in milliseconds.

---

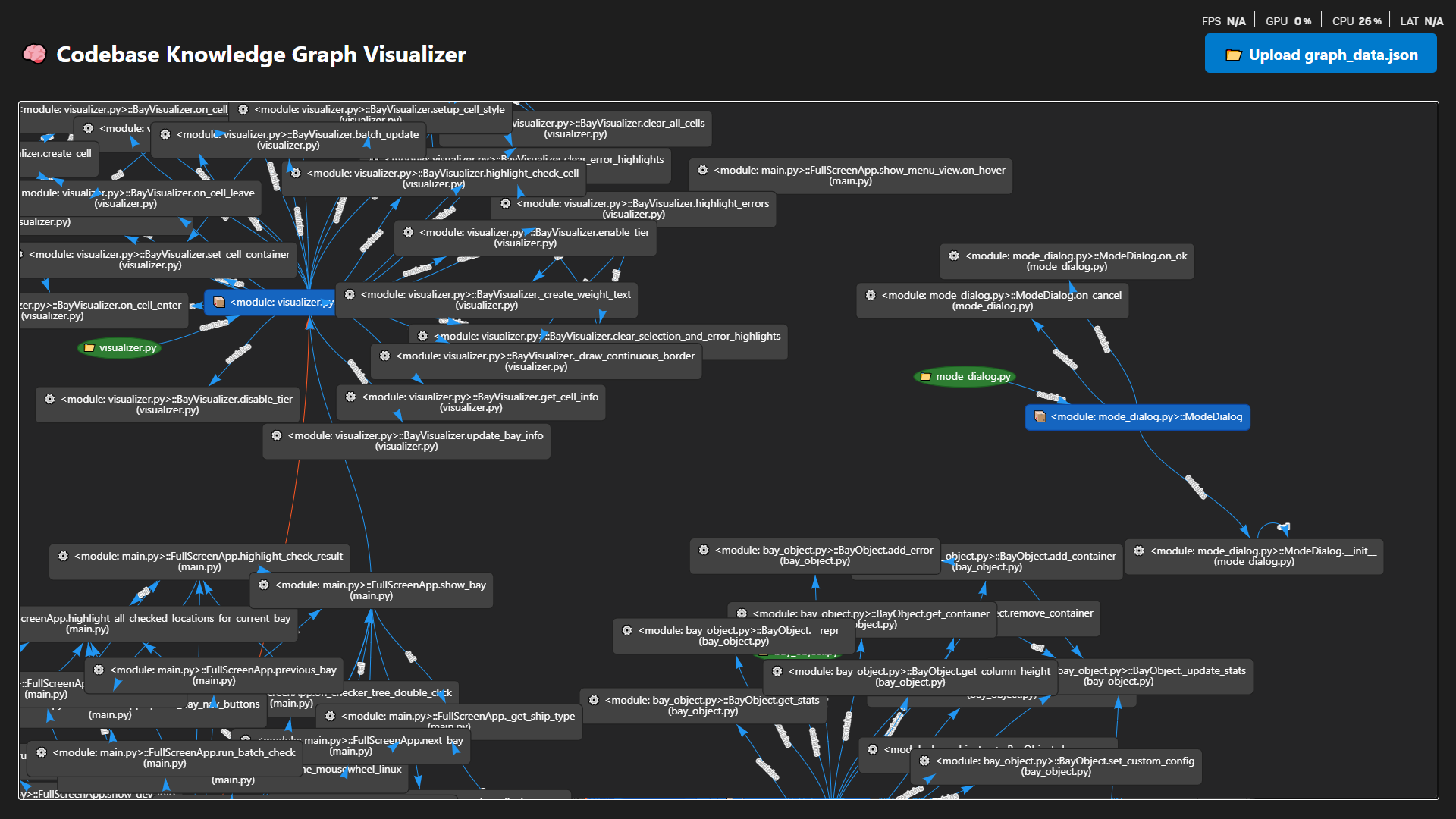

🔍 Codebase Graph Visualization (Phase 2)

💡 Reading the graph: Every symbol is attached to its file via contains edges, so each module forms a tight cluster of its classes and functions. If a whole cluster floats away from the rest (like an unused dialog), that is intended — it means nothing in the codebase statically imports or calls it. The graph surfaces orphan/dead code instead of hiding it behind fake links.

Color Legend (Node Types):

• 🟢 Green (Ellipse): File / Module (e.g., main.py)
• 🔵 Blue (Box): Class (e.g., FullScreenApp, AppMenu)
• 🟣 Purple (Diamond): HTTP Route (e.g., route:/users, GET /items) — Flask/FastAPI decorators
• ⚫ Dark Grey (Box): Function / Method (e.g., __init__, create_widgets)

How to generate and view this interactive graph locally:

# Export the indexed SQLite graph to a JSON format
graphrag-code-export --db graphrag_code.sqlite --out graph_data.json

# Open the visualizer in your browser and upload the JSON file
open examples/graph_visualizer.html

---

Related Work

GraphRAG-Code targets structural context for coding agents (call/import graphs, blast radius, dependency snippets via MCP). It is not the Microsoft GraphRAG project, which indexes unstructured text with a different graph and query stack.

Work directly relevant to this problem:

Deeper positioning, debates, and metrics: docs/RESEARCH.md · docs/LITERATURE_REVIEW.md.

Sibling project: Medical Citation Agent — same Deterministic-First + MCP pattern applied to FDA drug-label claim extraction with verifiable citations.

---

Acknowledgments

Developed primarily in Cursor. Architecture, evaluation design (eval_retrieval.py), and shipped code are the author's responsibility.

---

⚠️ Handled vs Open Limitations

GraphRAG-Code uses assignment-based heuristics, not a full type checker. That is intentional — full resolution is what LSP/LSIF is for (planned Phase 2). What we handle today vs what we honestly do not:

✅ Handled today (static AST heuristics)

❌ Not handled (falls back to bare method name or no edge)

Other known limits

• Python-only for now (multi-language planned).
• ~20–25% latency overhead on tiny codebases (<20 files) from MCP init + in-memory graph load; pays off on larger repos.
• Private-method heuristics (_ prefix) are still being refined.
