KLP Lamé — Kailh Choc & MX Keycaps

Sculpted and curved keycaps for Kailh Choc and MX switches. Here is a project structure:

STEP and STL folders contain all combinations of Choc/MX Stem + Choc/MX Size.

There is also 90 deg Rotated variants for Choc Stem.

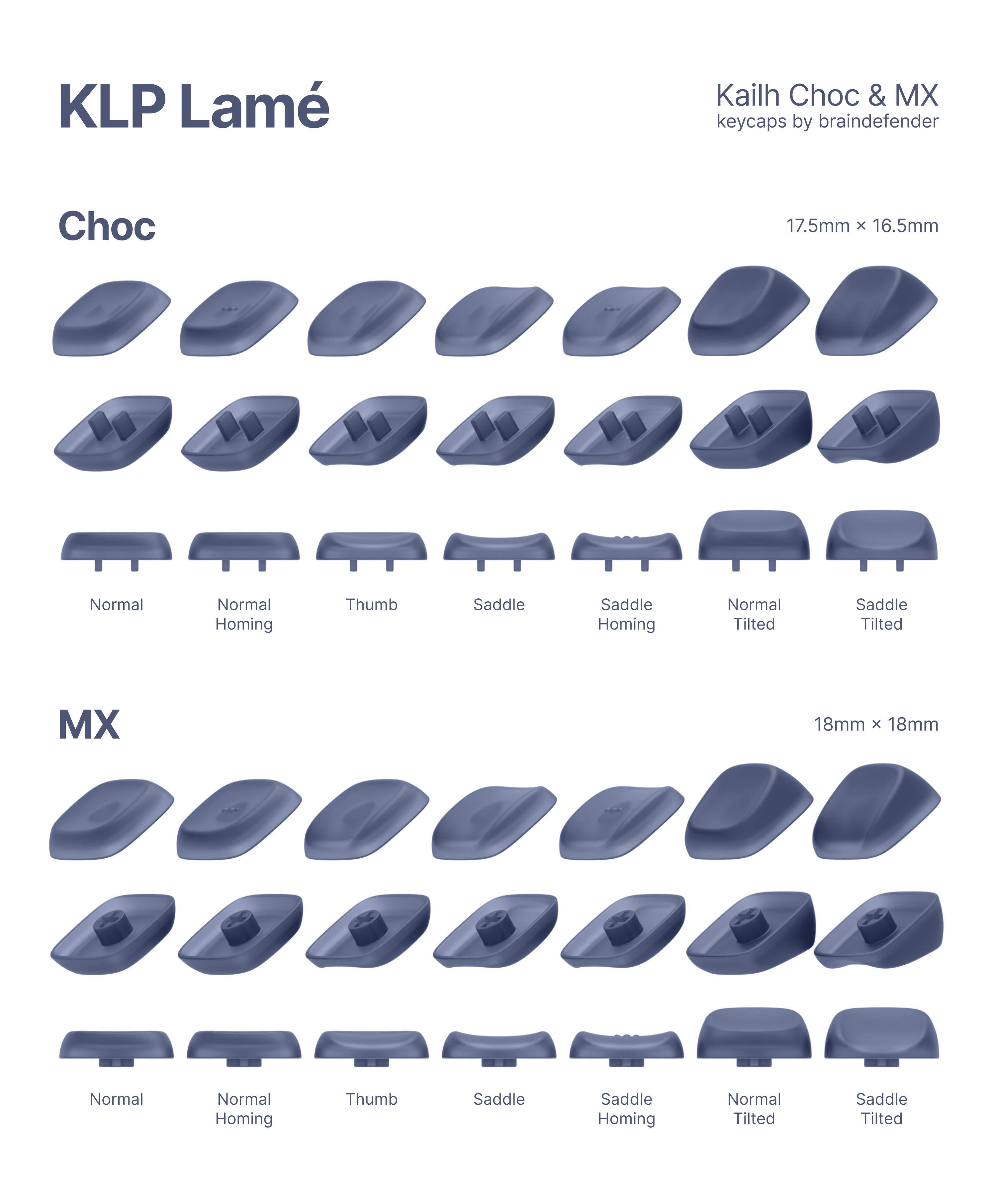

There are currently 7 variants of 1U keycaps:

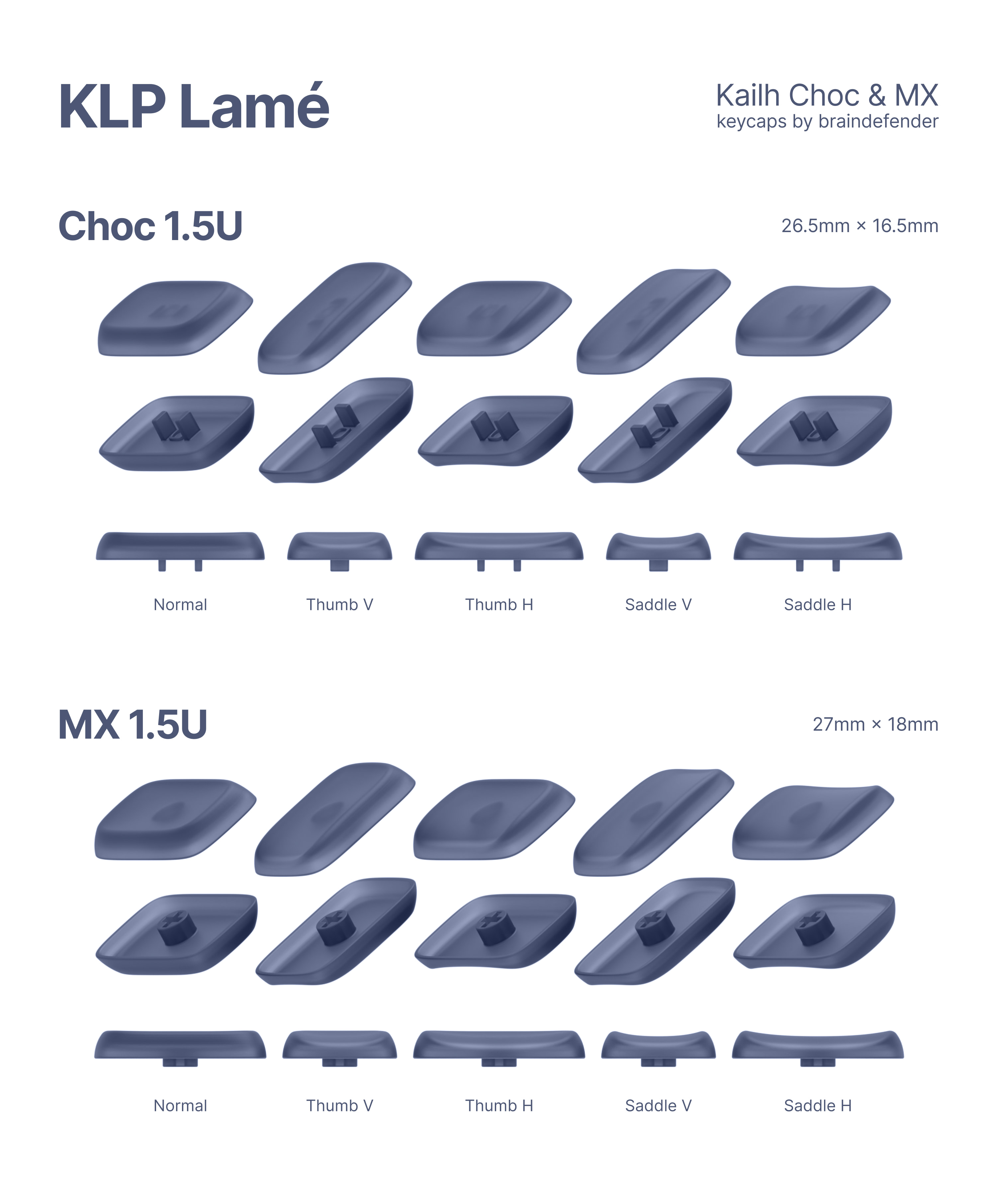

And also 5 variants of 1.5U keycaps:

What keycaps do I need for my keyboard?

First, you should choose Choc/MX stem (depends of your switches)
Second, choose Choc/MX size that is suitable for your keyboard.
Then, pick what keycap variants you want for your columns/rows/thumbs. It depends entirely of your choice.

For corne-like keyboards with 36-keys I use:

or

Where to buy?

Use middle click or tap & hold to open in new tab

How to print?

It is best to position the model more vertically to avoid tactile layer-to-layer bumps. Personally, I use 45° or 75° angle, but it's up to you.

Production folder contains files that you can use in any 3D-printing service like JLC3DP or PCBWay. You can download them directly using links below:

Normal

Saddle

Thumbs

Can I use these models for a production and sale?

Yes. But you must leave a mention of this repository/author to end users.

Can I modify, fork, post (or whatever) these models?

Yes. Rules are the same. Give a credit to the author.

Changelog

v1.5u

• [Models] Well, 1.5U keycap sizes for both Choc/MX Stem + Choc/MX Size.

v1.4

• [Models] Updated Choc Stem to be compatible with silent choc switches.
• [Project] Added Choc_Stem + MX_Size 90° rotated variants (both STL and STEP).
• [Production] Increased surface area of connected parts to improve print stability.

v1.3

• [Models] Added mix and match variants for Choc/MX Stem + Choc/MX Size.
• [Project] Updated folder structure to accomodate mix and match variants.
• [Project] Removed Lychee (legacy) project files.

v1.2

• [Models] Added Choc version with 90° rotated stem.

v1.1

• [Models] Added chamfers along inner bottom line (1.2mm for Choc and 1.4mm for MX).
• [Project] Added separate Fusion project files.
• [Project] Updated Images & Photos.

Now the models are also suitable for FDM 3D Printers. But I still recommend using SLA for better quality.

v1.0

• Initial Release.

Images & Photos

From various awesome people

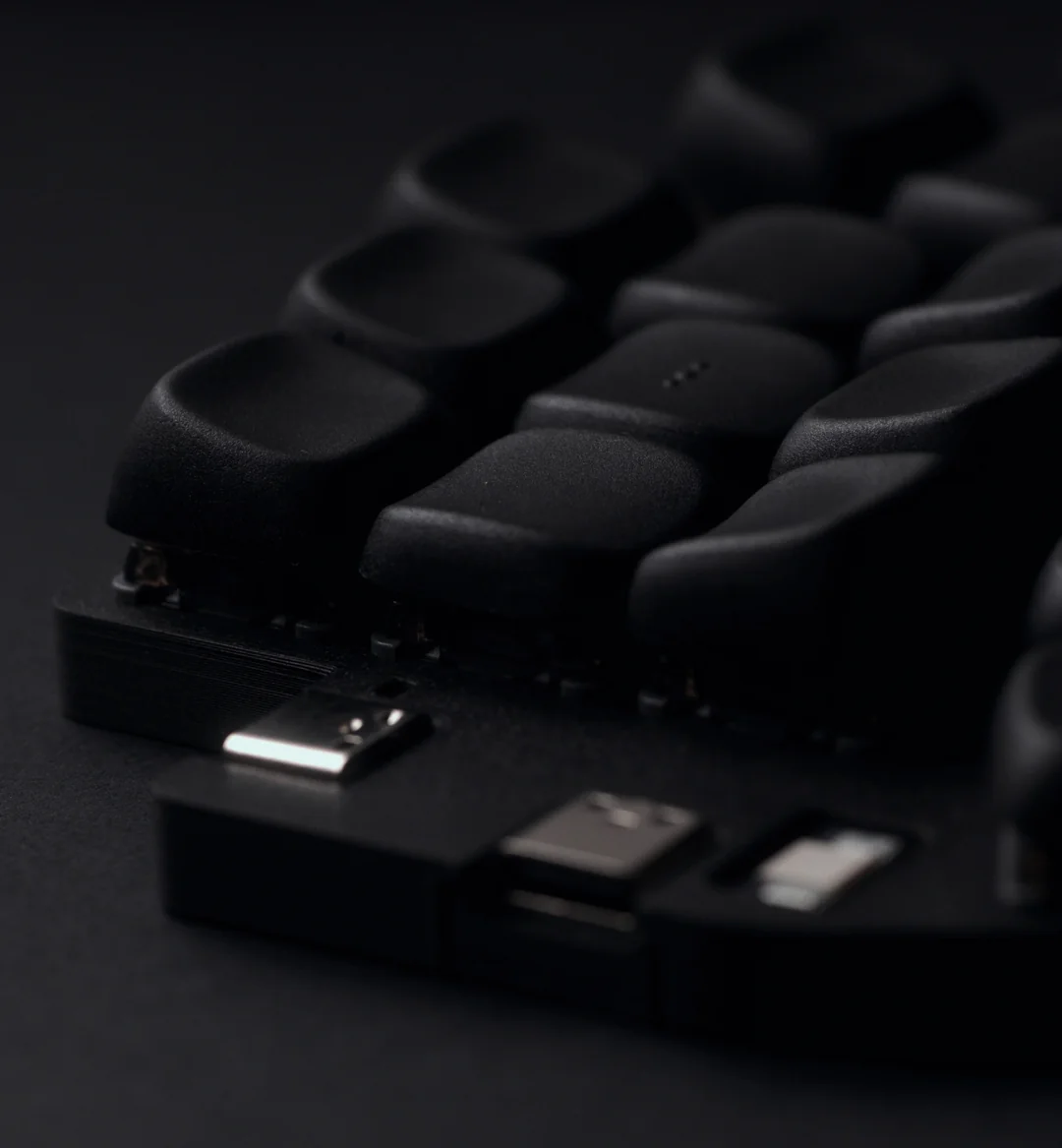

By u/unspecified-work from Reddit

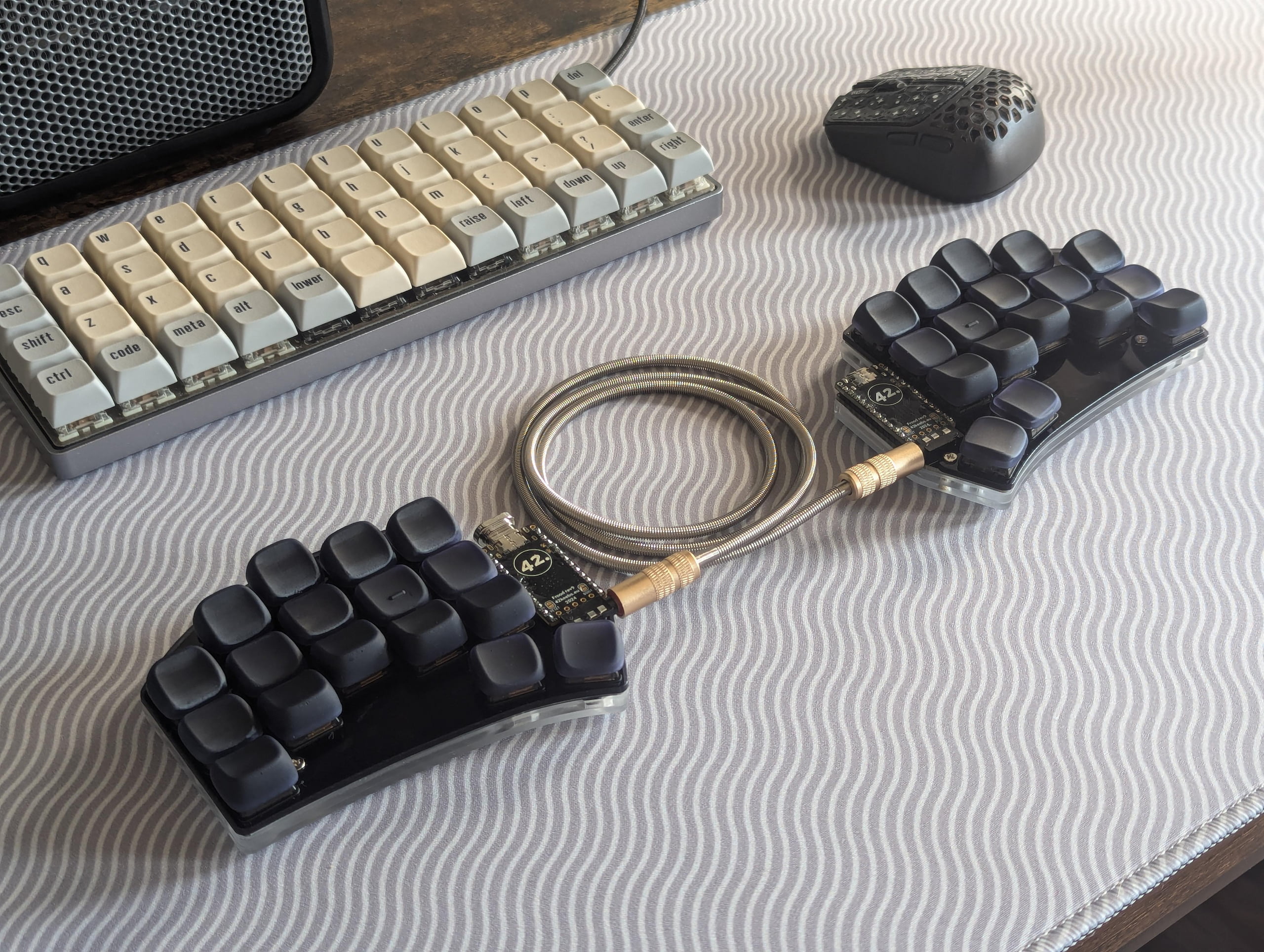

By u/socopopes from Reddit

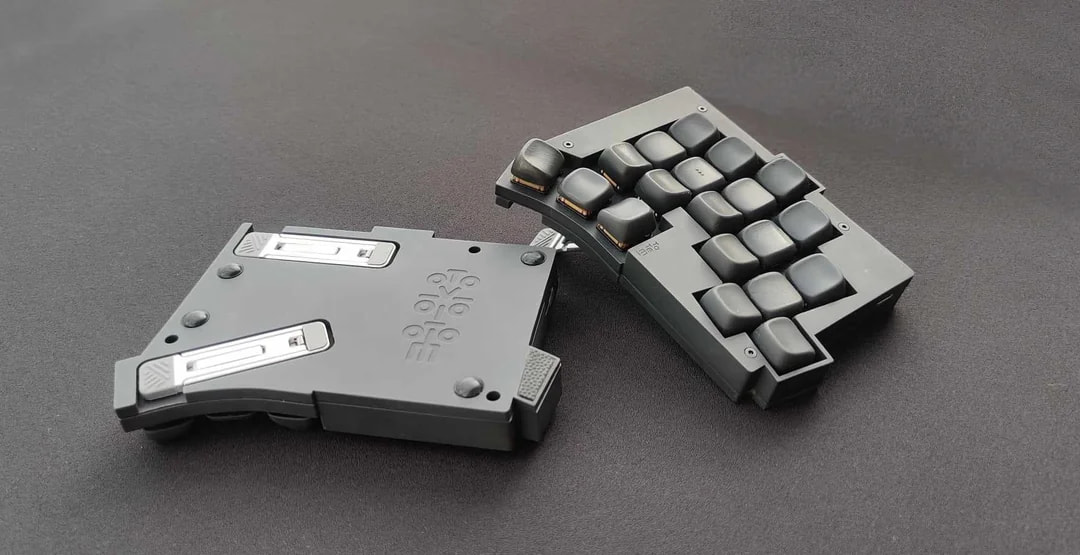

By u/bert_plasschaert from Reddit

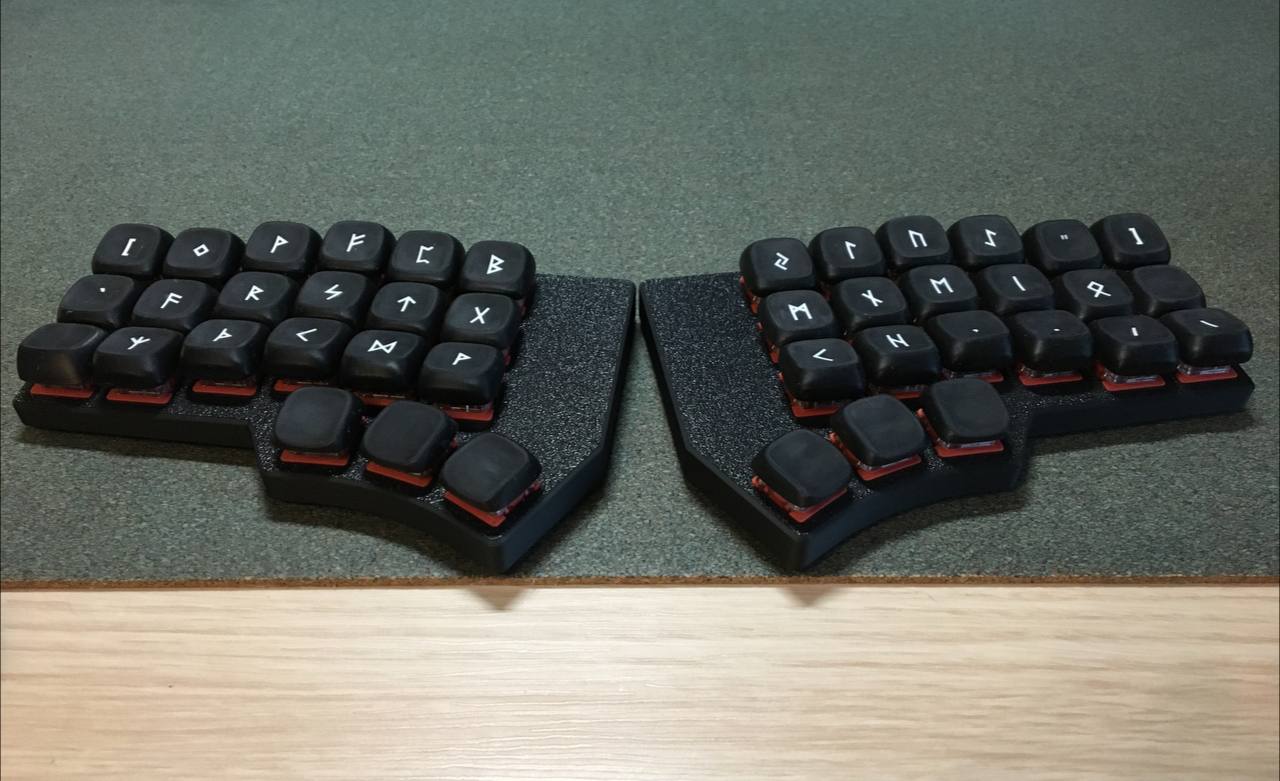

By proostas from Ergonaut Keyboards Ru

Original photos

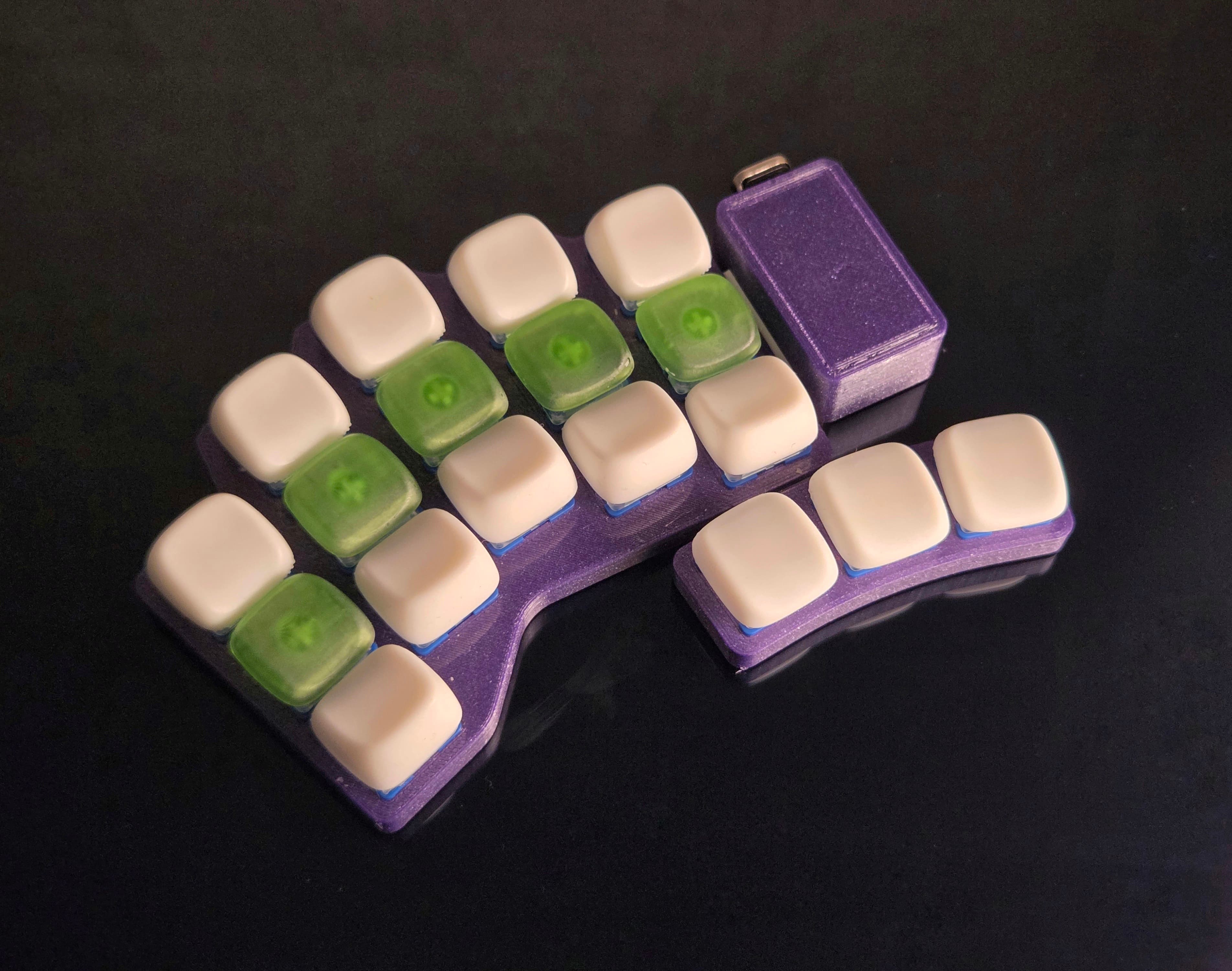

The keyboard is my side-project Lapka

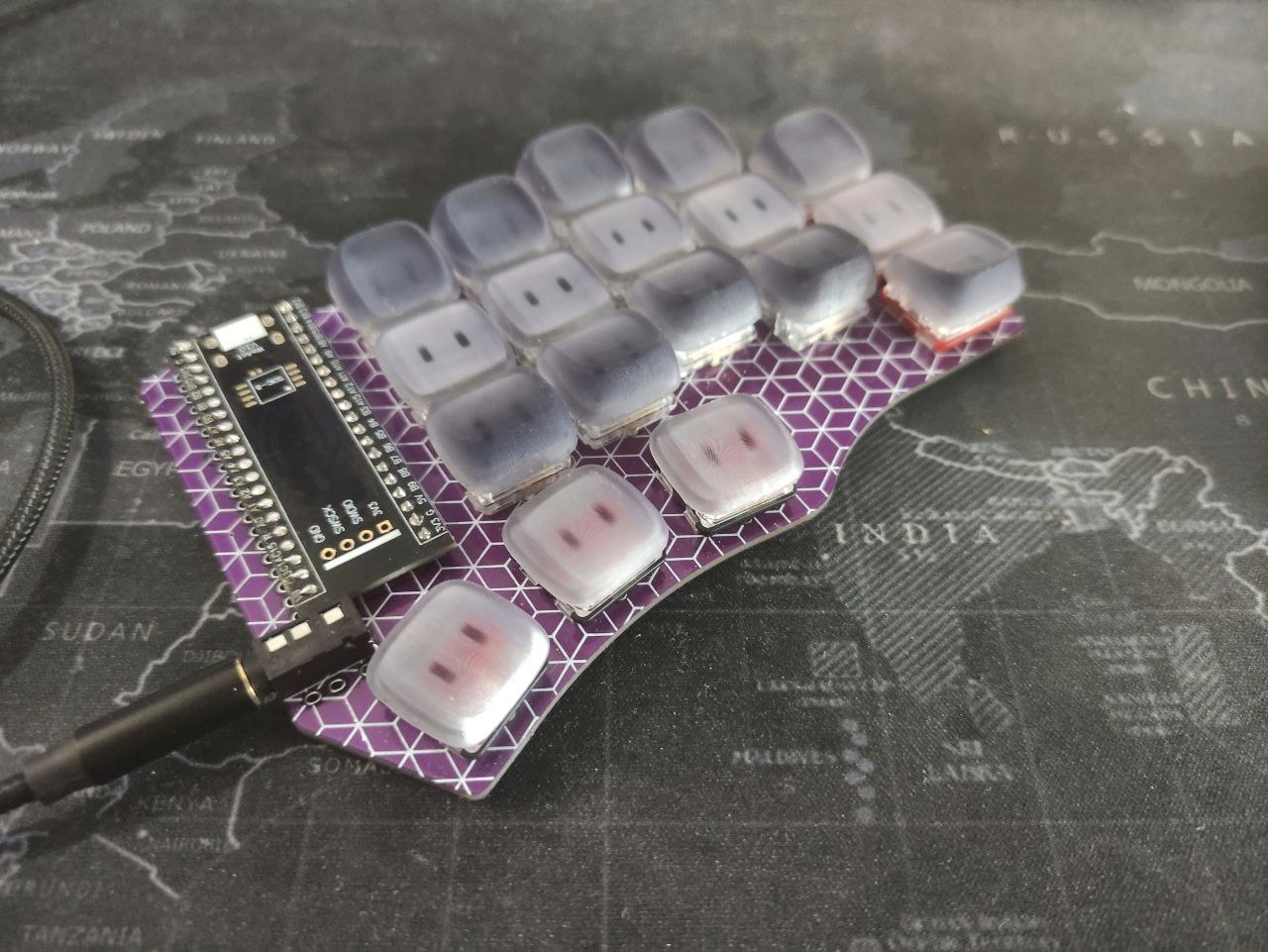

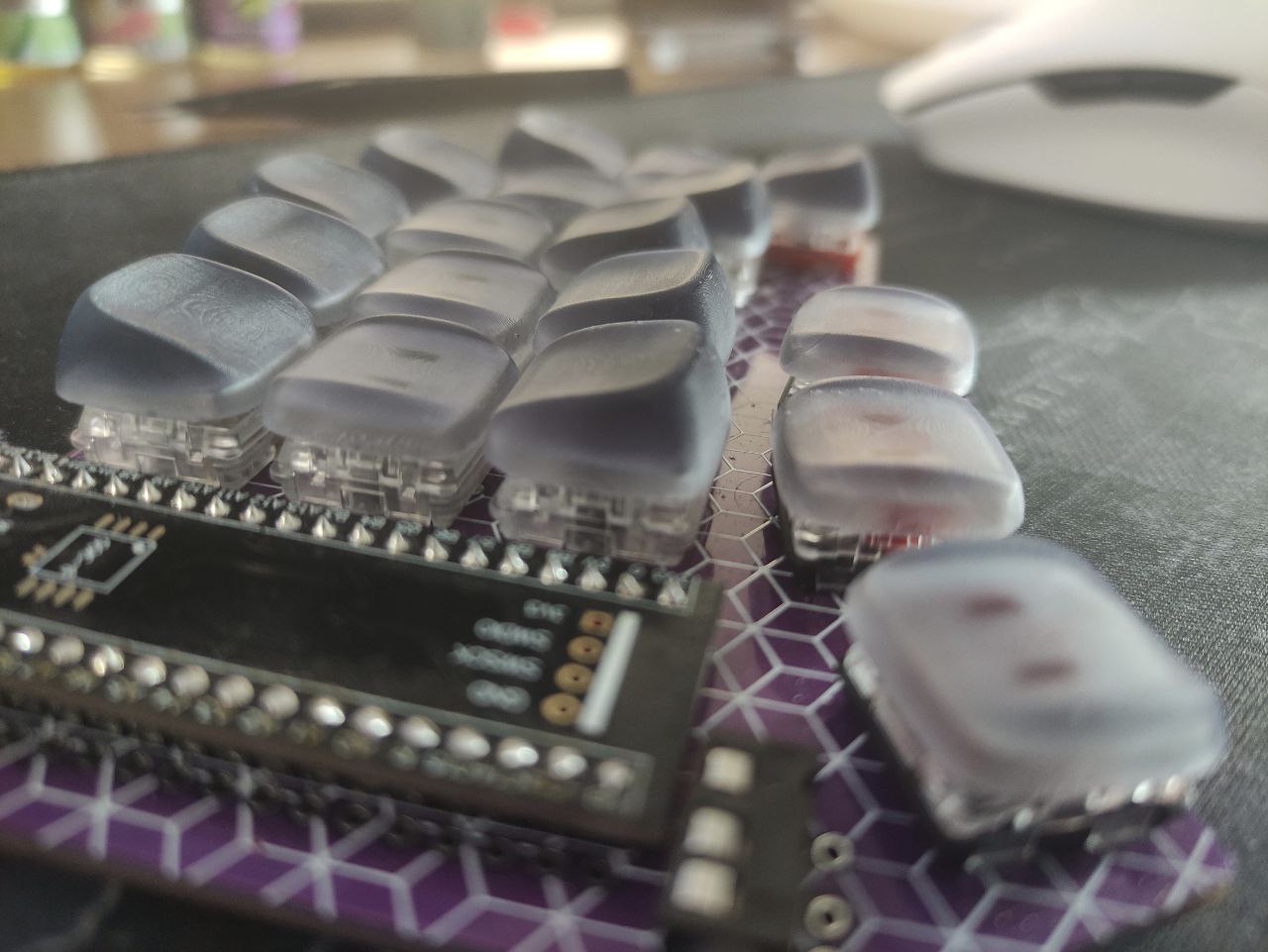

The keyboard is Cantor Remix

Contacts

@braindefender (preferably, Telegram, but also GMail and Reddit)
