Vellum

Vellum is a diagram editor for architecture, process and software design diagrams. It runs in the browser or as a desktop app and saves each diagram as a readable YAML file that you can diff, review and edit by hand.

Try it in your browser at vellum.blueprintr.io

Features

• A keyboard-driven canvas. Number keys pick tools, S opens the shape library, and every change can be undone.

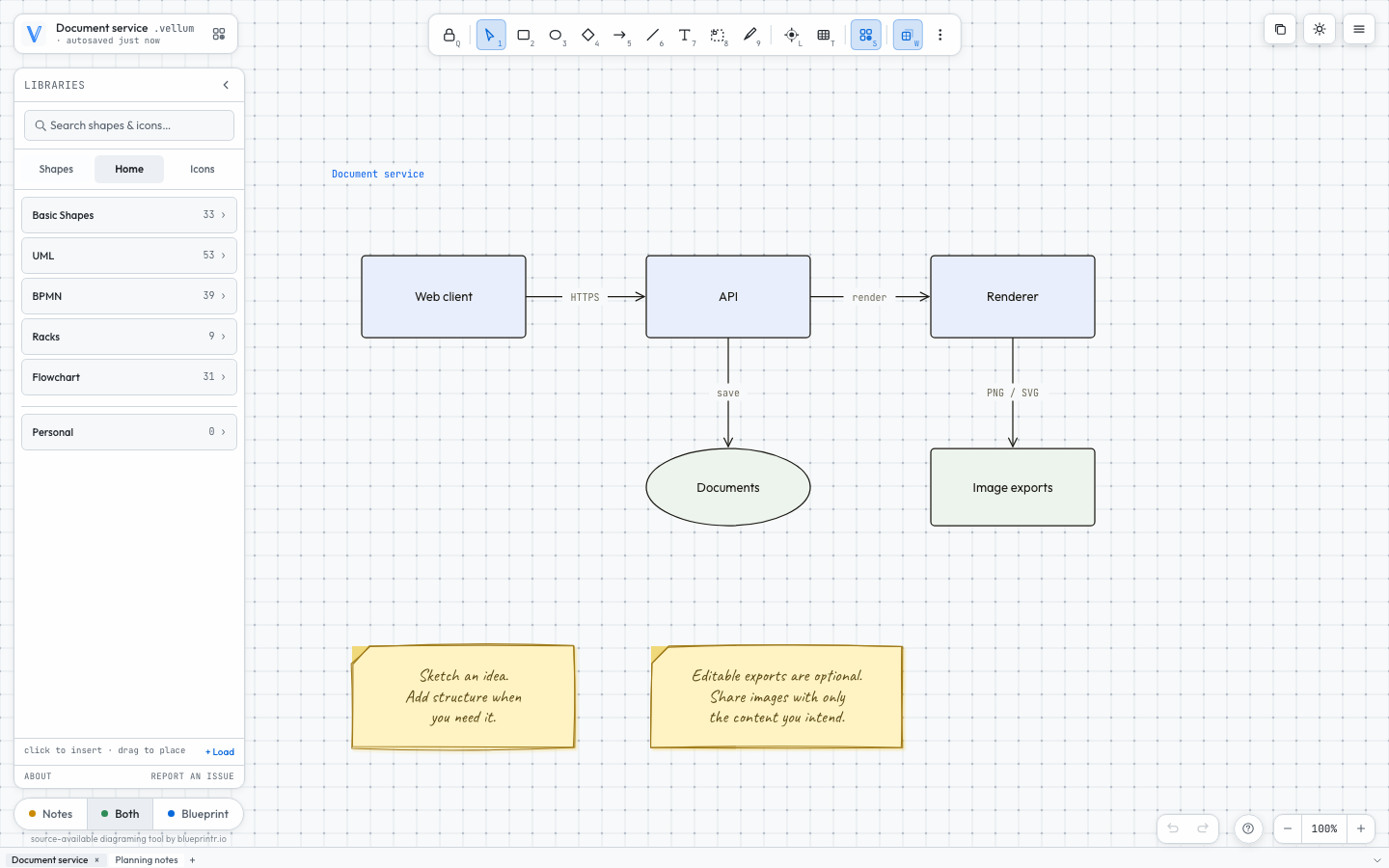

• Two layers on one canvas: hand-drawn notes for rough thinking and a blueprint layer for the finished diagram. Show either layer or both.

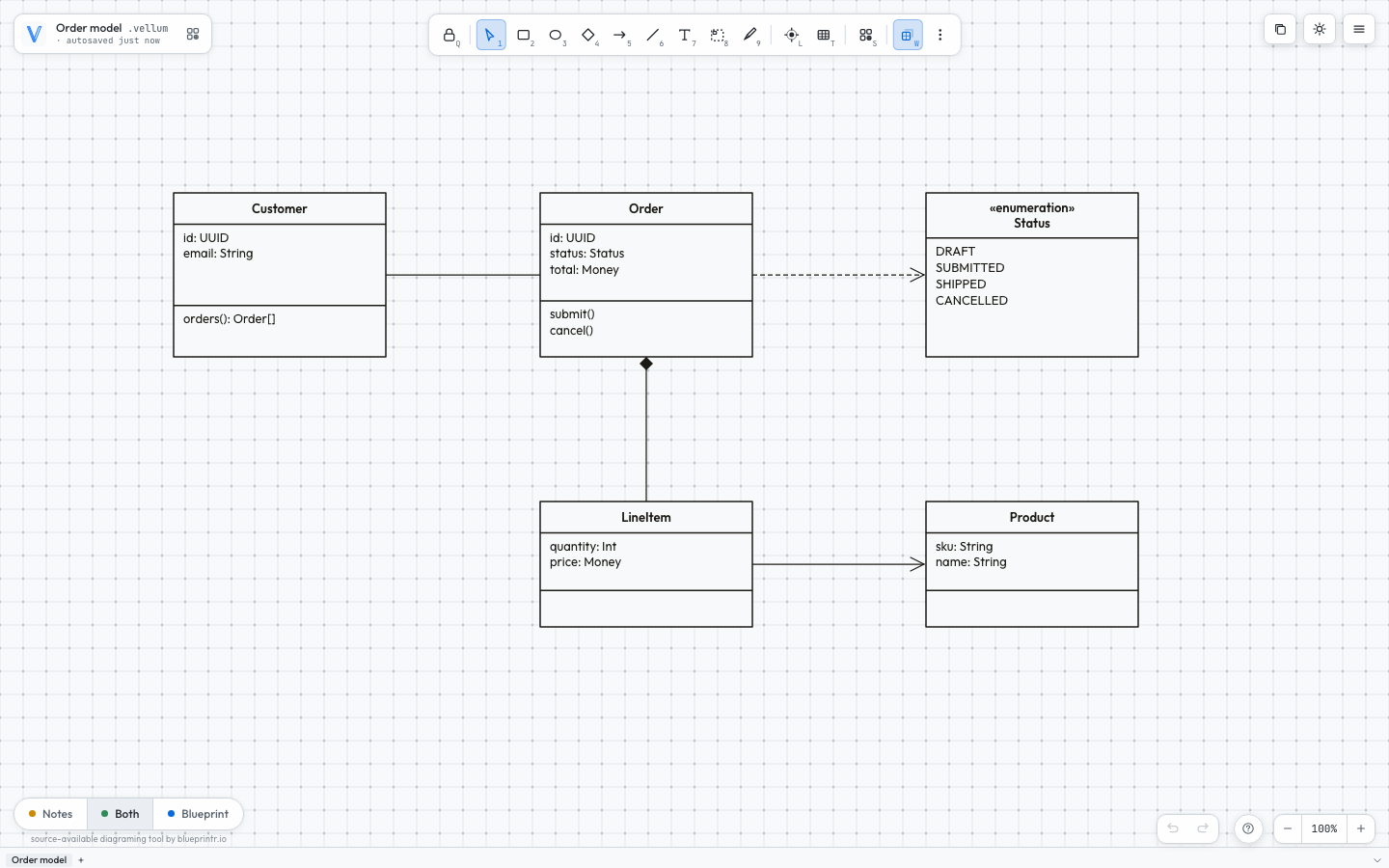

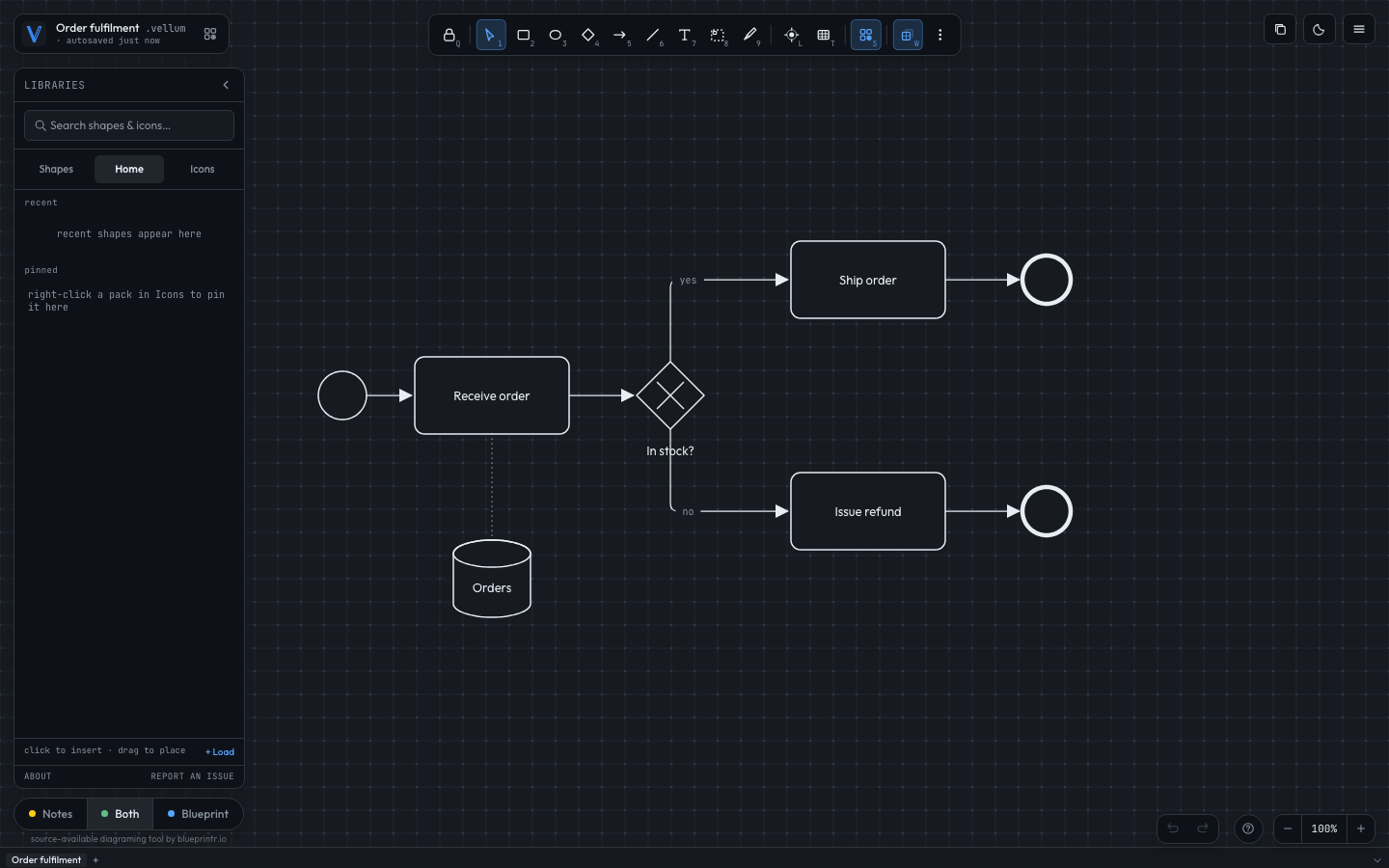

• Native UML, BPMN and flowchart shapes (41 UML, 32 BPMN and 31 flowchart), 33 basic shapes, freeform outlines and rack diagrams from 1U to 100U.
• Connectors with orthogonal, curved or straight routing, draggable waypoints, hops where lines cross and presets for UML and BPMN relationships.
• SVG icon libraries. You can import your own icons from an SVG folder, a ZIP file or a .vssx stencil, then recolour them.
• Several diagrams per file, one per tab. In browsers with the File System Access API, Vellum autosaves to the file you opened. Browser recovery keeps every open tab if the page closes unexpectedly.
• Imports .drawio, .excalidraw and Mermaid files.
• Exports PNG, JPG, WebP, SVG, PDF and animated GIF. PNG and SVG exports can optionally include the diagram source, so the image reopens as an editable diagram.
• Embeds in other React applications as a component.

Run it locally

You need Node.js 20 or later.

npm ci
npm run dev:web

Then open http://localhost:5173. Files save through the File System Access API where the browser supports it and fall back to a download elsewhere.

To build a production bundle into dist/:

npm run build

The desktop app uses Tauri. With a Rust toolchain installed, npm run tauri:dev runs it locally.

Diagrams as YAML

A .vellum file is YAML. Each file holds an ordered list of tabs, and each tab holds one diagram with its shapes, connectors, annotations and optional image assets. Older single-diagram files still open as one tab.

Each diagram also has a graph section with one line per connection, so the structure reads without the layout detail:

version: "1.0"
graph:
  - CloudFront -> API Gateway: HTTPS
  - API Gateway -> render-worker: invoke
  - render-worker -- Redis cache?
meta:
  title: checkout-flow
shapes:
  # position, size and styling for each shape
connectors:
  # anchors, routing, waypoints and markers for each connector

Edges are -> (arrow), -- (plain line) or <-> (double-headed). The section is editable. Deleting a line deletes that connector, adding a line creates one, and naming a node that does not exist creates it, so you can type a diagram as a graph section alone. The section is regenerated from connectors on every save. If another tool edits connectors without updating it, the connector details take precedence.

src/store/types.ts defines the format, src/store/graph.ts documents the graph grammar and src/store/schema.ts validates every file, paste and library drop before it reaches the editor.

Exports and privacy

⌘S opens the export dialog, and ⇧⌘C copies the selection as a PNG. Every export path uses the same pipeline, so the dialog preview matches the saved file.

Editable source is off by default and resets each time the dialog opens. When you turn it on, the image contains the full diagram, including hidden layers, notes and content outside the exported area. Clipboard copies never include it. SVG viewport crops keep vector objects outside the visible area, so use PNG for a flattened crop.

The guide covers export options, saving and recovery, and the UML, BPMN, rack and freeform tools in detail.

Use it as a React component

import { VellumEditor } from 'vellum-editor';
import 'vellum-editor/styles.css';

export default function App() {
  return <VellumEditor />;
}

The package exports the editor, its Zustand store hook (useEditor), YAML serialization (diagramToYaml, yamlToDiagram), validation (parseDiagram) and the SVG sanitizer. See src/index.ts for the full list. The package currently ships TypeScript source, so your project needs a TypeScript toolchain.

Security

Every SVG and diagram that Vellum loads passes through DOMPurify and a Zod schema, and index.html sets a strict Content Security Policy. Please report vulnerabilities privately as described in SECURITY.md rather than in a public issue.

Contributing

See CONTRIBUTING.md. Small, focused pull requests are easiest to review. Contributions are accepted under the contributor terms in that file.

License

Vellum is source-available under the PolyForm Noncommercial License 1.0.0. Use, modification and redistribution are subject to that license, including its permitted-purpose and notice requirements. This README grants no additional permissions. For use outside those terms, contact Josh Morris about a separate license. Imported artwork and dependencies keep their own licenses; see credits.
