Minimalistic language server (LSP) implementation

Language server protocol example for a toy language implemented in Haskell, using the lsp Haskell library under the hood.

The "language" itself is very minimal to keep the implementation simple, but the LSP support aims to be somewhat realistic.

IDE features

• parsing, scope and type errors
• variable scope highlighting, shadowing info
• scope-aware renaming
• type information on hovering
• completion (colors + LaTeX style greek letters)
• jump to definition
• ad-hoc diagnostic (warnings for large numbers and rainbow color)

Syntax highlighting

Syntax highlighting was not supported by the Language Server Protocol when this was originally written... which is quite a serious instance of What. The. Fuck. Apparently semantic highlighting finally comes with 3.16, but lsp does not support that yet.

Instead, we have rudimentary syntax highlighting (in VS Code only) via TextMate grammars, which are an abomination on earth if I've seen one...

The language

Our toy language consists of top-level declarations. Each declaration starts on a new line, and has the format:

indentifier : type = expression

There are three built-in types:

• Bool
• Nat
• Color

Expressions are built up from literal constants, variables, a built-in infix operator (plus), and can use parentheses. Declarations are checked against the type. For colors, we have a fixed list of pre-defined colors. Color names are prefixed by a hash # character.

Example "program"

the_truth  : Bool  = True
the_lie    : Bool  = the_truth
one        : Nat   = 1
fiftyfive  : Nat   = 50 + 4 + one
too_big    : Nat   = 12345
bad_number : Nat   = (((666)))
ugly_col   : Color = #black
nice_col   : Color = #rainbow

Installation instructions (for VS Code)

1. Install lsp and megaparsec:

$ cabal install lsp
$ cabal install megaparsec

2. Build the server executable. This will hopefully build an executable ToyLang-IDE.exe and put it somewhere in the path:

$ cabal install

3. Install npm (if not already installed)
4. run the following (in the project directory!):

$ npm i vscode-languageclient

5. Install VS Code (if not already installed)
6. Open the project directory in VS Code
7. Press F5 to test the language server
8. Open a new text file and paste the example program above. NB: You have to first save the file for the extension to be activated. And choose the file extension .toy, otherwise nothing will happen!
9. Play around! For example, F2 does scope-aware renaming, and F12 is jump to definition.

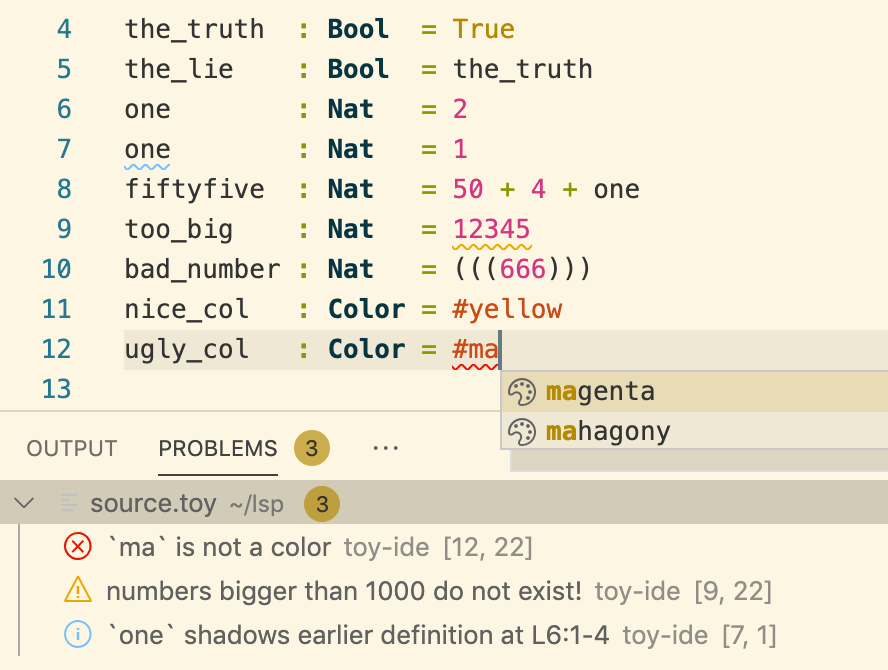

You should see something like this:

To permanently install the extension, copy the whole project into the extension folder (?):

• On Windows: %USERPROFILE%\.vscode\extensions
• On macOs / Linux: ~/.vscode/extensions
