TermDOM

Build terminal apps with HTML, CSS, and DOM.

TermDOM is a JavaScript/TypeScript library that renders HTML and CSS to the terminal. It draws actual DOM nodes to terminal output and redraws the screen when they are mutated, so TUIs and interactive CLIs can be written with vanilla JavaScript, or any frontend web framework or library.

npm install @b9g/termdom

import {TermDOM} from "@b9g/termdom";

const term = new TermDOM();
term.attach();

// The document is a real DOM document.
const {document} = term;
document.body.innerHTML = `
  <style>
    .card { border: 1px solid #5fafff; padding: 0 1ch; width: 36ch; }
    .title { color: #5fafff; font-weight: bold; }
    progress { width: 25ch; }
    progress::slider-fill { background-color: green; }
    .pct { color: #888; }
  </style>
  <div class="card">
    <div class="title">Installing</div>
    <div>
      <progress id="bar" max="100" value="0"></progress>
      <span class="pct" id="pct"></span>
    </div>
  </div>
`;

// TermDOM observes mutations and re-renders automatically.
let n = 0;
setInterval(() => {
  n = (n + 1) % 101;
  document.querySelector("progress")!.value = n;
  document.getElementById("pct")!.textContent = String(n).padStart(3) + "%";
}, 50);

Features

• Stylesheets CSS from <style> elements and style attributes cascades and inherits as in the browser, translated to ANSI color and decoration.
• Layout The CSS box model, flexbox, grid, and table layout, computed in whole terminal cells, with margins, borders, and padding.
• Text CJK, emoji, and combining characters take correct widths; Hebrew and Arabic render in visual order with contextual shaping.
• DOM utilities document.querySelector(), MutationObserver, ResizeObserver, and getBoundingClientRect() work and report cell-based layout.
• Events Keyboard, mouse, focus, and paste events fire on elements, the document, and the window, decoded from stdin.
• Forms <input>, <textarea>, <select>, checkboxes, radios, and sliders have terminal-native looks, restylable with CSS; Tab and :focus work.
• Scrolling Documents and overflow boxes taller than the terminal scroll with the wheel, the arrow and page keys, window.scrollTo() and element.scrollIntoView().
• Web Components customElements.define(), attachShadow(), <slot>, :host, and scoped styles; the built-in controls are shadow trees.
• Selection Drag to select, styled with ::selection; the caret moves by grapheme, and text fields bind the readline chords (Ctrl+A/E/K/U/W).
• Fullscreen Element.requestFullscreen() renders to the alternate screen; exiting restores the shell and its scrollback.
• Images and canvas <img> decodes PNG, JPEG, GIF and BMP on the runtime's web Worker where there is one, and <canvas> has a 2D context and a "termdom-cellgrid" context; pixels are drawn two to a cell with half blocks. The images and canvas options turn either off, the csp option narrows what markup may load, as new TermDOM({csp: "img-src https: data:"}), and a "fetch" listener can answer each load, as a Service Worker does.

How it works

TermDOM implements the browser's rendering pipeline against a grid of character cells instead of pixels. The cell is the unit basis for CSS lengths: by default 1px and 1ch both mean one cell. On each frame the engine recomputes style and layout for whatever mutated, paints the result into a cell buffer, diffs it against the previous frame, and writes the difference to stdout as ANSI escape sequences. Escape sequences from stdin are decoded into keyboard, mouse, and paste events and dispatched to DOM nodes.

Examples

• markdown.ts — a Markdown viewer that pages when the document is taller than the terminal.
• chat.ts — a streaming LLM chat client powered by ch.at, with a transcript and composer.
• todomvc.ts — the official TodoMVC with its component logic unmodified; only the stylesheet was swapped.
• fuzzy-finder.ts — a file picker that prints the selection to stdout.
• weather.ts — an emoji forecast from Open-Meteo, with a city search and flexbox day cards.
• popover.ts — a menu bar where every menu is a declarative popover; open, dismiss and stacking are the platform's.
• codemirror.ts — CodeMirror editing a file on a contenteditable host, with line numbers and syntax colors.

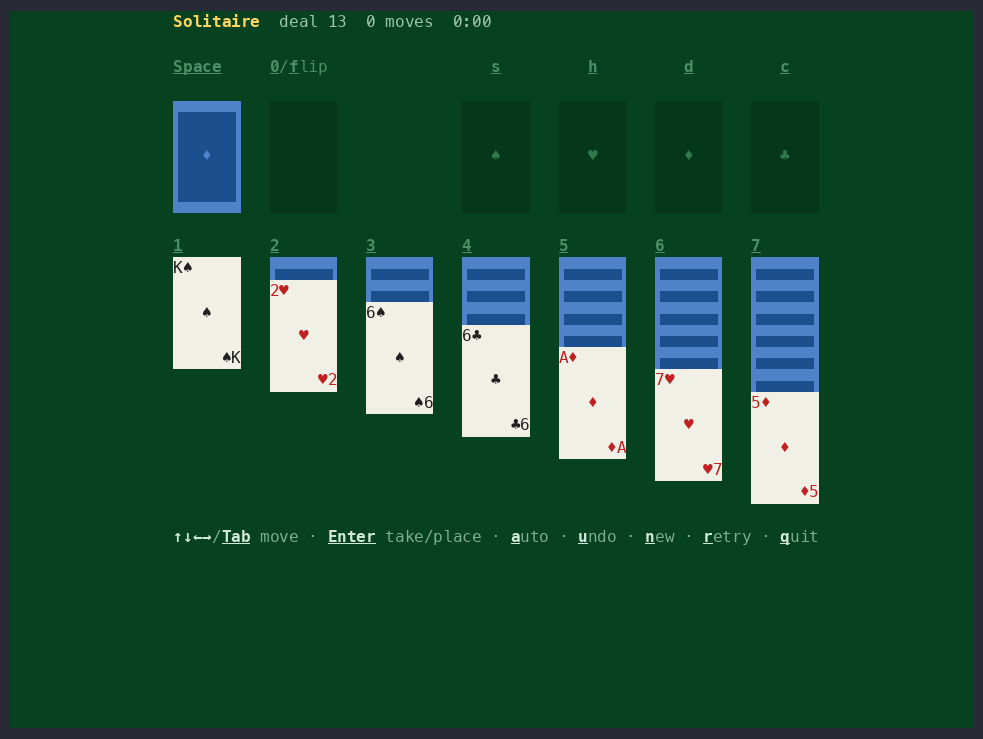

• solitaire.ts — the Klondike solitaire above, with seeded deals playable by keyboard or mouse.
• hello-{react,vue,svelte,crank}.ts — one greeting and keypress counter apiece, each driving that framework's stock renderer.
• ssh.ts — an SSH server where every session gets a document of its own, rendered over the session's channel.
• shell.ts — ls, cat, less, cd and pwd over the filesystem, which on termdom.org is this repository.
• images.ts — an <img> at its natural size and under each object-fit; pass a path or URL to show your own image.
• canvas.ts — an animated 2D canvas beside Conway's Life on a "termdom-cellgrid" canvas.

More runnable examples can be found in examples/. Most of them also run in the browser at termdom.org/examples, from the same files.

Runtimes

TermDOM runs on Node, Bun and Deno. The library has no native components and can be used to create binaries with tools like bun build --compile.

Compatibility

COMPATIBILITY.md is generated by probing each feature against the engine.

Name

Not to be confused with DomTerm by Per Bothner, a terminal emulator built out of DOM elements. The two projects are each other's inverse: DomTerm puts a terminal in the DOM; TermDOM puts the DOM in a terminal.

License

MIT
