Codemap

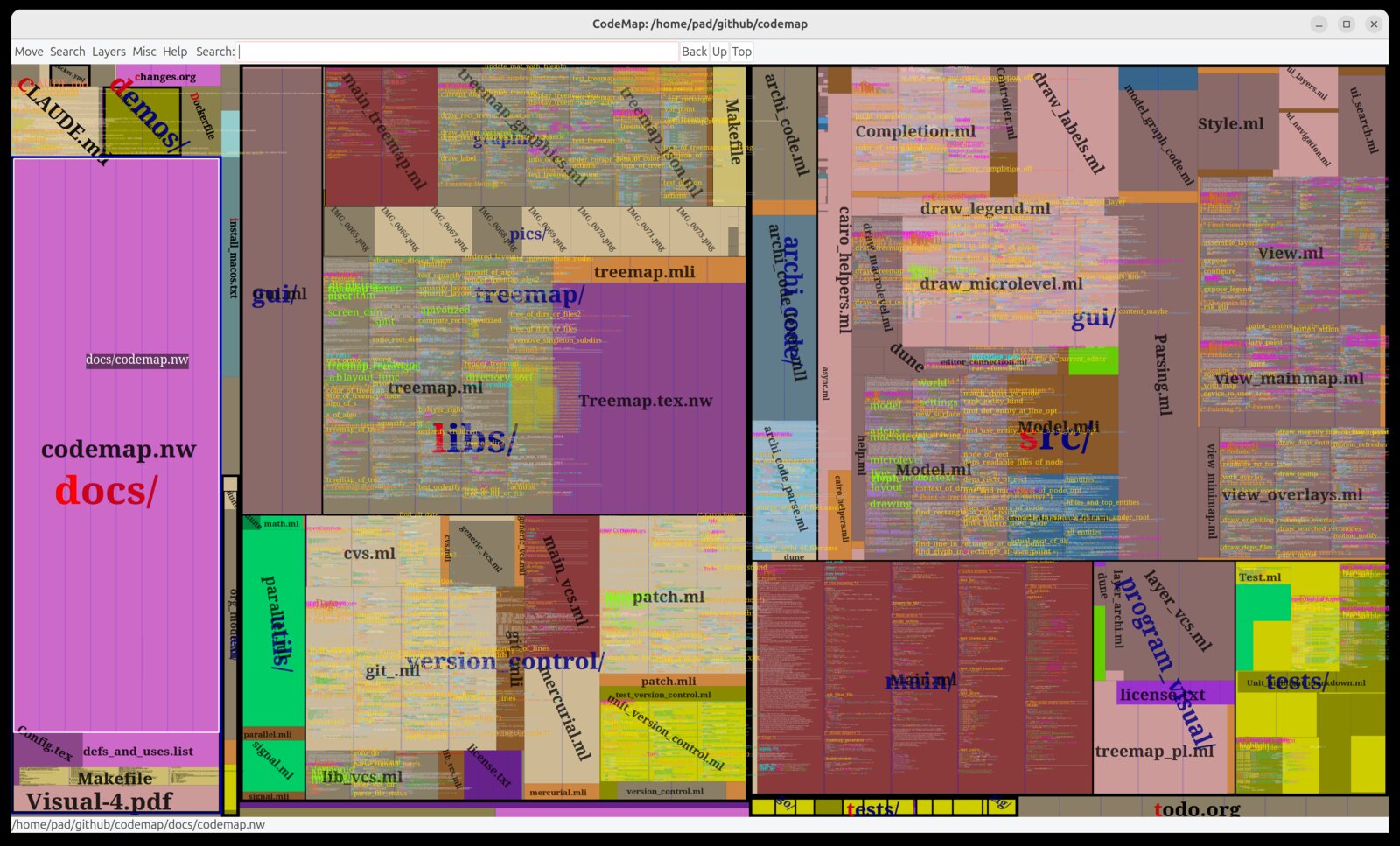

A Google Maps for source code. Codemap renders zoomable treemap-based bird's-eye views of codebases with code thumbnails and semantic syntax highlighting — zooming in progressively reveals more detail, just like a map. Uses semgrep parsers for multi-language highlighting via a GTK2/Cairo GUI.

Building

Prerequisites

OCaml 4.14+ (via opam >= 2.1), gcc, git, curl, pkg-config.

On Ubuntu/Debian:

apt-get install build-essential pkg-config opam curl libcairo2-dev libgtk2.0-dev

On macOS:

brew install opam pkg-config cairo gtk+

C libraries (pcre, pcre2, gmp, libev, libcurl) are installed automatically by ./configure via opam — no need to install them manually.

Quick start

git clone --recurse-submodules https://github.com/aryx/codemap
cd codemap
./configure     # installs opam deps and sets up tree-sitter (run infrequently)
make            # routine build
make test       # run tests

Docker

A reference build using Ubuntu is provided:

docker build -t codemap .

To build with OCaml 5:

docker build -t codemap --build-arg OCAML_VERSION=5.2.1 .

Usage

codemap ~/my-project

This launches a GTK-based GUI that lets you visualize source code and perform code search.

See the old codemap page at Facebook for more information.

Inspiration

Codemap combines ideas from several software visualization projects:

• SeeSoft — Eick, Steffen, and Sumner at Bell Labs (1992). One of the earliest tools for visualizing line-oriented software statistics, mapping each line of code to a thin colored row. See also Ball and Eick's follow-up, Software Visualization in the Large (1996), which extended these ideas with multiple visual representations (line, pixel, file summary, hierarchical).
• Code Thumbnails — DeLine et al. at Microsoft Research (2006). Miniature code renderings as navigation aids, showing that the visual structure of code provides useful spatial cues even at tiny scales.
• Treemap visualization of the Linux kernel — Fekete and Plaisant at UMD HCIL (2002). The idea of using treemaps for source code layout, which codemap combines with code thumbnails and SeeSoft-style coloring.
• Google Maps — The zoomable interface that progressively reveals more detail as you zoom in. In codemap, important code is bigger (like major roads on a map), and zooming in gradually shows file content, then syntax-highlighted code.
