Open re-implementation of the Quansheng UV-K5/K6/5R v2.1.27 firmware

This repository is a fork of Egzumer custom firmware, who was a merge of OneOfEleven custom firmware with fagci spectrum analizer plus my few changes.

All is a cloned and customized version of DualTachyon's open firmware found here ... a cool achievement !

[!NOTE] EN - About Chirp, as many others firmwares, you need to use a dedicated driver available on this repository.

FR - A propos de Chirp, comme beaucoup d'autres firmwares, vous devez utiliser un pilote dédié disponible sur ce dépôt.

[!WARNING] EN - THIS FIRMWARE HAS NO REAL BRAIN. PLEASE USE YOUR OWN. Use this firmware at your own risk (entirely). There is absolutely no guarantee that it will work in any way shape or form on your radio(s), it may even brick your radio(s), in which case, you'd need to buy another radio. Anyway, have fun.

FR - CE FIRMWARE N'A PAS DE VÉRITABLE CERVEAU. VEUILLEZ UTILISER LE VÔTRE. Utilisez ce firmware à vos risques et périls. Il n'y a absolument aucune garantie qu'il fonctionnera d'une manière ou d'une autre sur votre (vos) radio(s), il peut même bousiller votre (vos) radio(s), dans ce cas, vous devrez acheter une autre radio. Quoi qu'il en soit, amusez-vous bien.

[!CAUTION] EN - I recommend to backup your eeprom with k5prog before playing with alternative firmwares. It's a good reflex to have.

FR - Je recommande de sauvegarder votre eeprom avec k5prog avant de jouer avec des firmwares alternatifs. C'est un bon réflexe à avoir.

Donations

Special thanks to Jean-Cyrille F6IWW (2 times), Fabrice 14RC123, David F4BPP, Olivier 14RC206, Frédéric F4ESO, Stéphane F5LGW, Jorge Ornelas (4 times), Laurent F4AXK, Christophe Morel, Clayton W0LED, Pierre Antoine F6FWB, Jean-Claude 14FRS3306, Thierry F4GVO, Eric F1NOU, PricelessToolkit, Ady M6NYJ, Tom McGovern (4 times), Joseph Roth, Pierre-Yves Colin, Frank DJ7FG, Marcel Testaz, Brian Frobisher, Yannick F4JFO, Paolo Bussola, Dirk DL8DF, Levente Szőke (2 times), Bernard-Michel Herrera, Jérôme Saintespes, Paul Davies, RS (3 times), Johan F4WAT, Robert Wörle, Rafael Sundorf, Paul Harker, Peter Fintl, Pascal F4ICR (2 times), Mike DL2MF, Eric KI1C (2 times), Phil G0ELM, Jérôme Lambert, Meinhard Frank Günther, Eliot Vedel, Alfonso EA7KDF, Jean-François F1EVM, Robert DC1RDB, Ian KE2CHJ, Daryl VK3AWA, Roberto Brunelli, Robert Boardman, Stephen Oliver, Nicolas F4INE and William Bruno for their donations. That’s so kind of them. Thanks so much 🙏🏻

Table of Contents

• My Features
• Main Features from Egzumer
• Manual
• Radio Performance
• Compiler
• Building
• Credits
• Other sources of information
• License
• Example changes/updates

Main features and improvements from F4HWN:

• several firmware versions:
  • Bandscope (with spectrum analyzer made by Fagci),
  • Broadcast (with commercial FM radio support),
  • Basic (with spectrum analyzer and commercial FM radios support, but without certain functions such as Vox, Aircopy, etc.),
  • RescueOps (specifically designed for first responders: firefighters, sea rescue, mountain rescue),
  • Game (with a small breakout game),
• improve default power settings level:
  • Low1 to Low5 (<~20mW, ~125mW, ~250mW, ~500mW, ~1W),
  • Mid ~2W,
  • High ~5W,
  • User (see SetPwr),
• improve S-Meter (IARU Region 1 Technical Recommendation R.1 for VHF/UHF - read more),
  • S-Meter (S0/S9) Level EEPROM settings that were introduced in the Egzumer firmware are now ignored and replaced by hardcoded values to comply with the IARU Recommendation.
• improve bandscope (Spectrum Analyser):
  • add channel name,
  • add save of some spectrum parameters,
• improve UI:
  • menu index is always visible, even if a menu is selected,
  • s-meter new design (Classic or Tiny),
  • MAIN ONLY screen mode,
  • DUAL and CROSS screen mode,
  • RX blink on VFO RX,
  • RX LED blink,
  • Squelch level and Monitor,
  • Step value,
  • CTCSS or DCS value,
  • KeyLock message,
  • last RX,
  • move BatTxt menu from 34/63 to 30/63 (just after BatSave menu 29/63),
  • rename BackLt to BLTime,
  • rename BltTRX to BLTxRx,
  • improve memory channel input,
  • improve keyboard frequency input,
  • add percent and gauge to Air Copy,
  • improve audio bar,
  • and more...
• new menu entries and changes:
  • add SetPwr menu to set User power (<20mW, 125mW, 250mW, 500mW, 1W, 2W or 5W),
  • add SetPTT menu to set PTT mode (Classic or OnePush),
  • add SetTOT menu to set TOT alert (Off, Sound, Visual, All),
  • add SetCtr menu to set contrast (0 to 15),
  • add SetInv menu to set screen in invert mode (Off or On),
  • add SetEOT menu to set EOT (End Of Transmission) alert (Off, Sound, Visual, All),
  • add SetMet menu to set s-meter style (Classic or Tiny),
  • add SetLck menu to set what is locked (Keys or Keys + PTT),
  • add SetGUI menu to set font size on the VFO baseline (Classic or Tiny),
  • add TXLock menu to open TX on channel,
  • add SetTmr menu to set RX and TX timers (Off or On),
  • add SetOff menu to set the delay before the transceiver goes into deep sleep (Off or 1 minute to 2 hours),
  • add SetNFM menu to set Narrow width (12.5kHz or 6.25kHz),
  • rename BatVol menu (52/63) to SysInf, which displays the firmware version in addition to the battery status,
  • improve PonMsg menu,
  • improve BackLt menu,
  • improve TxTOut menu,
  • improve ScnRev menu (CARRIER from 250ms to 20s, STOP, TIMEOUT from 5s to 2m)
  • improve KeyLck menu (OFF, delay from 15s to 10m)
  • add HAM CA F Lock band (for Canadian zone),
  • add PMR 446 F Lock band,
  • add FRS/GMRS/MURS F Lock band,
  • remove blink and SOS functionality,
  • remove AM Fix menu (AM Fix is ENABLED by default),
  • add support of 3500mAh battery,
• improve status bar:
  • add SetPtt mode in status bar,
  • change font and bitmaps,
  • move USB icon to left of battery information,
  • add RX and TX timers,
• improve lists and scan lists options:
  • add new list 3,
  • add new list 0 (channel without list...),
  • add new scan lists options,
    • scan list 0 (all channels without list),
    • scan list 1,
    • scan list 2,
    • scan list 3,
    • scan lists [1, 2, 3],
    • scan all (all channels with or without list),
  • add scan list shortcuts,
• add resume mode on startup (scan, bandscope and broadcast FM),
• new actions:
  • RX MODE,
  • MAIN ONLY,
  • PTT,
  • WIDE NARROW,
  • 1750Hz,
  • MUTE,
  • POWER HIGH (RescueOps),
  • REMOVE OFFSET (RescueOps),
• new key combinations:
  • add the F + UP or F + DOWN key combination to dynamically change the Squelch level,
  • add the F + F1 or F + F2 key combination to dynamically change the Step,
  • add F + 8 to quickly switch backlight between BLMin and BLMax on demand (this bypass BackLt strategy),
  • add F + 9 to return to BackLt strategy,
  • add long press on MENU, in * SCAN mode, to temporarily exclude a memory channel,
  • add short press on [0, 1, 2, 3, 4 or 5], in * SCAN mode, to dynamically change scan list.
• many fix:
  • squelch,
  • s-meter,
  • DTMF overlaying,
  • scan list 2 ignored,
  • scan range limit,
  • clean display on startup,
  • no more PWM noise,
  • and more...
• enabled AIR COPY
• disabled ENABLE_DTMF_CALLING,
• disabled SCRAMBLER,
• remove 200Tx, 350Tx and 500Tx,
• unlock TX on all bands needs only to be repeat 3 times,
• code refactoring and many memory optimization,
• displays the live screen of the Quansheng K5 on your computer via a USB-to-Serial cable,
• and more...

Main features from Egzumer:

• many of OneOfEleven mods:
  • AM fix, huge improvement in reception quality
  • long press buttons functions replicating F+ action
  • fast scanning
  • channel name editing in the menu
  • channel name + frequency display option
  • shortcut for scan-list assignment (long press 5 NOAA)
  • scan-list toggle (long press * Scan while scanning)
  • configurable button function selectable from menu
  • battery percentage/voltage on status bar, selectable from menu
  • longer backlight times
  • mic bar
  • RSSI s-meter
  • more frequency steps
  • squelch more sensitive
• fagci spectrum analyzer (F+5 to turn on)
• some other mods introduced by me:
  • SSB demodulation (adopted from fagci)
  • backlight dimming
  • battery voltage calibration from menu
  • better battery percentage calculation, selectable for 1600mAh or 2200mAh
  • more configurable button functions
  • long press MENU as another configurable button
  • better DCS/CTCSS scanning in the menu (* SCAN while in RX DCS/CTCSS menu item)
  • Piotr022 style s-meter
  • restore initial freq/channel when scanning stopped with EXIT, remember last found transmission with MENU button
  • reordered and renamed menu entries
  • LCD interference crash fix
  • many others...

Manual

Up to date manual is available in the Wiki section

Radio performance

Please note that the Quansheng UV-Kx radios are not professional quality transceivers, their performance is strictly limited. The RX front end has no track-tuned band pass filtering at all, and so are wide band/wide open to any and all signals over a large frequency range.

Using the radio in high intensity RF environments will most likely make reception anything but easy (AM mode will suffer far more than FM ever will), the receiver simply doesn't have a great dynamic range, which results in distorted AM audio with stronger RX'ed signals. There is nothing more anyone can do in firmware/software to improve that, once the RX gain adjustment I do (AM fix) reaches the hardwares limit, your AM RX audio will be all but non-existent (just like Quansheng's firmware). On the other hand, FM RX audio will/should be fine.

But, they are nice toys for the price, fun to play with.

Compiler

arm-none-eabi GCC version 10.3.1 is recommended, which is the current version on Ubuntu 22.04.03 LTS. Other versions may generate a flash file that is too big. You can get an appropriate version from: https://developer.arm.com/downloads/-/gnu-rm

clang may be used but isn't fully supported. Resulting binaries may also be bigger. You can get it from: https://releases.llvm.org/download.html

Building

Github Codespace build method

This is the least demanding option as you don't have to install enything on your computer. All you need is Github account.

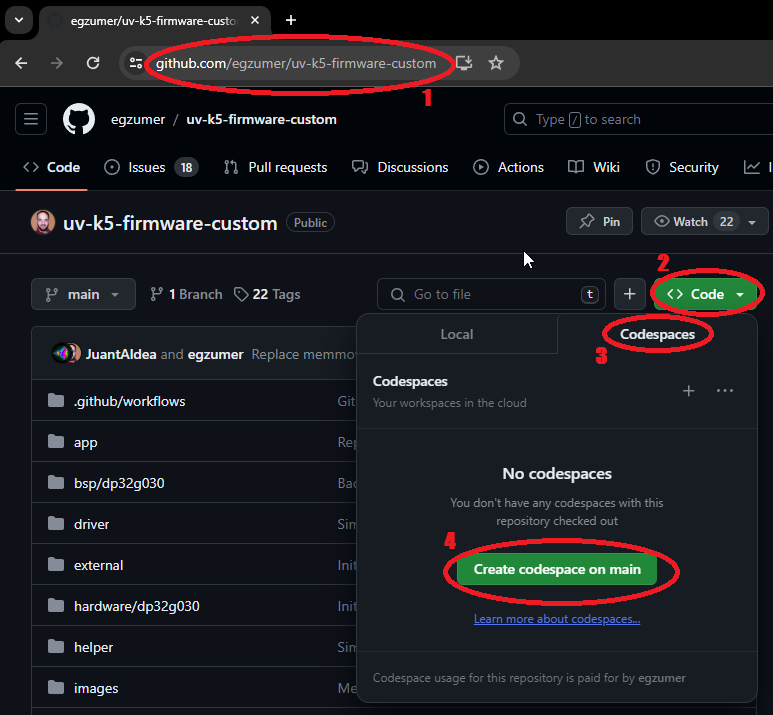

1. Go to https://github.com/armel/uv-k5-firmware-custom
2. Click green Code button
3. Change tab from Local to Codespace
4. Click green Create codespace on main button

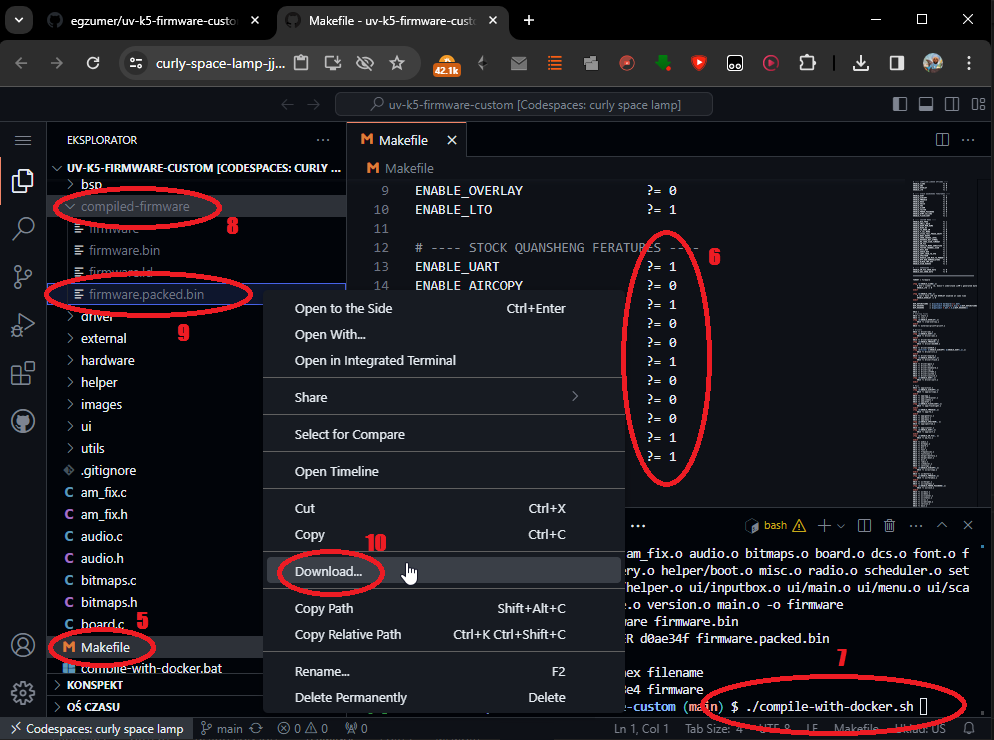

5. Open Makefile, edit build options and save changes
6. If necessary, open compile-with-docker.sh, edit build versions and save changes
7. Run in terminal window
   • ./compile-with-docker.sh bandscope to compile bandscope version
   • ./compile-with-docker.sh broadcast to compile broadcast version
   • ./compile-with-docker.sh voxless to compile voxless version
   • ./compile-with-docker.sh all to compile all versions
   • ./compile-with-docker.sh custom to compile only with Makefile build options
8. Open folder compiled-firmware
9. Right click firmware.packed.bin
10. Click Download, now you should have a firmware on your computer that you can proceed to flash on your radio. You can use online flasher

Docker build method

If you have docker installed you can use compile-with-docker.bat (Windows) or compile-with-docker.sh (Linux/Mac), the output files are created in compiled-firmware folder. This method gives significantly smaller binaries, I've seen differences up to 1kb, so it can fit more functionalities this way. The challenge can be (or not) installing docker itself.

[!TIP] On Linux/Mac, you may need to uncomment and customize the DOCKER_NETWORK environment variable at the beginning of the compile-with-docker.sh script. Note: this can introduce security risks by removing network isolation. However, if you encounter issues and are using a specific network environment (with a proxy or a firewall), this may help.

Windows environment build method

1. Open windows command line and run:

   winget install -e -h git.git Python.Python.3.8 GnuWin32.Make
   winget install -e -h Arm.GnuArmEmbeddedToolchain -v "10 2021.10"


2. Close command line, open a new one and run:

   pip install --user --upgrade pip
   pip install crcmod
   mkdir c:\projects & cd /D c:/projects
   git clone https://github.com/armel/uv-k5-firmware-custom.git


3. From now on you can build the firmware by going to c:\projects\uv-k5-firmware-custom and running win_make.bat or by running a command line:

   cd /D c:\projects\uv-k5-firmware-custom
   win_make.bat


4. To reset the repository and pull new changes run (!!! it will delete all your changes !!!):

   cd /D c:\projects\uv-k5-firmware-custom
   git reset --hard & git clean -fd & git pull


I've left some notes in the win_make.bat file to maybe help with stuff.
