Ix: a zero-knowledge proof-carrying code platform

We have just folded space from Ix. Many machines on Ix. New machines.

---

The Ix platform enables the compilation of Lean 4 programs into zero-knowledge succinct non-interactive arguments of knowledge (zk-SNARKs). This allows the execution and typechecking of any Lean program to be verified by performing a sub-100-millisecond operation against an approximately 1 kilobyte certificate, regardless of the size of the original Lean program. In fact, the correctness of the entire mathlib library of formal mathematics, containing around 2 million lines of code, may be compiled in this way into a single kilobyte sized cryptographic certificate.

We call this technique zero-knowledge proof-carrying code or zkPCC, as an extension of the well-known proof-carrying code paradigm. Instead of a host system verifying formal proofs carried by an application as in proof-carrying code, in zkPCC the host or user verifies a cryptographic zero-knowledge proof generated from the typechecking of that formal proof. This greatly improves the runtime cost of this verification operation (potentially even up to O(1) depending on the specific zk-SNARK protocol used) and minimizes the complexity of locally dependent tooling (e.g. build systems for the formal proof language).

Additionally, while in proof-carrying code an application must reveal the proof artifact that demonstrates some formal property to the user, in zkPCC this proof artifact may be kept private, which opens up new possibilities for economic transactions over proofs.

:warning: This repository is a pre-alpha work in progress and should not be used for any purpose.

Use Cases

Our expectation is that Ix, and zkPCC in general, will allow applications to frictionlessly ship security guarantees to their users. Some possible use cases could be:

• Software written in compiled languages like Rust can attach to their binaries proofs of type signatures or other formal properties verified by tools such as Aeneas. Given mature certified compilation infrastructure (e.g. a future CompCert equivalent in Lean4), proofs that the compilation occurred correctly can also be attached, which would mitigate supply-chain attacks, such as those famously described by Ken Thompson in Reflections on Trusting Trust. This would also enable secure decentralized binary caching, saving on the need for duplicative local recompilation or expensive continuous integration software.
• In operating systems, hardware based process isolation costs 25%-33% overhead in terms of processor cycles. This means everytime you buy a laptop, cell phone, web server, you have to pay for a third more computing power, because we don't know how to safely run applications in protection ring 0. By reducing verification overhead and improving portability over proof-carrying code, zkPCC potentially enables more sophisticated software-based process isolation.
• Decentralized platforms like the Ethereum blockchain could publish formal specifications of their protocol and then require clients, layer-2s, zkVMs, etc. to publish zkPCC proofs that their current specific version satisfies such specifications. Such proofs could be verified on-chain, and even programmatically gate certain protocol updates (e.g. version X validates that version X+1 is a correct update).
• Individual smart contracts can publish on-chain proofs of their formal models or proofs showing that their bytecode was generated from particular sources (currently a trusted block explorer feature).
• Cryptographic projects like the risc0 zkVM could include a proof of the correctness of their Lean 4 formal model alongside (or aggregated within) every proof produced by their zkVM.

---

Example: Embedding Fermat's Last Theorem in Fermat's Margin Note

In or around 1637, the mathematician Pierre Fermat conjectured the following:

1. It is impossible to separate a cube into two cubes, or a fourth power into two fourth powers, or in general, any power higher than the second, into two like powers.
2. I have discovered a truly marvelous proof of this
3. which this margin is too narrow to contain.

The first part of this statement famously evaded proof for over 350 years before finally being demonstrated by Andrew Wiles in 1994. Mathematicians and historians of mathematics have also long debated the second part, whether Fermat's claim that he possessed a proof of the first part is credible, which seems unlikely given the complexity and modern mathematical infrastructure used by the Wiles proof of the first part. Rarely discussed, however, is the third part, which is in fact a statement of proof theory, specifically one which proposes an information theoretic lower bound to the size of the proof of a particular proposition.

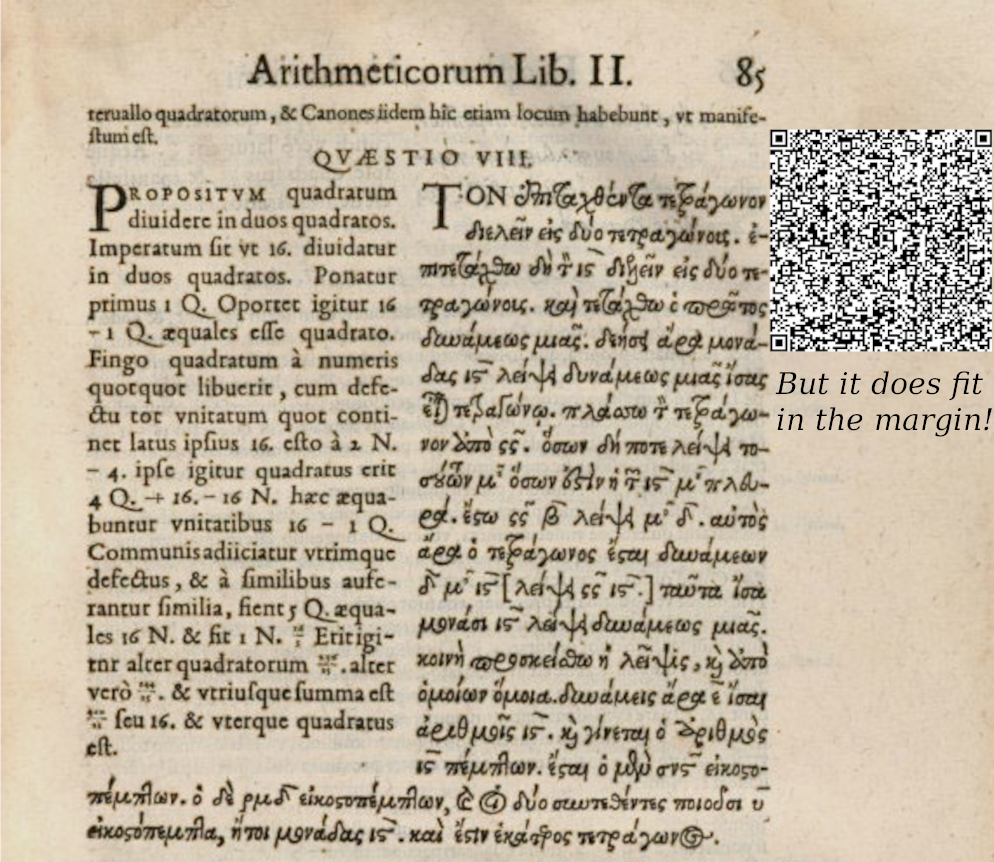

The specific margin in question is page 85 in the 1621 edition of Diophantus' Arithmetica, which is a folio volume with dimensions 353mm tall by 225mm wide by 40mm deep. Leaving the precise dimensions of the margins as an exercise to the reader, it is trivial to show the proposition is false regardless of margin size, or the size of the proof (up to very large bounds) if one permits the proof to printed in the margin using arbitrarily small text, using microfilm, photolithography, etc. It is more interesting to assume that what Fermat meant was that the margin is too narrow to contain a proof written in Fermat's own handwriting.

Happily, we have an example of text we know would satisfy this constraint, Fermat's margin note itself! In Latin, the note reads:

Cubum autem in duos cubos, aut quadratoquadratum in duos quadratoquadratos & generaliter nullam in infinitum ultra quadratum potestatem in duos eiusdem nominis fas est dividere cuius rei demonstrationem mirabilem sane detexi. Hanc marginis exiguitas non caperet.

At 262 characters, and 8-bits per character, this is 2096 bits, or 262 bytes. This is quite small, but fortunately not quite as small as a Groth16 proof over BN254:

A Groth16 proof has two G1 points and one G2. In the BN254 pairing curve these take 64 and 128 bytes respectively uncompressed totaling 256 bytes for a proof.

So if we can show that a Groth16 proof of a proof of the first part of Fermat's Last Theorem is constructible, we will have clearly - though non-constructively- disproven the third part.

A Lean 4 formalization of Fermat's Last Theorem is in progress, and gives the statement as:

theorem PNat.pow_add_pow_ne_pow
    (x y z : ℕ+)
    (n : ℕ) (hn : n > 2) :
    x^n + y^n ≠ z^n :=
  PNat.pow_add_pow_ne_pow_of_FermatLastTheorem FLT.Wiles_Taylor_Wiles x y z n hn

Currently, as the dependencies of this theorem contain sorry holes, we cannot feed it through ix (which only works over complete program graphs). Once the formalization is complete, however, you will be able to do

> ix store FLT.lean PNat.pow_add_pow_ne_pow
e53c3d4bad8538e152a89d8bf75be178a3876252744961b9a087fe3973545c20
> ix prove --check e53c3d4bad8538e152a89d8bf75be178a3876252744961b9a087fe3973545c20
b44236ba17ad7445ae3eac48a8ba86ba00f08c069237b08451e311b688146e7e

to generate a multi-STARK proof that the theorem typechecks. With a Groth16 circuit that recursively proves verification of such proofs, i.e. a Groth16 final SNARK, the construction is complete, and we can embed a proof of Fermat's Last Theorem in Fermat's Margin Note.

---

Architecture

Ix consists of the following core components:

• The Ix compiler, which transforms Lean 4 programs into a format called ixon, the ix object notation, which is an alpha-invariant content-addressable serialization or wire format. The compiler also includes a decompiler to convert ixon objects back into Lean programs (by preserving the alpha-relevant metadata in a separate ixon object and re-merging the computationally relevant and irrelevant parts).
• The Aiur zkDSL which is a first-order functional programming language that generates multi-STARK circuits.
• The IxVM (not yet released), which implements reduction and typechecking of ixon (including ingress and egress from and to binary data).
• Integration with the iroh p2p network so that different ix users can easily share ixon data between themselves.

Benchmarks

Benchmarks (compiler, kernel, and zk-prover backends) are tracked at https://bencher.dev/console/projects/ix/plots. ix bench runs the same cells locally, and !benchmark runs them on a PR — see docs/benchmarking.md.

CUDA-accelerated Aiur proving

Aiur can use multi-stark's first-party CUDA backend. CUDA is opt-in: ordinary Cargo and Lake builds remain CPU-only and do not require a CUDA toolkit or runtime. First generate the benchmark environment, then set IX_CUDA=1 (also accepts true or yes) for the proving command:

lake exe ix compile Benchmarks/Compile/CompileInitStd.lean --out InitStd.ixe
IX_CUDA=1 lake exe bench-typecheck --ixe InitStd.ixe \
  --consts Vector.extract_append --recursive

Rust consumers can instead enable the cuda feature on aiur or ix-ffi. The backend requires an NVIDIA GPU and a CUDA toolkit with nvcc; build and architecture controls are documented in the multi-stark repository. It keeps the Goldilocks/BLAKE3 protocol and proof format unchanged, and GPU proofs remain verifiable by the CPU implementation. Dated hardware measurements belong in BENCHMARKS.md and docs/benchmarking.md, not this stable overview.

Usage

Prerequisites

• Install Clang to enable Bindgen, then set LIBCLANG_PATH per https://rust-lang.github.io/rust-bindgen/requirements.html

Build

• Build and test the Ix library with lake build and lake test
• Install the ix binary with lake run install, or run with lake exe ix

Testing

Lean tests: lake test

• lake test -- <suite> runs one or multiple primary test suites. Primary suites: ffi, byte-array, ixon, claim, commit, canon, keccak, sharing, graph-unit, condense-unit
• lake test -- --ignored runs all expensive test suites and runners
  • Most tests require at least 32 GB RAM
  • The compile and decompile tests require 128 GB RAM
  • ixvm generates ZK proofs and uses significant CPU
• lake test -- --ignored <name> runs one or more expensive suites or runners by name
• --exclude=<name,...> excludes ignored suites or runners from a full ignored-test run
• lake test -- --include-ignored runs both primary and expensive test suites
• lake test -- --include-ignored <name> runs all primary suites plus selected expensive suites or runners
• lake test -- cli runs CLI integration tests
• lake test -- rust-compile runs the Rust cross-compilation diagnostic

Rust tests: cargo test or cargo nextest run

Proving under SP1

The Ix kernel typechecker has an SP1 guest at sp1/guest/ driven by a host at sp1/host/. The workflow is two steps: first compile a Lean program to a .ixe serialized Ixon.Env, then feed that file to the SP1 host to either execute or prove the typecheck.

Install the SP1 toolchain (cargo-prove and the succinct Rust toolchain) per the SP1 docs.

1. Compile a .ixe from a Lean file. ix compile takes the Lean source as a positional argument and writes the serialized Ixon.Env; --out sets the output path (default: the lowercased input stem plus .ixe). For a small demo env:

   lake exe ix compile Tests/MinimalDefs.lean --out minimal.ixe


   For a larger, realistic env compile one of the Benchmarks/Compile targets, then scope proving to one or more constants with --consts (step 2):

   lake exe ix compile Benchmarks/Compile/CompileInit.lean --out init.ixe


2. Execute or prove under SP1. From sp1/host/, run the host with --ixe pointing at the file produced above:

   cd sp1/host
   # Execute the kernel typecheck in the SP1 VM (no proof), prints failures + cycles
   RUST_LOG=info cargo run --release -- --execute --ixe ../../minimal.ixe
   # Generate and verify a compressed SP1 proof of the same typecheck (CPU)
   WITHOUT_VK_VERIFICATION=1 RUST_LOG=info cargo run --release -- --ixe ../../minimal.ixe
   # Prove a single constant out of a larger env (Anon-only): the host resolves
   # the name and ships only that constant's closure sub-env. Full-closure by
   # default; add --skip-deps for a subject-only check (deps trusted).
   WITHOUT_VK_VERIFICATION=1 RUST_LOG=info cargo run --release -- --ixe ../../init.ixe --consts Nat.add_comm


   With no --ixe, the host runs against an empty Ixon.Env.

   Verifying-key bypass (WITHOUT_VK_VERIFICATION=1). Proving currently requires this environment variable; --execute does not. The guest hashes via the patched BLAKE3's BLAKE3_COMPRESS precompile (see argumentcomputer/BLAKE3 branch sp1), whose recursion shapes aren't in the SP1 prover's bundled vk_map.bin. Without the bypass, proving aborts with vk not allowed / vk_root mismatch. The host is built with the SP1 fork's experimental feature, which honors this variable on both the prover and the light-node verifier. Drop it once a production vk_map.bin is regenerated with the new chip.

   Kernel modes. The default is Anon mode (metadata-erased kernel with lazy on-demand ingress — matches Aiur's kernel_check_test semantics). Pass --meta to run Meta mode (preserves names + dup-level-param check; eager full-env ingress). Both prove the same structural typecheck; Meta is strictly more constrained but slightly more expensive in cycles.

   GPU proving (pre-production; depends on the SP1 fork). Build with the cuda feature and set SP1_PROVER=cuda. Beyond the stock SP1 CUDA prerequisites (an NVIDIA GPU with CUDA 12+), the BLAKE3_COMPRESS precompile needs two prebuilt binaries that cannot come from a crate registry and must be produced from a local checkout of the argumentcomputer/sp1 fork's blake3-precompile branch. Set SP1_FORK_DIR to that checkout. Skipping either step does not fail loudly — you get invalid syscall number (stale runner) or a hang/ConnectionRefused (missing gpu-server).

   1. Runner-binary. The host spawns execution children from sp1-core-executor-runner-binary, which embeds the JIT syscall dispatch; a stock/stale one panics invalid syscall number on BLAKE3_COMPRESS. Build it from the fork and point the host at it:

      (cd "$SP1_FORK_DIR" && cargo build --release -p sp1-core-executor-runner-binary)
      export SP1_CORE_RUNNER_OVERRIDE_BINARY="$SP1_FORK_DIR/target/release/sp1-core-executor-runner-binary"


   2. GPU server. Install the fork's sp1-gpu-server once into ~/.sp1/bin via $SP1_FORK_DIR/sp1-gpu/scripts/install-fork-gpu-server.sh. The server extracts its own embedded runner to /tmp/sp1-native-runner-bin-{HASH} only if no file is already there, so pre-write the fork's runner-binary to that path to win the race (the hash is in the server binary: strings ~/.sp1/bin/sp1-gpu-server | grep -oE 'sp1-native-runner-bin-[0-9a-f]{64}').

   With both in place:

   WITHOUT_VK_VERIFICATION=1 SP1_PROVER=cuda RUST_LOG=info \
     cargo run --release --features cuda -- --ixe ../../minimal.ixe


   On an RTX PRO 6000 a nataddcomm.ixe compressed proof takes ~14 s on GPU vs ~466 s on CPU. WITHOUT_VK_VERIFICATION=1 is required as above; none of this is production-safe until vk_map.bin is regenerated with the new chip. See the SP1 CUDA docs for the base CUDA prerequisites.

   CUDA startup race (scripts/cuda-runner.sh). sp1/.cargo/config.toml wires every binary through scripts/cuda-runner.sh, which works around an SP1 6.x CUDA-prover startup race: the SDK only retries the gpu-server socket connect for ~1 s (CUDA init can take longer), kill_on_drop SIGKILLs the server leaving an orphaned /tmp/sp1-cuda-*.sock → ConnectionRefused, and the NVIDIA driver holds contexts for tens of seconds after a SIGKILL so a fast retry hangs in cuInit. The runner cleans the stale socket and retries with progressive backoff. It is a pass-through no-op when SP1_PROVER is not cuda.

Proving under Zisk

The Ix kernel typechecker also has a Zisk guest at zisk/guest/ driven by a host at zisk/host/. The workflow mirrors the SP1 one — first compile a Lean program to a .ixe, then feed it to the Zisk host to either execute or prove the typecheck.

Install Zisk (cargo-zisk, ziskemu, and the RISC-V toolchain needed to build the guest) per the Zisk install docs.

1. Compile a .ixe from a Lean file. Same as for SP1:

   lake exe ix compile Tests/MinimalDefs.lean --out minimal.ixe


2. Execute or prove under Zisk. From zisk/, run the host with --ixe:

   cd zisk
   # Execute the kernel typecheck in the Zisk VM (no proof), prints cycles
   RUST_LOG=info cargo run --release -- --execute --ixe ../minimal.ixe
   # Run the constraint checker without generating a proof
   RUST_LOG=info cargo run --release -- --verify-constraints --ixe ../minimal.ixe
   # Generate and verify a VadcopFinal proof of the same typecheck (CPU)
   RUST_LOG=info cargo run --release -- --ixe ../minimal.ixe
   # Check one or more named constants out of a larger env. The host resolves each
   # name and ships only its closure sub-env (lazy fault-in, no whole-env load).
   # By default this is the FULL-CLOSURE typecheck — the constant and its whole
   # dependency closure (matching the Aiur `bench-typecheck --consts <names>`).
   # Composes with --execute (cycles only) and plain prove.
   RUST_LOG=info cargo run --release -- --execute --ixe ../init.ixe --consts Nat.add_comm
   RUST_LOG=info cargo run --release -- --ixe ../init.ixe --consts Nat.add_comm,Nat.succ
   # Add --skip-deps for a subject-only check (deps trusted, not re-checked):
   RUST_LOG=info cargo run --release -- --execute --ixe ../init.ixe --consts Vector.extract_append --skip-deps


   --consts / --skip-deps are the same flags ix check, sp1-host, and the Aiur bench-typecheck use, so all four share one vocabulary. --skip-deps trusts dependencies rather than re-checking them, so it is far cheaper than the full-closure default — reserve it for constants too expensive to full-closure-check that also can't be sharded (e.g. Vector.extract_append over Init/Std). See docs/zisk-cycle-cost-model.md for the measured cost models across constant shapes.

   With no --ixe, the host runs against an empty Ixon.Env. The host's build.rs invokes zisk_sdk::build_program("../guest"), so cargo run transparently rebuilds the guest ELF whenever its sources change.

   Kernel mode. The Zisk host runs Anon mode only (metadata-erased kernel with lazy on-demand ingress); there is no --meta flag.

   GPU proving. Pass --gpu at runtime — Zisk's prover backend ships with CUDA support by default (the cpu-only Cargo feature is opt-out and is not set here):

   RUST_LOG=info cargo run --release -- --gpu --ixe ../minimal.ixe


   Requires a CUDA-capable GPU and the matching CUDA runtime libraries visible to the linker (LD_LIBRARY_PATH); follow the Zisk install docs.

   CUDA JIT cache (CUDA_CACHE_MAXSIZE). The driver caches compiled proving kernels (PTX→SASS, under ~/.nv/ComputeCache) and reuses them across processes — that's what keeps a second run warm. The default cap (~1 GB) is small enough that as a run JITs more kernel variants (bigger envs, more state-machine shapes) it forces LRU eviction and intermittent re-JIT cold spikes mid-run. Pin it to the 4 GB hard max to remove that failure mode (cost is only disk):

   export CUDA_CACHE_MAXSIZE=4294967296   # 4 GB


   Warm-batch proving and cold-start. On the Zisk v0.18 branch the first GPU proof on a machine paid a large one-time JIT cold-start (PTX→SASS, ~126 s cold vs ~12 s warm for nataddcomm.ixe on an RTX PRO 6000). At Zisk v1.0.0-alpha that per-process JIT penalty is gone: cold ≈ warm, both ~17.6-17.9 s for the same nataddcomm.ixe proof on the same GPU (inner-proof phase ~14 s — note that is slower than v0.18's ~9 s warm figure; upstream prover/recursion changes, not the blake3 port). The one remaining true first-run cost is one-time and on-disk, not per-process: the first GPU prove against a freshly generated proving key materializes ~40 GB of *_gpu const/consttree variants under ~/.zisk/provingKey. --ixe is still repeatable, so several inputs can be proved in one warm process. Keeping CUDA_CACHE_MAXSIZE pinned (above) remains harmless but is no longer load-bearing. By default proving is stateful with no checkpointing — if a run is killed it loses in-flight shard proofs and restarts from the first shard; use a proof store (--store-dir, see Sharding large environments below) to make a sharded run resumable.

   RUST_LOG=info cargo run --release -- --gpu \
     --ixe ../nataddcomm.ixe --ixe ../stringappend.ixe


   Memlock limit (Linux). Zisk's assembly emulator mmaps ROM and trace buffers with MAP_LOCKED, so the per-process locked-memory rlimit (ulimit -l) must be high enough to back the trace. Many Linux distros default to a low memlock limit; the Linux kernel itself sets non-privileged processes to RAM / 8, which is still too small for larger envs. Symptom: mmap(rom) errno=11=Resource temporarily unavailable followed by Shmem creation … failed with exit status: 255 during STARTING_ASM_MICROSERVICES.

   Per-shell (does not survive new logins or reboot):

   sudo prlimit --memlock=unlimited:unlimited --pid $$
   ulimit -l   # confirm: prints 'unlimited'


   Persistent (recommended; both edits needed because systemd and PAM apply rlimits on different paths — DefaultLimitMEMLOCK only reaches services systemd spawns directly, interactive shells go through PAM):

   # 1. systemd-spawned services
   sudo sed -i 's|^#DefaultLimitMEMLOCK=.*|DefaultLimitMEMLOCK=infinity|' \
       /etc/systemd/system.conf

   # 2. PAM session limits (applied to login shells, sudo, etc.)
   sudo tee /etc/security/limits.d/99-memlock.conf >/dev/null <<'EOF'
   *               soft    memlock         unlimited
   *               hard    memlock         unlimited
   EOF

   # Apply: log out of every login shell and back in (no reboot needed).
   # Verify in a new shell:
   ulimit -l                              # → unlimited
   cat /proc/$$/limits | grep "locked"    # → unlimited / unlimited


   Matches the Zisk installation docs.

   Heap cap. The Zisk zkVM has a hard 512 MB RAM cap (RAM_SIZE), of which ~510 MB is usable heap, and isn't configurable without rebuilding the proving setup. Envs whose deserialized in-memory representation exceeds that won't fit (full TutorialDefs.lean pulls in Lean stdlib + Batteries + LSpec, around 1 GB resident). For bigger envs, prefer the SP1 backend (default 24 GB runtime cap DEFAULT_MEMORY_LIMIT, configurable via MEMORY_LIMIT env var up to a ~1 TB JIT ceiling MAX_JIT_LOG_ADDR), or scope to one or more constants with --consts <n1,n2,…> (all backends), which resolves each name and ships only that constant's closure sub-env to the guest. By default each re-checks its full dependency closure; add --skip-deps to check them subject-only (dependencies trusted and lazily faulted in, not re-typechecked) — so individual constants of a large env still fit the cap, even ones whose full-closure typecheck would not. To prove a large env in full under Zisk, shard it (see Sharding large environments below): each shard ships only its own closure sub-env, so the pieces fit the cap even when the whole env does not.

   Host RAM during proving. Distinct from the in-guest heap cap above, the prover side (Zisk's proofman) holds in-flight witness traces in host RAM during CALCULATING_CONTRIBUTIONS. The number of resident witnesses (Zisk's max_witness_stored) is left at Zisk's built-in default of 10: we measured that lowering it does not materially reduce peak host RAM or prove time for the Ix kernel typecheck workload, so it is not exposed as a knob. Peak host RAM per shard is instead governed by shard size — prove smaller shards (--shard-bytes) if you OOM during CALCULATING_CONTRIBUTIONS. Not relevant for --execute or --verify-constraints modes.

3. Sharding large environments. A whole large env (e.g. all of Init) does not fit a single Zisk proof: it overruns both the 512 MB guest heap and, more bindingly, the prover's minimal-trace shared-memory ceiling (64 GB per job on the assembly path). Sharding splits the env's type-checking work into pieces that are proven independently — each shipped with only its own dependency closure — and then folded into one aggregate proof. This is a two-part workflow: produce a shard manifest (a .ixes file), then prove it with --shard-plan.

   (a) Produce a shard manifest. A manifest partitions the env's per-constant work, packing shards to a resource cap by real type-checking cost and cutting where cross-shard dependencies are fewest.

   Profiling runs the kernel over the env (slow) and writes a .ixprof cost map; sharding is instant graph work on that map, so it is cheap to re-tune without re-profiling. Both steps are ix CLI subcommands:

   # Profile once (slow): init.ixe → init.ixprof (cost map + delta graph).
   lake exe ix profile init.ixe
   # Shard (instant): init.ixprof → init.ixes manifest. With no budget flags
   # it bin-packs to the fewest shards that each fit this box's RAM (peak
   # prover RAM ≈ `50 + 33 × cycles_billions` GB, targeting ~85 % of total).
   lake exe ix shard init.ixe --profile init.ixprof
   # Or pick a per-shard budget / a fixed count instead:
   #   --max-ram 256   --max-cycles 4500000000   --shards 16


   ix shard also reports the shard count, total predicted cycles, and a prove-time estimate from the measured leaf model (54 s + 158 s·Bsteps per shard). Sharded proving is sequential today, so the estimate assumes one prover; --parallelism N divides the wall-clock for a future N-prover setup (the sequential total is always shown alongside).

   (b) Prove the manifest. Pass the .ixes to the host with --shard-plan alongside the same --ixe it was built for. Each shard becomes one leaf proof (built over only that shard's closure sub-env), and the leaves fold up the manifest's aggregation tree into a single root proof:

   cd zisk
   RUST_LOG=info cargo run --release -- --gpu \
     --ixe ../init.ixe --shard-plan ../init.ixes


   Resumable proving (--store-dir). A proof store makes a sharded run restartable and lets proofs be reused across runs and envs:

   RUST_LOG=info cargo run --release -- --gpu \
     --ixe ../init.ixe --shard-plan ../init.ixes \
     --store-dir ../init-store --require-closed


   • --store-dir DIR: each completed shard proof is banked to DIR/proofs/<n>.{proof,cover,asm} as it finishes. Re-run the same command to resume — shards already covered by the store are skipped (not re-proven) and folded into the aggregate instead. Reuse is trustless: a stored proof is re-verified in-circuit at aggregation, never trusted by the host. Proofs are content-addressed, so a constant proven in one env is reused in any other env that contains it.
   • --no-reuse: ignore the store for this run (the "no sharing" baseline); the existing store is neither read nor overwritten.
   • --require-closed: error before proving unless every typing dependency of every certified constant is either proven in this run or already in the store — axioms are the only permitted residual. Turns "result modulo axioms" from a printed hope into an enforced precondition. Pairs with --plan for a no-prove check.

   Other shard modes and tuning flags.

   • Static partitioning without a manifest: --shard-consts N (N work items per shard) or --shard-bytes B (pack contiguous items until serialized bytes exceed B). Simpler, but not balanced by real type-checking cost — --shard-plan is the performant path.
   • --plan: print the planned partition and exit, no proving.
   • --execute: run the shards in the VM only and print per-shard cycle counts — use it to measure a shard's true cycle cost (e.g. to pick or recalibrate a cycle budget) without proving.
   • --only-shard K: prove just the 1-indexed shard K (skips aggregation) for smoke-testing a single shard.
   • --dump-input FILE: write one shard's guest stdin to FILE for standalone profiling with ziskemu or cargo-zisk.
   • --agg-arity A (default 16): how many child proofs each aggregation step folds at once.

Nix

Prerequisites

• Install Nix

• Enable Flakes

  • Add experimental-features = nix-command flakes to ~/.config/nix/nix.conf or /etc/nix/nix.conf
  • Add trusted-users = root MYUSER to /etc/nix/nix.conf
  • Then restart the Nix daemon with sudo pkill nix-daemon

Build

Build and run the Ix CLI with nix build and nix run.

This will prompt you to optionally enable the Cachix binary cache, which can also be done by passing --accept-flake-config to the Nix command. Then when building, you should see copying path '/nix/store/<...>' from https://argumentcomputer.cachix.org

To build and run the test suite, run nix build .#test and nix run .#test.
