table: Tables for terminals

This is a Go module for rendering tables in the terminal.

Features

• ↕️ Headers/footers
• ↩️ Text wrapping
• 🔀 Auto-merging of cells
• ⁉️ Customisable line/border characters
• 🌈 Customisable line/border colours
• ⏯️ Individually enable/disable borders, row lines
• ↔️ Set alignments on a per-column basis, with separate settings for headers/footers
• 📐 Intelligently wrap/pad/measure ANSI coloured input
• 👯 Support for double-width unicode characters
• 📊 Load data from CSV files

Check out the documentation for full features/usage.

Examples

Example: Basic

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────┬─────────────┬────────┐
│ ID │    Fruit    │ Stock  │
├────┼─────────────┼────────┤
│ 1  │ Apple       │ 14     │
├────┼─────────────┼────────┤
│ 2  │ Banana      │ 88,041 │
├────┼─────────────┼────────┤
│ 3  │ Cherry      │ 342    │
├────┼─────────────┼────────┤
│ 4  │ Dragonfruit │ 1      │
└────┴─────────────┴────────┘

Example: No Row Lines

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetRowLines(false)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────┬─────────────┬────────┐
│ ID │    Fruit    │ Stock  │
├────┼─────────────┼────────┤
│ 1  │ Apple       │ 14     │
│ 2  │ Banana      │ 88,041 │
│ 3  │ Cherry      │ 342    │
│ 4  │ Dragonfruit │ 1      │
└────┴─────────────┴────────┘

Example: No Borders

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetBorders(false)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

 ID │    Fruit    │ Stock
────┼─────────────┼────────
 1  │ Apple       │ 14
────┼─────────────┼────────
 2  │ Banana      │ 88,041
────┼─────────────┼────────
 3  │ Cherry      │ 342
────┼─────────────┼────────
 4  │ Dragonfruit │ 1

Example: No Borders Or Row Lines

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetRowLines(false)
	t.SetBorders(false)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

 ID │    Fruit    │ Stock
────┼─────────────┼────────
 1  │ Apple       │ 14
 2  │ Banana      │ 88,041
 3  │ Cherry      │ 342
 4  │ Dragonfruit │ 1

Example: Specific Borders

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetRowLines(false)
	t.SetBorderLeft(true)
	t.SetBorderRight(false)
	t.SetBorderTop(true)
	t.SetBorderBottom(false)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────┬─────────────┬────────
│ ID │    Fruit    │ Stock
├────┼─────────────┼────────
│ 1  │ Apple       │ 14
│ 2  │ Banana      │ 88,041
│ 3  │ Cherry      │ 342
│ 4  │ Dragonfruit │ 1

Example: Footers

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)

	t.SetHeaders("ID", "Fruit", "Stock")
	t.SetRowLines(false)
	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")
	t.SetFooters("", "Count", "4")
	t.Render()
}

Output

┌────┬─────────────┬────────┐
│ ID │    Fruit    │ Stock  │
├────┼─────────────┼────────┤
│ 1  │ Apple       │ 14     │
│ 2  │ Banana      │ 88,041 │
│ 3  │ Cherry      │ 342    │
│ 4  │ Dragonfruit │ 1      │
├────┼─────────────┼────────┤
│    │    Count    │   4    │
└────┴─────────────┴────────┘

Example: Padding

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetPadding(5)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────────────┬─────────────────────┬────────────────┐
│     ID     │        Fruit        │     Stock      │
├────────────┼─────────────────────┼────────────────┤
│     1      │     Apple           │     14         │
├────────────┼─────────────────────┼────────────────┤
│     2      │     Banana          │     88,041     │
├────────────┼─────────────────────┼────────────────┤
│     3      │     Cherry          │     342        │
├────────────┼─────────────────────┼────────────────┤
│     4      │     Dragonfruit     │     1          │
└────────────┴─────────────────────┴────────────────┘

Example: Alignment

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetAlignment(table.AlignLeft, table.AlignCenter, table.AlignRight)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────┬─────────────┬────────┐
│ ID │    Fruit    │ Stock  │
├────┼─────────────┼────────┤
│ 1  │    Apple    │     14 │
├────┼─────────────┼────────┤
│ 2  │   Banana    │ 88,041 │
├────┼─────────────┼────────┤
│ 3  │   Cherry    │    342 │
├────┼─────────────┼────────┤
│ 4  │ Dragonfruit │      1 │
└────┴─────────────┴────────┘

Example: Rounded Corners

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetDividers(table.UnicodeRoundedDividers)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

╭────┬─────────────┬────────╮
│ ID │    Fruit    │ Stock  │
├────┼─────────────┼────────┤
│ 1  │ Apple       │ 14     │
├────┼─────────────┼────────┤
│ 2  │ Banana      │ 88,041 │
├────┼─────────────┼────────┤
│ 3  │ Cherry      │ 342    │
├────┼─────────────┼────────┤
│ 4  │ Dragonfruit │ 1      │
╰────┴─────────────┴────────╯

Example: Custom Dividers

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)
	t.SetDividers(table.Dividers{
		ALL: "@",
		NES: "@",
		NSW: "@",
		NEW: "@",
		ESW: "@",
		NE:  "@",
		NW:  "@",
		SW:  "@",
		ES:  "@",
		EW:  "~",
		NS:  "!",
	})

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

@~~~~@~~~~~~~~~~~~~@~~~~~~~~@
! ID !    Fruit    ! Stock  !
@~~~~@~~~~~~~~~~~~~@~~~~~~~~@
! 1  ! Apple       ! 14     !
@~~~~@~~~~~~~~~~~~~@~~~~~~~~@
! 2  ! Banana      ! 88,041 !
@~~~~@~~~~~~~~~~~~~@~~~~~~~~@
! 3  ! Cherry      ! 342    !
@~~~~@~~~~~~~~~~~~~@~~~~~~~~@
! 4  ! Dragonfruit ! 1      !
@~~~~@~~~~~~~~~~~~~@~~~~~~~~@

Example: Auto Merge Cells

package main

import (
	"os"
	"time"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)

	t.SetAutoMerge(true)

	t.SetHeaders("System", "Status", "Last Check")

	t.AddRow("Life Support", "OK", time.Now().Format(time.Stamp))
	t.AddRow("Nuclear Generator", "OK", time.Now().Add(-time.Minute).Format(time.Stamp))
	t.AddRow("Weapons Systems", "FAIL", time.Now().Format(time.Stamp))
	t.AddRow("Shields", "OK", time.Now().Format(time.Stamp))

	t.Render()
}

Output

┌───────────────────┬────────┬────────────────┐
│      System       │ Status │   Last Check   │
├───────────────────┼────────┼────────────────┤
│ Life Support      │ OK     │ May 2 09:28:05 │
├───────────────────┤        ├────────────────┤
│ Nuclear Generator │        │ May 2 09:27:05 │
├───────────────────┼────────┼────────────────┤
│ Weapons Systems   │ FAIL   │ May 2 09:28:05 │
├───────────────────┼────────┤                │
│ Shields           │ OK     │                │
└───────────────────┴────────┴────────────────┘

Example: Load Data From Csv

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	f, err := os.Open("./_examples/12-load-data-from-csv/data.csv")
	if err != nil {
		panic(err)
	}

	t := table.New(os.Stdout)
	if err := t.LoadCSV(f, true); err != nil {
		panic(err)
	}
	t.Render()
}

Output

┌────┬────────────┬────────────────────────────────────────────┐
│ Id │    Date    │                  Message                   │
├────┼────────────┼────────────────────────────────────────────┤
│ 1  │ 2022-05-12 │ Hello world!                               │
├────┼────────────┼────────────────────────────────────────────┤
│ 2  │ 2022-05-12 │ These messages are loaded from a CSV file. │
├────┼────────────┼────────────────────────────────────────────┤
│ 3  │ 2022-05-13 │ Incredible!                                │
└────┴────────────┴────────────────────────────────────────────┘

Example: Markdown Format

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {
	t := table.New(os.Stdout)
	t.SetDividers(table.MarkdownDividers)

	t.SetBorderTop(false)
	t.SetBorderBottom(false)
	t.SetRowLines(false)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "Apple", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

| ID |    Fruit    | Stock  |
|----|-------------|--------|
| 1  | Apple       | 14     |
| 2  | Banana      | 88,041 |
| 3  | Cherry      | 342    |
| 4  | Dragonfruit | 1      |

Example: Header Colspans

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {
	t := table.New(os.Stdout)
	t.SetHeaders("Namespace", "Resource", "Vulnerabilities", "Misconfigurations")
	t.AddHeaders("Namespace", "Resource", "Critical", "High", "Medium", "Low", "Unknown", "Critical", "High", "Medium", "Low", "Unknown")
	t.SetHeaderColSpans(0, 1, 1, 5, 5)
	t.SetAutoMergeHeaders(true)
	t.AddRow("default", "Deployment/app", "2", "5", "7", "8", "0", "0", "3", "5", "19", "0")
	t.AddRow("default", "Ingress/test", "-", "-", "-", "-", "-", "1", "0", "2", "17", "0")
	t.AddRow("default", "Service/test", "0", "0", "0", "1", "0", "3", "0", "4", "9", "0")
	t.Render()
}

Output

┌───────────┬────────────────┬──────────────────────────────────────────┬──────────────────────────────────────────┐
│ Namespace │    Resource    │             Vulnerabilities              │            Misconfigurations             │
│           │                ├──────────┬──────┬────────┬─────┬─────────┼──────────┬──────┬────────┬─────┬─────────┤
│           │                │ Critical │ High │ Medium │ Low │ Unknown │ Critical │ High │ Medium │ Low │ Unknown │
├───────────┼────────────────┼──────────┼──────┼────────┼─────┼─────────┼──────────┼──────┼────────┼─────┼─────────┤
│ default   │ Deployment/app │ 2        │ 5    │ 7      │ 8   │ 0       │ 0        │ 3    │ 5      │ 19  │ 0       │
├───────────┼────────────────┼──────────┼──────┼────────┼─────┼─────────┼──────────┼──────┼────────┼─────┼─────────┤
│ default   │ Ingress/test   │ -        │ -    │ -      │ -   │ -       │ 1        │ 0    │ 2      │ 17  │ 0       │
├───────────┼────────────────┼──────────┼──────┼────────┼─────┼─────────┼──────────┼──────┼────────┼─────┼─────────┤
│ default   │ Service/test   │ 0        │ 0    │ 0      │ 1   │ 0       │ 3        │ 0    │ 4      │ 9   │ 0       │
└───────────┴────────────────┴──────────┴──────┴────────┴─────┴─────────┴──────────┴──────┴────────┴─────┴─────────┘

Example: Only Wrap When Needed

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {

	t := table.New(os.Stdout)

	t.SetHeaders("ID", "Fruit", "Stock")

	t.AddRow("1", "01234567890123456789012345678901234567890123456789012345678901234567890123456789", "14")
	t.AddRow("2", "Banana", "88,041")
	t.AddRow("3", "Cherry", "342")
	t.AddRow("4", "Dragonfruit", "1")

	t.Render()
}

Output

┌────┬──────────────────────────────────────────────────────────────┬────────┐
│ ID │                            Fruit                             │ Stock  │
├────┼──────────────────────────────────────────────────────────────┼────────┤
│ 1  │ 01234567890123456789012345678901234567890123456789012345678- │ 14     │
│    │ 901234567890123456789                                        │        │
├────┼──────────────────────────────────────────────────────────────┼────────┤
│ 2  │ Banana                                                       │ 88,041 │
├────┼──────────────────────────────────────────────────────────────┼────────┤
│ 3  │ Cherry                                                       │ 342    │
├────┼──────────────────────────────────────────────────────────────┼────────┤
│ 4  │ Dragonfruit                                                  │ 1      │
└────┴──────────────────────────────────────────────────────────────┴────────┘

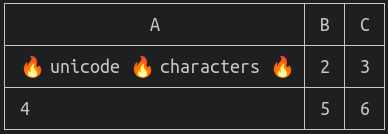

Example: Double-width Unicode

package main

import (
	"os"

	"github.com/aquasecurity/table"
)

func main() {
	t := table.New(os.Stdout)
	t.SetHeaders("A", "B", "C")
	t.AddRow("🔥 unicode 🔥 characters 🔥", "2", "3")
	t.AddRow("4", "5", "6")
	t.Render()
}

Output

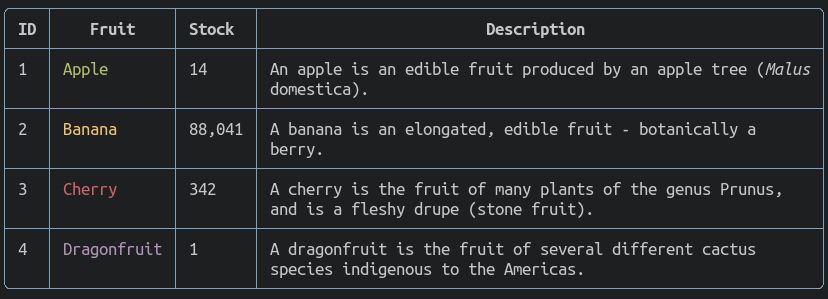

Example: ANSI Colours

package main

import (
	"os"

	"github.com/aquasecurity/table"
	"github.com/liamg/tml"
)

func main() {

	t := table.New(os.Stdout)

	t.SetHeaders("ID", "Fruit", "Stock", "Description")
	t.SetHeaderStyle(table.StyleBold)
	t.SetLineStyle(table.StyleBlue)
	t.SetDividers(table.UnicodeRoundedDividers)

	t.AddRow("1", tml.Sprintf("<green>Apple</green>"), "14", tml.Sprintf("An apple is an edible fruit produced by an apple tree (<italic>Malus domestica</italic>). "))
	t.AddRow("2", tml.Sprintf("<yellow>Banana</yellow>"), "88,041", "A banana is an elongated, edible fruit - botanically a berry.")
	t.AddRow("3", tml.Sprintf("<red>Cherry</red>"), "342", "A cherry is the fruit of many plants of the genus Prunus, and is a fleshy drupe (stone fruit). ")
	t.AddRow("4", tml.Sprintf("<magenta>Dragonfruit</magenta>"), "1", "A dragonfruit is the fruit of several different cactus species indigenous to the Americas.")

	t.Render()
}

Output
