Manga2Animate: An Agentic Framework for Faithful Manga Animation with Script and Storyboard Planning

Sheng-Wei Zhang^* · Hsi-An Chen^* · Yan-Ting Liou^* · Chih-Hsuan Chen · Shih-Chen Tseng · Yu-Lun Liu
National Yang Ming Chiao Tung University · ^*Equal contribution

🌐 Project Page | 📄 Paper (coming soon) | 📁 Evaluation Data

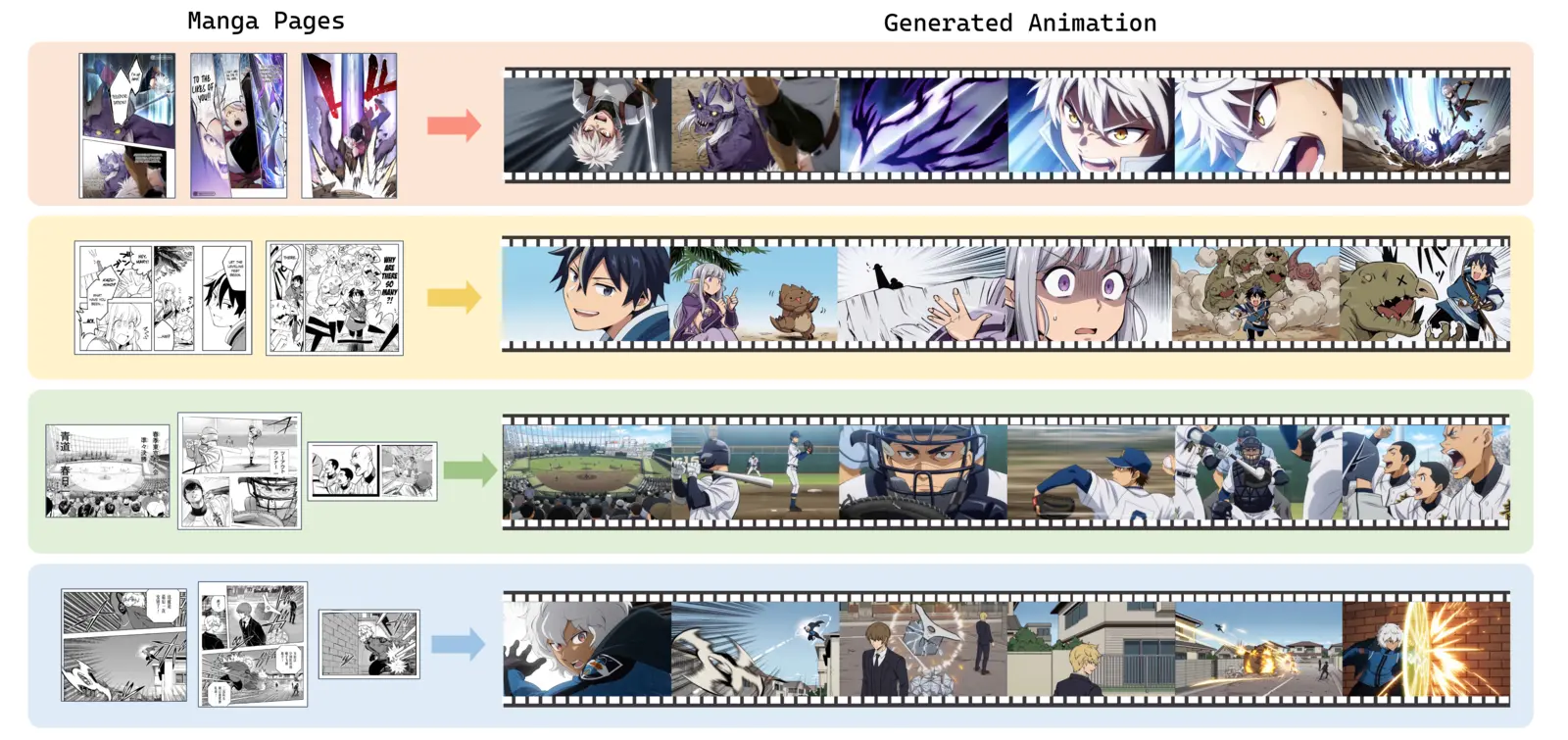

TL;DR Manga2Animate turns a few manga pages and a character reference into an animation that stays faithful to the source manga.

Feeding manga pages straight into a video model often misreads the panel layout and gets the story wrong, while working from text alone loses the characters and art style. Manga2Animate follows real animation production instead: it first writes an animation script, then draws a visual storyboard, and only then generates the video. Each step is produced by a creator agent and checked against the source panels by a reviewer agent, and both the script and the storyboard are refined over two rounds of feedback. In experiments and a user study, the resulting animations are more faithful to the manga and more consistent across shots than prior methods.

Table of Contents

• Repository Structure
• Installation
• Dataset
• Running the Pipeline
  • Stage 1: Pre-processing
  • Stage 2: Script and Storyboard Refinement
  • Stage 3: Video Generation
• Open-source Backends
• Evaluation
• Configuration
• Acknowledgement
• Citation

Repository Structure

.
├── src/                    # pipeline
│   ├── croppanels.py       # stage 1: panels
│   ├── magi.py             # stage 1: transcript
│   ├── run_all.py          # stage 2: refinement
│   ├── create_video.py     # stage 3: video
│   └── ...
├── prompts/                # agent prompts
├── opensource_backends/    # open-model setup
├── mangaeval/              # evaluation
│   ├── vistorybench/       # storyboard metrics
│   ├── vbench/             # video metrics
│   └── aesthetic/          # aesthetic scores
├── assets/
├── requirements.txt
└── .env.example

Installation

1. Create the environment:

   conda create -n manga2animate python=3.12 -y
   conda activate manga2animate
   pip install -r requirements.txt


2. Set up Gemini access. The creators and reviewers call Gemini through Vertex AI, or through a plain API key if no GCP project is set:

   gcloud auth application-default login   # only for Vertex AI


3. Copy the configuration file and fill in your credentials:

   cp .env.example .env


   GOOGLE_CLOUD_PROJECT=<your-gcp-project>   # Vertex AI; leave empty to use GEMINI_API_KEY
   GEMINI_API_KEY=<your-gemini-api-key>

   # only the video models you use need a key
   ARK_API_KEY=<key>        # -m seedance
   MINIMAX_API_KEY=<key>    # -m minimax-api
   DASHSCOPE_API_KEY=<key>  # -m wan
   IMGBB_API_KEY=<key>      # image hosting for seedance / wan


   See Configuration for the remaining settings.

Dataset

Each case is a folder under target/:

target/<case>/
├── manga_page.jpg          # one page, or manga_page1.jpg, manga_page2.jpg, ... in reading order
├── ref.png                 # character reference sheet (all characters in one image)
└── characters/             # optional, replaces ref.png: one image per character
    ├── char1.png           #   matches Character[1] in the script
    └── char2.png

The pipeline uses 6 panels per case (NUM_CLIPS=6).

Running the Pipeline

The full pipeline for one case is three commands:

# 1. Pre-processing: crop the pages into panels in reading order
#    -> target/<case>/manga_panels/panel1.png ... panel6.png
python src/croppanels.py -t <case>

# 2. Transcript, character descriptions, and two rounds of script/storyboard refinement
python src/run_all.py -t <case>

# 3. Video generation from the best script and storyboard
python src/create_video.py -t <case> -m seedance

Every run_all.py run writes to its own folder, results/<case>/<YYYYMMDD_HHMMSS>/. Useful options:

create_video.py takes the same --time, plus --iter to choose the round; by default it uses the newest run and round.

Stage 1: Pre-processing

src/croppanels.py detects the panels on each page with MAGI and saves them in reading order to target/<case>/manga_panels/, numbered across pages. The transcript (MAGI OCR, src/magi.py) and the character descriptions (src/create_character_description.py) are produced by run_all.py as its first step, in results/<case>/<run>/character/.

Stage 2: Script and Storyboard Refinement

run_all.py runs the following per case (default settings in .env):

Round 0 generates from the manga alone. From round 1 on, the Script Creator also receives the previous best script and both kinds of feedback, and new storyboards are compared against the previous best. NUM_ITERATIONS=2 gives the two rounds used in the paper, and the output of the last round (iter1/) goes to video generation.

Script Reviewer. The Character Reviewer checks appearance and clothing against the manga and the style against the reference; the Clip Reviewer checks each panel's content and layout. The best character description and the best description for each clip are chosen independently across candidates and reassembled into the final script.

Storyboard Reviewer. Candidates are compared in pairs against the manga panels, the character reference, and the script, on 13 criteria covering character identity, art style, cross-panel consistency, and script alignment (five of them, such as no extra characters and no speech bubbles, are pass/fail checks). In round 0 the three candidates are compared with each other; from round 1 on, each is compared with the previous best storyboard.

Stage 3: Video Generation

python src/create_video.py -t <case> -m <model>

The model decides the mode:

• Reference-conditioned mode (ref in the code). The whole best storyboard and the best script go in as references, and the model returns one continuous video for the story. Two candidates are generated and the Video Reviewer keeps the better one (best_video.mp4).
• First-frame mode (i2v in the code). The storyboard is cut into its 6 panels and each panel conditions its own clip. For each clip, two candidates are generated and the Video Reviewer picks one, judging continuity with the previously selected clip from the second clip onward. The selected clips are concatenated (final_story.mp4).

Output goes to results/<case>/video/<model>/run_<YYYYMMDD_HHMMSS>/. --dry-run builds every prompt and prints what would be submitted without calling any model.

Open-source Backends

The pipeline also runs on open models only: FLUX.2-dev for the storyboard, and MiniMax-H3 or Index-AniSora for the video. Each needs its own conda environment; setup steps and weight downloads are in opensource_backends/README.md.

bash opensource_backends/flux2/setup_env.sh      # once
bash opensource_backends/flux2/verify_setup.sh   # env + conda + weights + GPU
python src/run_all.py -t <case> --storyboard-backend flux2

bash opensource_backends/minimax_h3/serve.sh   # leave running, then in another shell:
python src/create_video.py -t <case> -m minimax-local

With FLUX.2-dev, each storyboard panel is generated separately (3 variants per panel, conditioned on the manga panel and the character references), a Gemini reviewer scores each variant, and the best panels are tiled into the same 3×2 grid as the Gemini storyboard.

FLUX.2-dev needs most of a 97GB-class GPU (~105GB of weights, with the text encoder released after prompt encoding so transformer+VAE stay resident). On a shared machine set FLUX2_CUDA_DEVICE to an idle card — a co-tenant process on the same GPU is the most common cause of failure. FLUX2_OFFLOAD_MODE=cpu_offload trades speed for a smaller VRAM footprint. Every run writes metrics.json with per-stage timings and the Gemini API call count. See opensource_backends/flux2/README.md.

Evaluation

mangaeval/ contains the evaluation protocol of the paper (Sec. 4.1.3): storyboard metrics built on ViStoryBench (CSD, CIDS, PA, OCCM), video metrics built on VBench++ (I2VS, I2VB, SC, BC, MS, DD), and anime aesthetic scores (Shadow-v2, Waifu-v3), with an example case. See mangaeval/README.md.

Configuration

All settings are read from .env (see .env.example).

Acknowledgement

This project builds on MAGI for panel detection and OCR, ViStoryBench and VBench for evaluation, FLUX.2, MiniMax-H3 and Index-AniSora as open generation models, and uses manga from Manga109.

Citation

@misc{manga2animate2026,
  title={{Manga2Animate}: An Agentic Framework for Faithful Manga Animation with Script and Storyboard Planning},
  author={Sheng-Wei Zhang and Hsi-An Chen and Yan-Ting Liou and Chih-Hsuan Chen and Shih-Chen Tseng and Yu-Lun Liu},
  year={2026}
}
