🚀 CustomDoc: Tier 1 RAG Intelligence Platform

CustomDoc is a professional-grade, local-first RAG (Retrieval-Augmented Generation) system designed for senior-level engineering demonstrations. It moves beyond simple Top-K retrieval by implementing a Scientifically Evaluated Pipeline with Hybrid Search, Cross-Encoder Reranking, and real-time observability.

---

🏗️ Technical Excellence (Tier 1 Features)

📊 1. Measurable Evaluation (RAGAS)

The biggest gap in "junior" RAG projects is lack of measurement. CustomDoc integrates the RAGAS framework to score every interaction across four critical dimensions:

• Faithfulness: Is the answer factually grounded in the source?
• Answer Relevancy: Does the response directly address the user query?
• Context Precision: How well-ranked are the retrieved chunks?
• Context Recall: Did the retrieval system find all necessary information?

🔍 2. Advanced Retrieval Architecture

We implement a multi-stage retrieval pipeline used by industry leaders:

• Hybrid Search: Combines BM25 (Keyword) with Dense Vector (Semantic) search using Reciprocal Rank Fusion (RRF).
• Cross-Encoder Rerank: After initial retrieval, we use a ms-marco-MiniLM-L-6-v2 cross-encoder to re-score and re-rank the top candidates, significantly reducing "hallucinations" by ensuring the most relevant context is top-of-mind for the LLM.

📈 3. Observability Dashboard

A dedicated Performance Analytics tab visualizes system telemetry and quality scores.

• Latency Breakdown: Track Retrieval vs. Generation time in milliseconds.
• Quality Distributions: View average RAGAS scores across all sessions.
• Trend Analysis: Sparkline-driven visualization of quality scores over time.
• Real-time Logs: WebSocket-driven progress streaming for all ingestion tasks.

🎛️ 5. Interactive Retrieval Tuning

Total control over the RAG pipeline is available directly in the chat interface:

• Toggle Hybrid Search: Switch between semantic (Dense) and keyword (BM25) modes in real-time.
• Enable Reranking: Activate the Cross-Encoder verification layer with a single click to see the impact on answer precision.

⚙️ 4. Operational MLOps (CI/CD)

• Automated Testing: Pytest suite for core ML and API logic.
• Static Analysis: Ruff-based linting for code quality.
• Frontend Verification: Automated build checks to ensure UI integrity.
• Container Health: GitHub Actions verify Docker builds and dependency integrity on every push.

🔬 6. Retrieval Verification Suite

A specialized benchmarking tool (verify_retrieval.py) is included to scientifically compare retrieval strategies.

• Side-by-Side Comparison: Run queries against Dense, Hybrid, and Reranked indices.
• Latency Benchmarking: Measure the exact overhead of the Cross-Encoder layer.

---

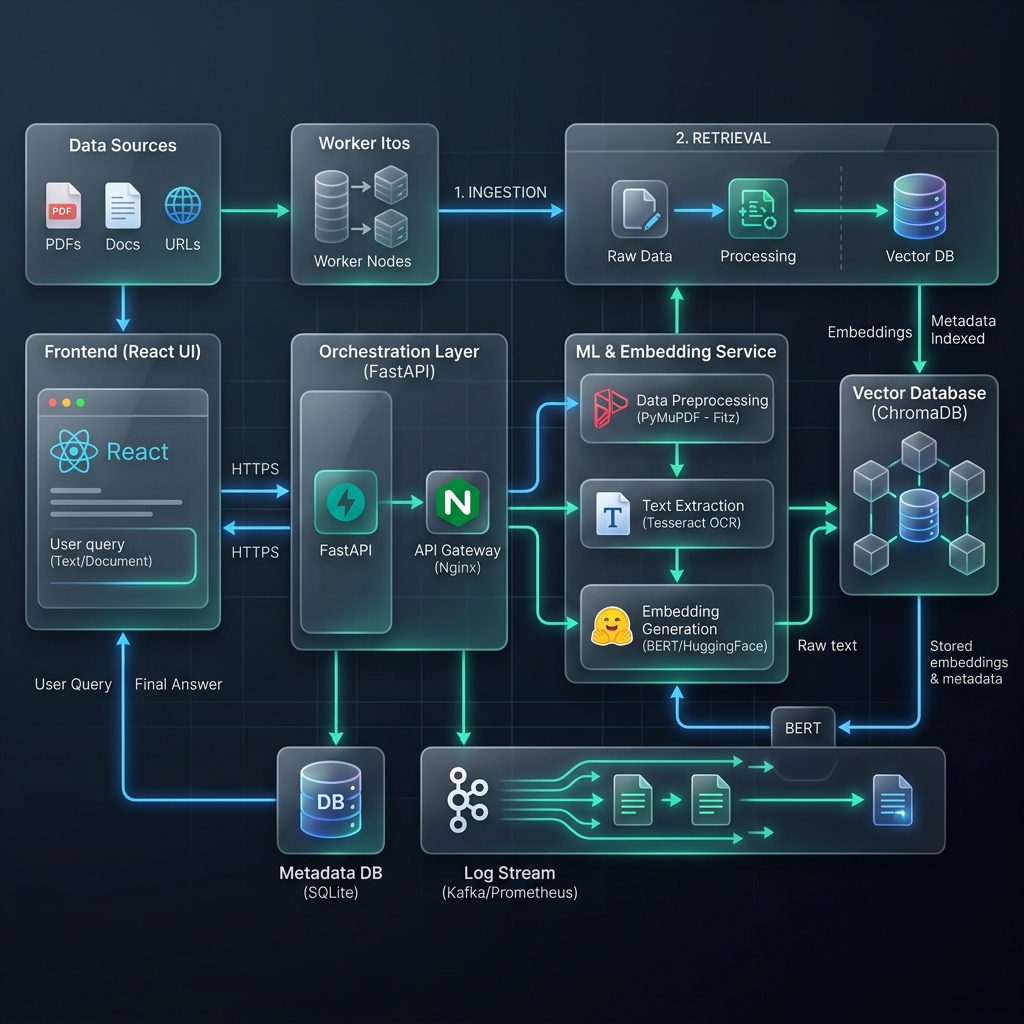

🏗️ System Architecture

graph TD
    User((User)) -->|Uploads/Chats| Frontend[React + Vite UI]
    Frontend -->|REST/WebSockets| Backend[FastAPI Orchestrator]
    Backend -->|Quality Check| RAGAS[RAGAS Evaluator]
    MLService -->|Hybrid Search| VectorDB[(Chroma + BM25)]
    MLService -->|Reranking| CrossEncoder[MS-Marco Reranker]
    Backend -->|Contextual Prompt| LLM[Local Ollama / OpenAI]
    LLM -->|Streamed Answer| User

---

🚀 Quick Start

1. Prerequisites

• Docker & Docker Compose
• Ollama running on host (for local inference).
• OpenAI API Key (Optional - for high-speed RAGAS evaluation).

2. Launch

docker-compose up --build

3. Access

• Main App: http://localhost:5173
• Analytics: http://localhost:5173/metrics
• API Docs: http://localhost:8000/docs

---

🔬 Deep Dive

For a deep dive into the RAG orchestrator and hardware passthrough logic, see our internal manual: 👉 TECHNICAL_ARCHITECTURE.md 👉 SYSTEM_DESIGN_PATTERNS.md

🎓 Interview Masterclass

Built into the platform and available for study is a specialized RAG Engineering Masterclass. It contains 100+ Senior and Architect level deep-dive questions focusing on vector databases, hybrid retrieval, and production scaling.

👉 Launch INTERVIEW_MASTERCLASS.md

🛠️ Infrastructure Mastery

CustomDoc is production-ready with enterprise-grade operational standards:

• Production Stack: docker-compose -f docker-compose.prod.yml up
• Healthcheck Orchestration: Zero-downtime initialization using depends_on conditions; Backend waits for ChromaDB and ML-Service heartbeats.
• Structured Observability: Unified logging (Timestamp | Level | Component | Message) across all services.
• Global Error Handling: Fail-safe API design that prevents stack-trace leaking while maintaining unique Error IDs for debugging.
