GUI-G²: Gaussian Reward Modeling for GUI Grounding

---

---

🎉 News

[2026-04-15] * We opensource 🦞 ClawGUI: A Unified Framework for Training, Evaluating, and Deploying GUI Agents

• 📄
• 💻
• 🌐
• 🤗

[2026-2-02] We released GUI-G2's poster and slides.

[2025-11-08] We are happy our paper was accepted to AAAI 2026.

[2025-8-18] We open-source our model: GUI-G2-3B, GUI-G2-7B. Check it out on Huggingface. And we provide the inference code and example. Try it out.

[2025-8-16] We will upload our model (GUI-G2-3B, GUI-G2-7B) next week.

[2025-7-22] We release our paper: GUI-G²: Gaussian Reward Modeling for GUI Grounding. We plan to open-source our model GUI-G²-7B around August.

---

Overview

• Motivation
• Highlights
• Installation
• Quick Start
• Evaluation
• Reward Customization
• Citation

---

Motivation

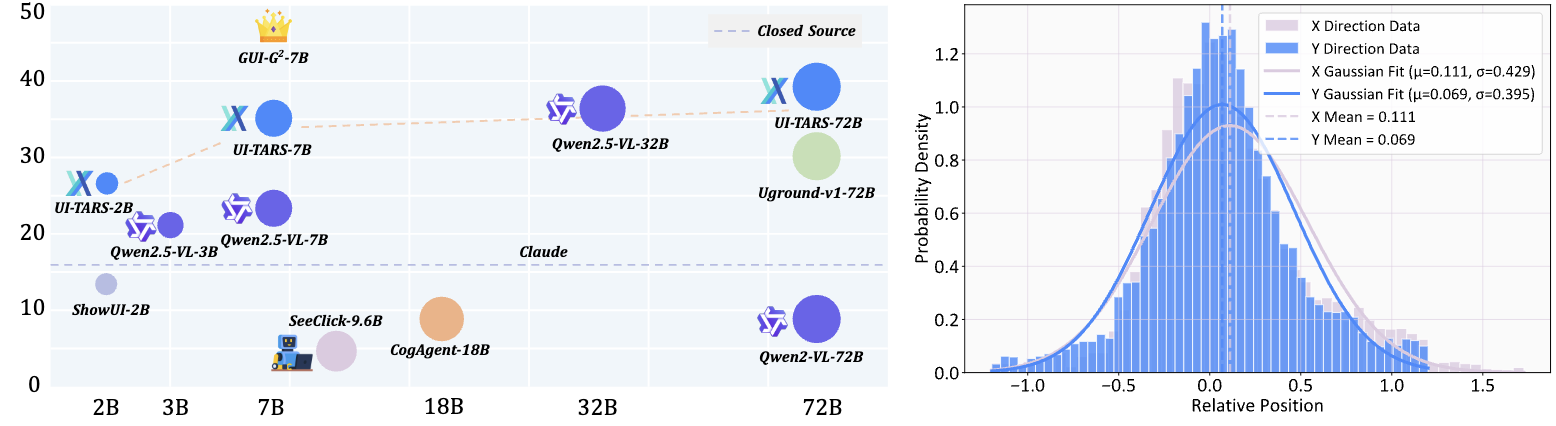

Recent studies on human interaction behavior—especially from the AITW dataset—demonstrate that GUI clicks are not random but instead form natural Gaussian-like distributions around the intended targets.

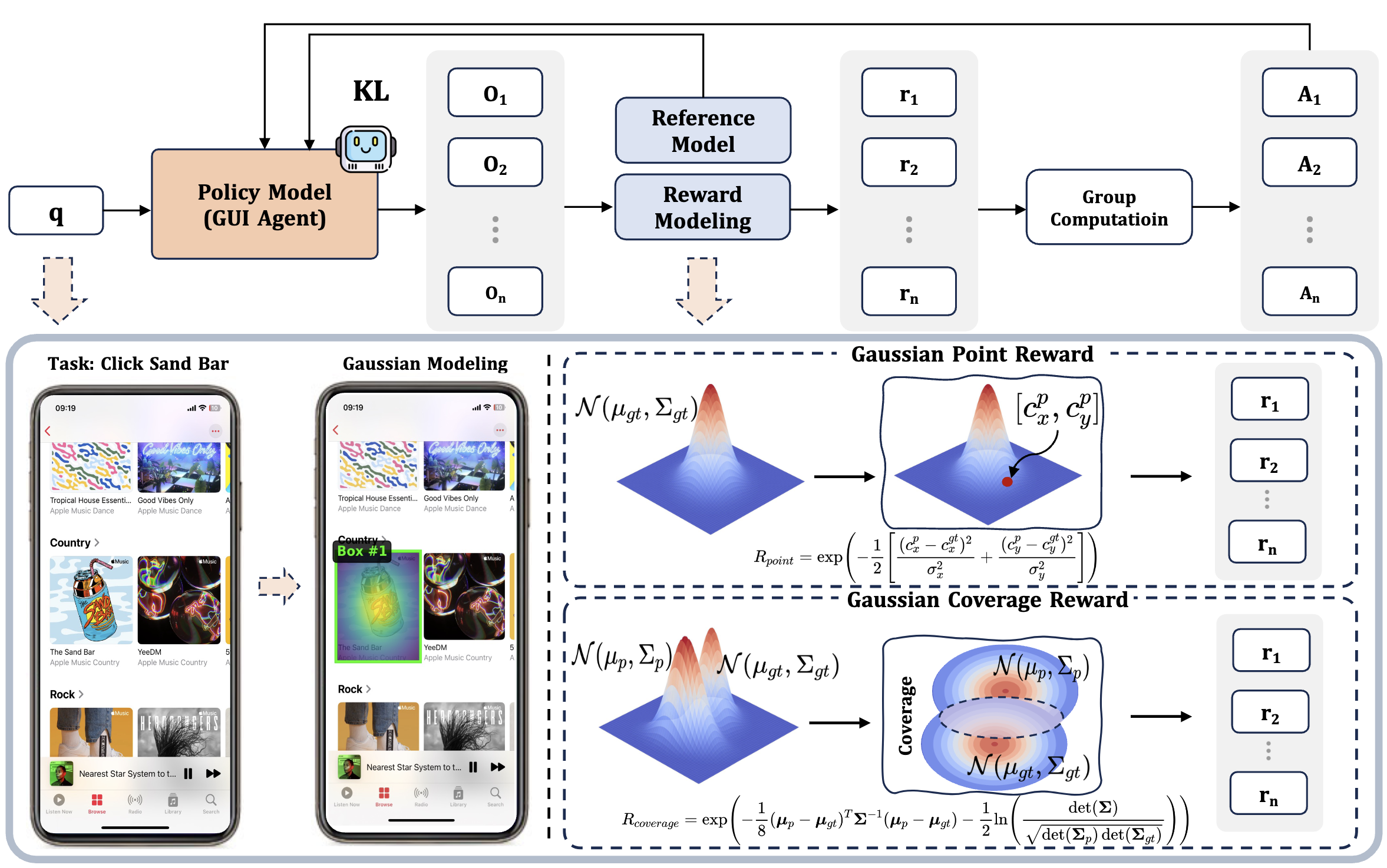

Motivated by this, GUI-G² adopts a gaussian reward framework that reflects these real-world behaviors by:

• Rewarding proximity to target centers (Gaussian Point Reward),
• Encouraging spatial region alignment (Gaussian Coverage Reward),
• Dynamically adjusting precision with element size (Adaptive Variance).

---

✨ Highlights

• 💡 Gaussian Point & Coverage Rewards: Encourage accurate, spatially-aligned clicks.
• 📏 Adaptive Variance Mechanism: Adjusts reward granularity based on element scale.
• 🌍 Dense Learning Signals: Smooth gradients outperform binary RL rewards in early-stage learning.
• 📊 State-of-the-art Performance on ScreenSpot, ScreenSpot-v2, and ScreenSpot-Pro datasets.

---

🛠 Installation

conda create -n gui-g2 python=3.10
conda activate gui-g2
bash setup.sh

If needed, manually install the dependencies:

pip install transformers==4.49.0
pip install deepspeed==0.15.4
pip install filelock
pip install qwen_vl_utils

---

🚀 Quick Start

Train GUI-G² on your own data:

cd GUI-G2
bash run_grpo_gaussian.sh

You must configure:

• DATA_PATH: Path to your dataset YAML config
• CKPT_PATH: Model checkpoint path (e.g., Qwen2.5-VL)
• image_root: Folder containing your screenshots
• LOG_DIR, SAVE_PATH: Output folders

Training data should follow the JSONL format demonstrated in:

example_training_json.json

Try this inference code.

# DOWNLOAD THE 3B MODEL
huggingface-cli download --resume-download inclusionAI/GUI-G2-3B --local-dir ./models/GUI-G2-3B

# DOWNLOAD THE 7B MODEL
huggingface-cli download --resume-download inclusionAI/GUI-G2-7B --local-dir ./models/GUI-G2-7B

import os
import torch
from transformers import AutoTokenizer, AutoProcessor, GenerationConfig
from transformers import Qwen2_5_VLForConditionalGeneration
from qwen_vl_utils import process_vision_info

def infer(instruction, image_path, model_name_or_path):
    assert os.path.exists(image_path) and os.path.isfile(image_path), "Invalid input image path."
    model = Qwen2_5_VLForConditionalGeneration.from_pretrained(
        model_name_or_path,
        device_map="cuda",
        trust_remote_code=True,
        torch_dtype=torch.bfloat16,
        attn_implementation="flash_attention_2"
    ).eval()

    tokenizer = AutoTokenizer.from_pretrained(model_name_or_path, trust_remote_code=True)
    processor = AutoProcessor.from_pretrained(model_name_or_path)

    generation_config = GenerationConfig.from_pretrained(model_name_or_path, trust_remote_code=True).to_dict()
    generation_config.update({
        'max_length': 2048,
        'do_sample': False,
        'temperature': 0.0
    })
    model.generation_config = GenerationConfig(**generation_config)

    prompt_origin = 'Outline the position corresponding to the instruction: {}. The output should be only [x1,y1,x2,y2].'
    full_prompt = prompt_origin.format(instruction)

    messages = [
        {
            "role": "user",
            "content": [
                {
                    "type": "image",
                    "image": image_path,
                },
                {"type": "text", "text": full_prompt},
            ],
        }
    ]
    text = processor.apply_chat_template(
        messages, tokenize=False, add_generation_prompt=True
    )
    image_inputs, video_inputs = process_vision_info(messages)
    inputs = processor(
        text=[text],
        images=image_inputs,
        videos=video_inputs,
        padding=True,
        return_tensors="pt",
    )
    inputs = inputs.to(model.device)
    generated_ids = model.generate(**inputs, max_new_tokens=128)
    generated_ids_trimmed = [
        out_ids[len(in_ids) :] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)
    ]
    output_text = processor.batch_decode(
        generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False
    )

    print(output_text)
    input_height = inputs['image_grid_thw'][0][1]*14
    input_width = inputs['image_grid_thw'][0][2]*14

    try:
        box = eval(output_text[0])
        abs_y1 = float(box[1]/input_height)
        abs_x1 = float(box[0]/input_width)
        abs_y2 = float(box[3]/input_height)
        abs_x2 = float(box[2]/input_width)
        box = [abs_x1,abs_y1,abs_x2,abs_y2]
    except:
        box = [0,0,0,0]

    point = [(box[0]+box[2])/2,(box[1]+box[3])/2]

    result_dict = {
        "result": "positive",
        "format": "x1y1x2y2",
        "raw_response": output_text,
        "bbox": box,
        "point": point
    }

    return result_dict

model_path = './models/GUI-G2-7B'
image_path = './assets/example.png'
instruction = 'close this issue'
result = infer(instruction, image_path, model_path)
print(result)
'''
  ['[850,1149,967,1177]']
  {'result': 'positive', 'format': 'x1y1x2y2', 'raw_response': ['[850,1149,967,1177]'], 'bbox': [0.3335949778556824, 0.8046218752861023, 0.37951335310935974, 0.8242297172546387], 'point': [0.35655416548252106, 0.8144257962703705]}
'''

# plot the result
import cv2
import matplotlib.pyplot as plt

def visualize_bbox(image_path, raw_response, save_path=None):
    image = cv2.imread(image_path)
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
    bbox_str = raw_response[0]
    bbox = eval(bbox_str)
    x1, y1, x2, y2 = bbox

    center_x = (x1 + x2) // 2
    center_y = (y1 + y2) // 2

    cv2.rectangle(image, (x1, y1), (x2, y2), (0, 255, 0), 2)
    cv2.circle(image, (center_x, center_y), 5, (255, 0, 0), -1)
    cv2.circle(image, (center_x, center_y), 8, (255, 255, 255), 2)
    cv2.putText(image, f"({center_x},{center_y})", (center_x + 10, center_y - 10),
                cv2.FONT_HERSHEY_SIMPLEX, 0.5, (255, 255, 255), 2)
    cv2.putText(image, f"({center_x},{center_y})", (center_x + 10, center_y - 10),
                cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 0, 0), 1)
    plt.figure(figsize=(12, 8))
    plt.imshow(image)
    plt.title(f'Bbox: {bbox}')
    plt.axis('off')
    plt.tight_layout()
    plt.show()

    if save_path:
        result_image = cv2.cvtColor(image, cv2.COLOR_RGB2BGR)
        cv2.imwrite(save_path, result_image)
        print(f"save to : {save_path}")

raw_response = result['raw_response']
visualize_bbox(image_path, raw_response, './result.jpg')

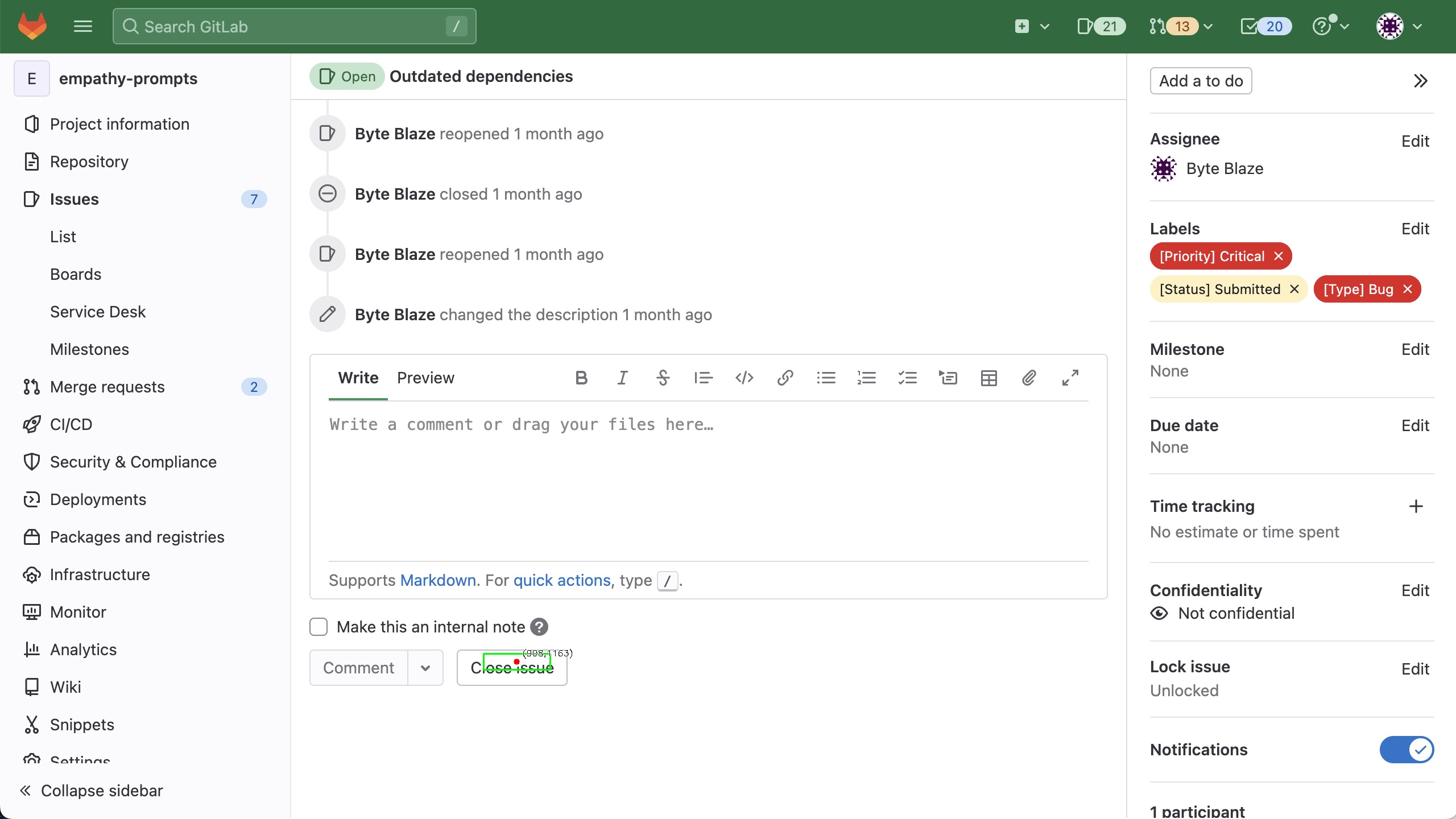

The green bbox is prediction.

---

Evaluation

Checkpoints will be released soon. Please stay tuned. If you want to evaluate your model on ScreenSpot, please refer to ScreenSpot-Pro.

📊 Results on ScreenSpot-v2

---

Reward Customization

To implement your own reward, modify:

src/open_r1/gaussian_grpo.py

Key components:

• Gaussian Point Reward
• Gaussian Coverage Reward
• Adaptive Variance Mechanism

---

🙏 Acknowledgement

The RL Training code build from VLM-R1 project.

---

📄 Citation

If you use GUI-G², please cite our work:

@misc{tang2025guig2gaussianrewardmodeling,
      title={GUI-G$^2$: Gaussian Reward Modeling for GUI Grounding},
      author={Fei Tang and Zhangxuan Gu and Zhengxi Lu and Xuyang Liu and Shuheng Shen and Changhua Meng and Wen Wang and Wenqi Zhang and Yongliang Shen and Weiming Lu and Jun Xiao and Yueting Zhuang},
      year={2025},
      eprint={2507.15846},
      archivePrefix={arXiv},
      primaryClass={cs.LG},
      url={https://arxiv.org/abs/2507.15846},
}

If you like our project, please give us a star ⭐ on GitHub for the latest update.
