EMAP-SSN: Embedding- and Multiple-Alignment-integrated Protein Sequence Similarity Network Platform is an interactive, high-performance graphical application for generating, visualizing, and analyzing traditional and embedding-based Sequence Similarity Networks (SSNs). By integrating Multiple Sequence Alignments (MSAs) directly into network exploration, the platform bridges macroscopic sequence relationships with microscopic residue-level conservation to provide a multi-scale view of protein sequence space. The latest release recorded in the changelog is v0.3.0. This README describes the current source checkout, which may include changes since that release. Because EMAP-SSN remains below version 1.0, command interfaces and persisted formats may evolve between releases. See the changelog for release history and citation metadata for how to cite the software. When upgrading an existing checkout, read the release's Upgrade Notes in the changelog first.

---

⚠️ Important Note

1. Cross-Platform Support: Host architecture, operating-system, and accelerator support is conditional. See Compatibility before installation; Linux and Apple Silicon macOS support remains under active development.
2. Recommended Hardware: A compatible NVIDIA GPU is highly recommended for CUDA acceleration of embeddings and layout solvers. Selected AMD and Intel devices and Apple Silicon GPUs can use the backends listed in Compatibility; every accelerator must pass runtime validation.

---

📸 Overview

The application streamlines the entire SSN pipeline—from generation to interactive analysis—within a single unified workflow. It supports both traditional sequence similarity methods (e.g., BLAST) and modern embedding-based language model algorithms. For an end-to-end architectural guide, complete workflow description, and visual walkthrough of each GUI, see the Quick Start Manual. Beyond dynamic visual formatting, the viewer provides an interactive command console with specialized commands tailored for deep analysis of the protein sequence space (see the Viewer Command Reference for detailed usage and examples).

---

🖥️ Graphical User Interface

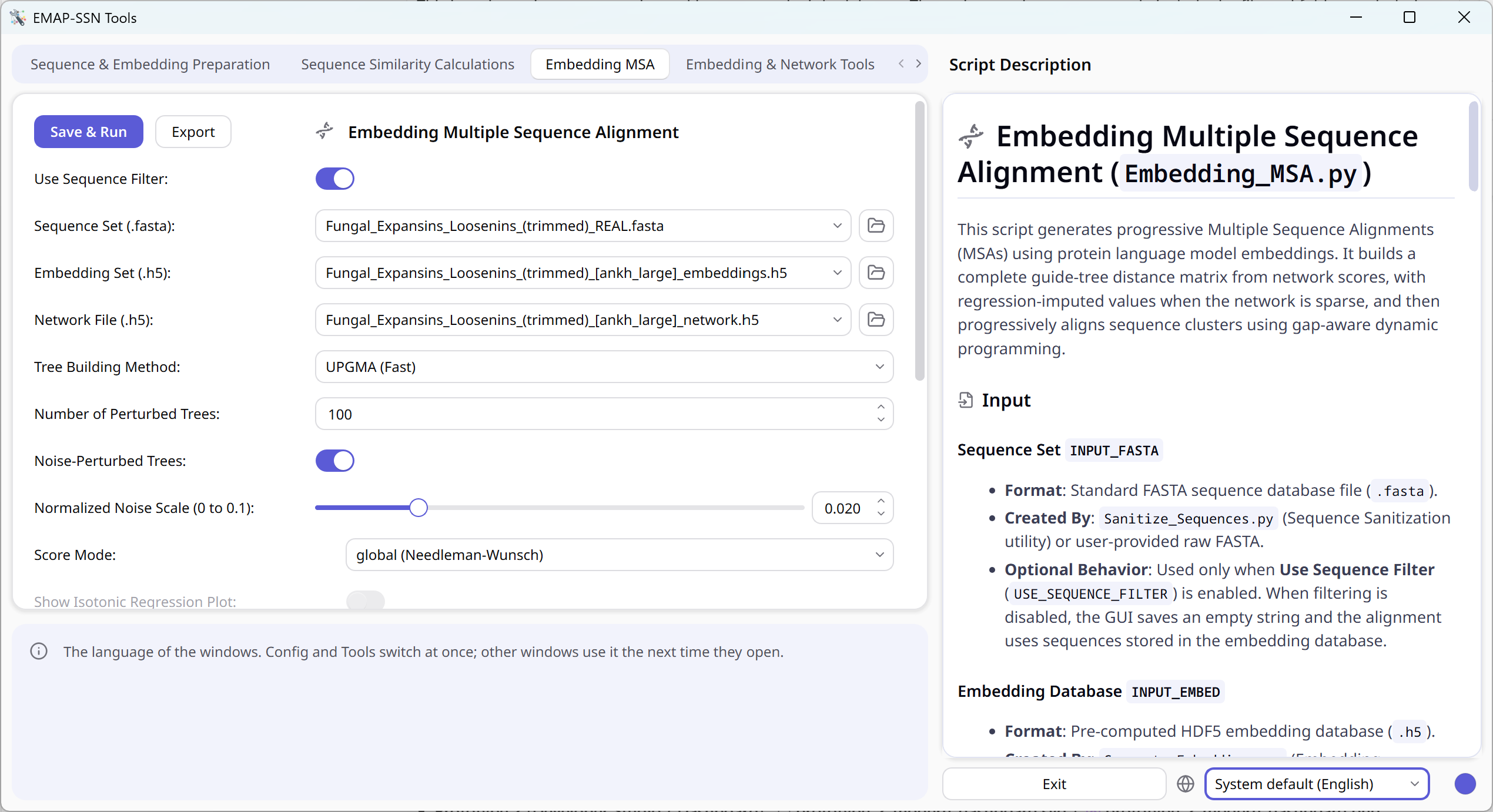

🛠️ EMAP-SSN Tools GUI

All calculations related to SSN generation are centralized in the EMAPSSN_Tools.py GUI. The interface is organized into intuitive tabs, each representing a distinct stage of the pipeline. It includes interactive tooltips at the bottom for parameter input fields and a script description panel on the right highlighting the function of each processing script.

Each tool card also provides Export Setting beside Save & Run. The Directories tab controls the export location through Setting Export Directory, which defaults to Cache_Files/Exported_Settings/. An exported file contains the current settings for one tool and only the global directories used by that tool. For example:

{
  "DIRECTORIES": {
    "FASTA_DIR": "Input_Files/Sequence_Sets"
  },
  "Sanitize_Sequences.py": {
    "INPUT_FASTA": "example.fasta",
    "OVER_WRITE": false
  }
}

Run any exported configuration as the sole positional argument to its tool:

# Windows
.\.venv\Scripts\python.exe src\tools\Sanitize_Sequences.py Cache_Files\Exported_Settings\example.json

# Linux or macOS
./.venv/bin/python src/tools/Sanitize_Sequences.py Cache_Files/Exported_Settings/example.json

The settings-file argument is resolved from the terminal's current working directory. Directory values inside the JSON retain the GUI representation: absolute paths remain absolute, while relative paths are resolved from the project root. Omitting the argument preserves the GUI-compatible behavior of reading tools_settings.json from the project root. Model acknowledgement remains a separate command, for example python src/tools/Generate_Embeddings.py --accept-model-license MODEL_ID.

🔌 Local STDIO MCP server

src/EMAPSSN_MCP_Server.py exposes 14 pipeline programs, layout-cache generation, Viewer inspection, command execution, and session management to local MCP clients. It registers exactly three workflow tools:

Each tool accepts action and an arguments object. Call help to list actions, or describe to inspect one action's strict argument schema. For example, pass this JSON to emapssn_pipeline:

{"action": "describe", "arguments": {"action": "start_job"}}

Pipeline IDs are values inside arguments, not additional MCP tool names. Legacy standalone MCP tool names are no longer registered; restart the server and refresh the client's tool catalog after updating.

The server uses STDIO only: the client starts one server process and communicates through its standard input and output. Before configuring a client, launch the Viewer or Tools through its managed launcher so .venv is created or updated with the pinned MCP SDK.

Use absolute paths in client configuration. On Windows, replace <PROJECT> below with the absolute repository path:

# Codex
codex mcp add emapssn -- "<PROJECT>\.venv\Scripts\python.exe" "<PROJECT>\src\EMAPSSN_MCP_Server.py"

# Claude Code (user scope)
claude mcp add --transport stdio --scope user emapssn -- "<PROJECT>\.venv\Scripts\python.exe" "<PROJECT>\src\EMAPSSN_MCP_Server.py"

For VS Code, add this to the appropriate mcp.json file:

{
  "servers": {
    "emapssn": {
      "type": "stdio",
      "command": "<PROJECT>\\.venv\\Scripts\\python.exe",
      "args": ["<PROJECT>\\src\\EMAPSSN_MCP_Server.py"]
    }
  }
}

Antigravity and clients using the common mcpServers form, including many open-source harnesses, can use:

{
  "mcpServers": {
    "emapssn": {
      "command": "<PROJECT>\\.venv\\Scripts\\python.exe",
      "args": ["<PROJECT>\\src\\EMAPSSN_MCP_Server.py"]
    }
  }
}

On Linux or macOS, use <PROJECT>/.venv/bin/python and forward-slash paths. No environment activation or wrapper script is required. A harness with a different configuration schema needs only the same executable and server-file arguments over its local STDIO transport.

Pipeline action start_job accepts parameters with optional directory overrides, an exported JSON document, or a path to that document. Use pipeline action get_compute_capabilities for metadata-only discovery of runtime devices and memory, and inspect_file for read-only structural inspection of an explicitly selected file. Device discovery does not benchmark a workload or establish that it will fit in memory. See MCP settings and examples for the strict settings contracts and GUI export compatibility. Each client connection owns one FIFO with one running and at most 16 pending jobs. Closing or restarting that client terminates its running job and cancels its queued jobs; different MCP clients do not share a queue and can start conflicting calculations. Pipeline jobs may create or overwrite files according to their settings, and cancelling a job does not roll back files already written.

Pipeline action start_benchmark queues the benchmark like any other job; its result names the report and gives each stage's time.

Job responses report captured stdout/stderr, the immutable settings snapshot, and the configured result directories. They do not guess the exact scientific files produced by a program. MCP-owned logs and snapshots are temporary and are removed on normal server shutdown; an abrupt crash can leave a private sequence_similarity_network_viewer/mcp_jobs/server-* directory below the operating system's temporary directory, which is safe to remove when no MCP server is running.

Viewer-data action list_sessions discovers running Viewers through authenticated local endpoints. Viewer-control action connect_session selects one; disconnect_session leaves it running, while close_session explicitly stops it. For a new session, use viewer-control export_settings to inherit saved preferences, review the complete JSON, then call validate_settings and start_session. Use get_settings_schema to inspect the accepted fields. Exporting writes a settings file; validation and launch consume that explicit document without merging personal settings again. A visible Viewer uses mode: "normal"; mode: "headless" runs without a desktop window but still uses Qt/VisPy. See Viewer session settings, including the Windows host restriction on independent subprocesses.

For analysis, capture a snapshot with viewer-data get_summary, then reuse its snapshot_id with describe_fields, create_subset, summarize_subset, and query_nodes. Alignment and visual data are opt-in through include_alignment and include_visual. Use get_residue_distribution for residue counts and cross-tabs from an alignment snapshot. Snapshots remain frozen after Viewer edits; capture a new one to inspect the changed state, and follow returned cursors for paged results.

Viewer-control execute_commands uses the same command portal as the web agent. Supply a unique submission_id and reuse it if retrying that submission. Follow viewer-data get_command_request until completion; read_command_output provides printed diagnostics and capture_view returns the current canvas as PNG. Batches stop on failure, and command submission alone does not mean background work has finished. The server supplies an agent workflow guide during MCP initialization.

⚙️ EMAP-SSN Configuration GUI

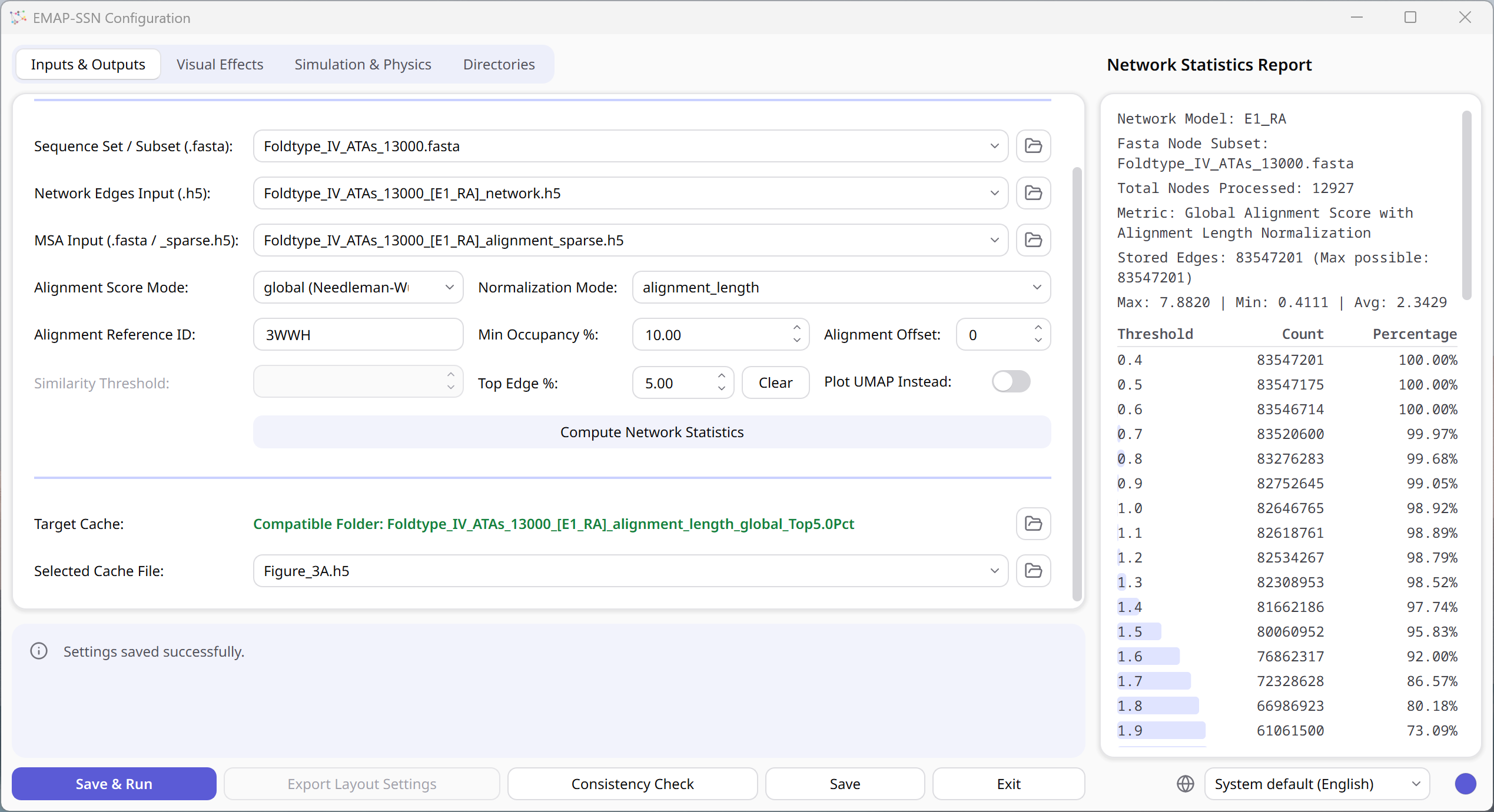

The configuration GUI in EMAPSSN_Config.py simplifies input file selection and parameter tuning for SSN generation. The Simulation & Physics tab configures the SSN force-directed physics layout solver; UMAP remains available as an optional non-physics layout mode on the Inputs & Outputs tab. Each tab has a Saved Config selector: (custom) values are kept together in the project-root viewer_settings.json, while named per-tab JSON profiles are stored below the directory selected on the Directories tab. Its default expression is $cache_file$/Saved_Config, which resolves to Cache_Files/Saved_Config/ with the default Cache File Directory. Selecting (default), offered on every tab except Inputs & Outputs, loads read-only built-in values, and (new) creates a named profile from the settings currently shown. Directory values may begin with $input_file$, $cache_file$, or $analysis_result$ to resolve beneath the corresponding configurable base directory; ordinary relative and absolute paths retain their existing behavior.

The GUI also features a Compute Network Statistics utility that analyzes network density and outputs a report in the right panel to guide selection of an optimal similarity cutoff. The Consistency Check utility compares the similarity network against the Multiple Sequence Alignment (MSA) to ensure sequence headers and indexes match across all files.

🔍 EMAP-SSN Viewer GUI

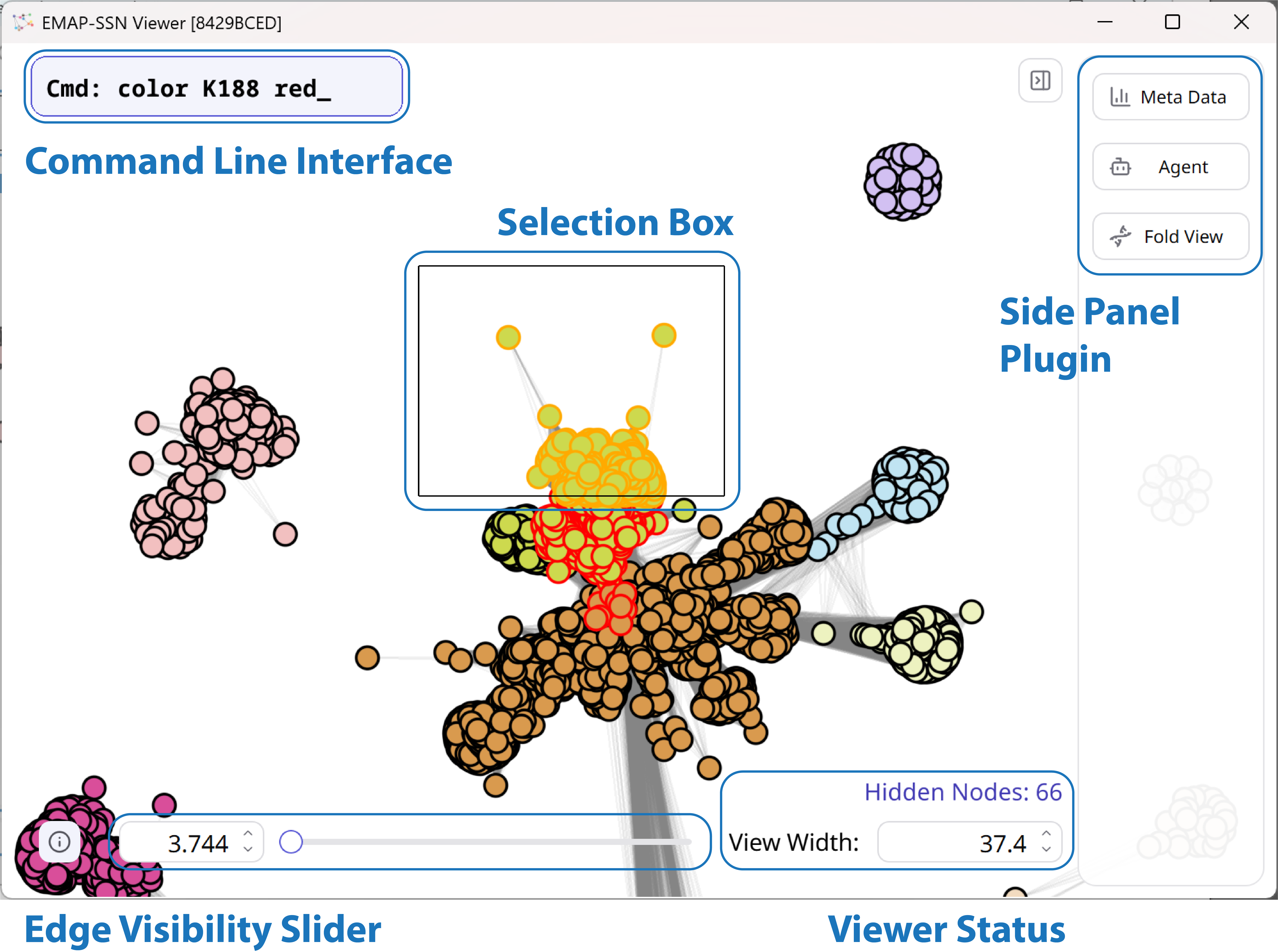

The main visualization window, EMAPSSN_Viewer.py, provides a 2D network canvas with mouse and keyboard controls for panning, zooming, selection, and formatting. Its in-line command console (HUD) runs analytical operations, highlights residues, selects clusters, and exports figures. The meta, esmfold, and agent commands open session-specific utilities in the system browser: a metadata table, a Mol* structure viewer, and a conversational agent. The Tools documentation panel uses embedded QtWebEngine.

Dimensionality follows from the viewer: the desktop Configuration and Viewer always use 2D layouts. Headless and MCP layout jobs also accept LAYOUT_DIMENSIONS (2 or 3); 3D caches use a separate cache folder with the _3D suffix and are read by the optional VR viewer (opt_vr submodule).

🌐 Language

The windows can show their text in another language. The language dropdown (after a globe icon) at the bottom right of the Configuration and Tools windows, and of the optional VR viewer's Configuration window, offers System default (the operating system's display language when EMAP-SSN has it, English otherwise), English, and each bundled language, named in itself. The first is Simplified Chinese (简体中文); its translations are drafts that a native speaker has yet to review.

The choice is saved in app_settings.json in the project folder and applies to every window. The window it is chosen in redraws in the new language at once and keeps everything entered; another Configuration or Tools window that is open does the same the next time it is clicked into. The Viewer, its browser pages and any dialog use it the next time they open. Number formats keep following the system's regional settings.

The chosen language covers:

• the Configuration, Tools and VR Configuration windows, with their tips, messages and the Tools help pages;
• the Viewer's window, sidebar and dialogs, the text on its canvas (the HUD and the console line), and the Agent and metadata pages it opens in the browser;
• the benchmark's text report.

These stay English in every language: the commands typed in the Viewer's console, terminal output and logs, MCP replies, settings files, the benchmark's .json results, and the ESMFold structure page, which is Mol*'s own interface.

Simplified Chinese brings a font of its own, Noto Sans SC cut down to the GB2312 character set (4.37 MiB). The windows, the Viewer's canvas and the browser pages use it only while that language shows, so Chinese draws correctly on a system without a Chinese font.

Each language is one folder in src/resources/languages/, named by its code (zh_CN/): its catalog, an optional language.json with its name, font and punctuation, and its translated help pages. Adding a language means adding its folder. To review a translation, add a language or mark new text for translation, see the translations guide.

---

🧬 System Workflow

Start with a protein FASTA file and choose a traditional BLAST or embedding-based network. The desktop workflow is:

1. Prepare sequences. Run Sanitize_Sequences.py from Tools to standardize the FASTA used by downstream calculations.
2. Build a network. Run Align_Substitution_Matrix.py for BLASTP, or generate embeddings with Generate_Embeddings.py and score pairs with Align_Similarity_Matrix.py. Parse_BLAST_Output.py imports external BLAST or DIAMOND tabular results using a matching FASTA manifest; run DIAMOND all-vs-all with -k 0, since it otherwise keeps only 25 hits per query. The BLAST calculation requires separate blastp and makeblastdb executables; the importer reads saved results without running BLAST or DIAMOND.
3. Add an alignment when needed. Generate an embedding-guided MSA with Embedding_MSA.py, or select an existing compatible full or sparse alignment. An MSA is optional for network viewing and required for residue-level analysis.
4. Configure and cache the layout. Select the matching node FASTA and network HDF5 in Configuration, and select an existing compatible cache or (New Layout Cache). For a new cache, Save & Run calculates the layout before opening the Viewer. Reopening a compatible cache reuses its coordinates and verified generation settings.
5. Explore and export. Use the Viewer console to select, color, cluster, inspect residues, and export figures or sequence subsets.

The default layout uses a force-directed physics solver. UMAP Mode offers a manifold layout based on network scores and uses the umap-learn dependency already included in the managed installation. UMAP_NEIGHBORS counts up to $k$ other nodes per sequence; the implementation adds a separate self-neighbor slot. Missing connections remain missing rather than becoming zero-distance matches. UMAP uses its neighbor topology instead of the physics layout's similarity and top-edge filters.

See the Quick Start Manual for a visual walkthrough and the Viewer Command Reference for command syntax.

---

🚀 Key Features

• Embedding-Based Dynamic Programming Alignment: Score residue pairs using protein-language-model embeddings for pairwise alignment, network construction, and guide-tree multiple alignment.
• Interactive Visualization: PySide6 and VisPy provide a 2D canvas for panning, zooming, selecting, and formatting nodes and edges. Performance depends on the dataset and rendering hardware.
• Integrated Command Console (HUD): Execute analytical commands (such as zoom, select, color, cluster, subcluster, and logo) directly inside the viewer viewport for instant formatting and analysis.
• Integrated Multiple Sequence Alignments (MSA): Bridge macroscopic network topology with residue-level conservation. Map conservation scores directly onto nodes and extract consensus sequence details interactively.
• Comprehensive Utilities Suite: Centralized GUI in EMAPSSN_Tools.py supporting sequence sanitization, embedding generation (ESM, ProtBERT, ProstT5, Ankh), network edge filtering, guide-tree MSA generation, and sequence extraction/injection.
• Cross-Platform Hardware Acceleration: Automatic eligibility checks and runtime validation for supported NVIDIA CUDA, AMD ROCm, Intel XPU, and Apple MPS configurations, with safe fallback to CPU.
• Scriptable Workflows: Export tool and layout JSON for batch execution, or use the local MCP server for pipeline jobs, Viewer commands, and bounded scientific data inspection.

---

✅ Compatibility

Compatibility snapshot: October 2026. Compatibility is the intersection of the application detector, the pinned Python packages, the operating system, and the installed GPU driver. A device can be eligible for an installation attempt without being guaranteed to work; the installer records it as validated only after a tensor calculation succeeds on that device.

The status terms used below are:

• Tested: the application has been run on that operating-system family.
• Supported: the current installer and pinned upstream binary matrix cover the configuration.
• Provisional: the detector can attempt it, but the configuration has not been project-tested or is outside a fully validated upstream combination.
• Unsupported: the current managed Python 3.13 dependency set cannot be installed or the application deliberately excludes the configuration.

Operating systems and processor architectures

The operating-system baseline follows the pinned Qt 6.11 platform matrix, the official PyTorch wheel index, and the platform requirements linked below. "Tested" refers to this application, whereas a vendor listing alone does not constitute live application testing.

Before it installs any Python packages, setup checks these floors: x64 Windows 10 version 1809 or newer, Apple Silicon with macOS 14 or newer, or x86_64 Linux with glibc 2.34 or newer. On any other system it stops and names the requirement the system misses, instead of failing partway through the installation. Setting SSN_ALLOW_UNSUPPORTED_HOST=1 skips the check for experiments; such systems remain unsupported.

Accelerator support by platform

NVIDIA CUDA

A GPU newer than Hopper (compute capability above 9.0, such as Blackwell) runs only on the CUDA 13.2 build. With an NVIDIA driver older than 580, setup leaves that GPU out, prints a warning to update the driver, and uses the CPU until then. One CUDA build serves every NVIDIA GPU in the computer, so beside a GPU older than Turing (compute capability below 7.5) setup installs CUDA 12.6 for the older GPU and leaves the newer one out with a warning. Whenever a GPU build fails to install or validate, setup falls back the same way and prints which build failed, the error, and how to retry with --refresh-backend.

CUDA 12.x minor compatibility requires at least NVIDIA driver 525.60.13 on Linux or 528.33 on Windows; a current vendor driver is recommended. See the PyTorch 2.12 support matrix, current NVIDIA compute-capability table, legacy capability table, and CUDA 12.6 release notes.

AMD ROCm

The application uses a pinned model-to-GFX snapshot and does not guess support for newly released hardware. The following are application eligibility targets, not a promise that every product with the same architecture will pass its driver and tensor validation:

A single ROCm profile now covers both operating systems. Windows and Linux install the same PyTorch 2.12.0 build from AMD's multi-architecture channel, selected per GFX target:

The two platforms differ because of how the GFX target is identified. Windows exposes no way to query it, so the target is inferred from the product name against a pinned snapshot, and only models in that snapshot are eligible. On Linux the kernel's ROCm driver (amdgpu's KFD) reports each GPU's target in /sys/class/kfd, by PCI address and without any ROCm software installed, and that target is used whatever the product name suggests, provided the ROCm channel publishes a PyTorch 2.12.0 device package for it. That covers AMD Instinct parts and RDNA1/RDNA2 consumer cards the snapshot never named, and gives each GPU in a computer with several its own target; a GPU the KFD lists no node for cannot run ROCm. Where the kernel reports no targets, a target reported by rocm_agent_enumerator or rocminfo is used instead when the product name is not in the snapshot, but only when exactly one supported target is reported: with several, none can be attributed to a single adapter, and name matching remains the only source.

Earlier releases offered four ROCm profiles (Windows 7.14 and 7.2.1, Linux 7.2 and 6.4). ROCm 7.14 covers every GFX target the retired profiles did, so no previously eligible GPU loses support. The retired Windows ROCm 7.2.1 profile was limited by AMD to Python 3.12, which is why it could not move to the managed Python 3.13 environment.

One consequence is worth stating plainly: Windows ROCm now requires Windows 11 25H2 build 26200 or newer. The retired 7.2.1 profile was the only one AMD published for earlier Windows 11 builds. A Windows 11 machine below 25H2 is no longer eligible for ROCm and uses the next available accelerator or CPU.

The installer does not install the Linux kernel driver or system ROCm stack. Consult the ROCm 7.14.1 compatibility matrix for the matching operating system, driver, and hardware requirements.

SSN physics layouts on a GPU use two small kernels that EMAP-SSN compiles when a layout first needs them, with the compiler that ships with PyTorch: NVRTC on NVIDIA, hiprtc on ROCm. The ROCm build of these kernels has not been tested on AMD hardware. Before first use, every process checks the kernels against a double-precision evaluation of the same physics on a small test problem; if they fail to compile or disagree, layouts automatically use the slower PyTorch implementation and the layout log says why. Setting SSN_LAYOUT_GPU_KERNELS=0 forces that fallback on any GPU.

Intel XPU

Ubuntu 26.04 is accepted but project-untested. An Intel GPU is identified by its PCI device ID (lspci -nn on Linux, the adapter's device instance path on Windows), not by its name, which follows branding: the same Meteor Lake-H GPU is "Intel Arc Graphics" or "Intel Graphics" depending on the memory fitted, and older PCI ID lists name many of these GPUs only "Intel Graphics" or not at all. The table follows the kernels the pinned PyTorch 2.12.0 XPU builds carry: compiled ahead of time for these GPUs, per operating system (Meteor Lake-U on Windows only, Data Center GPU Max on Linux only). The GPUs in the last row could only compile kernels when first used, and PyTorch lists none of them; the older Xe-LP graphics (Iris Xe, UHD) also lack the 64-bit floating point the kernels need. Only when no PCI device ID is available is an Arc, Core Ultra Arc or Data Center GPU Max name accepted instead.

Integrated graphics are eligible for the XPU PyTorch installation. After runtime tensor validation, automatic workload benchmarks compare available devices with CPU; integrated graphics are not excluded based on assumed performance.

The Intel driver must already be installed; on Windows, a GPU shown as Microsoft Basic Display Adapter has none and is not eligible. See the PyTorch Intel XPU matrix for the validated hardware and operating-system combinations.

Apple MPS

MPS is selected only when both macOS and the arm64 architecture are detected. All Apple Silicon generations use the same eligibility rule and must pass the runtime tensor check; otherwise the environment falls back to CPU. See Apple's PyTorch MPS requirements.

Backend selection and limitations

• Compatible discrete GPUs are preferred over integrated GPUs; NVIDIA, AMD, and Intel are ordered within the same device class.
• One backend-specific PyTorch build is installed per .venv. GPUs from different vendors cannot be used simultaneously in the same environment.
• Multiple validated NVIDIA or Intel devices can remain available to the application's automatic benchmark. For mixed AMD integrated/discrete systems, only the preferred GFX target is installed.
• A failed installation or tensor validation advances to the next eligible backend and ultimately to CPU.
• The selected backend and validation results are stored in .venv/ssn_backend.json. Requirements, pinned ESM and Transformers versions, compatibility rules, or a change to the required PyTorch profile invalidate the relevant saved state. Physical GPU addresses, device enumeration order, and driver updates that remain within the same CUDA compatibility profile do not force PyTorch to be reinstalled; the existing build is validated and reused.
• The packages the installer names are pinned to the versions this release was tested with: the base requirements in src/requirements.txt, the ESM runtime dependencies in src/esm_runtime_requirements.txt, PyTorch, Transformers, and ESM. The packages those depend on are not locked and resolve to current compatible versions. The first launch after an update installs any changed pins and reuses the installed PyTorch build once it validates.
• A shared HPC .venv retains its installed accelerator build when inspected from a CPU-only login node. CPU work remains available there, and accelerator tensor validation resumes on a compute node. Moving to a genuinely different backend profile, such as CUDA 12.6 to CUDA 13.2 or a different ROCm GFX target, still selects the required build.
• Run python src/Install_Dependencies.py --refresh-backend inside the managed environment to deliberately reinstall from the currently visible candidate ladder. On a CPU-only node, this explicit override selects the CPU build.

---

⚙️ Installation Steps

1. Clone the repository: Download the repository or clone it into a local project directory:

   git clone https://github.com/Xuebin-Feng/EMAP-SSN.git
   cd EMAP-SSN


   [!NOTE] An optional VR viewer is available as the opt_vr submodule, for Windows with a supported NVIDIA or AMD GPU and a VR headset with an OpenXR runtime such as SteamVR. GitHub source archives do not include it. Fetch it by cloning with git clone --recurse-submodules https://github.com/Xuebin-Feng/EMAP-SSN.git, or run git submodule update --init opt_vr in an existing clone. Update with git pull --recurse-submodules, which keeps opt_vr at the commit this repository records. See opt_vr/README.md for setup.

2. Set up the environment:

   The generated Viewer and Tools launchers create a managed Python 3.13 environment and automatically install and validate one pinned PyTorch backend. Review Compatibility for supported hosts, accelerator profiles, drivers, and fallback behavior before continuing.

   • 🪟 Windows: Double-click install.bat in the project root to generate Windows Shortcuts (.lnk files) in the project root and optionally on your Desktop.

     [!TIP] It is highly recommended to enable Developer Mode in your Windows Settings (Search for "Developer settings" in Windows). This allows symbolic links to be created without elevation, which is required by the Hugging Face transformers cache model download system to avoid duplicating file storage.

     [!IMPORTANT] Enable long path support. Windows limits a full path to 260 characters by default, while Linux and macOS allow far longer. Generated outputs — predicted structure .pdb files in particular — are named after sequence headers, so a long header inside an already-deep project folder can exceed the limit and fail to write, even though the same run succeeds on Linux or macOS.

     Run this once in an Administrator PowerShell, then reboot:

     New-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Control\FileSystem" -Name "LongPathsEnabled" -Value 1 -PropertyType DWORD -Force


     Alternatively, enable Computer Configuration → Administrative Templates → System → Filesystem → "Enable Win32 long paths" in the Group Policy Editor (gpedit.msc).

     If you cannot change this setting, keep the project close to the drive root (for example C:\SSN\) rather than nested under a long folder chain such as a synced OneDrive directory. Note that external binaries invoked by the pipeline, such as NCBI BLAST, may not be long-path aware regardless of this setting — a short project path is the most reliable option.

   • 🍏 macOS (Apple Silicon only): Open Terminal in the project root, make the installer executable, and run it:

     chmod +x install.sh
     ./install.sh


     The shared installer detects macOS, configures permissions for scripts in src/bin/, and generates Finder-native EMAP-SSN.app and EMAP-SSN Tools.app launchers in the project root.

     [!IMPORTANT] Only Apple Silicon Macs are supported. Intel-based Macs are not supported by the pinned PyTorch runtime.

   • 🐧 Linux: Open a terminal in the project root, make the installer executable, and run it:

     chmod +x install.sh
     ./install.sh


     On Ubuntu/Debian, the installer detects missing system libraries for Qt, its xcb platform plugin, and QtWebEngine, and offers to install them with sudo apt. These libraries cannot be installed by pip or uv.

     [!NOTE] On Fedora/RHEL, install the equivalent system libraries before launching:

     sudo dnf install nss nspr libXcomposite libXdamage libXrandr libxkbcommon-x11 \
                      libXtst mesa-libgbm mesa-libEGL libxslt alsa-lib cups-libs \
                      xcb-util-cursor xcb-util-wm xcb-util-image xcb-util-keysyms \
                      xcb-util-renderutil mesa-libGL fontconfig freetype glib2 \
                      libXfixes libxkbfile


     This will configure execution permissions and generate launchers (emapssn and emapssn_tools) as well as system .desktop application entries.

3. Launch the application:

   • Windows: Open EMAP-SSN.lnk or EMAP-SSN Tools.lnk from the project root or from the Desktop if you selected that installer option.
   • macOS: Open EMAP-SSN.app or EMAP-SSN Tools.app from the project root.
   • Linux: Run ./emapssn or ./emapssn_tools, or use the generated desktop application entries.

   emapssn opens the configuration GUI first. Select the input files and layout settings there, then click Save & Run to save the settings and launch the visualization window. On the first application launch, the managed launcher creates .venv, installs the pinned dependencies, and validates the selected compute backend; later launches reuse that environment while it remains compatible.

Headless layout-cache generation

When (New Layout Cache) is selected in EMAP-SSN Configuration, Export Layout Settings saves a generation-only JSON file. Run that file with the same managed Python environment to calculate and save the cache without opening the viewer:

# Windows, from the project root
.\.venv\Scripts\python.exe -u src\Layout_Cache_Generator.py Cache_Files\Exported_Settings\example.json

# Linux or macOS, from the project root
./.venv/bin/python -u src/Layout_Cache_Generator.py Cache_Files/Exported_Settings/example.json

The export location follows Setting Export Directory, whose default is Cache_Files/Exported_Settings/. This command generates a cache without starting the interactive Viewer. With automatic naming the cache takes the next free version name; an explicitly named cache that already exists is rejected rather than overwritten.

Layout execution JSON uses schema_version: 2, kind: "layout", and named inputs, network, layout, simulation, physics, packing, and output sections. It contains generation settings only. Viewer JSON uses kind: "viewer" and inputs, alignment, visualization, and directories sections. Score interpretation, edge filters, UMAP settings, and box scale are read from verified cache provenance, never repeated in Viewer JSON. Both exports inherit relevant saved preferences; old execution JSON must be re-exported. Personal settings and pipeline-document formats are unchanged. See MCP settings for the export-first workflow and overlay format.

Benchmark

The benchmark times EMAP-SSN's heavy calculations on a bundled set of 860 public protein sequences, so computers and versions can be compared. It runs ten stages, from embeddings and the all-against-all alignment through both layouts, clustering, search, injection and the MSA to BLAST, with every device setting on Auto, and its report records what each tool's Auto trials chose. Click Run Benchmark on the Tools window's Manual Tools tab, or run it from the project root:

# Windows, from the project root
.\.venv\Scripts\python.exe -u src\resources\benchmark\Run_Benchmark.py

# Linux or macOS, from the project root
./.venv/bin/python -u src/resources/benchmark/Run_Benchmark.py

A run took about 6 minutes on an RTX 5070 Ti with a Core Ultra 7 265KF, and takes longer without a GPU. It needs about 1 GB of free disk space, and the first run downloads ESM-2 8M (about 30 MB). A stage the computer can't run, such as BLAST without NCBI BLAST+, is skipped with the reason. The report, Benchmark_Report_<date>_<time>.txt, is written to src/resources/benchmark/ in the language the windows show, with an English .json beside it, and is never deleted. The benchmark keeps its working files in its own temp/ folder, which it clears, and never reads or changes tools_settings.json or the configured folders. MCP clients start it with emapssn_pipeline(action="start_benchmark"). The benchmark README lists the stages, where the sequences come from and their license.

Additional language fonts

The application bundles a 4.68 MiB Noto Sans/Noto Sans Mono desktop core with Latin, Greek, Cyrillic, IPA, combining-mark, and common scientific punctuation coverage. Qt uses fonts installed in the operating system when this core does not contain a requested glyph. Simplified Chinese, the bundled translation, brings its own font, which loads only while that language shows (see 🌐 Language above).

For another writing system, download the appropriate family from the official Noto Fonts site and install it normally:

• Windows: right-click the font file and select Install or Install for all users.
• macOS: open the font in Font Book and select Install Font.
• Linux: copy it to ~/.local/share/fonts/, run fc-cache -f, and restart the application.

Copying a font into src/resources/fonts/desktop/ is not sufficient: Qt does not scan that directory, and the application registers only the files declared in its bundled manifest. System-installed fonts become available after the application is restarted. They can provide fallback in PySide6/Qt widgets, but VisPy network labels remain limited to the bundled faces: Noto Sans, and Noto Sans SC while Simplified Chinese shows.

---

🔧 Linux Troubleshooting

• Blank, black, or repeatedly failing network canvas on a Wayland session. The Viewer selects QT_QPA_PLATFORM=xcb when Wayland is detected or explicitly requested, while preserving offscreen/headless platforms. On affected Linux drivers, Qt's native Wayland plugin supplies an OpenGL ES context while VisPy compiles desktop GLSL shaders, producing repeated Error drawing visual messages. XWayland/XCB supplies the compatible desktop OpenGL context; the installer includes its required Ubuntu/Debian libraries.

• The application closes immediately when launched from a desktop icon. The Ubuntu/Debian launchers now check the Qt/XCB libraries before startup and print the exact sudo apt install command for anything missing. If any later startup step fails, a desktop-launched terminal remains open until you press Enter so the original error stays visible.

• EMAP-SSN Tools exits immediately, or crashes inside Chromium. If the documentation panel fails after the libraries above are installed — common inside containers or on hardened kernels where the Chromium sandbox cannot start — disable the sandbox:

  QTWEBENGINE_CHROMIUM_FLAGS=--no-sandbox ./emapssn_tools


• unable to lock file when opening an HDF5 network. HDF5 file locking fails on NFS and some network home directories. Set HDF5_USE_FILE_LOCKING=FALSE before launching.

---

📂 File Structure

EMAP-SSN/
│
├── install.bat               # Windows installer (creates .lnk shortcuts)
├── install.sh                # Linux/macOS installer with platform-specific launchers
│
├── src/                      # Source code directory
│   ├── EMAPSSN_Viewer.py         # Main PySide6 / VisPy desktop visualization application
│   ├── EMAPSSN_Tools.py          # GUI for preparing sequences, embeddings, networks, and alignments
│   ├── EMAPSSN_Config.py         # GUI configuration manager for inputs, thresholds, and models
│   ├── EMAPSSN_MCP_Server.py     # Three local STDIO MCP workflow entry points
│   ├── Layout_Cache_Generator.py # Standalone physics/UMAP layout-cache generation
│   │
│   ├── bin/                  # Startup scripts and launchers
│   │   ├── EMAPSSN.bat          # Windows platform startup script
│   │   ├── EMAPSSN_Tools.bat     # Windows Tools startup script
│   │   ├── EMAPSSN.sh           # Linux/macOS platform startup script
│   │   ├── EMAPSSN_Tools.sh      # Linux/macOS Tools startup script
│   │   ├── EMAPSSN_Desktop_Launcher.bat
│   │   ├── EMAPSSN_Desktop_Launcher.sh
│   │   ├── EMAPSSN_Terminal_Launcher.sh
│   │   └── logos/            # Application custom icon files (.png and .ico)
│   │
│   ├── commands/             # Command modules for interactive viewer console
│   ├── desktop/              # Qt integration, Viewer state, snapshots, and settings contracts
│   ├── mcp_server/           # Workflow dispatch, pipeline jobs, and Viewer session adapters
│   ├── resources/            # Configuration and system prompts
│   │   └── benchmark/        # Benchmark script, its public sequence sets and its reports
│   ├── tools/                # Executable processing scripts exposed by EMAPSSN_Tools
│   │   └── tool_descriptions/ # Markdown documentation displayed by the Tools GUI
│   ├── utilities/            # Focused cache, network, hardware, alignment, and FASTA helpers
│   └── web_ui/               # Embedded web UI backend and interfaces
│       └── plugins/          # Auto-discovered bundled web-utility descriptors
│
├── docs/                     # Screenshots, documentation, and metadata template
│   ├── quickstart.html       # Comprehensive Quick Start Manual & GUI architecture guide
│   ├── list_of_commands.html # Interactive Viewer command reference
│   ├── mcp_settings.md      # MCP actions, export workflows, and execution settings
│   └── web_plugin_development.md # Browser utility extension contract
│
├── tests/                    # Focused regression tests
├── opt_vr/                   # Optional VR viewer submodule
│
├── viewer_settings.json      # Settings saved by the configuration GUI
├── tools_settings.json       # Shared settings saved by the Tools GUI
│
├── Input_Files/              # Viewer and tool input files
│   ├── Sequence_Sets/        # Protein sequence sets and subsets (.fasta)
│   ├── Multiple_Alignments/  # Full or sparse multiple-sequence alignments
│   ├── Networks_EValues/    # Embedding- or BLAST-derived network files (.h5)
│   ├── Header_Lists/         # Reusable sequence-header cohorts
│   └── Meta_Data/            # Imported and exported node metadata
│
├── Cache_Files/              # Reusable layouts and intermediate/session artifacts
│   ├── Saved_Layouts/        # Manifest-bound layout snapshots (.h5)
│   ├── Saved_Config/         # Named per-tab Configuration profiles
│   ├── Predicted_Structures/ # Predicted structures and viewer assets
│   └── Exported_Settings/    # Exported tool, layout, and Viewer execution JSON
│
├── Embeddings/               # Protein-language-model embedding databases (.h5)
└── Analysis_Results/          # User-facing exported analysis results
    ├── Sequence_Export/       # Extracted sequence subsets
    ├── Alignment_Report/      # Pairwise-alignment reports
    ├── Saved_Images/          # Viewer image exports
    ├── Cluster_Label/         # Cluster and specificity reports
    └── Sequence_Logos/        # Sequence-logo graphics

---

Acknowledgements

EMAP-SSN was developed by Xuebin Feng while affiliated with the University of Toronto.

🤝 Contributing

Contributions are welcome! Please feel free to open Issues or submit Pull Requests to enhance computational efficiency, layout performance, UI responsiveness, or commands for analyses.

Bundled browser utilities use a validated startup-discovery contract. See the web-utility plugin development guide for the manifest, registration, activation, and failure-isolation rules.

📄 License

Copyright 2026 Xuebin Feng Author affiliation: University of Toronto

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the LICENSE file for the specific language governing permissions and limitations under the License, and NOTICE for required attributions.

Third-party components

This repository bundles Mol*, Tabulator, marked, KaTeX, the Noto fonts, the Lucide icons, and the benchmark's protein sequences from UniProt (CC BY 4.0), depends on Python packages under a range of licenses, and can load protein-language-model weights governed by their own terms. A full inventory, including which components are redistributed and which are merely required at runtime, is in THIRD_PARTY_LICENSES.md.

The managed environment also installs the official mcp 2.2.0 Python SDK and its Pydantic runtime dependency; both are MIT-licensed and are not bundled in the source repository.

The optional Ankh weights are licensed separately under CC BY-NC-SA 4.0 and are restricted to non-commercial use. The application labels these models and requires explicit acknowledgement before accessing their files; the integration code remains Apache-2.0 and does not redistribute the weights.

The GUI uses PySide6 under its LGPL-3.0 option. PySide6 and Qt are installed separately and are not included in this source repository. Any future executable or installer that redistributes Qt binaries needs a separate LGPL compliance review.

No Python wheels are redistributed by this repository. Earlier releases bundled a self-built ESM 3.3.0 wheel, because the ESM releases on PyPI at the time carried the Cambrian license, and a reproducible fork of Transformers labeled 4.57.6+biohub.3a8956f, which ESM 3.3.0 declared as a direct Git dependency. ESM 3.4 is published on PyPI and no longer depends on the fork, so both are now installed from PyPI at their published versions — MIT-licensed esm 3.4.1.post1 and Apache-2.0 transformers 5.17.0 — and the fork is no longer needed or referenced. This removes the project's wheel-redistribution obligations entirely.

Installation is not offline: ordinary PyPI dependencies, the selected PyTorch build, and model weights are downloaded separately. Model weights retain their publishers' licenses. See sections 1 and 5 of THIRD_PARTY_LICENSES.md.

Before publishing a release, confirm that copyright ownership and release authority have been resolved and that all required technical gates pass.
