Description

This repository is responsible for implementing the paper submitted to the ASE Journal Special Issue on "Intelligent Techniques for Automated Code Review and Software Quality Evaluation", "TRACE: Context-Aware Automated Code Review via Graph-Based Reinforcement Learning".

Task:

We aim to develop a context-aware automated code review tool. By analyzing the code and its contextual information in OSS, this tool enhances the efficiency and accuracy of code reviews, helping developers quickly identify potential issues and improvement suggestions.

Folder Structure

context-aware-automated-code-review/
│
├── RQ1/                   # Source code directory for RQ1: Automated Comment Generation on task-Specific Models
│   ├── main.py           # Main program entry
│   ├── rl_main.py        # Code review logic
│   └── config.py         # The parameters setted in this file
│   └── AllocMethod/      # Allocation methods module including the deterministic allocation algorithms
│   ├── Database/         # Database module
│   │
│   ├── Metrics/          # Metrics module including all n-gram metrics in this paper
│   │
│   ├── Model/            # Model module including the actor-critic-based selection strategy and context-aware intergration comments generator.
│   │
│   ├── Utils/            # Utility functions module
│   │
│   ├── ShellScripts/     # Shell scripts for runing all experiments in RQ1 and RQ3.
│
├── RQ2/                  # Source code directory for RQ2: Automated Review Comment Generation on Large Language Model
│   ├── _main_3_5_.py     # Realizing the context-aware and context-free based review comments generation via commercial LLMs, including GPT, Deepseek and Gemini
│   └── utils             # Tests for utility functions
│   └── Resuls_Metrics    # Save the Test Results
│   └── Data              # Sampled Data for Testing
│
├── RQ3/                  # Results directory for RQ3: Ablation Study on Key Parameters
│   ├── summary_result.p  # summary all ablation results for different key parameters, including maxRL and episode.
│   └── XXX.xlsx/         # All resutls for different key paramerters setted.
│
├── README.md              # Project description file
└── requirements.txt       # Project dependencies file

Reproduce and Results

RQ1: Training and Testing with rl_main.py in RQ1/:

nohup python -u rl_main.py --rlModel msg/train_NN_5 --device "cuda:4" --llm_device "cuda:5" --task_type "msg" --maxRL 5  > ./Output/rl_logs/msg/run_train_NN5.log 2>&1 &
nohup python -u rl_main.py --rlModel msg/train_NN_5 --train_eval --task_type "msg" --device "cuda:1" --llm_device "cuda:1" --maxRL 5 > run_contextAware_codediff_maxRL5_1_1.log 2>&1 &

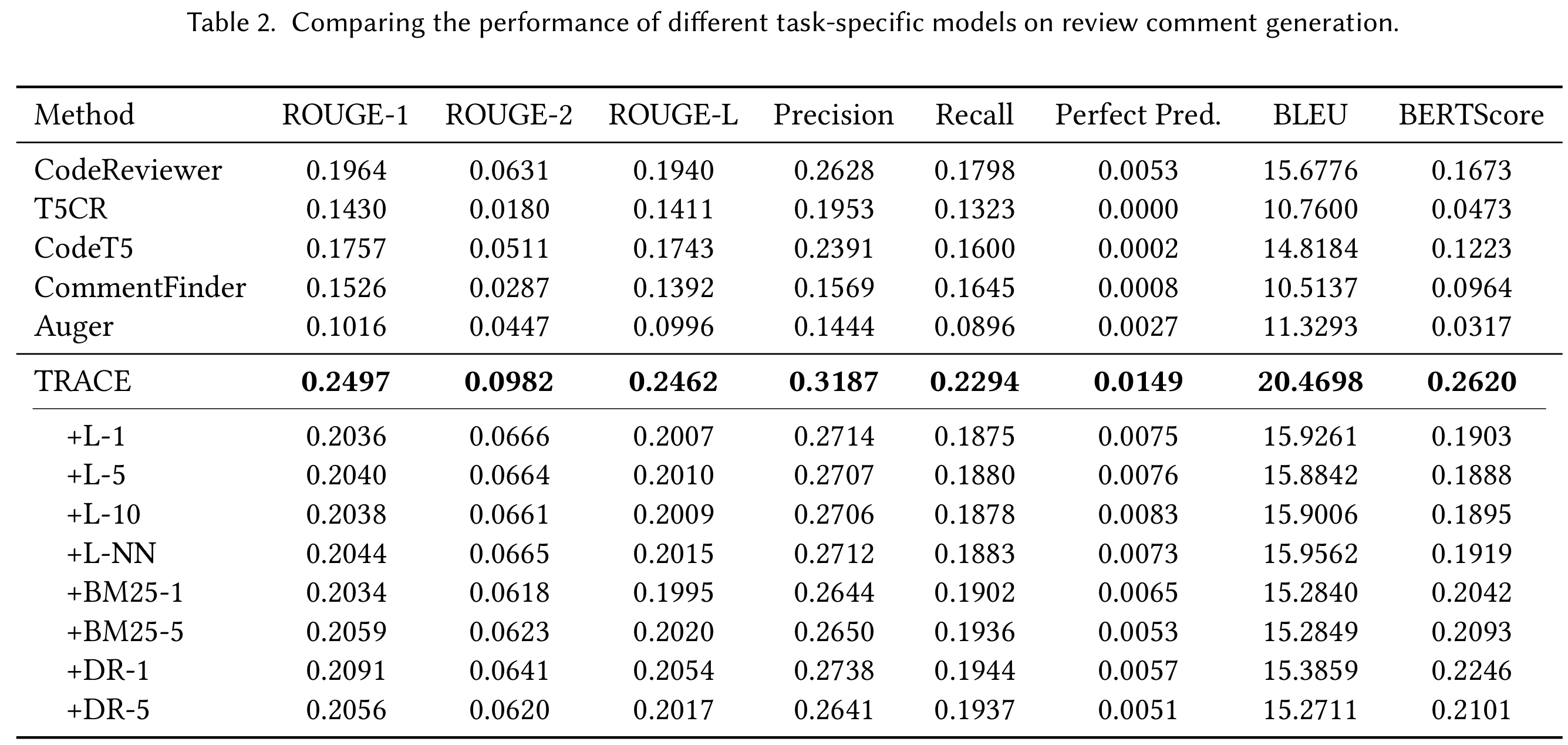

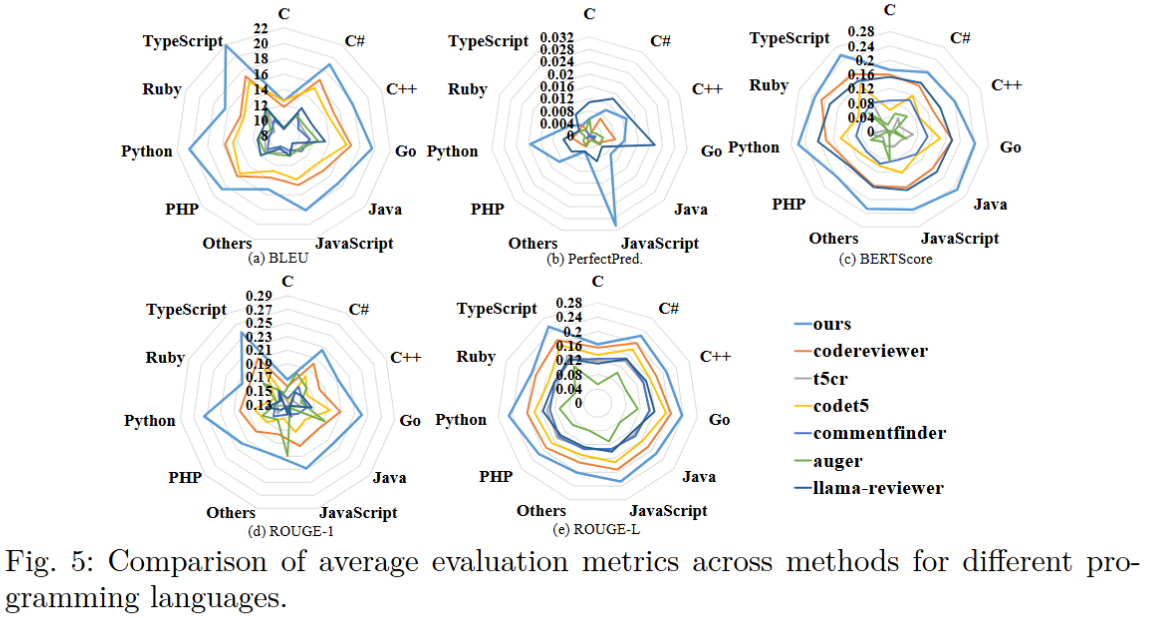

Results for RQ1:

RQ2: Testing the sampled data with main_3_5.py in RQ2/:

python _main_3_5_.py

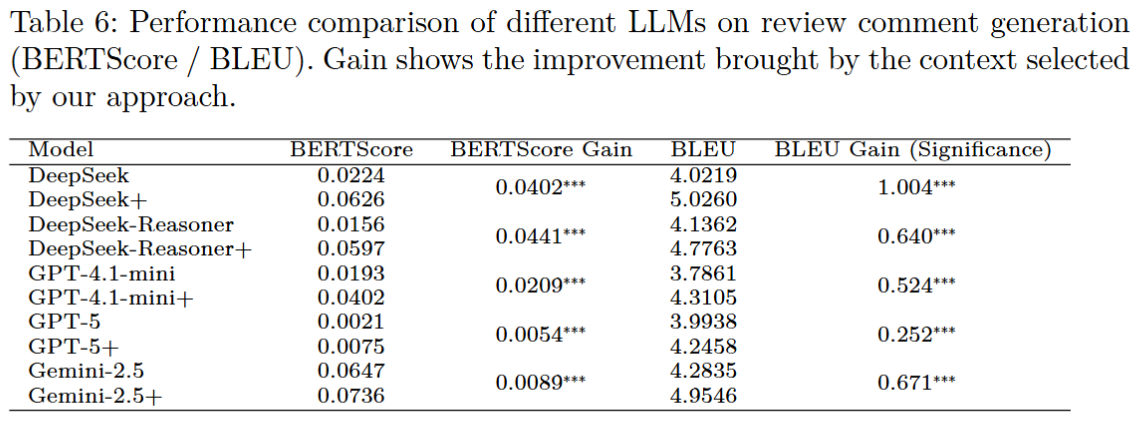

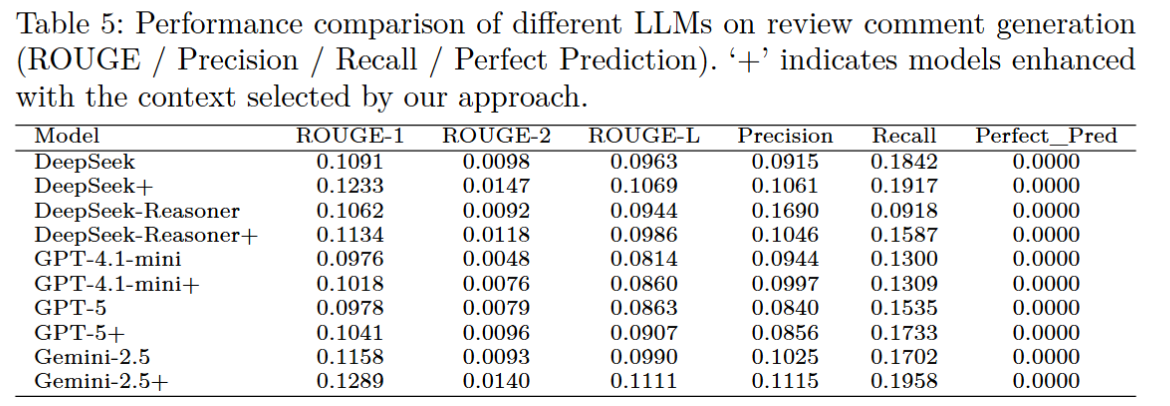

Results for RQ2:

RQ3: Adjusting the key parameters maxRL k in rl_main.py could answer RQ3:

nohup python -u rl_main.py --rlModel msg/train_NN_5 --train_eval --task_type "msg" --device "cuda:1" --llm_device "cuda:1" --maxRL k > run_contextAware_codediff_maxRL5_1_1.log 2>&1 &

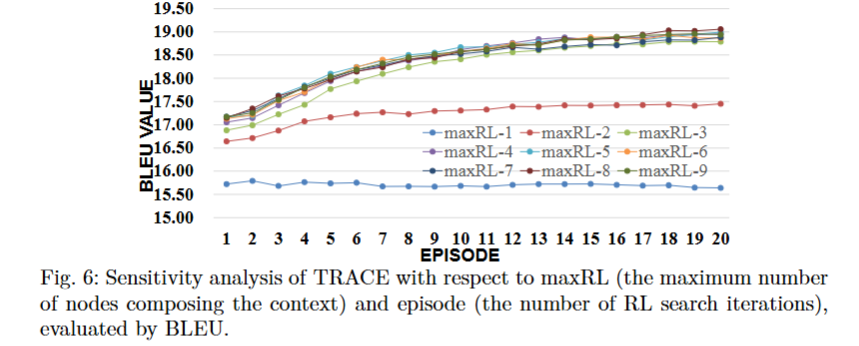

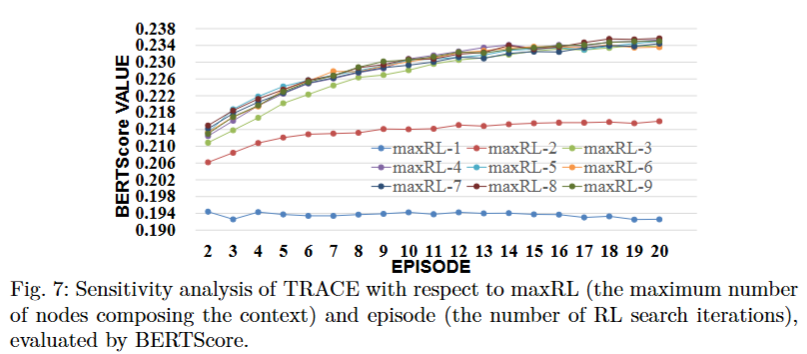

Results for RQ3:

Data Set

Cause the limitation of upload capacity, the data set constructed in this paper is in here.

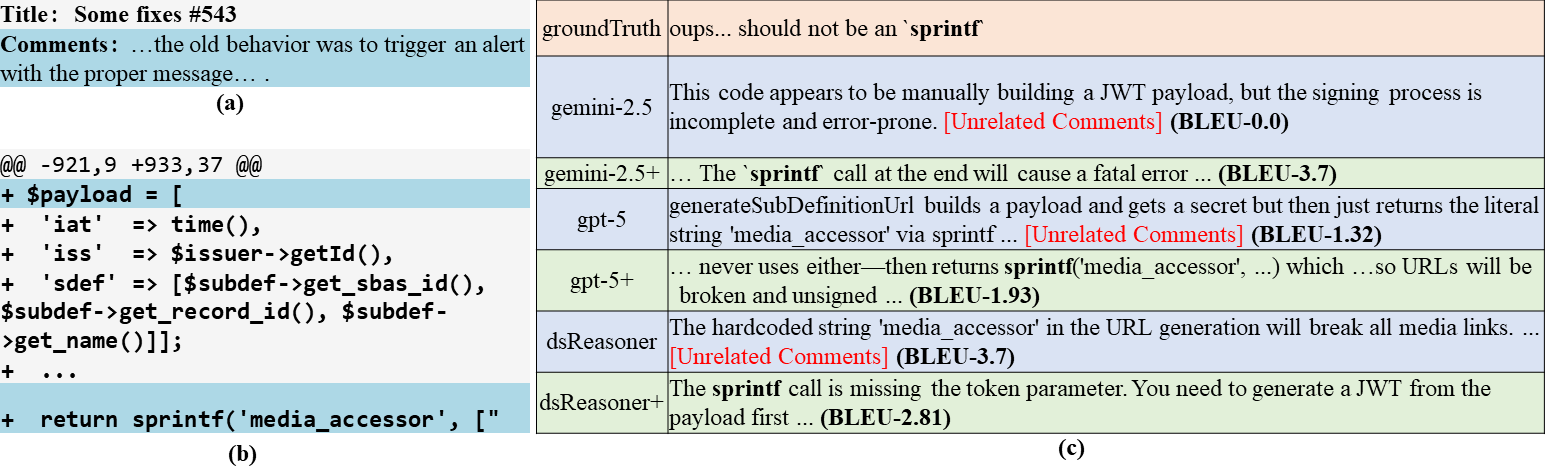

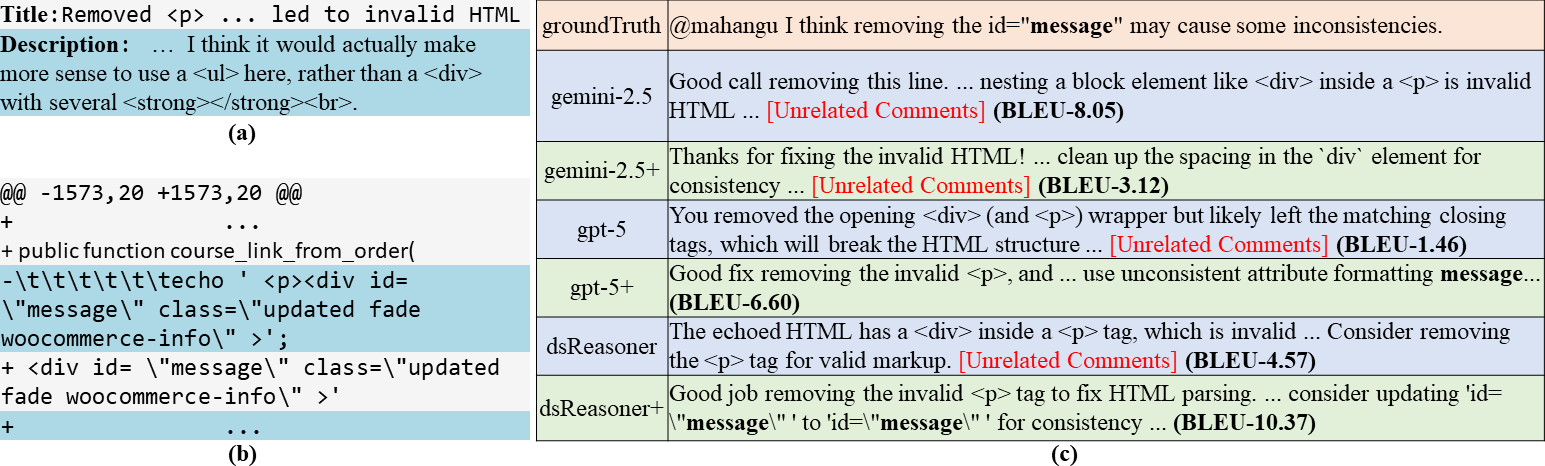

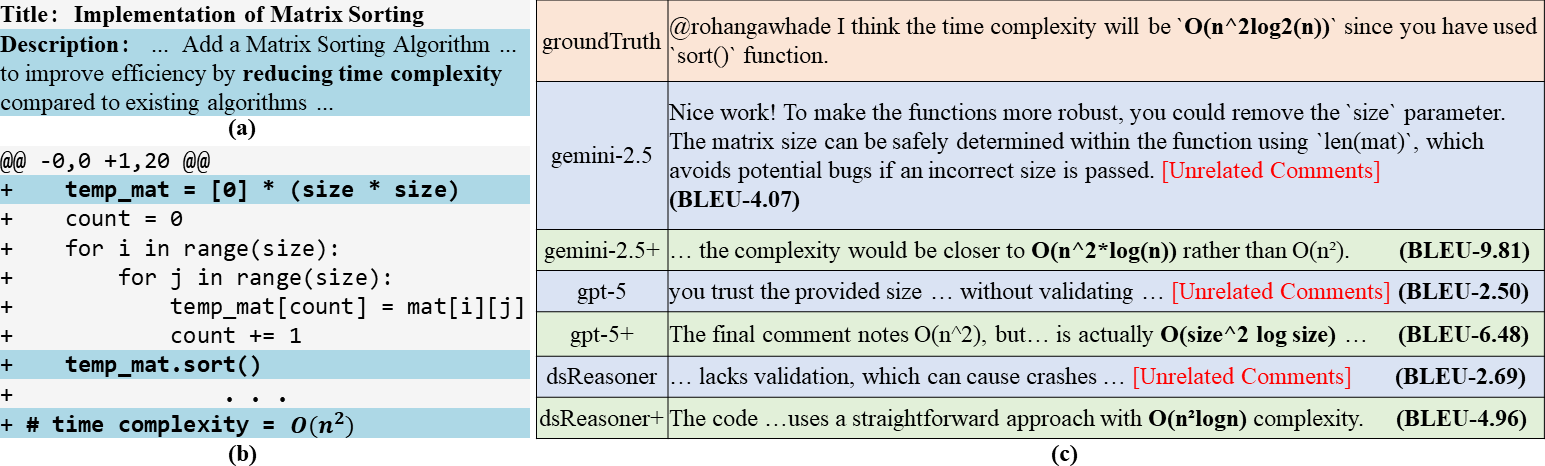

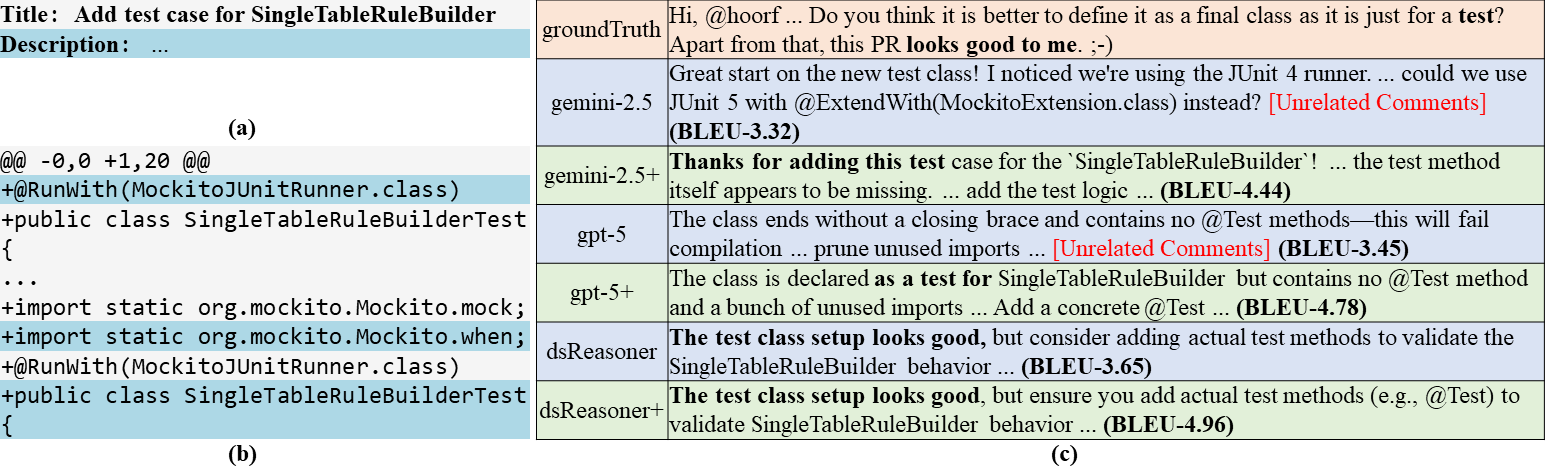

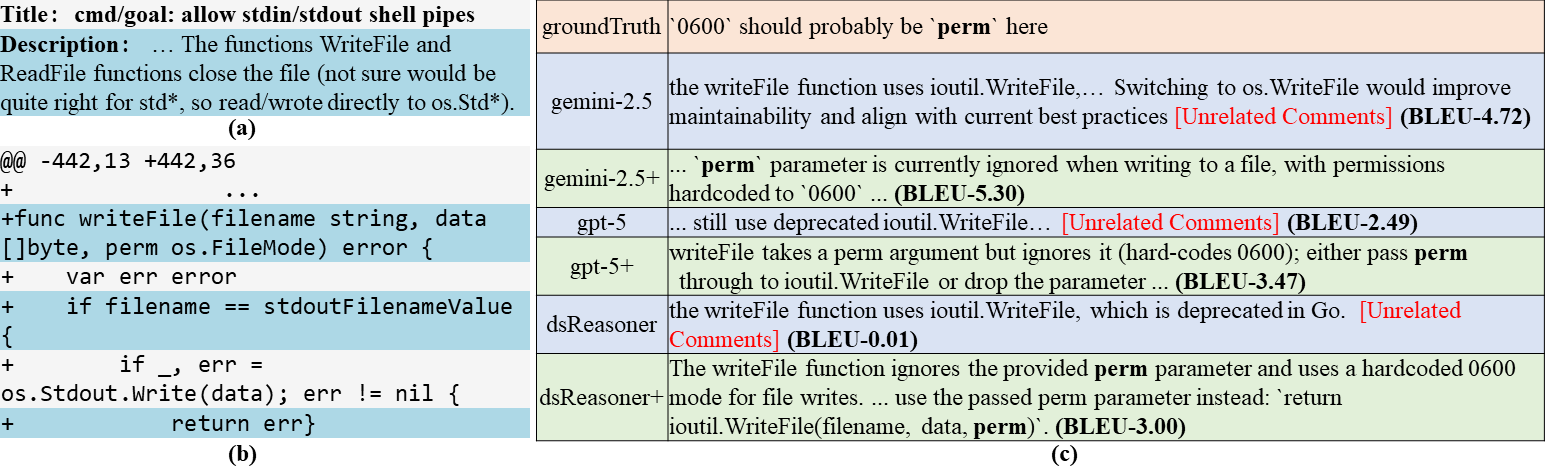

Case Studies

The case studies showcase the review improvements achieved by three popular LLMs—DeepSeek, GPT, and Gemini—using the context selected by our approach. All 200 cases are provided in the Case Studies/ folder. We present five representative real-world cases as follows:
