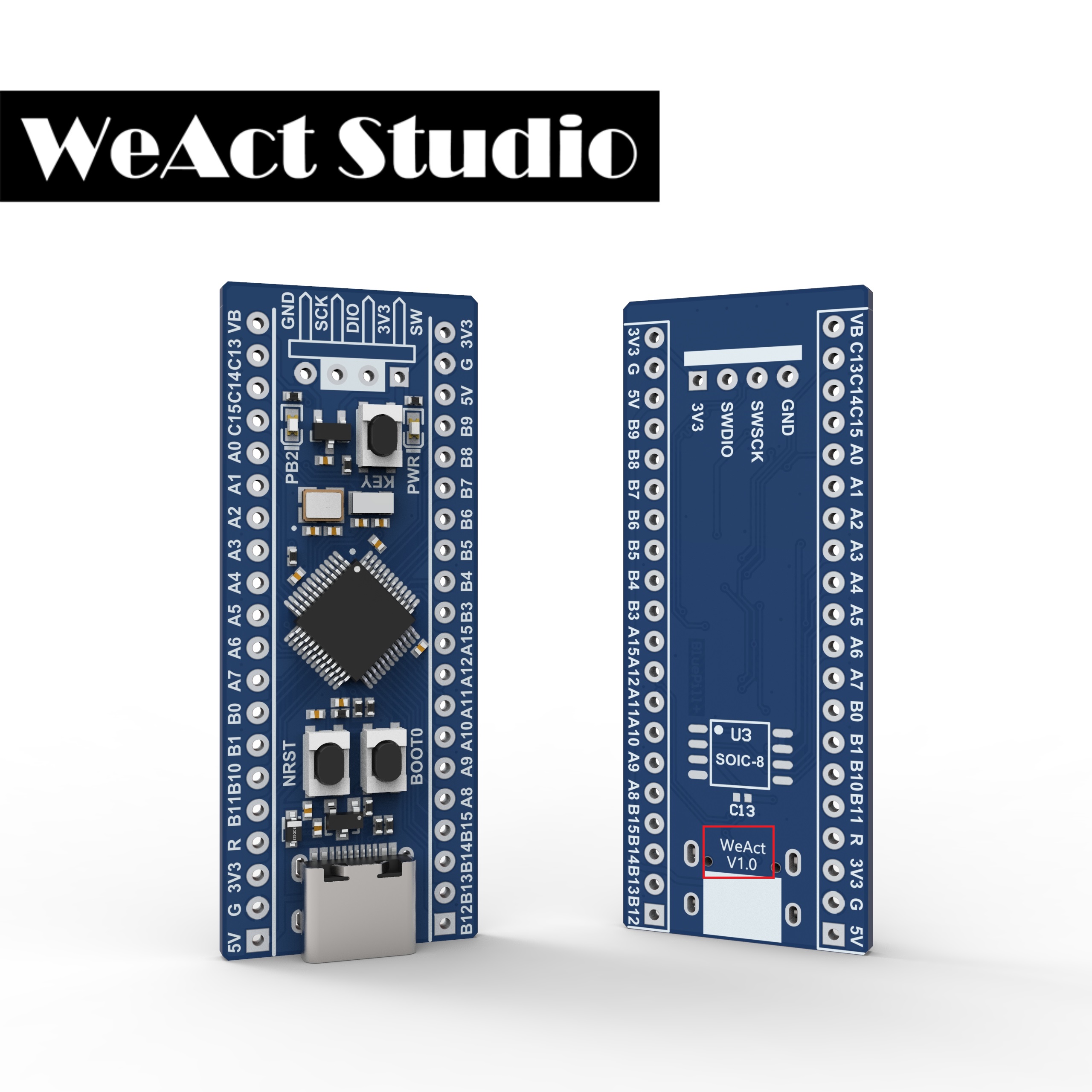

BluePill Plus / WeAct Studio 微行工作室 出品

• 中文版本

STM32F103C8T6

• 72Mhz,20KB RAM,64KB ROM

GD32F303CCT6

• 120Mhz,48KB RAM,256KB ROM

Lead-free process

Available for development with Arduino(Provide the bootloader, no GD32F303CCT6)

Purchase links

Taobao purchase link

WeAct Studio official store

Aliexpress purchase link

WeAct Studio Official Store
WeAct Studio One Store

Features

• STM32F103C8T6 ARM Cortex M3

• 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
• 64 Kbytes of Flash memory, 20 Kbytes of SRAM

• GD32F303CCT6 ARM Cortex M4

• 120 MHz maximum frequency,performance at 0 wait state memory access
• 256 Kbytes of Flash memory, 48 Kbytes of SRAM

• 8 MHz system crystal

• 32.768 KHz RTC crystal

• Blue LED PB2 Active high

• Red power LED PWR

• Button KEY PA0

• 2x20 side pins && 1x4 SW pins

• Size: 52.81 mm x 20.78 mm

• SPI Flash U3 Un place

  • PA4 CS
  • PA6 MISO
  • PA7 MOSI
  • PA5 SCK

• USB C

  • PA11 USB_DN
  • PA12 USB_DP
