AI-powered, open-source Learning Management System

Website · Admin Portal · Learner Portal · Contributing

---

Screenshots

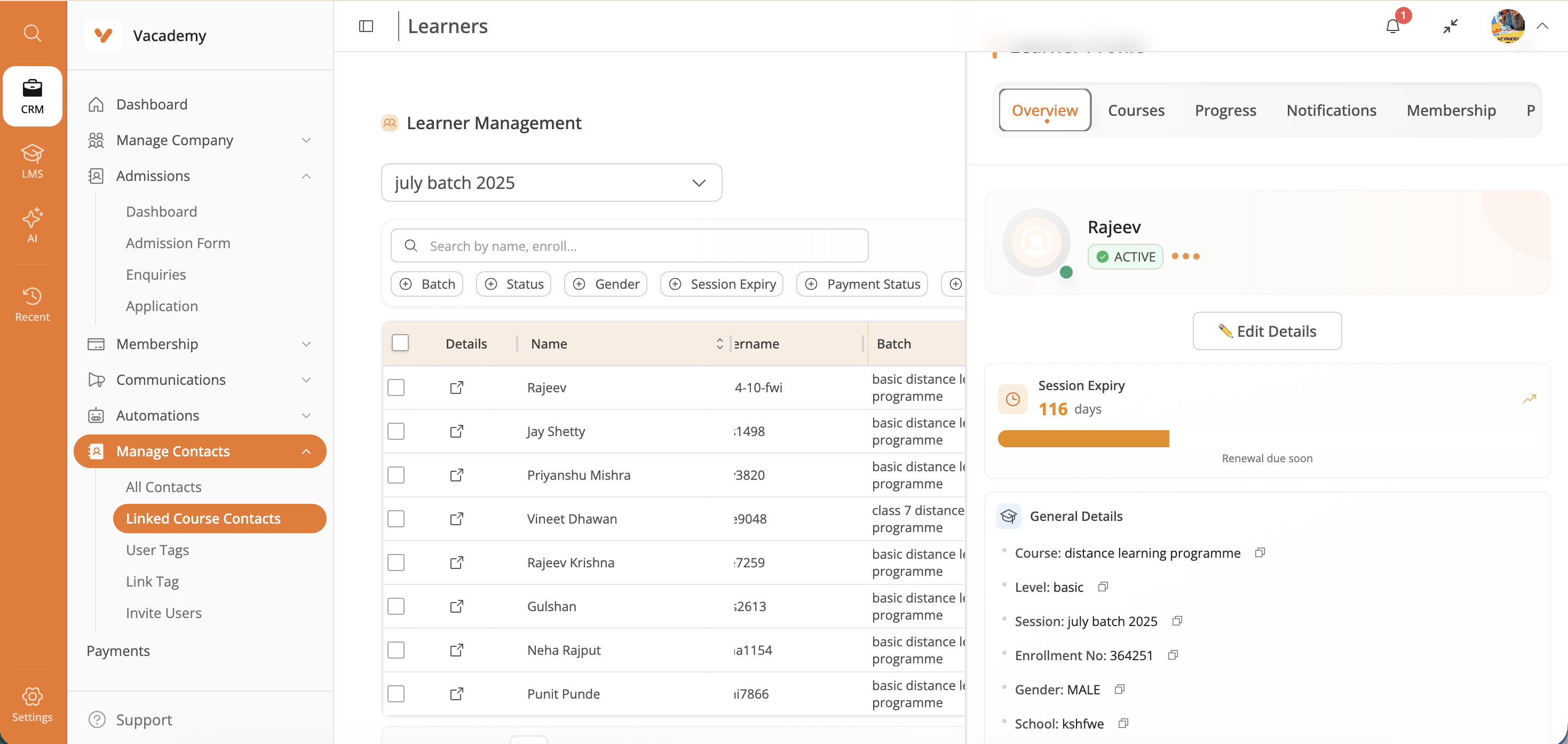

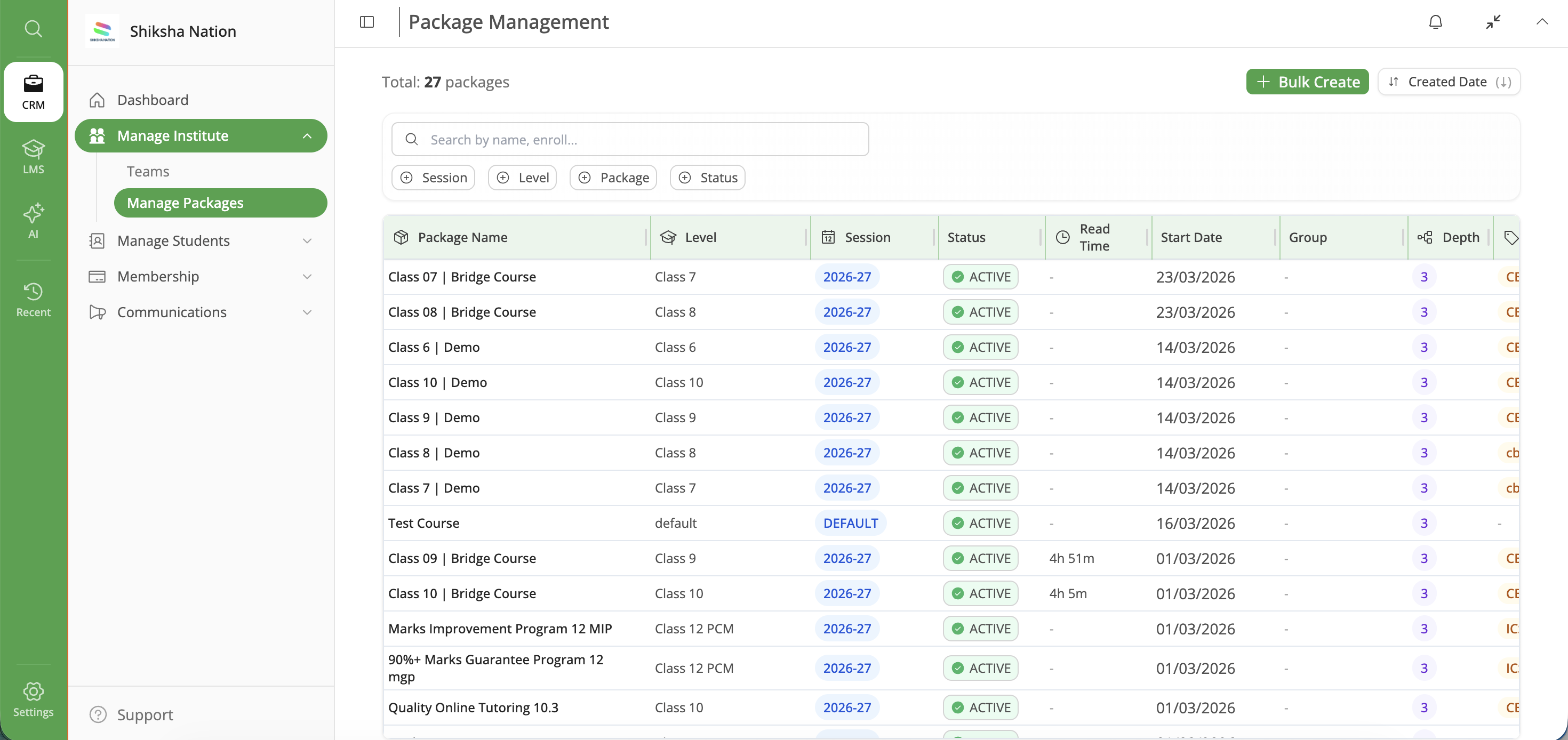

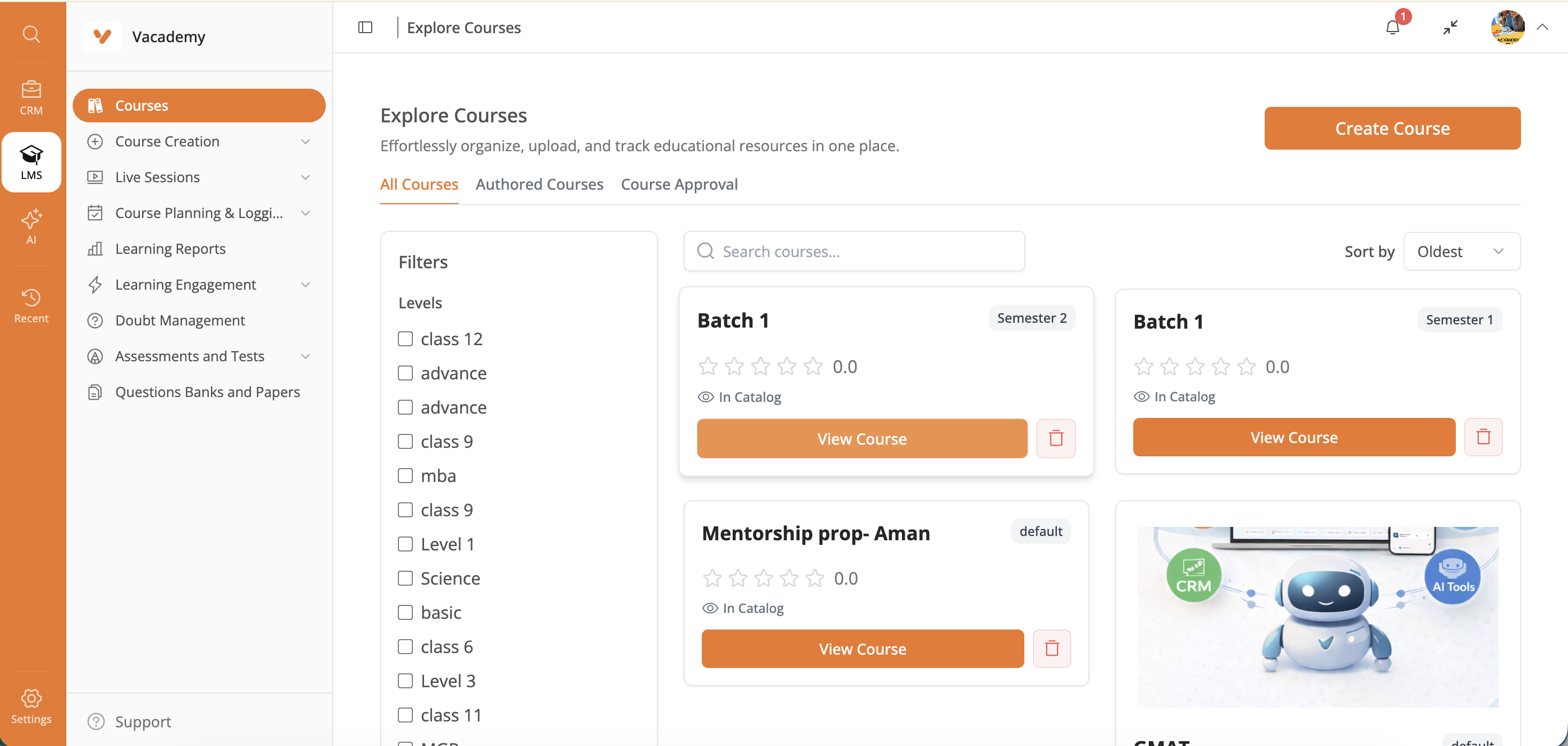

Admin Portal

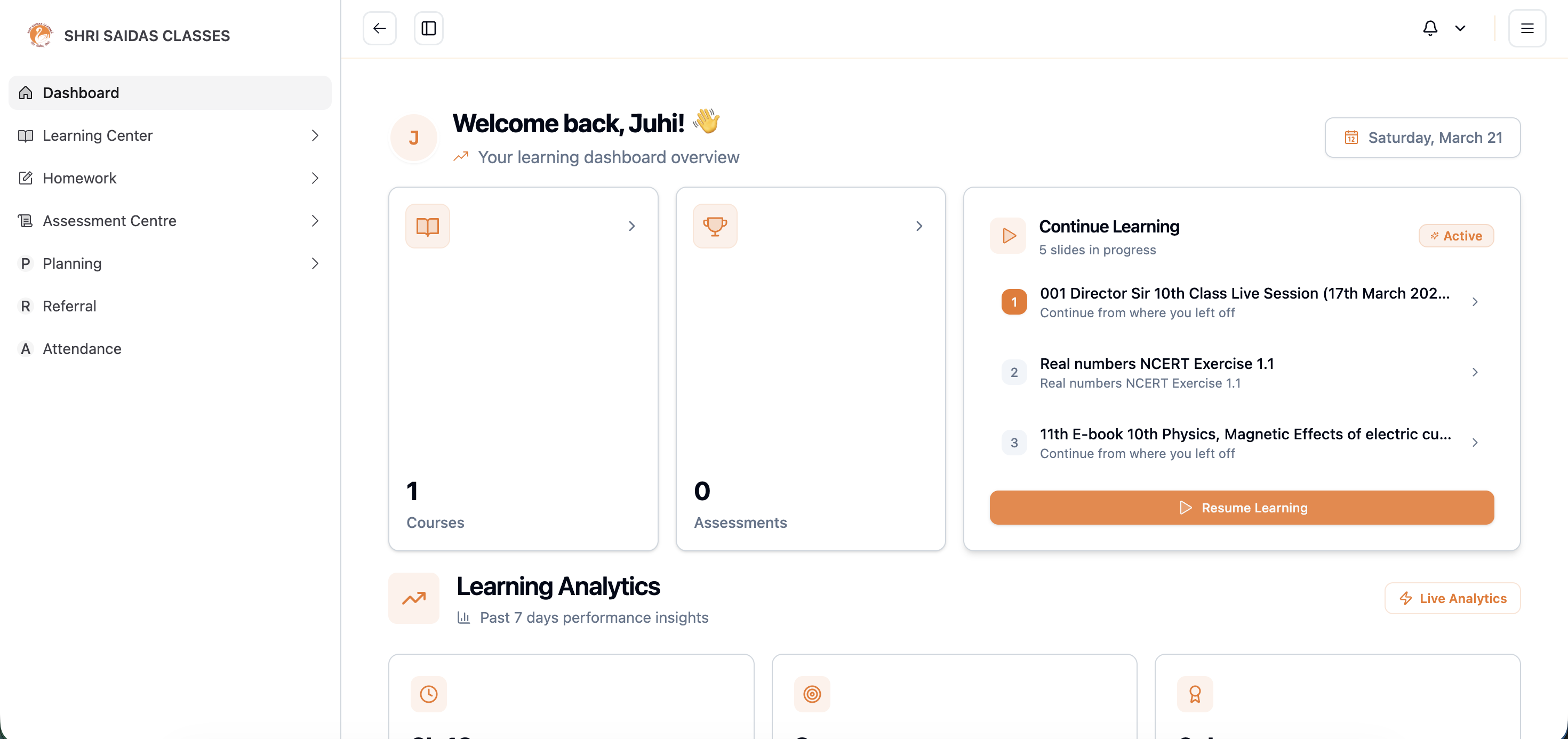

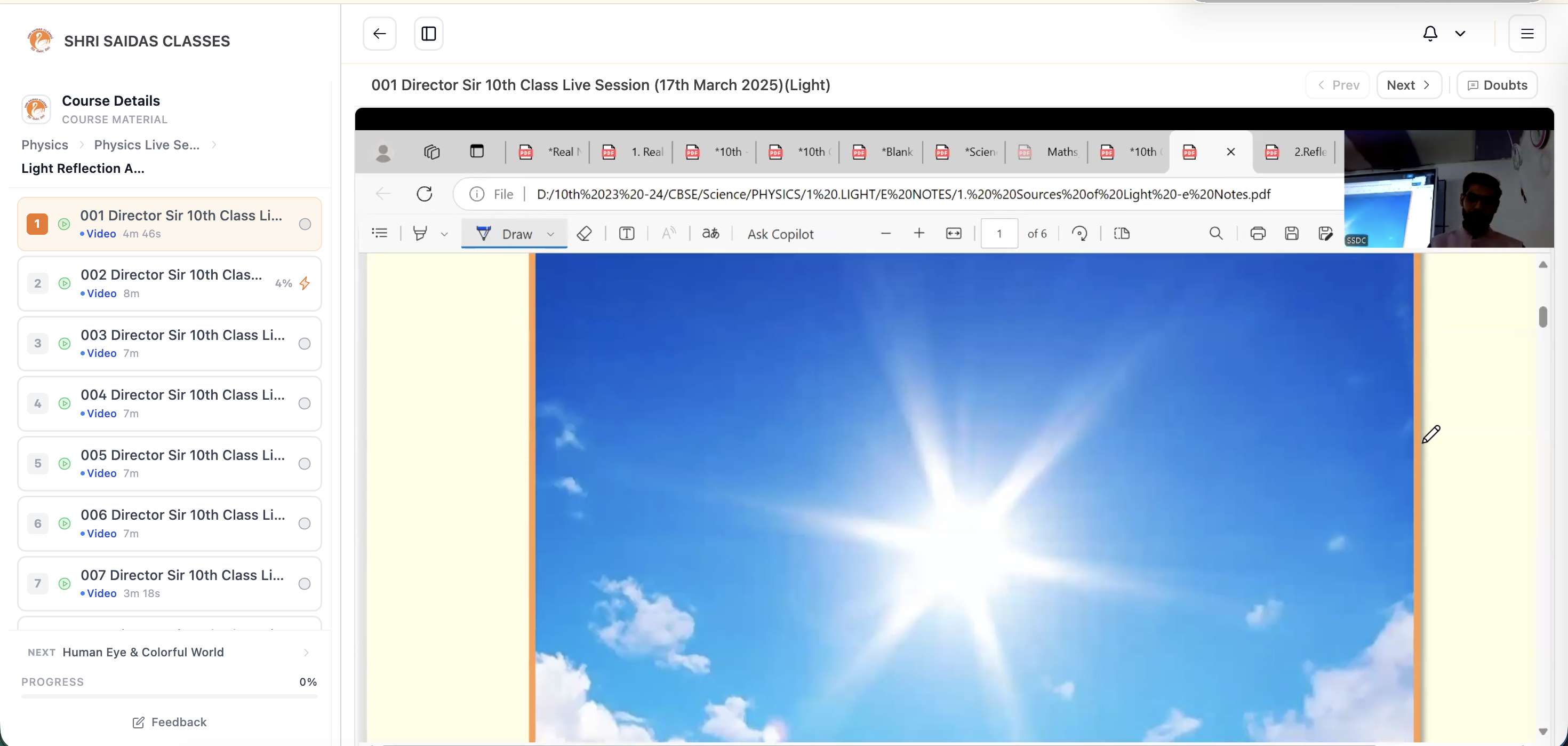

Learner Portal

---

🖥️ Interactive Feature Docs

Two self-contained HTML pages (no build step, no server — just open them in a browser) that walk through the product end to end:

# Open locally after cloning
open docs/features/admin-portal-demo.html      # macOS
xdg-open docs/features/vacademy-features.html  # Linux

GitHub renders .html files as source, not as pages. Clone the repo and open them locally, or view the same catalog in Markdown: vacademy-features.md. Both HTML pages are generated from JSON by the scripts in docs/features/build/.

📚 Documentation Index

🚀 Quick Links

• 🖥️ Admin Portal Demo - Interactive tour of the admin portal
• 📖 Feature Catalog - Every feature, module by module
• 🐳 Local Development Setup - Get started in 2 minutes
• 🏗️ Architecture Overview - Understand the system
• 📋 Service Access - Access points and APIs
• 🎯 Frontend Applications - Admin and learner dashboards

About

Vacademy is an AI-enabled, open-source Learning Management System (LMS) built with a microservices architecture. It provides comprehensive tools for educational institutions, instructors, and learners, including course management, assessment creation, study libraries, and learner tracking.

The platform features a robust backend powered by Spring Boot microservices and modern frontend applications built with React, ensuring scalability, flexibility, and maintainability while delivering a powerful educational experience.

🎯 Key Highlights

• 6 Microservices with dedicated databases and specialized functions
• Docker Compose for seamless local development
• Kubernetes/Helm for production deployment
• GitHub Actions CI/CD with automated testing
• Environment Variable based configuration management
• OAuth2 Integration (Google, GitHub)
• AI-Powered Features (VSmart tools)
• Multi-Channel Notifications (Email, WhatsApp, Push)

Features in Depth

Course Management

• Course Creation and Organization: Create and organize courses with levels, subjects, modules, chapters, and slides.
• Study Library: Centralized repository for all educational content.
• Document Management: Upload, organize, and share educational documents in folder structures.

User Management

• Institute Management: Create and manage educational institutions.
• Batch Management: Organize learners into batches for effective administration.
• Faculty Management: Manage faculty members and teaching staff.
• Student Management: Comprehensive tools for student enrollment, tracking, and management.
• CSV Bulk Import: Import students in bulk using CSV files.

Assessment System

• Assessment Creation: Create various types of assessments and examinations.
• Question Paper Management: Design and manage question papers.
• Live Testing: Support for real-time examinations.
• Homework Management: Create and assign homework to learners.
• AI-Powered Evaluation: Automated assessment grading using AI.

Learner Experience

• Learner Dashboard: Personalized dashboard for learners to access courses and track progress.
• Study Materials: Access to course materials, presentations, and documents.
• Assessment Participation: Take tests, exams, and complete homework assignments.
• Progress Tracking: Detailed progress reports and performance analytics.

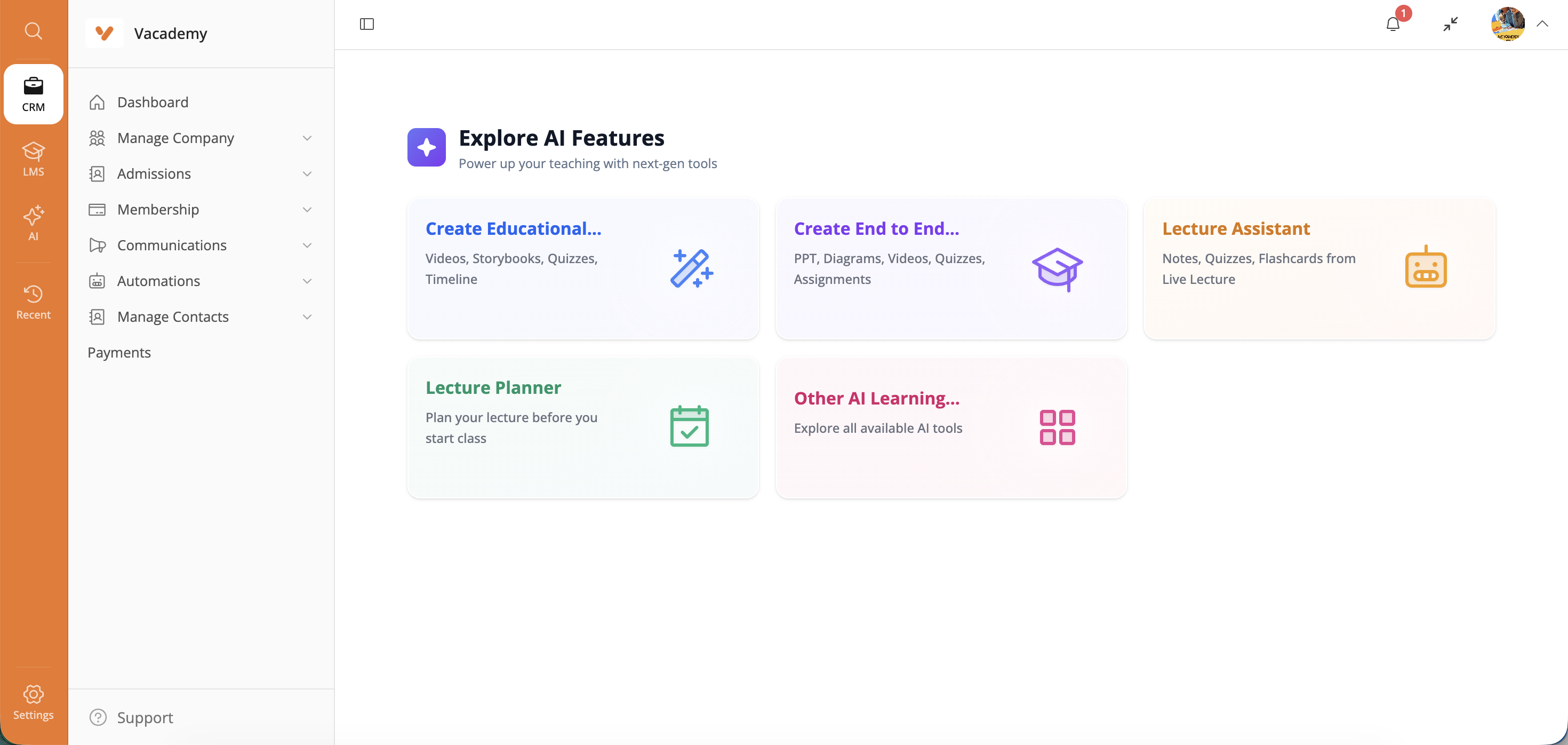

AI Features

• VSmart Audio: AI-powered audio processing tools.

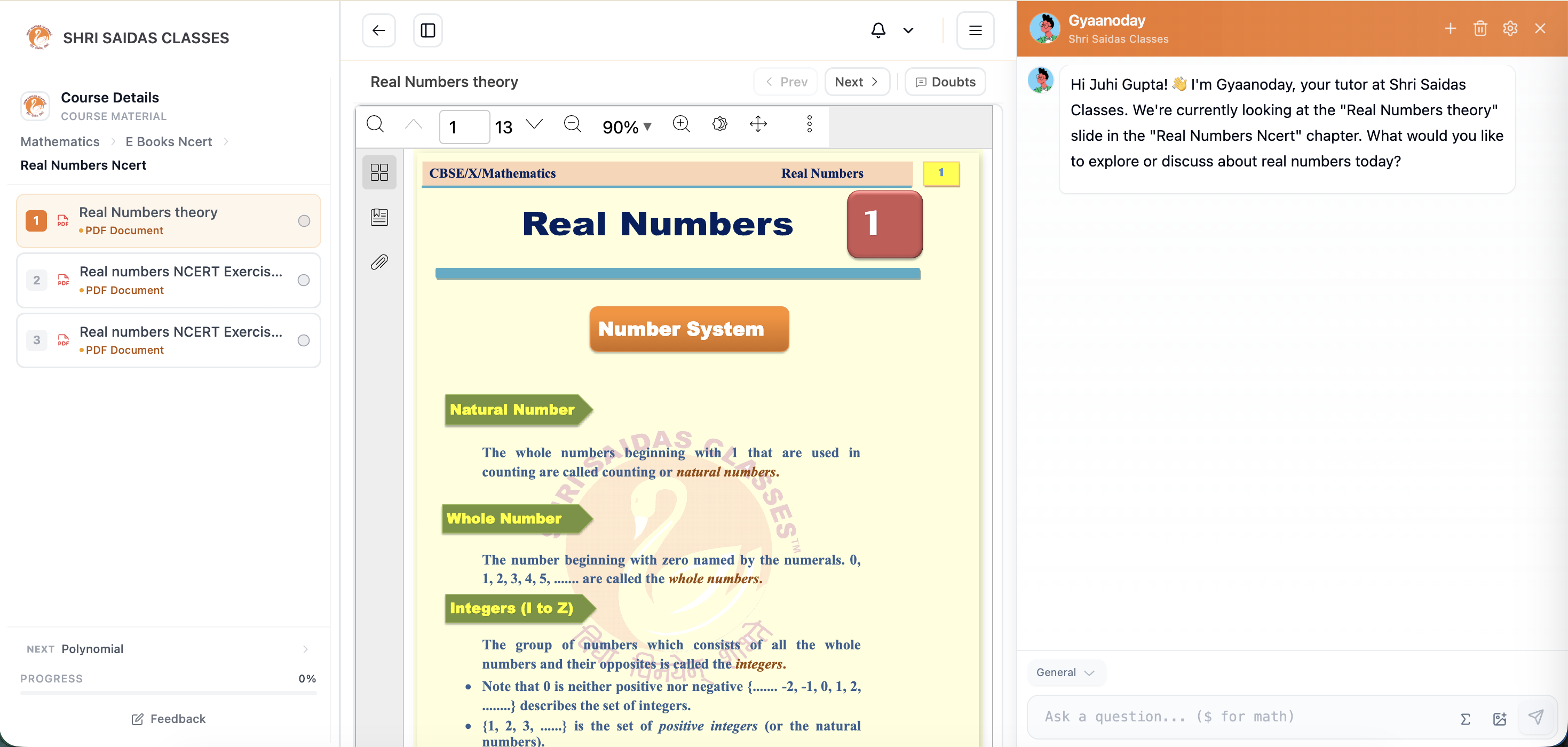

• VSmart Chat: Intelligent chatbot assistance.
• VSmart Extract: Automatic extraction of information from documents.
• VSmart Feedback: AI-generated feedback on assessments.

Presentation Mode

• Interactive Presentations: Create and deliver interactive course presentations.
• Presenter Controls: Advanced controls for presenters during live sessions.
• Learner Participation: Interactive features for learners during presentations.

Reporting and Analytics

• Learner Reports: Comprehensive reports on learner performance.
• Batch Reports: Aggregate reports for batches of students.
• Export Functionality: Export reports in various formats.
• Notification Settings: Configure report notification preferences.

Learner Tracking

• Activity Logging: Detailed tracking of learner activities.
• Progress Monitoring: Monitor individual and group progress through courses.
• Engagement Metrics: Measure student engagement with various course materials.

Tech Stack

Backend

• Java 17: Primary programming language.
• Spring Boot: Framework for building microservices.
• Maven: Dependency management and build tool.
• PostgreSQL: Primary database system.
• AWS S3: Cloud storage for media files.
• Kubernetes: Container orchestration for deployment.

Frontend

• React 18+: JavaScript library for building user interfaces.
• TypeScript: Type-safe JavaScript.
• Vite: Next-generation frontend tooling.
• TanStack Router: Modern routing library.
• TanStack Query: Data fetching and state management.
• TanStack Table: Table UI components.
• Radix UI: Unstyled, accessible UI components.
• Tailwind CSS: Utility-first CSS framework.
• Capacitor: For mobile app development (learner dashboard).

Tools & Utilities

• Docker: Containerization platform.
• Swagger UI: API documentation.
• GitHub Actions: CI/CD automation.
• Storybook: UI component development environment (admin dashboard).

🏗️ Backend Architecture & Services

The Vacademy platform uses a microservices architecture with 6 specialized services, each running on dedicated ports and databases for optimal scalability and maintainability.

Service Overview

Service Details

Common Service

• Shared utilities, models, and configurations
• Base classes and common functionality
• Cross-service dependencies and interfaces

Auth Service (Port 8071)

• User authentication and authorization
• OAuth2 integration (Google, GitHub)
• JWT token management
• Session handling and security

Admin Core Service (Port 8072)

• Course, module, subject, and chapter management
• Slide creation and presentation tools
• Learner invitation and enrollment
• Institute and faculty management
• Study library organization
• Administrative dashboard operations

Media Service (Port 8075)

• File upload and storage (AWS S3 integration)
• Media processing and optimization
• AI-powered content analysis
• Document management and organization

Community Service (Port 8073)

• User interaction and community features
• Discussion forums and collaboration tools
• Social learning components

Assessment Service (Port 8074)

• Assessment creation and scheduling
• Question paper management
• Live testing and evaluation
• Automated grading and feedback
• Performance analytics and reporting

Notification Service (Port 8076)

• Multi-channel notifications (email, push, WhatsApp)
• AWS SES integration for email delivery
• Event-driven notification system
• Communication preferences management

Deployment Architecture

Local Development

• Docker Compose orchestrates all services
• PostgreSQL with separate databases per service
• Redis for caching and session storage
• Nginx gateway for request routing

Production Deployment

• Kubernetes cluster with Helm charts
• AWS ECR for container registry
• RDS PostgreSQL for managed databases
• Application Load Balancer for traffic distribution
• GitHub Actions for CI/CD automation

🚀 Quick Start & Installation

Prerequisites

Before installing Vacademy, ensure you have:

• Docker and Docker Compose 4.0+ (recommended for local development)
• GitHub Personal Access Token with package read permissions
• Java 17 and Maven 3.8+ (optional, for building from source)
• Kubernetes cluster (for production deployment)

Note: The GitHub token is required for accessing shared dependencies in GitHub packages. Create a token here with read:packages permission.

🐳 Local Development (Recommended)

🚀 One-Command Setup:

# Clone and setup (2 minutes total)
git clone https://github.com/Vacademy-io/vacademy_platform.git
cd vacademy_platform
chmod +x scripts/local-dev-setup.sh
./scripts/local-dev-setup.sh

What the script does automatically:

• ✅ Validates system requirements (Docker, ports)
• ✅ Sets up all 6 microservices with Docker Compose
• ✅ Configures PostgreSQL with separate databases per service
• ✅ Sets up Redis for caching and sessions
• ✅ Configures Nginx gateway for service routing
• ✅ Performs comprehensive health checks
• ✅ Provides service status and access URLs

Manual Docker Compose Setup:

# 1. Clone the repository
git clone https://github.com/Vacademy-io/vacademy_platform.git
cd vacademy_platform

# 2. Start all services
docker-compose up -d

# 3. Check service status
docker-compose ps

# 4. View logs
docker-compose logs -f

Access Points:

• Gateway: http://localhost (Nginx routing to all services)
• Individual Services: http://localhost:807X (where X = 1-6)
• Swagger UI: Interactive API documentation at each service endpoint
• Service Health: /actuator/health endpoint on each service

🏗️ Production Deployment

Kubernetes with Helm:

# Deploy to Kubernetes cluster
helm install vacademy ./vacademy_devops/vacademy-services

# Update deployment
helm upgrade vacademy ./vacademy_devops/vacademy-services

GitHub Actions CI/CD:

• Automated deployment triggered on push to main branch
• Environment variables managed through GitHub Secrets
• ECR container registry integration
• Multi-environment support (staging/production)

🔧 Configuration Management

Environment Variables: All sensitive configuration is managed through environment variables:

• Local Development: Automatic setup with safe defaults
• Production: GitHub Secrets integration for secure deployment

Key Configuration Areas:

• Database connections (PostgreSQL per service)
• Service-to-service communication URLs
• OAuth credentials (Google, GitHub)
• AWS S3 storage configuration
• Email and notification settings
• External API keys (OpenAI, Gemini, YouTube, etc.)

📚 Documentation References

For detailed setup and configuration, see:

• Local Development Guide - Complete local setup instructions
• GitHub Secrets Configuration - Production secrets management
• Security Migration Summary - Security improvements overview
• Stage Properties Migration - Environment variable migration details

📁 Monorepo Structure

vacademy_platform/
├── frontend-admin-dashboard/       # Admin dashboard (React + Vite + TanStack)
├── frontend-learner-dashboard-app/ # Learner dashboard (React + Vite + Capacitor)
├── admin_core_service/             # Course management, admin operations
├── ai_service/                     # AI-powered features (Python)
├── assessment_service/             # Testing, evaluation, reports
├── auth_service/                   # Authentication, OAuth2
├── common_service/                 # Shared utilities and models
├── community_service/              # Community features
├── media_service/                  # File storage, media processing
├── notification_service/           # Email, WhatsApp, push notifications
├── engage-client/                  # Engagement client
├── docs/                           # Documentation
│   ├── deployment/                 # Setup & deployment guides
│   ├── guides/                     # Feature & integration guides
│   ├── sentry/                     # Observability & logging docs
│   └── jumpstart/                  # Jumpstart program docs
├── scripts/                        # Dev & deployment scripts
│   ├── db/                         # Database setup SQL
│   └── k8s/                        # Kubernetes scripts
├── vacademy_devops/                # Helm charts & DevOps config
├── docker-compose.yml              # Local development orchestration
├── pom.xml                         # Maven parent POM
└── Dockerfile

📋 Service Access Points

Local Development URLs

Health Check Endpoints

# Check individual service health
curl http://localhost:8071/auth-service/actuator/health
curl http://localhost:8072/admin-core-service/actuator/health
# ... (repeat for each service)

# Check all services via gateway
curl http://localhost/health

Development Tools

• Database Access: PostgreSQL at localhost:5432 with separate databases per service
• Cache: Redis at localhost:6379
• Log Monitoring: docker-compose logs -f [service-name]
• Service Scaling: docker-compose up -d --scale [service-name]=3

🎯 Frontend Applications

The platform includes two React applications with TypeScript:

Learner Dashboard (Mobile-First)

cd frontend-learner-dashboard-app
npm install && npm run dev

• Purpose: Student interface for courses, assessments, progress tracking
• Features: Responsive design, mobile app capabilities (Capacitor)
• Access: Typically runs on http://localhost:3000

Admin Dashboard (Desktop-Focused)

cd frontend-admin-dashboard
npm install && npm run dev

• Purpose: Administrative interface for course management, analytics
• Features: Advanced tools, reporting, presentation mode
• Access: Typically runs on http://localhost:3001

Note: Frontend development is optional for backend-focused development. The Docker Compose setup focuses on backend services.

Frontend

The Vacademy platform features two distinct frontend applications:

Learner Dashboard

A responsive, mobile-first application designed for learners to access educational content and participate in assessments.

Key Features:

• Responsive design with Capacitor for mobile app capabilities.
• Course library access and navigation.
• Assessment participation.
• Progress tracking.
• Notification system.
• Multi-language support.

Tech Stack:

• React with TypeScript
• Vite for building and bundling
• TanStack Router for navigation
• TanStack Query for data fetching
• Capacitor for cross-platform mobile capabilities
• Tailwind CSS for styling

Admin Dashboard

A comprehensive administration interface for educational institutions and instructors.

Key Features:

• Course creation and management.
• Assessment design and evaluation.
• Student management.
• Reports and analytics.
• AI-powered tools for content creation and evaluation.
• Presentation mode for interactive teaching.

Tech Stack:

• React with TypeScript
• Vite for building and bundling
• TanStack Router for navigation
• TanStack Query for data fetching
• Storybook for component development
• Tailwind CSS for styling

Routes

Learner Dashboard Routes

• Authentication
  • /login: User login
  • /register: New user registration
  • /login/forgot-password: Password recovery
  • /logout: User logout
• Dashboard
  • /dashboard: Main user dashboard
  • /dashboard/notifications: User notifications
• Study Library
  • /study-library: Main study library
  • /study-library/courses: Course listing
  • /study-library/courses/levels: Level selection
  • /study-library/courses/levels/subjects: Subject selection
  • /study-library/courses/levels/subjects/modules: Module selection
  • /study-library/courses/levels/subjects/modules/chapters: Chapter selection
  • /study-library/courses/levels/subjects/modules/chapters/slides: Slide viewer
• Assessment
  • /assessment/examination: Available examinations
  • /assessment/examination/$assessmentId: Assessment details
  • /assessment/examination/$assessmentId/LearnerLiveTest: Take live assessment
  • /assessment/examination/$assessmentId/assessmentPreview: Preview assessment
  • /assessment/reports/student-report: Student assessment reports
• User Management
  • /user-profile: User profile view
  • /user-profile/edit: Edit user profile
  • /delete-user: Delete user account
  • /institute-selection: Select learning institute
  • /learner-invitation-response: Respond to institute invitations

Admin Dashboard Routes

• Authentication
  • /login: Admin login
  • /signup: New admin registration
  • /login/forgot-password: Password recovery
• Dashboard
  • /dashboard: Main admin dashboard
• Study Library Management
  • /study-library: Main study library management
  • /study-library/courses: Course management
  • /study-library/present: Presentation mode
  • /study-library/reports: Study library reports
• Assessment Management
  • /assessment/assessment-list: List of assessments
  • /assessment/question-papers: Question paper management
• Evaluation Tools
  • /evaluation/evaluation-tool: Evaluation tools
  • /evaluation/evaluations: Evaluation management
• AI Center
  • /ai-center/ai-tools: AI tool selection
  • /ai-center/ai-tools/vsmart-audio: AI audio processing
  • /ai-center/ai-tools/vsmart-chat: AI chatbot interface
  • /ai-center/ai-tools/vsmart-extract: AI content extraction
  • /ai-center/ai-tools/vsmart-feedback: AI assessment feedback
• Institute Management
  • /manage-institute/batches: Batch management
  • /manage-institute/sessions: Session management
  • /manage-institute/teams: Team management
• Student Management
  • /manage-students/students-list: Student listing
  • /manage-students/invite: Invite students
  • /manage-students/enroll-requests: Manage enrollment requests

🚀 Deployment & Operations

Local Development

• One-command setup with ./scripts/local-dev-setup.sh
• Docker Compose orchestration for all services
• Automatic database setup with separate schemas per service
• Hot reload and easy debugging capabilities

Production Deployment

• Kubernetes/Helm charts for scalable deployment
• GitHub Actions CI/CD with automated testing and deployment
• Environment-based configuration through GitHub Secrets
• Multi-environment support (staging, production)

Security & Configuration

• 38 GitHub Secrets for secure configuration management
• Environment variable based configuration (no hardcoded values)
• OAuth2 integration for secure authentication
• Automated secret injection in deployment workflows

📝 Contributing

We welcome contributions! Here's how to get started:

1. Fork the repository and clone locally
2. Set up local development using our Docker Compose setup
3. Create a feature branch for your changes
4. Test thoroughly using provided health checks and test suites
5. Submit a pull request with detailed description

Development Guidelines

• Follow existing code patterns and naming conventions
• Add tests for new functionality
• Update documentation as needed
• Ensure all services pass health checks
• Test both local and containerized environments

📞 Support & Resources

Getting Help

• Issues: Use GitHub Issues for bug reports and feature requests
• Discussions: Join our community discussions for questions
• Documentation: Comprehensive guides in the /docs folder

Key Resources

• Local Development Guide - Complete setup instructions
• API Documentation - Interactive API docs (when running locally)
• Architecture Docs - System design and security
• Deployment Guide - Production deployment instructions

---

📋 System Requirements

For Local Development

• Docker Desktop 4.0+ (8GB RAM recommended)
• Git for version control
• Modern browser for accessing web interfaces

For Production Deployment

• Kubernetes cluster (EKS, GKE, or similar)
• PostgreSQL database (RDS recommended)
• AWS S3 for file storage
• GitHub repository with Actions enabled

Optional Tools

• kubectl for Kubernetes management
• helm for chart deployment
• Java 17 + Maven for building from source
• Node.js 18+ for frontend development

---

---

🤖 AI Features

Vacademy integrates AI deeply into the teaching and learning experience — not as an add-on, but as a core part of the platform.

For Educators (Admin Portal)

For Learners (Learner Portal)

Try it live: explore.vacademy.ai

---

📊 How Vacademy Compares

Vacademy is the only open-source LMS with native AI capabilities built into both the teaching and learning experience.

---

Star History

---

🎯 What Makes Vacademy Special?

• AI-Native LMS: The only open-source LMS with built-in AI for content creation, tutoring, and assessment
• Modern Architecture: 6 microservices with dedicated databases
• Developer Friendly: One-command Docker Compose setup
• Production Ready: Kubernetes/Helm deployment with CI/CD
• Multi-Platform: Web + mobile apps for learners and administrators

Ready to transform education with AI-powered learning? Start here: Local Development Guide → Get running in 2 minutes!

---

Built with ❤️ by the Vacademy community • Contribute • Report Issues • Join Discussions
