RAG-IGBench: Innovative Evaluation for RAG-based Interleaved Generation in Open-domain Question Answering

Official benchmark repository for "RAG-IGBench: Innovative Evaluation for RAG-based Interleaved Generation in Open-domain Question Answering".

RAG-IGBench evaluates RAG-based Interleaved Generation (RAG-IG), where multimodal models generate image-text interleaved answers for open-domain questions using retrieved documents and images. The repository releases the benchmark data, generation scripts, and evaluation code.

1. Paper

Rongyang Zhang, Yuqing Huang, Chengqiang Lu, Qimeng Wang, Yan Gao, Yi Wu, Yao Hu, Yin Xu, Wei Wang, Hao Wang, and Enhong Chen. RAG-IGBench: Innovative Evaluation for RAG-based Interleaved Generation in Open-domain Question Answering. NeurIPS 2025 Datasets and Benchmarks Track Poster, 2025.

Paper / PDF / Dataset / Project Page / Code / Citation

The paper introduces a benchmark for evaluating multimodal RAG systems that produce coherent image-text interleaved answers. It includes data from social platforms, generation scripts for common MLLMs, and metrics covering text quality, image quality, and image-text consistency.

2. Highlights

• Defines RAG-based Interleaved Generation for open-domain question answering.
• Releases Chinese and English benchmark data through HuggingFace and this repository.
• Provides generation scripts for GPT-4o, Claude, Gemini, LLaVA-OV, InternVL2.5, Qwen2/2.5-VL, NVLM-D, and DeepSeek-VL2.
• Evaluates text quality, image quality, and cross-modal alignment with benchmark-specific metrics.

3. Method At A Glance

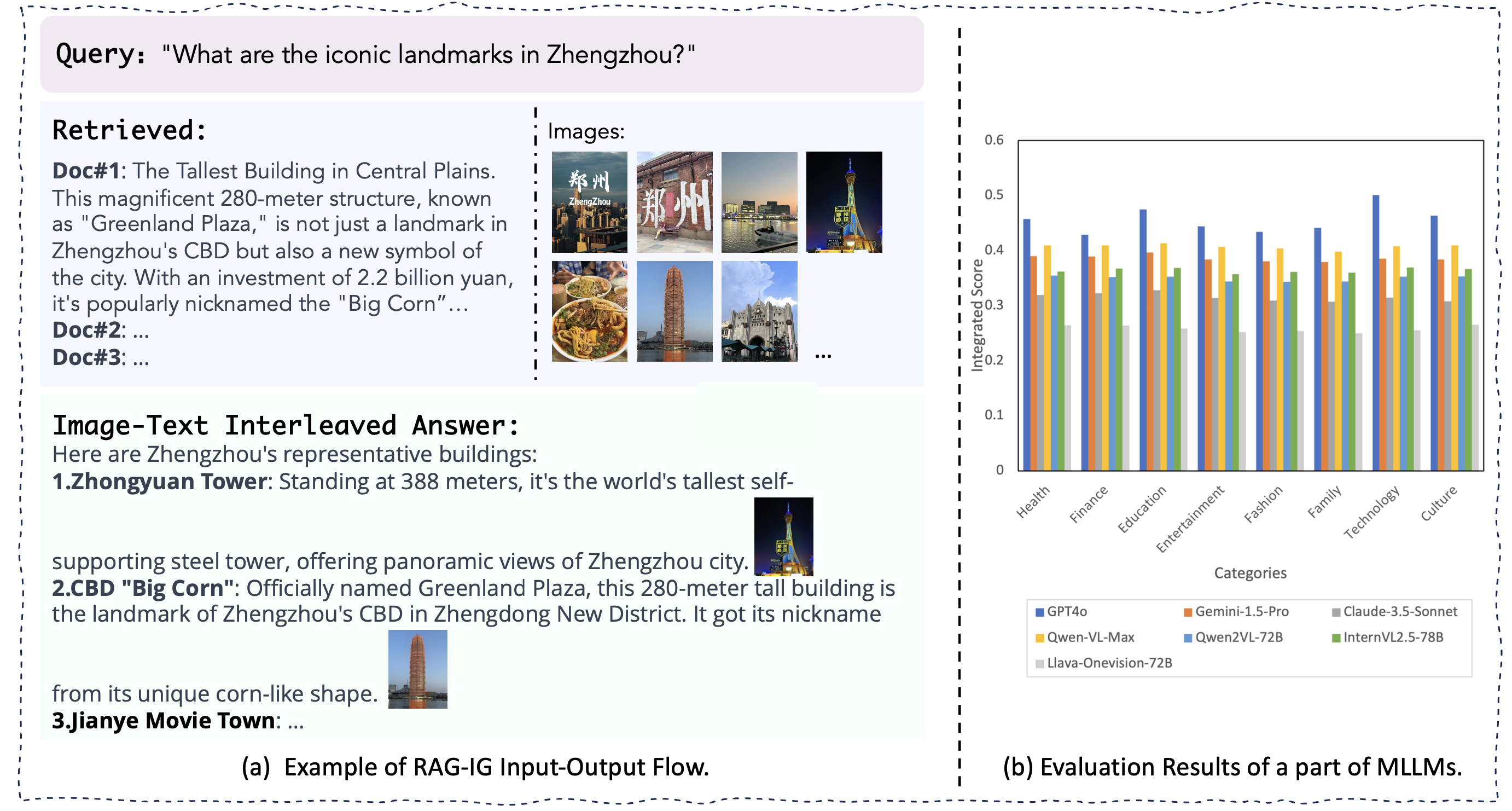

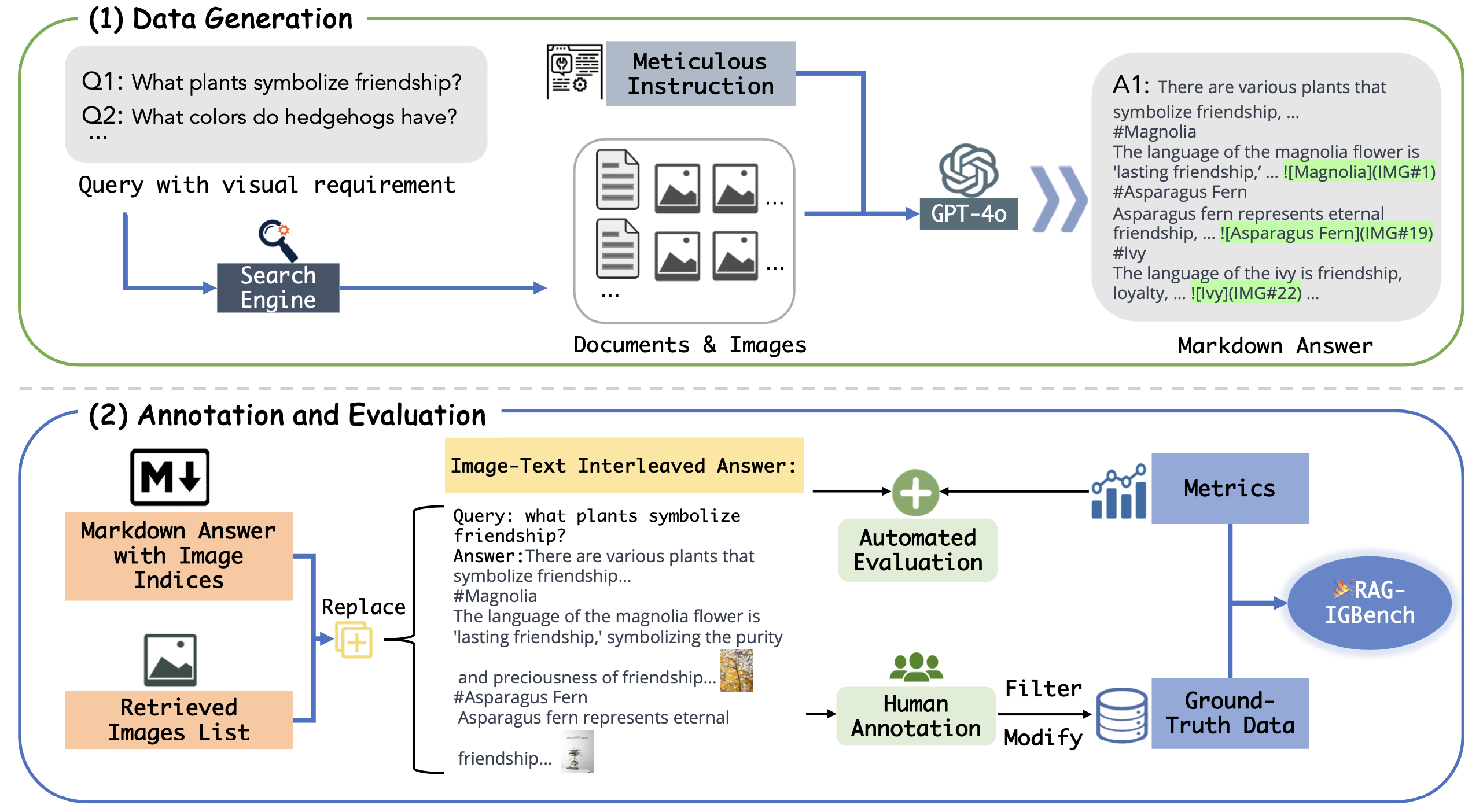

RAG-IG retrieves documents and images, feeds multimodal evidence to an MLLM, asks the model to generate markdown with image indices, and replaces those indices with retrieved images to form the final interleaved answer.

4. Repository Structure

.
|-- assets/                 # Original README figures
|-- model_generation/       # Model-specific answer generation scripts
|-- score/                  # Evaluation metrics and aggregation
|-- RAG_IG_CH.jsonl         # Chinese benchmark split
|-- RAG_IG_EN.json          # English benchmark split
|-- download_images.py      # Optional image downloading/checking helper
|-- RAG_IGBench.pdf         # Paper PDF snapshot
`-- docs/                   # Project page and README assets

5. Installation

Install the dependencies required by the selected model generation scripts and scoring pipeline. Some generation scripts require API keys or local model checkpoints.

6. Data / Models

The benchmark is hosted on HuggingFace and provided in two versions:

• RAG_IG_CH.jsonl
• RAG_IG_EN.json

Each sample contains an id, query, retrieved documents, retrieved images, cleaned ground-truth interleaved answer, category labels, and split.

If you need local images, run:

python download_images.py

The expected image layout is:

INPUT_DIR/
|-- data.json
`-- images/
    |-- 1/
    |   |-- 1/
    |   `-- 2/
    `-- ...

7. Quick Start

Generate model answers with a script under model_generation/, after setting the model path, API key, and dataset path required by that model. The output JSONL should store each model response under the key model_answer.

Score generated answers:

python score/eval.py

Aggregate final scores:

python score/scores.py

8. Reproducing Results / Evaluation

The evaluation covers three dimensions:

• Text quality: ROUGE-1
• Image quality: modified Edit Distance and Kendall Score
• Image-text consistency: CLIP Score and Alignment Score

The details and metric definitions are described in the paper.

9. Configuration Notes

For score/eval.py, configure:

output_dir = ''
input_file = ''
clip_model_path = ''
embedding_model_path = ''

10. Experimental Highlights

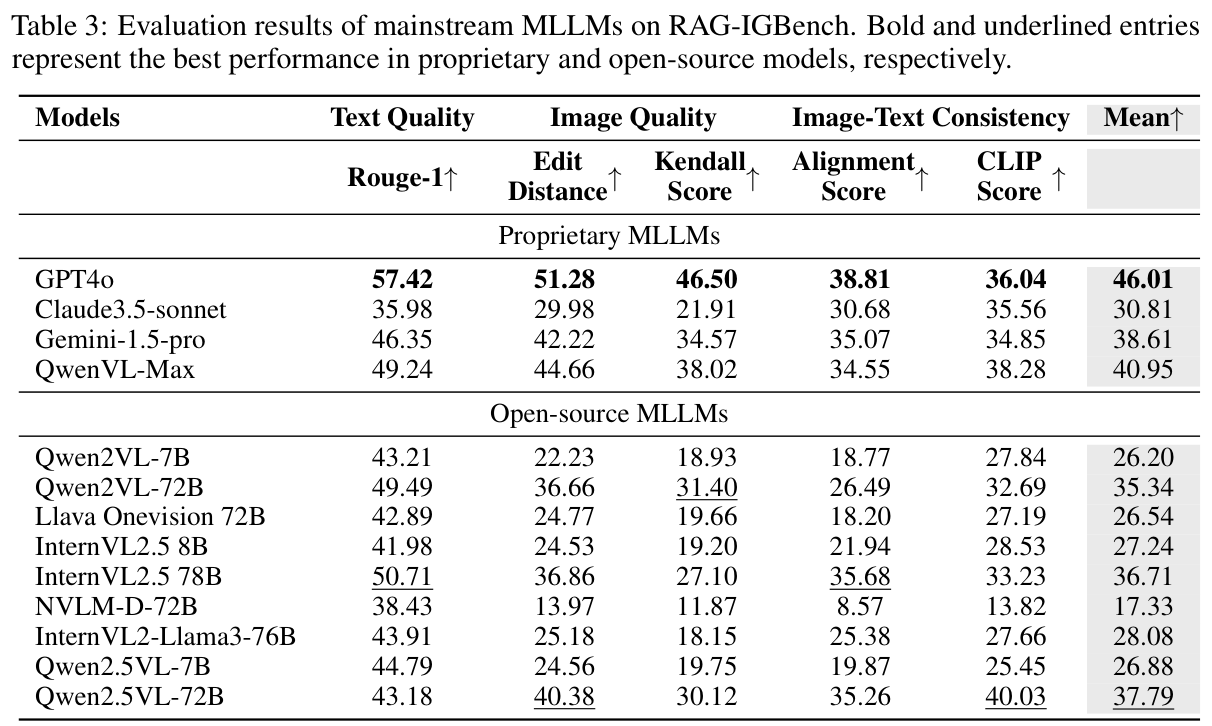

The first table reports benchmark scores for proprietary and open-source MLLMs; the second shows how fine-tuning on RAG-IGBench transfers to related multimodal benchmarks.

The benchmark exposes whether MLLMs can use retrieved multimodal evidence to generate answers that are textually useful, visually grounded, and coherent as image-text interleaved outputs.

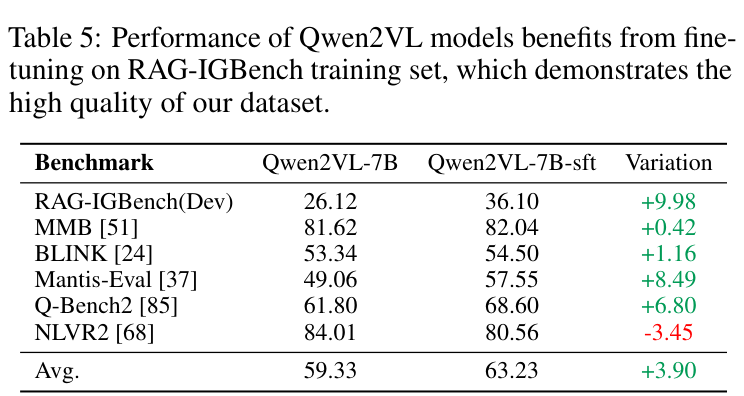

Fine-tuning Qwen2VL-7B on the RAG-IGBench training set improves the development score from 26.12 to 36.10 (+9.98), while also improving Mantis-Eval by +8.49 and Q-Bench2 by +6.80.

Conclusion: RAG-IGBench is not only an evaluation set; its training split can improve multimodal RAG behavior while revealing a persistent proprietary/open-source gap.

11. Notes For Maintainers

• Keep large generated model outputs outside Git history.
• Store README/project-page figures under docs/assets/.
• Add NeurIPS virtual poster, slides, or video links when official presentation pages are public.

12. Citation

@misc{zhang2025ragigbench,
  title = {RAG-IGBench: Innovative Evaluation for RAG-based Interleaved Generation in Open-domain Question Answering},
  author = {Zhang, Rongyang and Huang, Yuqing and Lu, Chengqiang and Wang, Qimeng and Gao, Yan and Wu, Yi and Hu, Yao and Xu, Yin and Wang, Wei and Wang, Hao and Chen, Enhong},
  year = {2025},
  eprint = {2512.05119},
  archivePrefix = {arXiv},
  primaryClass = {cs.IR},
  url = {https://arxiv.org/abs/2512.05119}
}

13. License

Code is released under Apache 2.0. Data is released for research use under CC BY-NC 4.0.

14. Contact

For paper questions, please contact:

• First author: Rongyang Zhang (no verified public email found from the NeurIPS/arXiv paper).
• Corresponding authors: Hao Wang ([email protected]) and Enhong Chen ([email protected])

For repository issues, please open a GitHub issue in this repository.
