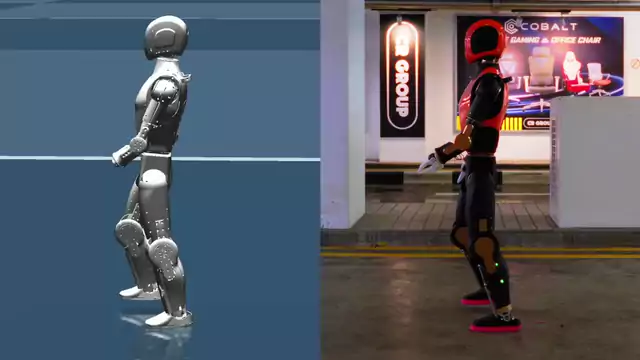

Asimov 1 is an open-source humanoid robot developed by Menlo Research. This repository provides the training and evaluation code for its locomotion policies, so you can train policies in simulation and deploy them to the real robot.

Get your own Asimov 1. Order now.

This repo is a standalone Isaac Lab extension for training Asimov-1 locomotion policies with PPO and adversarial motion priors (AMP).

Quick Install

For a brand-new machine with no existing Isaac Lab setup, run the install script from the project root. It sets up a uv-managed environment, pulls the pinned Isaac Lab and asimov-1 submodules, and installs everything needed to train and play. Prerequisites: Ubuntu 22.04+ (x86_64), a compatible NVIDIA driver, uv installed, and sudo access (used to install cmake/build-essential).

git clone https://github.com/menloresearch/cyclotron.git
cd cyclotron
./quick_install.sh

The full install takes a while, since it downloads Isaac Sim, PyTorch, Isaac Lab and the Asimov 1 robot model.

Advanced Install

If you already have your own Isaac Lab checkout you want to reuse, want conda instead of uv, or just want to understand what each install step does: Advanced Install.

How to use Cyclotron

Cyclotron takes a policy from simulation to the robot in five stages, one command each. Each stage name links to its quick start below; each [docs] link to the full page with every option and advanced examples.

• Train [docs] — --train trains a locomotion policy in Isaac Lab, for anyone producing a new policy from the stock tasks or from a task of their own.
• Play [docs] — --play runs a checkpoint live in Isaac Sim to watch and evaluate its behavior, for whoever trained it, during and after training.
• Export [docs] — --export turns a checkpoint into a verified policy.onnx bundle for the robot and the viewer, for anyone deploying or publishing a trained run.
• Share [docs] — --share uploads a run to the Hugging Face Hub with a model card, for policies that are ready to hand to others.
• View [docs] — --view runs an exported or shared policy in the browser with MuJoCo, no GPU and no Isaac Sim, for anyone who wants to try a policy — including people without a training machine.

flowchart LR
    Train -->|checkpoint| Play
    Play -->|adjust, retrain| Train
    Train -->|checkpoint| Export
    Outside[" "] -->|checkpoint| Export
    style Outside fill:none,stroke:none
    Export -->|exported/ folder| View
    Export --> Share
    Share -->|Hugging Face repo| View

Train

Before starting a training run, run a quick test to ensure the full pipeline is functional. The following code will fire off a short training run with a small number of environments which should take ~10 minutes on a 4090.

Quick Test

This is a small job to see if the full training code is working. These settings should work for most GPUs and finish relatively quickly.

./cyclotron.sh --train \
    --task Asimov1-Velocity-AMP-v0 --num_envs 128 --headless --max_iterations 100

Single GPU Training Run

Use this code to replicate the training run for our baseline policy using a single GPU.

AMP (recommended)

./cyclotron.sh --train \
    --task Asimov1-Velocity-AMP-v0 --num_envs 4096 --headless

Plain PPO baseline

./cyclotron.sh --train \
    --task Asimov1-Velocity-v0 --num_envs 4096 --headless

Useful flags: --max_iterations <n>, --seed <n>, --video (record rollout clips during training).

Training prints the run directory and a command to resume the run from its latest checkpoint, at the start and again when training ends or is interrupted. Resuming starts a new run directory initialised from that checkpoint.

Note: We use 4096 num_envs to train our baseline locomotion policy using A6000 or pro 6000. If you hit any out of memory errors, consider lowering the num_envs. However, this means that the policy may take longer to converge or may be less stable for the same number of iterations.

The stock tasks are the starting point: to train something of your own, see Designing your own task.

Multi-GPU Training Run

This code runs training via --distributed with two GPUs and 4096 environments per GPU. You should adjust the parameters according to the compute available to you.

python -m torch.distributed.run --standalone --nnodes=1 --nproc_per_node=2 \
    scripts/rsl_rl/train.py \
    --task Asimov1-Velocity-AMP-v0 --num_envs 4096 --headless --distributed

Play / Evaluate

Load the latest checkpoint and visualize the trained policy:

./cyclotron.sh --play \
    --task Asimov1-Velocity-AMP-Play-v0 --num_envs 32

Use --checkpoint to select a specific checkpoint (--target is an alias). --checkpoint works the same way for --train, --play and --export: pass a full path to a .pt file, or a filename such as model_500.pt together with --load_run <run>. --share takes the run folder itself, so there a filename alone is enough. Without it, the latest checkpoint is used. Play runs the checkpoint itself and writes no ONNX; use --export for that. Before running, play warns about anything that changed in the code since the run was trained; see Code changes since training.

Checkpoints and logs are written to logs/rsl_rl/<experiment_name>/<run>/.

Export a policy

Export a checkpoint to ONNX, the format that runs on the robot and in the viewer, without uploading anything:

./cyclotron.sh --export \
    --checkpoint logs/rsl_rl/<experiment_name>/<run>/model_<n>.pt

This writes exported/ next to the checkpoint, with the same files a shared policy has on the Hugging Face Hub:

• policy.onnx: the policy, for the robot and the viewer
• policy.pt: the same policy as TorchScript
• env.yaml and agent.yaml: unchanged copies of the run's params/
• code_state.yaml: the code the run was trained with, for runs that have one (see Code changes since training)

The task is read from the run's agent.yaml, so --checkpoint is enough. You can also pick the checkpoint the same way as --play, for example --task Asimov1-Velocity-AMP-v0 --load_run <run> for that run's latest checkpoint. Use --output <folder> to write somewhere else. Export runs Isaac Sim headless with one environment. It then feeds the same observations to the checkpoint, to policy.onnx and to policy.pt, and fails if their actions differ by more than 1e-4 (relative, for values above 1), which would mean the export is broken (for example, a dropped observation normalizer).

policy.onnx also carries a small deployment contract in its ONNX metadata, so a robot runtime can check its assumptions about the file before driving the robot with it: the joint order the actions are in, the per-joint scale, offset and clip that turn raw actions into position targets, the PD gains (kp/kd) the targets were trained to be tracked with, the policy rate (sim.dt x decimation), the input and output widths, the ordered observation terms, and the commit the run was trained with. It is a handshake, not configuration: the runtime should verify its own settings against these values and refuse on mismatch, not configure itself from them. docs/export.md documents every key, the full export pipeline, and how to export an Isaac Lab run that was not trained with cyclotron.

To watch the exported policy in the browser, pass the run folder to --view.

Code changes since training

--play rebuilds the policy from the code you have checked out now, so a run trained with different code can load wrongly or behave differently. --export first sets the policy settings back to the ones the run saved in env.yaml and agent.yaml, like a restart of the run, with no overrides (see What --export does), but the code behind them, such as the observation functions and the robot model, is still the current one. Training therefore writes params/code_state.yaml next to env.yaml and agent.yaml, with only what the checks below use or a reader needs to find the training code again:

• the git commit and branch, and whether there were uncommitted changes, plus the Isaac Lab commit and the isaacsim, isaaclab, rsl-rl-lib and torch versions (recorded, not compared);
• the robot model: its URDF's sha256 and the commit of the repository it comes from (robot_model);
• the sha256 of the code behind the policy's network: every module of rsl_rl's models and modules, and a custom network's own module (actor_code);
• the joints and gains the policy's settings resolved to on that robot model: each action joint in order with its scale, offset, clip, stiffness and damping, and the joints or bodies each observation term reads (policy_io);
• the sha256 of the env.yaml and agent.yaml written next to it: they are the record of how the run was trained, so --export and --share refuse a run whose files no longer match (edited by hand, or deleted).

It holds hashes and names, not code or local paths.

Before loading a checkpoint, export and play compare the run with the current code and print what changed:

• Policy settings: what the policy sees and does. That is the actor's observation terms (order, functions, parameters, scales, clipping, history), the actions, the robot's default pose and actuators, the control rate and the actor network. For --play each difference is named by its Hydra override path, for example env.observations.policy.base_ang_vel.scale: 0.25 -> 0.5, so you can pass the trained value back on the command line. --export has set them back already, so for it a saved setting that still differs means the current code changes it while building, and stops the export; settings the run didn't save (added to the code since training) are warnings. Critic and AMP inputs, rewards, events, terrain, command ranges and observation noise are not compared: they only shape training, and the play tasks change some of them.

• Joints and gains: what the settings resolve to on the robot model the current code loads, compared with policy_io, one line per joint (action joint 4: left_knee -> left_hip_pitch). Settings that name joints by pattern reach other joints, or other gains, when the robot model changes, and no later check notices. --export always stops on these (check 10c in export.md).

• Robot model: whether its URDF still has the recorded sha256 (check 10d).

• Network code: the modules in actor_code that changed. The weights still load and the ONNX file agrees with the changed code, so this is the only way to notice (check 11).

  Nothing else is compared: not the rest of this package, Isaac Lab or the package versions. Runs trained before code_state.yaml existed have only the commit rsl_rl logged in the run's git/ folder, used to name the commit to check out.

Code changes are warnings, since experiments change code on purpose; add --strict to stop instead. --export stops on changed joints and gains without it. A checkpoint whose policy no longer fits the network always stops, for example because an observation term was added and the input size changed. For --play, so does a changed actor class or activation, which would load the old weights but compute something else; --export takes those from the run's agent.yaml, so they can't change. Examples, check by check shows what each export check catches.

Export and play load only the policy from the checkpoint. The critic and the AMP discriminator are only used in training, so a run whose critic saw extra privileged inputs still exports and plays.

Share your policy

Share a finished run on the Hugging Face Hub. Log in first with hf auth login.

./cyclotron.sh --share logs/rsl_rl/<experiment_name>/<run> \
    --repo-id <user_or_org>/<repo_name>

This uploads agent.yaml, env.yaml, policy.onnx, policy.pt, code_state.yaml (for runs that have one) and a generated README.md model card (BSD-3-Clause, library_name: asimov, pipeline_tag: robotics). Sharing publishes the policy, so the checkpoint is always re-exported first with --export's --strict checks: a change to the code of the policy's network, or policy settings the run didn't save, stop the upload instead of warning, and an exported/ folder already on disk is never uploaded (pass --onnx <file> to upload a file as is). Use --checkpoint to share a different checkpoint of the same run (a filename inside the run directory, or a full path to one). Use --title "<text>" to set the card's title, --summary "<text>" to add a paragraph describing your training method, --private to create a private repo, and --dry-run to preview the card without uploading.

View a policy

--view runs an ONNX policy and its config in your browser: one shared on the Hugging Face Hub, or one you exported. To watch a checkpoint in Isaac Sim instead, use --play. --view runs policies with humanoid-policy-viewer (MuJoCo + onnxruntime in WebAssembly), so it needs only Node.js 20 or newer: no Isaac Sim and no GPU.

./cyclotron.sh --view <org>/<model>                                   # from the Hub
./cyclotron.sh --view logs/rsl_rl/<experiment_name>/<run>             # from --export

On the first run this fetches the third_party/humanoid-policy-viewer submodule, its npm dependencies and the Asimov 1 robot model. It then downloads policy.onnx, env.yaml and agent.yaml to ~/.cache/humanoid-policy-viewer/hf/, checks them, and opens the viewer with the policy selected. The policy's inputs, gains, action scale, default pose and torque limits come from env.yaml. Use the sliders to command a velocity and push the robot.

A local path runs in place, with no download: a run folder (its exported/ policy), any folder holding policy.onnx and env.yaml, or an .onnx file. For a run folder, run --export first. A folder without env.yaml next to the .onnx is refused: the viewer will not guess the policy's gains.

Options: --revision <ref> (branch, tag or commit), --port <n> (default 3000) and --no-open. Private or gated repos need HF_TOKEN set.

The viewer simulates with MuJoCo, not PhysX, so it doubles as a quick sim2sim check. It builds the policy's input term by term from observations.policy in env.yaml, so a policy with other inputs, a stacked history or an rsl_rl LSTM or GRU runs as long as the viewer can compute every term. The output is fixed by the robot: 23 joint position targets at 50 Hz. The viewer refuses a policy it would run wrongly, naming the difference, and --view warns about it before the server starts:

• an observation term the viewer can't compute, such as base linear velocity, foot contacts or a height scan, or a term with clip or modifiers set
• a policy trained at another rate than 50 Hz (sim.dt x decimation in env.yaml)
• actions sent to the joints in another order, without preserve_order or use_default_offset, or clipped

The viewer's supported policies list every term it can compute.

On a remote machine with no display, --view prints a link instead of opening a browser; the link selects your policy. The server listens on localhost only, so forward its port over SSH and open the printed link on your own machine:

ssh -L 3000:localhost:3000 <remote>

Tested hardware

The training code has been tested on the following GPUs:

• NVIDIA RTX A6000
• NVIDIA RTX PRO 6000
• NVIDIA RTX 4090
• NVIDIA RTX 3090

Troubleshooting

Known failures — by symptom, with causes and fixes — are collected in docs/troubleshooting.md.

Acknowledgement

This repository is built upon the support and contributions of the following open-source projects. Special thanks to:

• IsaacLab: The foundation for training and running codes.
• MuJoCo: Providing powerful simulation functionalities.
• whole_body_tracking: Versatile humanoid control framework for motion tracking.
• beyondAMP: Referenced for AMP-based motion imitation.
• mjlab: MuJoCo-based training utilities and references.
• humanoid-policy-viewer: Browser-based MuJoCo policy viewer used by --view.

Community

We're planning community livestreams where we’ll test policies contributed by developers on the real Asimov 1. Join the community to share your work, discuss experiments, and hear about upcoming sessions.
