GraphGen: Enhancing Supervised Fine-Tuning for LLMs with Knowledge-Driven Synthetic Data Generation

English | 中文

📚 Table of Contents

• 📝 What is GraphGen?
• 📌 Latest Updates
• ⚙️ Support List
• 🚀 Quick Start
• 🏗️ System Architecture
• 🍀 Acknowledgements
• 📚 Citation
• 📜 License
• 📅 Star History

📝 What is GraphGen?

GraphGen is a framework for synthetic data generation guided by knowledge graphs. Please check the paper and best practice.

Here is post-training result which over 50% SFT data comes from GraphGen and our data clean pipeline.

It begins by constructing a fine-grained knowledge graph from the source text，then identifies knowledge gaps in LLMs using the expected calibration error metric, prioritizing the generation of QA pairs that target high-value, long-tail knowledge. Furthermore, GraphGen incorporates multi-hop neighborhood sampling to capture complex relational information and employs style-controlled generation to diversify the resulting QA data.

After data generation, you can use LLaMA-Factory and xtuner to finetune your LLMs.

📌 Latest Updates

• 2026.01.15: LLM benchmark synthesis now supports single/multiple-choice & fill-in-the-blank & true-or-false—ideal for education 🌟🌟
• 2025.12.26: Knowledge graph evaluation metrics about accuracy (entity/relation), consistency (conflict detection), structural robustness (noise, connectivity, degree distribution)
• 2025.12.16: Added rocksdb for key-value storage backend and kuzudb for graph database backend support.

History

• 2025.12.16: Added vllm for local inference backend support.
• 2025.12.16: Refactored the data generation pipeline using ray to improve the efficiency of distributed execution and resource management.
• 2025.12.1: Added search support for NCBI and RNAcentral databases, enabling extraction of DNA and RNA data from these bioinformatics databases.
• 2025.10.30: We support several new LLM clients and inference backends including Ollama_client, http_client, HuggingFace Transformers and SGLang.
• 2025.10.23: We support VQA(Visual Question Answering) data generation now. Run script: bash scripts/generate/generate_vqa.sh.
• 2025.10.21: We support PDF as input format for data generation now via MinerU.
• 2025.09.29: We auto-update gradio demo on Hugging Face and ModelScope.
• 2025.08.14: We have added support for community detection in knowledge graphs using the Leiden algorithm, enabling the synthesis of Chain-of-Thought (CoT) data.
• 2025.07.31: We have added Google, Bing, Wikipedia, and UniProt as search back-ends.
• 2025.04.21: We have released the initial version of GraphGen.

⚙️ Support List

We support various LLM inference servers, API servers, inference clients, input file formats, data modalities, output data formats, and output data types. Users can flexibly configure according to the needs of synthetic data.

🚀 Quick Start

Experience GraphGen Demo through Huggingface or Modelscope.

For any questions, please check FAQ, open new issue or join our wechat group and ask.

Preparation

1. Install uv

   # You could try pipx or pip to install uv when meet network issues, refer the uv doc for more details
   curl -LsSf https://astral.sh/uv/install.sh | sh


2. Clone the repository

   git clone --depth=1 https://github.com/open-sciencelab/GraphGen
   cd GraphGen


3. Create a new uv environment

    uv venv --python 3.10


4. Configure the dependencies

   uv pip install -r requirements.txt


Run Gradio Demo

python -m webui.app

Run from PyPI

1. Install GraphGen

   uv pip install graphg


2. Run in CLI

   SYNTHESIZER_MODEL=your_synthesizer_model_name \
   SYNTHESIZER_BASE_URL=your_base_url_for_synthesizer_model \
   SYNTHESIZER_API_KEY=your_api_key_for_synthesizer_model \
   TRAINEE_MODEL=your_trainee_model_name \
   TRAINEE_BASE_URL=your_base_url_for_trainee_model \
   TRAINEE_API_KEY=your_api_key_for_trainee_model \
   graphg --output_dir cache


Run from Source

1. Configure the environment

   • Create an .env file in the root directory

     cp .env.example .env


   • Set the following environment variables:

      # Tokenizer
      TOKENIZER_MODEL=

      # LLM
      # Support different backends: http_api, openai_api, ollama_api, ollama, huggingface, tgi, sglang, tensorrt
      # Synthesizer is the model used to construct KG and generate data
      # Trainee is the model used to train with the generated data

      # http_api / openai_api
      SYNTHESIZER_BACKEND=openai_api
      SYNTHESIZER_MODEL=gpt-4o-mini
      SYNTHESIZER_BASE_URL=
      SYNTHESIZER_API_KEY=
      TRAINEE_BACKEND=openai_api
      TRAINEE_MODEL=gpt-4o-mini
      TRAINEE_BASE_URL=
      TRAINEE_API_KEY=

      # azure_openai_api
      # SYNTHESIZER_BACKEND=azure_openai_api
      # The following is the same as your "Deployment name" in Azure
      # SYNTHESIZER_MODEL=<your-deployment-name>
      # SYNTHESIZER_BASE_URL=https://<your-resource-name>.openai.azure.com/openai/deployments/<your-deployment-name>/chat/completions
      # SYNTHESIZER_API_KEY=
      # SYNTHESIZER_API_VERSION=<api-version>

      # # ollama_api
      # SYNTHESIZER_BACKEND=ollama_api
      # SYNTHESIZER_MODEL=gemma3
      # SYNTHESIZER_BASE_URL=http://localhost:11434
      #
      # Note: TRAINEE with ollama_api backend is not supported yet as ollama_api does not support logprobs.

      # # huggingface
      # SYNTHESIZER_BACKEND=huggingface
      # SYNTHESIZER_MODEL=Qwen/Qwen2.5-0.5B-Instruct
      #
      # TRAINEE_BACKEND=huggingface
      # TRAINEE_MODEL=Qwen/Qwen2.5-0.5B-Instruct

      # # sglang
      # SYNTHESIZER_BACKEND=sglang
      # SYNTHESIZER_MODEL=Qwen/Qwen2.5-0.5B-Instruct
      # SYNTHESIZER_TP_SIZE=1
      # SYNTHESIZER_NUM_GPUS=1

      # TRAINEE_BACKEND=sglang
      # TRAINEE_MODEL=Qwen/Qwen2.5-0.5B-Instruct
      # SYNTHESIZER_TP_SIZE=1
      # SYNTHESIZER_NUM_GPUS=1

      # # vllm
      # SYNTHESIZER_BACKEND=vllm
      # SYNTHESIZER_MODEL=Qwen/Qwen2.5-0.5B-Instruct
      # SYNTHESIZER_NUM_GPUS=1

      # TRAINEE_BACKEND=vllm
      # TRAINEE_MODEL=Qwen/Qwen2.5-0.5B-Instruct
      # TRAINEE_NUM_GPUS=1


2. (Optional) Customize generation parameters in config.yaml .

   Edit the corresponding YAML file, e.g.:

     # examples/generate/generate_aggregated_qa/aggregated_config.yaml
     global_params:
       working_dir: cache
       graph_backend: kuzu # graph database backend, support: kuzu, networkx
       kv_backend: rocksdb # key-value store backend, support: rocksdb, json_kv

     nodes:
       - id: read_files # id is unique in the pipeline, and can be referenced by other steps
         op_name: read
         type: source
         dependencies: []
         params:
           input_path:
             - examples/input_examples/jsonl_demo.jsonl # input file path, support json, jsonl, txt, pdf. See examples/input_examples for examples

     # additional settings...


3. Generate data

   Pick the desired format and run the matching script:

   Format	Script to run	Notes
   cot	bash examples/generate/generate_cot_qa/generate_cot.sh	Chain-of-Thought Q&A pairs
   atomic	bash examples/generate/generate_atomic_qa/generate_atomic.sh	Atomic Q&A pairs covering basic knowledge
   aggregated	bash examples/generate/generate_aggregated_qa/generate_aggregated.sh	Aggregated Q&A pairs incorporating complex, integrated knowledge
   multi-hop	examples/generate/generate_multi_hop_qa/generate_multi_hop.sh	Multi-hop reasoning Q&A pairs
   vqa	bash examples/generate/generate_vqa/generate_vqa.sh	Visual Question Answering pairs combining visual and textual understanding
   multi_choice	bash examples/generate/generate_multi_choice_qa/generate_multi_choice.sh	Multiple-choice question-answer pairs
   multi_answer	bash examples/generate/generate_multi_answer_qa/generate_multi_answer.sh	Multiple-answer question-answer pairs
   fill_in_blank	bash examples/generate/generate_fill_in_blank_qa/generate_fill_in_blank.sh	Fill-in-the-blank question-answer pairs

| | true_false | bash examples/generate/generate_true_false_qa/generate_true_false.sh | True-or-false question-answer pairs |

4. Get the generated data

   ls cache/output


Run with Docker

1. Build the Docker image

   docker build -t graphgen .


2. Run the Docker container

    docker run -p 7860:7860 graphgen


🏗️ System Architecture

See analysis by deepwiki for a technical overview of the GraphGen system, its architecture, and core functionalities.

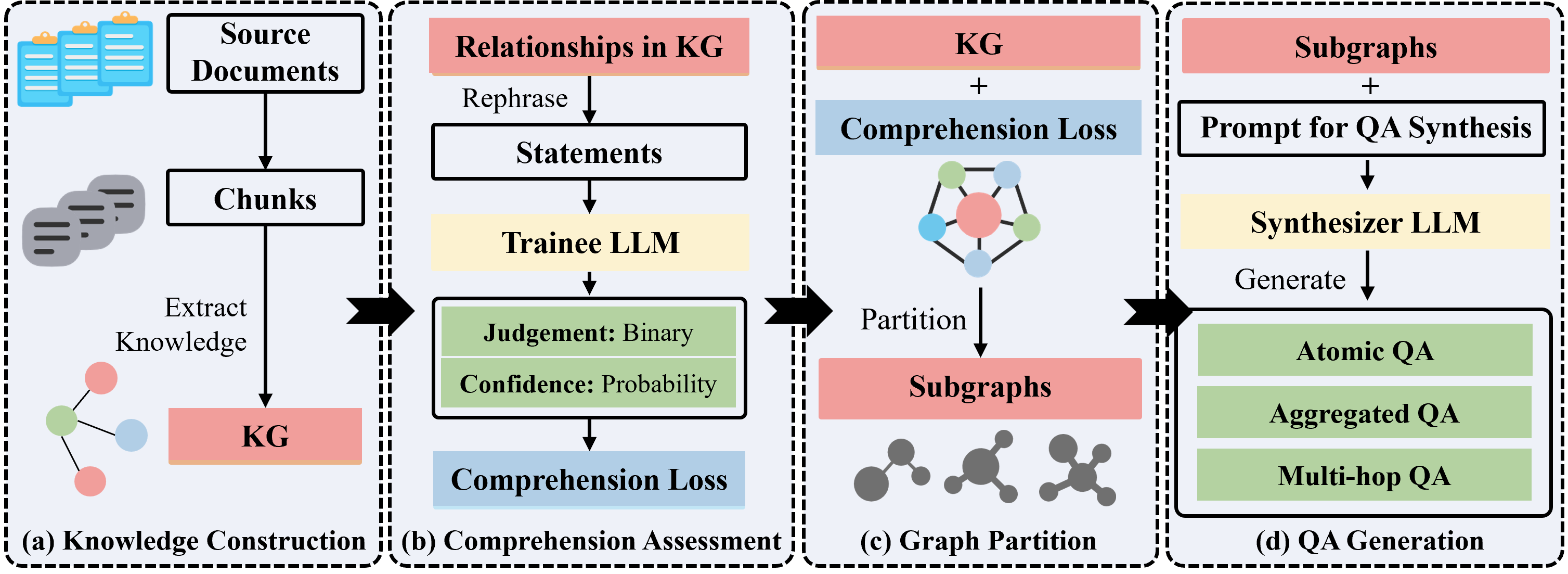

Workflow

🍀 Acknowledgements

• SiliconFlow Abundant LLM API, some models are free
• LightRAG Simple and efficient graph retrieval solution
• ROGRAG A robustly optimized GraphRAG framework
• DB-GPT An AI native data app development framework

📚 Citation

If you find this repository useful, please consider citing our work:

@misc{chen2025graphgenenhancingsupervisedfinetuning,
      title={GraphGen: Enhancing Supervised Fine-Tuning for LLMs with Knowledge-Driven Synthetic Data Generation},
      author={Zihong Chen and Wanli Jiang and Jinzhe Li and Zhonghang Yuan and Huanjun Kong and Wanli Ouyang and Nanqing Dong},
      year={2025},
      eprint={2505.20416},
      archivePrefix={arXiv},
      primaryClass={cs.CL},
      url={https://arxiv.org/abs/2505.20416},
}

📜 License

This project is licensed under the Apache License 2.0.
