Visualizing a VQC in Reinforcement Learning (frozen lake environment)

This project studies variational quantum circuits (VQC) as the action-value function in deep Q-learning on a stochastic 4×3 grid world. You can run the gui, setup easily and run the simulation. Look at live performance and live parameters across your circuit. Exact Bellman value iteration provides a reference for learned values and policies. It is part of an internship done in 2024 in Porto University, under the supervision of Prof. Duarte Magano and Ariel Guerreiro.

Live visualization

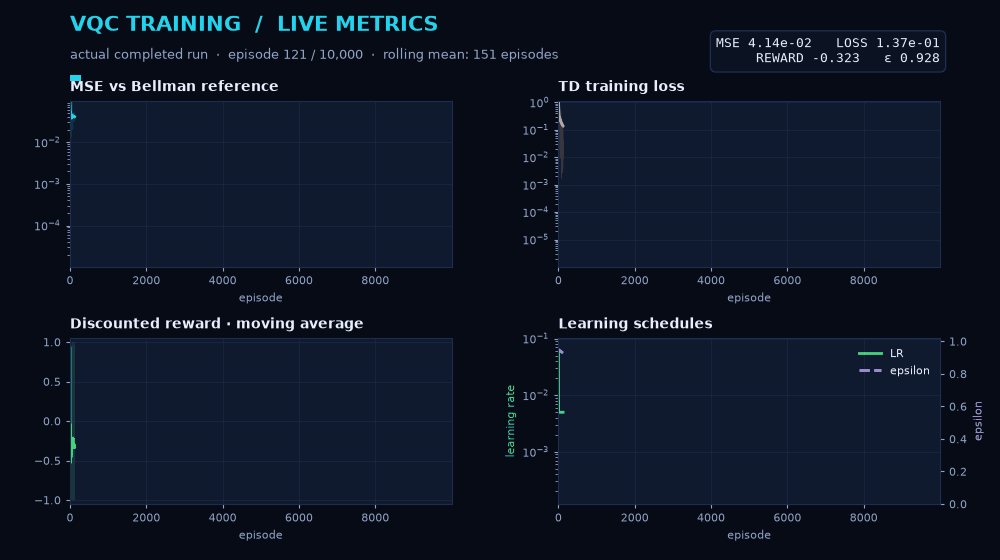

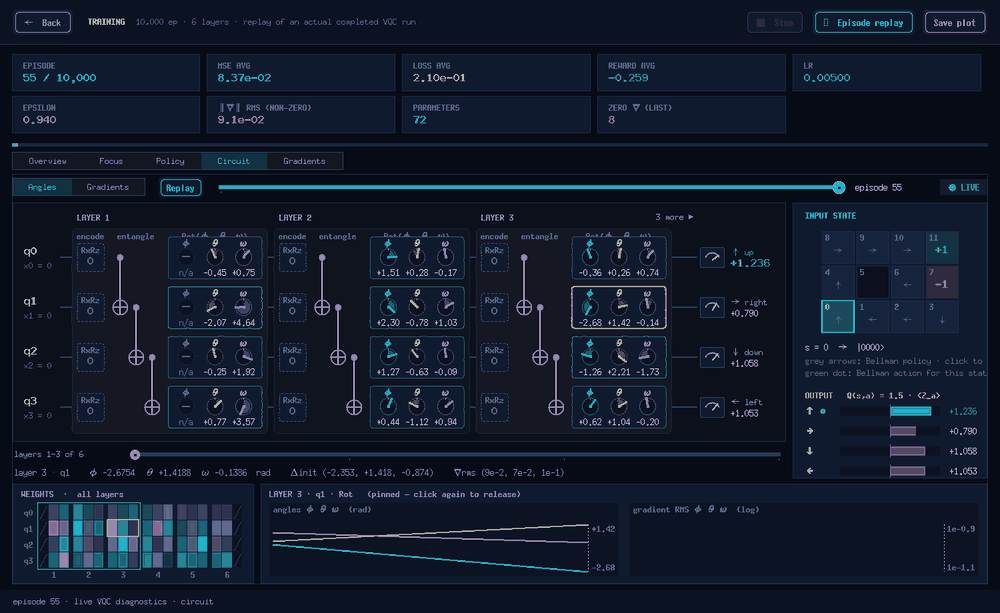

The first animation replays real checkpoints while the GUI rotates through Circuit, Gradients, and Policy. The second follows MSE, TD loss, discounted reward, learning rate, and epsilon during the same 10,000-episode run. Structurally zero gradients are excluded from aggregate statistics.

Quick start

cd vqc-rl
python3 -m venv .venv
.venv/bin/pip install -r requirements.txt
./gui.py

Tk is required by the GUI. For command-line training, run .venv/bin/python -m quantum_rl --help.

GUI and saved runs

The GUI visualizes the circuit, parameter trajectories, gradients, policy, state utilities, rewards, loss, and Bellman-reference error. Each run stores its configuration and reference values alongside progress, policies, plots, parameter history, and gradient statistics.

Reproducibility and original implementation

Notebook-compatibility mode is verified bit-for-bit against the original implementation. The original code had a bug: only for the VQC implementation used Q(s_f,a) instead of Q(s_i,a) in the predicted value in the training loop (the classical training loop was not affected by this bug). In this GUI, this bug is fixed. The original notebooks are retained in original/. for historical attribution to the original internship implementation.
