Flow-Like: Strongly Typed Enterprise Scale Workflows. Built for scalability, speed, seamless AI integration and rich customization.
See the code
Build the software your business runs on.
A self-hostable development platform for apps, automation, data, and AI.
Download Studio · First workflow · Nodes & packages · Try online · Self-host · Documentation
Turn the systems you already have into software your team can use. Build interfaces around connected data, then reuse the operations behind them through APIs, schedules, and agents.
Build with 1,900+ built-in nodes, typed building blocks for your workflows. Packages add reusable custom nodes and interface widgets across projects.
Built for developers and technical teams, Flow-Like keeps interfaces, workflows, and data together as an application grows. Studio, the desktop app, runs work locally. A shared backend supports team projects, while device services run near your files, internal networks, and equipment.

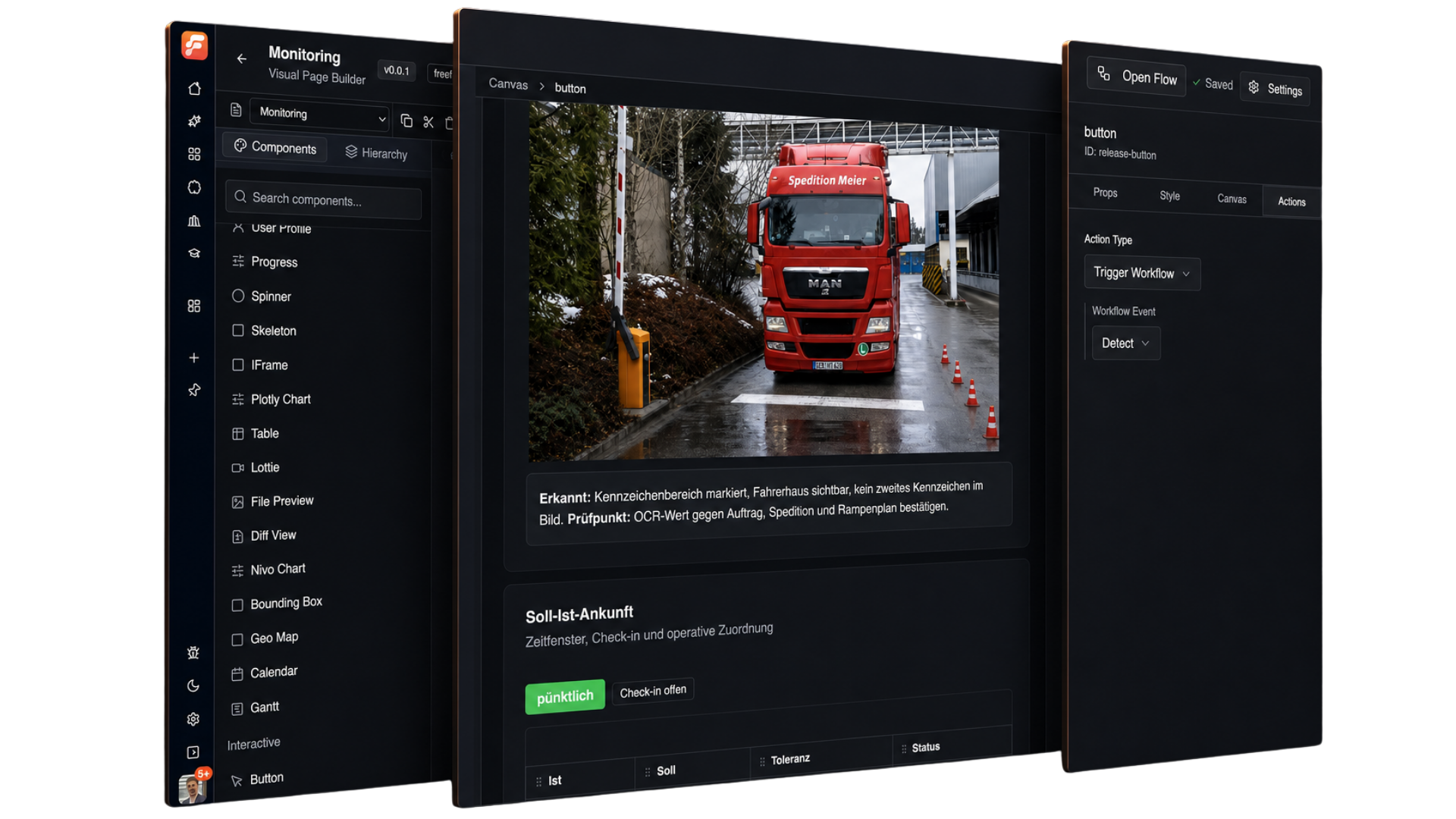

Build the interface and connect its actions to workflows. Shown here: a monitoring page in the visual frontend builder. Click any image for the full-size view.
Download Studio and run your first workflow without an account, API key, or AI model. Available for macOS, Windows, and Linux.
Hello Flow as the Project Name, and select Create Project.Hello Flow, and enable On Screen?.Hello Flow notification, then open Runs, select the new run, and inspect Logs.The log entry should show Hello Flow and identify Print Info as its source. The
first-workflow guide includes screenshots
and troubleshooting.
Prefer the browser? Open the web app with an online account and an available execution server. To work on Flow-Like itself, build from source.
The node catalog covers SQL and databases, APIs, documents, media, UI, desktop automation, AI, and machine learning. Each node reference shows its inputs and outputs, so you can check the operation you need before building around it. Available nodes depend on the execution environment and enabled integrations.
Package your own capabilities for others to use. A package can bundle custom nodes and UI widgets together. Explore packages, inspect their nodes and permissions, then install and link a version to an App, your Flow-Like project. Use the package workspace to develop, test, and publish your own. Each App records its package dependencies and versions.

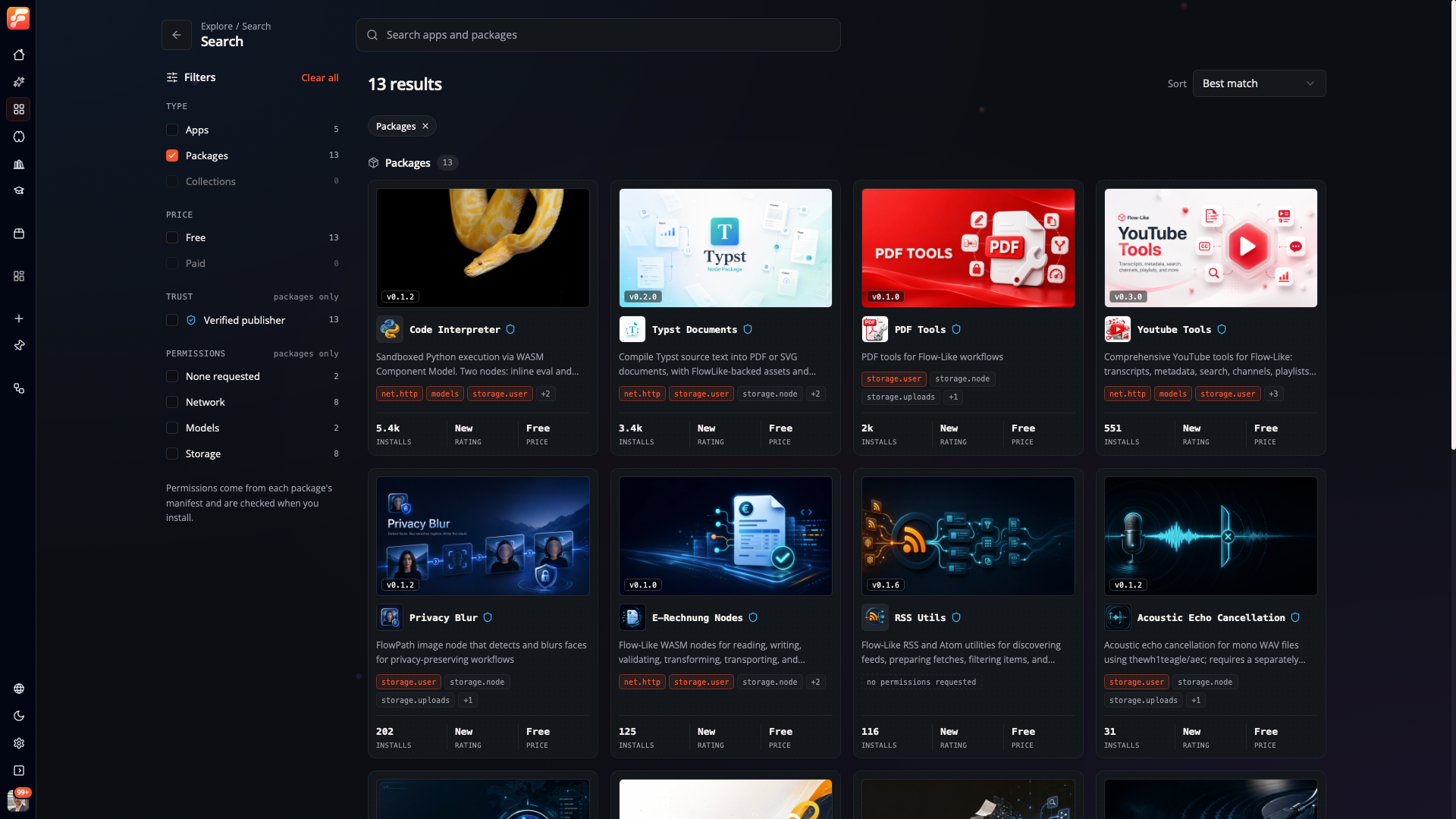

Discover packages for code execution, documents, media, and more. Review their versions and requested permissions before installing.
The Sales Insights example combines Rust WebAssembly nodes with a React chart and filter panel in one package. Its guide shows how to build it and wire widget events to workflows that update the chart.
Add a native Rust node to the built-in catalog, or create a package with the WebAssembly templates for fifteen source languages. WebAssembly extensions are in beta; host API support varies by language and template maturity.
Bring a custom interface through package widgets. Start with the TypeScript counter tutorial, which includes a browser preview and input, event, and query inspection. Framework templates are available for React, Vue, Svelte, and other supported options.
Consider an order desk: look up a customer, check stock through an API, show exceptions for an operator to review, and submit the approved order. A scheduled job or an assistant can reuse the underlying operation.
| Build | Connect the pieces | Start here |
|---|---|---|
| An operations console | Combine dashboards, forms, and record views with workflows that update the systems behind them. | Internal tools |
| A data explorer with actions | Query files and databases with SQL, map records to business objects, and run operations on selected objects. | Data pipelines · Knowledge graphs |
| Document intake and review | Extract information from PDFs and spreadsheets, validate fields, and send exceptions to a review interface. | Document processing |
| An assistant that can act | Retrieve knowledge, call tools, and return results through chat or an application using configured local or hosted models. | AI and agents |
| A predictive application | Prepare datasets, train and evaluate models, then use their predictions in a workflow or interface. | Data science |
| Equipment and desktop automation | Read equipment through OPC UA, Modbus, or MQTT; automate browser and desktop tasks on a compatible machine. | Industrial protocols · Desktop automation |
Hardware access and model execution depend on the selected runtime, installed dependencies, and configured providers; the guides cover those requirements.

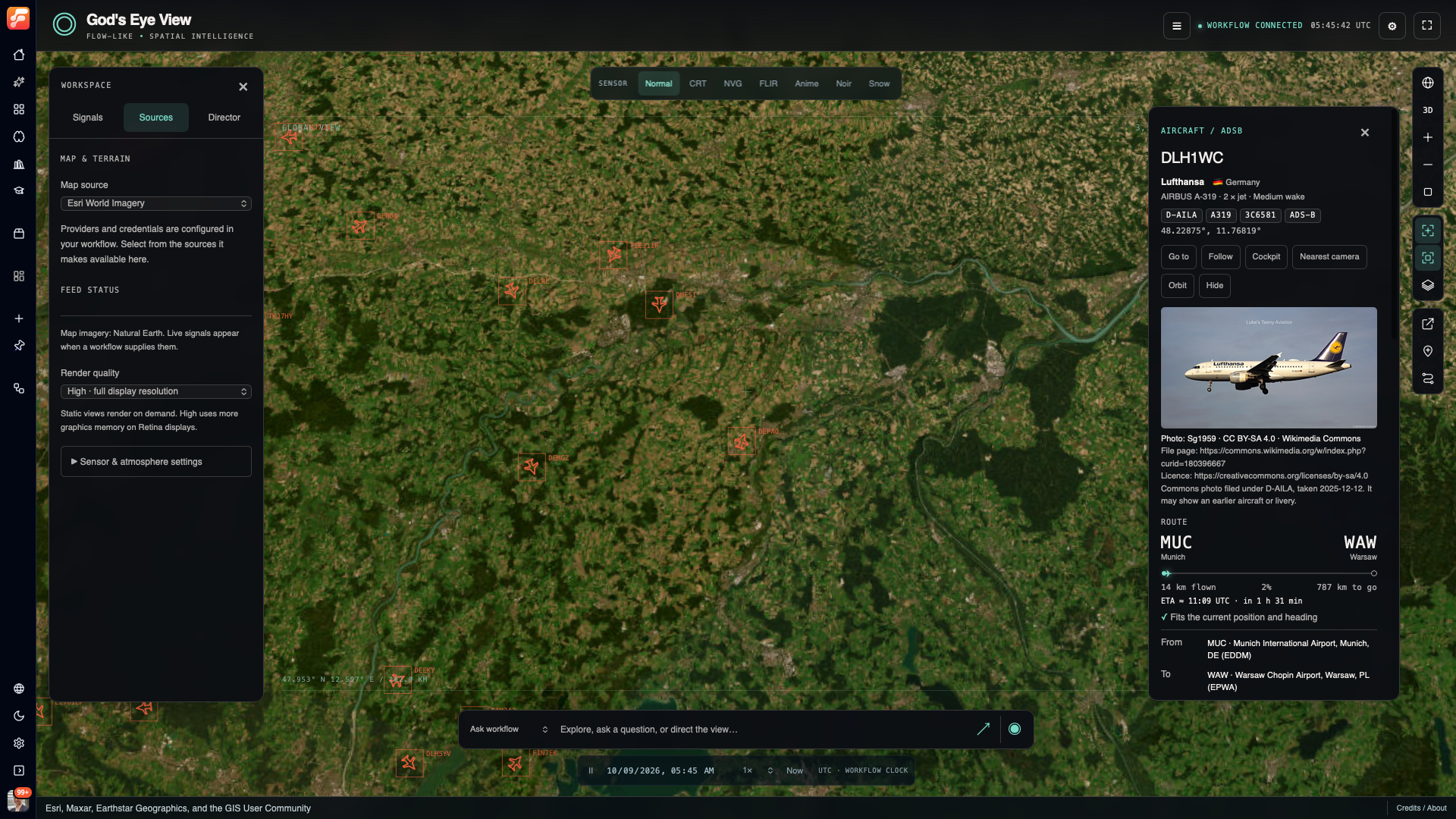

God's Eye View, ported to Flow-Like: a spatial interface with map layers, aircraft details, and workflow controls.
Flow-Like combines a Rust execution engine with a Tauri desktop client and a TypeScript/React interface. An App is the project that holds its workflows, pages, data, and access settings. The repository map shows where these parts live.

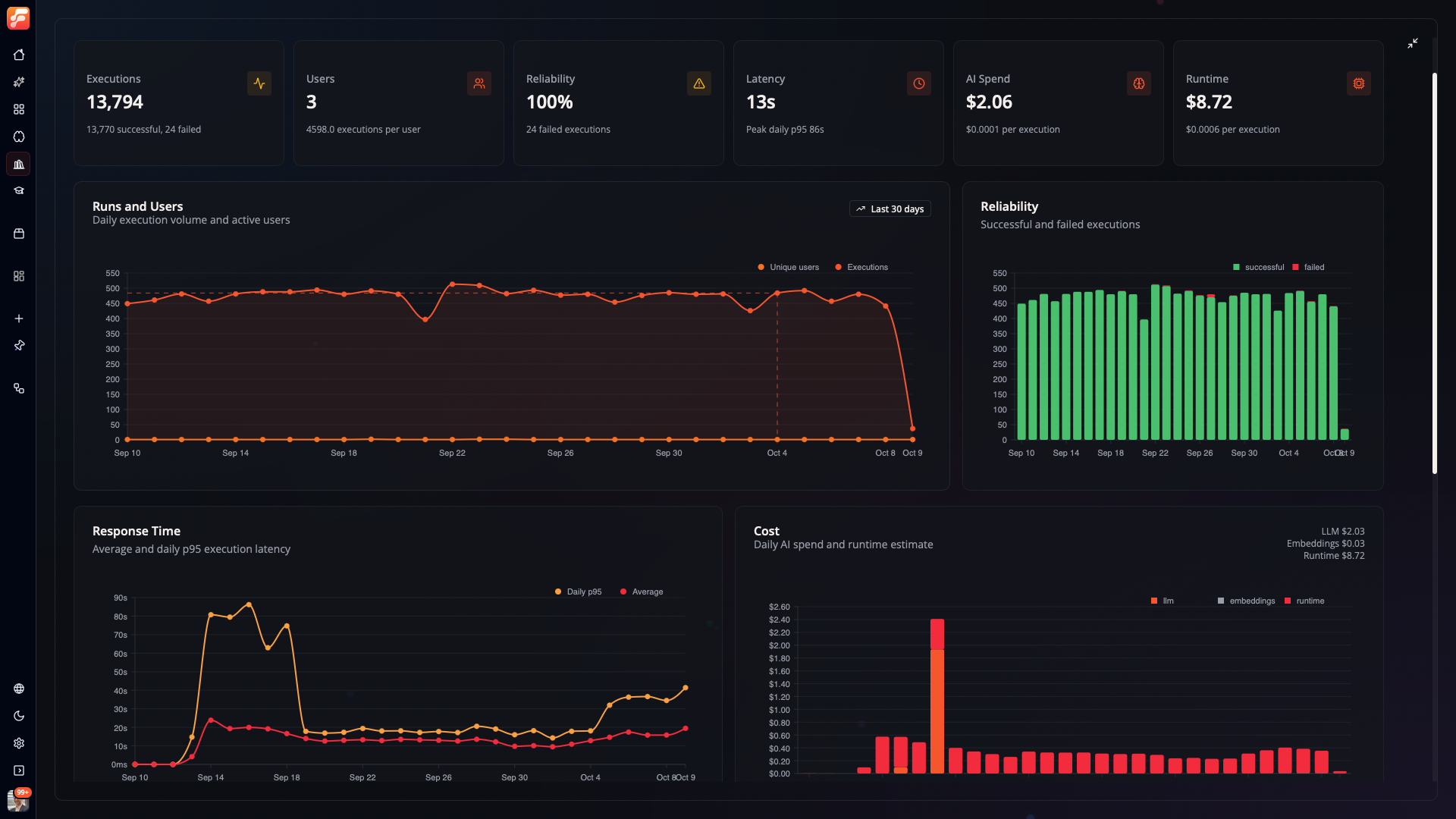

Inspect execution volume, failures, latency, AI spend, and estimated runtime costs.
A Flow is an executable workflow. Its canvas and FlowScript, the typed text form, edit the same saved graph, called a Board. Use the canvas to follow a branch; use text for broad edits and code review. FlowPilot can help create and edit workflows, interfaces, and data from a conversation.

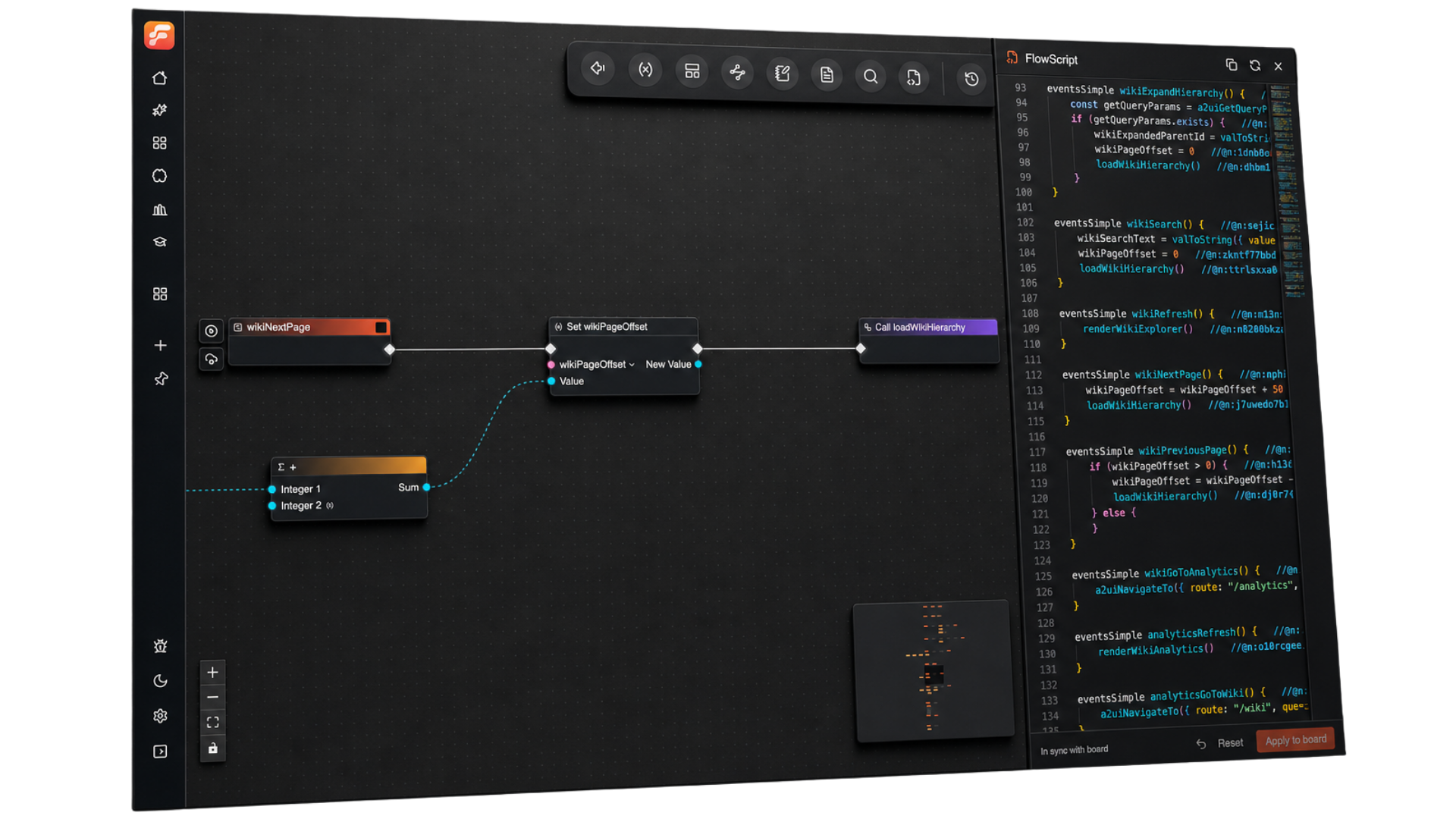

Edit workflow logic on the canvas or in FlowScript.

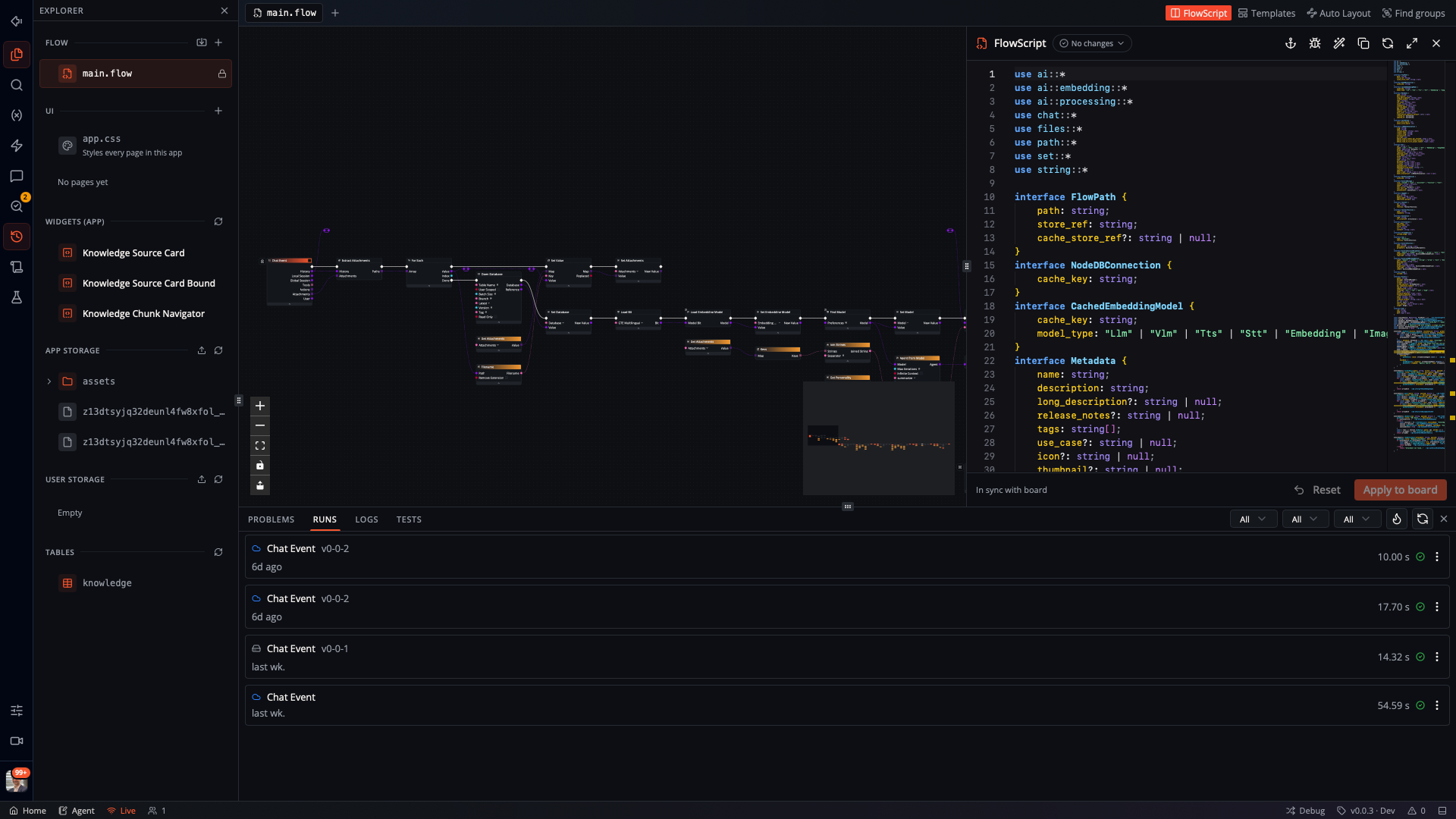

The workflow canvas and FlowScript editor share a workspace with project assets and recorded runs.

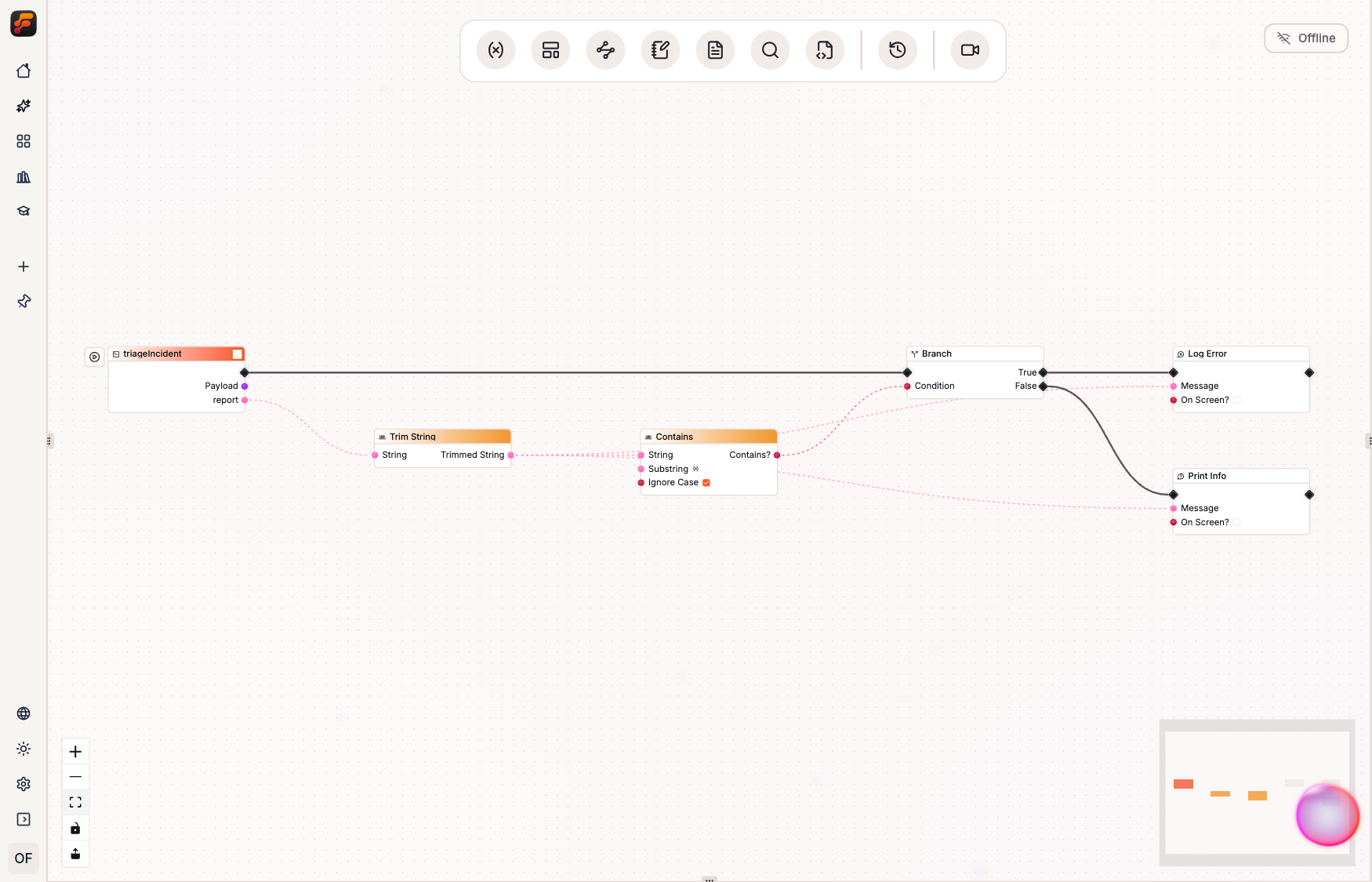

This entry receives an incident report and chooses the log path:
use log::*
eventsGeneric triageIncident(payload: Struct, report: string) {
const normalized = report.trim()
if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {
error({ message: normalized, toast: false })
} else {
info({ message: normalized, toast: false })
}
}
The image is generated from the checked-in example with the real reconciler and Studio auto-layout. When you apply a text edit, Studio checks it against the node catalog and updates the Board. The Rust runtime executes that Board.
Read FlowBook for worked examples and current round-trip boundaries.
Use Studio on your own machine or host a shared backend for your team. The maintained self-hosting paths are Docker Compose and Kubernetes.
To share a local project, create an online copy and configure its credentials and execution settings. Online Apps provide web access and team roles; local-only Apps remain on the device.
The Compose stack includes the browser app, API, execution manager, disposable gVisor sandboxes, and supporting services. PostgreSQL, Redis, and RustFS object storage are bundled. Studio can connect to that backend.
Complete the Linux, Docker, and gVisor prerequisites first. For a new installation:
git clone --branch dev https://github.com/Rheosoph/flow-like.git
cd flow-like/apps/backend/docker-compose
python3 scripts/setup-env.py
cp flow-like.config.example.json flow-like.config.json
Replace the OIDC and domain placeholders in flow-like.config.json, and set
FLOW_LIKE_RUNTIME_CONFIG_FILE=./flow-like.config.json in .env. The setup script generates
signing keys and service credentials. Then pin the published images and start the stack:
python3 scripts/pull-images.py
python3 scripts/preflight.py
python3 scripts/up.py
docker compose ps --all
The default per-run isolation mode requires immutable image references, so image pinning is
required on this path. Long-running services should become healthy; initialization services
should exit successfully. Follow the installation guide
for identity configuration, readiness checks, public hosting, and upgrades. The optional
monitoring profile adds Prometheus, Grafana, Tempo, and exporters.
The Compose directory contains the service definitions,
configuration examples, and scripts. To build unpublished code, use scripts/prepare-images.py
and scripts/up.py --build as described in the guide.
The Helm chart deploys the backend across a cluster. Use the Kubernetes installation guide for gVisor and Cilium prerequisites, image digest pinning, and configuration. Backend directories also contain AWS, Azure, and GCP deployment work; check each target's status before relying on it.
An App Event selects a Flow entry, version, and Local or Remote execution. A single run stays in one environment. Pre-run analysis reports required runtime values, OAuth access, WebAssembly permissions, and local-only nodes, including those inside nested layers. The current dispatcher does not yet reject every incompatible remote selection from the aggregate local-only flag. Device-local secret values stay outside the Board and remote payloads.
Install Git, mise, Tauri 2 system dependencies,
protoc, and a C/C++ toolchain. Then run:
git clone --branch dev https://github.com/Rheosoph/flow-like.git
cd flow-like
mise trust
mise install
bun install
cp apps/desktop/.env.example apps/desktop/.env
mise run dev:desktop
mise install supplies the toolchain in mise.toml, and dev:desktop detects
your platform and starts Studio. Use mise tasks to list development commands, or read the
build guide for the full setup.
Flow-Like is a Rust and TypeScript monorepo. Bun manages the JavaScript workspace, Tauri hosts the desktop client, and the runtime and core application model live in Rust.
| Area | Start here |
|---|---|
| Studio desktop application | apps/desktop |
| Browser application | apps/web |
| Interface builder and workflow editors | packages/ui |
| Runtime and execution | packages/core, packages/executor |
| Built-in capabilities and integrations | packages/catalog |
| FlowScript model, parser, and renderer | packages/ast |
| FlowScript reconciliation | packages/core/editor/src/flow/ast |
| Self-hosting and deployment | apps/backend |
We want the next useful tool to build on the last: reuse its data, share an operation, or add an interface for another team. If that is software you want to help build, give Flow-Like a star and follow its development. Try it on a real task, tell us where it falls short, or contribute the integration you need.
dev and run the checks relevant to your change.Flow-Like is source-available under the Business Source License 1.1. The Additional Use Grant permits use that does not compete with Flow-Like or substantially similar Rheosoph products. Entities with more than 2,000 employees or more than €300 million in annual revenue need a commercial license. For each version, MPL 2.0 takes effect on the earlier of the stated eight-year Change Date or the fourth anniversary of that version's first public distribution.
Website · Documentation · FlowBook · Code of Conduct · Security
Built in Munich, Germany.
