MasterDnsVPN Android Client

| نسخه فارسی |

This is the Android client for MasterDnsVPN. Before using this app, you must install and configure the server side from the main project first. The app will not work without a running MasterDnsVPN server.

---

Download

Don't want to build from source? Download the latest pre-built APK directly from the Releases page.

---

What is MasterDnsVPN?

MasterDnsVPN is a high-performance DNS-over-UDP tunnel that encrypts and routes your traffic through a remote server, bypassing censorship and surveillance. This repository contains the Android client app built on top of the same Go engine.

---

Requirements

One-time gomobile init

go install golang.org/x/mobile/cmd/gomobile@latest
gomobile init

---

Building

Full build (AAR + APK)

.\build_aar.ps1

This script:

1. Detects the installed NDK automatically
2. Runs gomobile bind → builds android/app/libs/masterdnsvpn.aar
3. Runs gradlew assembleDebug → produces the APK

Output files

Manual build steps

# Step 1 — Build AAR (arm64 only)
$env:GOFLAGS = "-mod=mod"
$env:ANDROID_HOME = "$env:USERPROFILE\AppData\Local\Android\Sdk"
$ndkVer = (Get-ChildItem "$env:ANDROID_HOME\ndk" | Sort-Object Name -Descending | Select-Object -First 1).Name
$env:ANDROID_NDK_HOME = "$env:ANDROID_HOME\ndk\$ndkVer"
gomobile bind -target android/arm64 -androidapi 26 -javapkg com.masterdnsvpn.gomobile `
  -o "android\app\libs\masterdnsvpn.aar" masterdnsvpn-go/cmd/android

# Step 2 — Build APK
cd android
.\gradlew.bat assembleDebug

# Step 3 — Install on device
adb install "app\build\outputs\apk\debug\MasterDnsVPN-1.0.0-beta-arm64-v8a.apk"

---

App Features

Profile Management

• Create / Edit / Delete profiles — each profile connects to one MasterDnsVPN server
• All client configuration fields exposed in the UI (server address, port, encryption, compression, DNS, SOCKS5, TUN mode, balancer strategy, MTU, etc.)
• Resolver editor — add/remove DNS resolvers per profile
• Tunnel mode per profile: SOCKS5 proxy or TUN (system-wide VPN)

Meta Profile (Load Balancer)

• Groups multiple profiles under a single start/stop control
• Distributes connections across all sub-profiles using one of four strategies:
  • RoundRobin — rotate in order
  • Random — random selection
  • LeastConn — pick proxy with fewest active connections
  • LowestLatency — pick the fastest proxy
• Supports both SOCKS5 and TUN tunnel modes

TUN Mode (System-wide VPN)

• Uses Android VpnService to capture all device traffic
• tun2socks bridge (gVisor netstack): converts TCP/UDP flows to SOCKS5, forwards through the Go engine
• Per-app filtering: All apps / Include list / Exclude list

Hotspot Sharing

• Share VPN over Wi-Fi hotspot
• TCP relay on 0.0.0.0:8090 → shows address/port to configure on connected devices

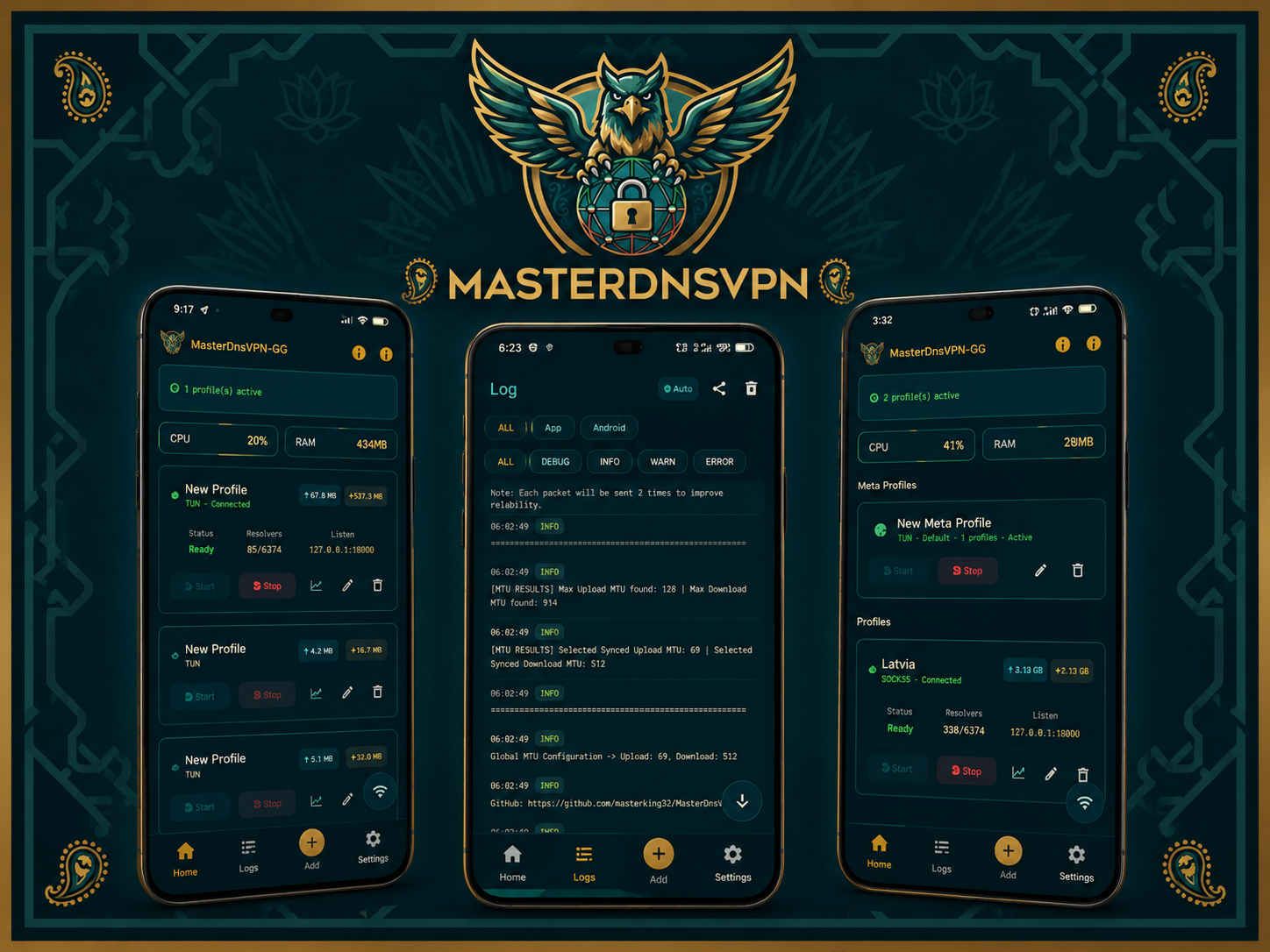

Monitoring

• Real-time per-profile stats: resolver health, listen address, session state
• CPU / RAM / upload speed / download speed updated every second
• Per-profile cumulative data usage (persisted across restarts)
• Color-coded real-time log viewer

---

Architecture

┌──────────────────────────────────────────────────────────┐
│  Android App (Kotlin + Compose)                          │
│                                                          │
│  HomeScreen ──► HomeViewModel ──► TunnelController       │
│                                        │                 │
│                          ┌─────────────┴──────────────┐  │
│                          │  DnsTunnelVpnService (TUN) │  │
│                          │  DnsTunnelProxyService     │  │
│                          └─────────────┬──────────────┘  │
│                                        │                 │
│                              GoMobileBridge (JNI)        │
└──────────────────────────────────────────────────────────┘
                                        │
                        ┌───────────────▼──────────────────┐
                        │  Go Engine (masterdnsvpn.aar)    │
                        │  StartInstance / StopInstance    │
                        │  StartTunBridge (gVisor)         │
                        │  StartSocksBalancer (meta)       │
                        │  GetStats / GetBandwidth         │
                        └──────────────────────────────────┘

TUN traffic flow

Device apps → TUN fd → gVisor netstack → SOCKS5 (Go) → DNS tunnel → MasterDnsVPN server

Meta TUN flow

Device apps → TUN fd → gVisor → SOCKS Balancer ─┬─ Profile-1 → server-1
                                                 ├─ Profile-2 → server-2
                                                 └─ Profile-N → server-N

---

License

See LICENSE.

Related

• Server & main project: github.com/masterking32/MasterDnsVPN

---
