Engram-PEFT

[English] | 中文

[!IMPORTANT] This is an unofficial implementation of the DeepSeek Engram paper (arXiv:2601.07372). DeepSeek-AI official demo is here.

Engram-PEFT is a high-performance, 100% paper-aligned implementation of the DeepSeek Engram architecture. It provides a PEFT-style interface to inject conditional memory into any Transformer-based LLM, while also supporting stacked-adapter and full-finetuning workflows through explicit train_mode controls.

Engram decouples static knowledge storage from dynamic reasoning using a sparse retrieval mechanism, allowing models to scale their factual memory without increasing inference FLOPs or interfering with core logic.

---

🚀 Quick Start

Installation

pip install engram-peft

To run examples or contribute to development, install the project with development dependencies:

# Using uv (recommended)
uv sync --all-groups

# Using pip
pip install -e ".[dev]"

NPU (Ascend) Support: For training on Huawei Ascend NPU, install torch-npu:

pip install torch-npu --index-url https://repo.huaweicloud.com/repository/pypi/simple

Engram-PEFT automatically detects NPU availability and switches all AMP settings accordingly. On NPU, bfloat16 is generally not supported — use engram_dtype="float16" in your EngramConfig.

For distributed training on NPU (torchrun DDP, DeepSpeed ZeRO‑1/2), use the built-in backend detection:

from engram_peft.utils.device import get_distributed_backend
backend = get_distributed_backend()  # "hccl" on NPU, "nccl" on CUDA

See NPU Distributed Training in the docs for details.

5-Minute Example

from transformers import AutoModelForCausalLM, AutoTokenizer
from engram_peft import EngramConfig, get_engram_model

# 1. Load base model
base_model = AutoModelForCausalLM.from_pretrained("TinyLlama/TinyLlama-1.1B-intermediate-step-1431k-3T")
tokenizer = AutoTokenizer.from_pretrained("TinyLlama/TinyLlama-1.1B-intermediate-step-1431k-3T")

# 2. Inject Engram layers (aligned with arXiv:2601.07372)
config = EngramConfig(target_layers=[2, 11, 20])
model = get_engram_model(
    base_model,
    config,
    tokenizer,
    train_mode="engram_only",
)

# 3. Quick check on trainable parameters
model.print_trainable_parameters()
# trainable params: ... (backbone: 0, engram: ...) || all params: ... || trainable%: ...

YAML-Driven Training (CLI)

You can also trigger training through a YAML configuration file without writing Python scripts:

# 1. Generate a full, documented configuration template
engram-peft config-template --output training_config.yaml

The generated YAML is structured into five main sections:

• model_name_or_path: Base model identifier.
• engram_config: Core hyperparameters for Engram layers.
• lora_config: (Optional) PEFT LoRA settings for hybrid adaptation.
• training_args: Standard transformers.TrainingArguments.
• data_args: Dataset settings and tokenization logic.

2. Launch training using the YAML file (or our minimal examples/config.yaml)

engram-peft train --config training_config.yaml

3. Post-Training Inference

The CLI automatically generates a ready-to-run inference.py script in your output_dir.

uv run python outputs/tinyllama-lora-engram/inference.py

4. Override specific arguments on the fly

engram-peft train --config training_config.yaml --overrides "training_args.learning_rate=5e-5"

---

📊 Performance Comparison

[!TIP] Performance Insight: In our latest benchmark (Test 8 & 9, TinyLlama-1.1B, 3000 steps), LoRA+Engram achieved the best convergence (lowest eval loss), outperforming standalone LoRA by ~2.3%, Engram by ~5.0%, and Full Finetune+Engram by ~12.2%. Engram-PEFT provides 240x more parameter capacity (545M) for knowledge storage with minimal latency penalty. Use LoRA+Engram to leverage both structural adaptation and high-capacity sparse memory. Full Finetune+Engram, while more memory-intensive, shows competitive performance but requires significantly more GPU resources and exhibits potential overfitting tendencies.

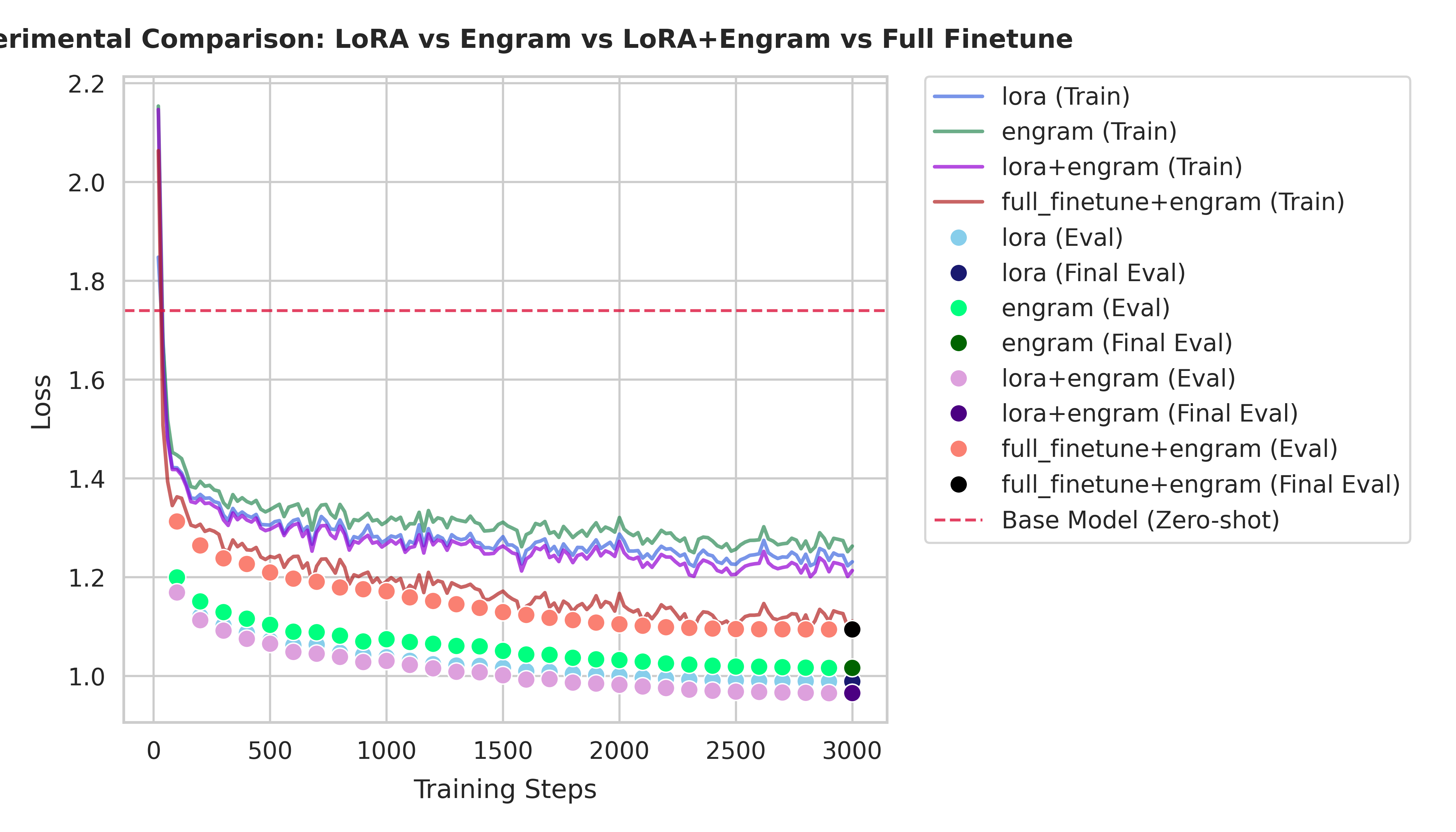

Loss Curve Comparison

* Engram employs sparse lookup; only a tiny fraction of parameters (approx. 1%) are active and receive gradient updates per step. To reproduce these benchmarks on your own hardware, run uv run python examples/compare_engram_lora.py --all. For a detailed breakdown of performance, computation, and memory, see our Performance Analysis.

---

🛠 Features

• 100% Paper Alignment: Implements Appendix A Table 5 parameters and the official DeepSeek gating/hashing logic.
• CPU Prefetching & Precomputation: EngramDataCollator pre-calculates multi-head hash indices on the CPU. By using num_workers > 0, these indices are prefetched in parallel with training, ensuring zero hashing overhead on the GPU.
• Tokenizer Compression: Built-in NFKC and lowercase normalization for 23% vocabulary reduction.
• Cross-Model Weight Migration: A unique feature (see weight_transfer.py) that allows migrating Engram weights between different models (e.g., Llama to Qwen) using character-level alignment on a corpus—effectively "recycling" learned knowledge.
• Zero-Invasive: Injects via forward hooks; no modification to your base model architecture required.
• Peft-like API: Familiar methods like print_trainable_parameters() and save_pretrained().
• Checkpoint Resume: EngramTrainer fully supports trainer.train(resume_from_checkpoint=True) for seamless mid-training recovery, correctly restoring LoRA adapters and Engram weights from composite checkpoints.
• Explicit Training Modes: train_mode="engram_only", "preserve_trainable", and "full_finetune" make backbone behavior predictable.
• Combined Training (LoRA+Engram): Support for stacking adapters. Injects LoRA for structural fine-tuning and Engram for sparse knowledge retrieval in a single model.
• Layered Optimizer Control: Configure separate optimizers for backbone, Engram dense layers, and Engram sparse embeddings.
• Named Adapters: Industry-standard named adapter management (add/set/unload) for modular knowledge packs.
• Automated Training: Native EngramTrainer with built-in sparse Adam support and automatic sync of optimizer hyperparameters.
• YAML-Driven CLI: Fully declarative training workflow via YAML configurations with dynamic parameter overrides.
• Automated Inference Generation: Progress-tracking CLI that automatically creates ready-to-run inference.py scripts for immediate verification.
• Mainstream Model Templates: Out-of-the-box scripts for Qwen 3.5-4B, Ministral-3-3B, and Gemma-4-E2B with quantization support.
• Qwen PLE / EngramDB Disk Tables: Native support for engine="qwen_ple" and table_spec="PLE_QWEN_V1", including deterministic Qwen PLE hashing and automatic EngramDB Store-I disk-table installation via table_source="engramdb:store".
• Multimodal & Hybrid Architecture Support: Native support for recursive layer discovery in complex wrappers and synchronization of nested text_config attributes for state-of-the-art models.
• Hugging Face Hub Integration: Support for pushing adapters via push_to_hub and loading directly from Hub IDs via from_pretrained, fully aligned with the PEFT ecosystem.
• TRL & SFTTrainer Compatibility: Native EngramCompatibleSFTTrainer that handles model preparation, hash precomputation, and sparse gradient clipping automatically for seamless instruction tuning.
• Quantization Support: Native compatibility with bitsandbytes (4-bit/8-bit) and GPTQ models. Smart dtype detection ensures Engram layers automatically align with the backbone's compute_dtype.
• Unified Device Backend: Automatic detection and support for CUDA, NPU (Ascend), and CPU, with unified AMP, GradScaler, and distributed backend detection (get_distributed_backend() returns "hccl" on NPU, "nccl" on CUDA).
• Distributed Training (DDP & DeepSpeed): Full compatibility with torchrun (DDP) and DeepSpeed ZeRO-1/2 on both CUDA and NPU. Distributed sparse embeddings are supported under DDP; DeepSetup mode automatically falls back to dense embeddings for ZeRO optimizer compatibility.

---

📖 Documentation

For full details, see our documentation:

• Tutorials: Quickstart and domain knowledge injection.
• API Reference: Detailed class and function documentation.
• Paper Alignment: How we match the DeepSeek research.

Training Mode Cheat Sheet

# Engram-only PEFT
model = get_engram_model(base_model, config, tokenizer, train_mode="engram_only")

# Keep LoRA / existing trainable params
model = get_engram_model(model, config, tokenizer, train_mode="preserve_trainable")

# Full finetuning + Engram
model = get_engram_model(base_model, config, tokenizer, train_mode="full_finetune")

Layered Optimizer Example

from torch.optim import AdamW
from engram_peft import get_optimizer

optimizer = get_optimizer(
    model,
    backbone_learning_rate=5e-5,
    engram_dense_learning_rate=4e-4,
    engram_sparse_learning_rate=2e-3,
    backbone_optimizer=AdamW,
)

---

🎯 Citation

If you use this implementation in your research, please cite the original DeepSeek paper:

@article{deepseek2026engram,
  title={Conditional Memory via Scalable Lookup: A New Axis of Sparsity for Large Language Models},
  author={DeepSeek-AI},
  journal={arXiv preprint arXiv:2601.07372},
  year={2026}
}

---

🤝 Contributing

We welcome contributions! Please see our Contributing Guide for details on our tiered development workflow (L1-L4) and testing standards.

📄 License

Apache License 2.0. See LICENSE for details.
