DeepOCR

A reproduction of the Deepseek-OCR model based on the VILA codebase. DeepOCR explores context optical compression through vision-text token compression, achieving competitive OCR performance with minimal vision tokens.

🌐 Website | 🤗 Model

✨ Highlights

• Token Efficiency: Achieves competitive OCR performance using ~250 vision tokens
• Open Source Implementation: Complete reproduction of DeepSeek-OCR's innovative optical compression architecture using the VILA framework
• Novel DeepEncoder: Combines SAM (window attention) + CLIP (global attention) with 16× convolutional compression for efficient high-resolution processing (1024×1024+)
• Production Ready: Includes complete training pipeline, evaluation scripts, and pre-trained checkpoints for immediate use

📄 Paper Overview

Deepseek-OCR: Contexts Optical Compression
arXiv Paper

Key Features

• Vision-Text Compression: Compresses text into visual representations at 7-20× ratios while maintaining high OCR accuracy
• DeepEncoder Architecture: Novel encoder combining SAM (80M) + CLIP (300M) with 16× convolutional compressor

🏗️ Architecture

┌─────────────────────────────────────────────────────┐
│                   DeepOCR                           │
├─────────────────────────────────────────────────────┤
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │           DeepEncoder (380M)                │    │
│  │                                             │    │
│  │  ┌──────────────┐   ┌─────────┐  ┌────────┐ │    │
│  │  │  SAM-base    │───│ Conv    │──│ CLIP   │ │    │
│  │  │  (80M)       │   │ 16×     │  │ (300M) │ │    │
│  │  │ Window Attn  │   │Compress │  │ Global │ │    │
│  │  └──────────────┘   └─────────┘  └────────┘ │    │
│  │                                             │    │
│  └─────────────────────────────────────────────┘    │
│                        ↓                            │
│  ┌─────────────────────────────────────────────┐    │
│  │      Linear Projector (2048 → LLM dim)      │    │
│  └─────────────────────────────────────────────┘    │
│                        ↓                            │
│  ┌─────────────────────────────────────────────┐    │
│  │               Qwen 2-7B                     │    │
│  └─────────────────────────────────────────────┘    │
│                                                     │
└─────────────────────────────────────────────────────┘

🚀 Installation

# Clone the repository
git clone https://github.com/pkulium/DeepOCR
cd DeepOCR

# Set up environment
./environment_setup.sh deeporc
conda activate deeporc

# Install additional dependencies for OCR
pip install safetensors einops easydict mupdf

📦 Model Checkpoints

Download required checkpoints:

# SAM and CLIP checkpoints (combined in one file)
# Place at: checkpoints/sam_clip_ckpt/model_cache/model-00001-of-000001.safetensors
huggingface-cli download  pkulium/sam_clip_ckpt

# Base LLM (Qwen2-7B-Instruct)
huggingface-cli download Efficient-Large-Model/Qwen2-VL-7B-Instruct

🎯 Training

Stage 1: Alignment (Projector Training)

Trains the vision-to-text projector while freezing vision encoder and LLM:

bash scripts/NVILA-Lite/align_ocr.sh \
    Efficient-Large-Model/Qwen2-VL-7B-Instruct \
    llava_15_mix \
    runs/train/ocr-qwen2-vl-8b-align

Key parameters:

• Batch size: 512
• Learning rate: 1e-3
• Epochs: 1
• Data: LLaVA-CC3M-Pretrain-595K
• Trainable: Projector only

Stage 2: Pretraining

Full model training with OCR data:

bash scripts/NVILA-Lite/pretrain_ocr.sh \
    runs/train/ocr-qwen2-vl-8b-align/model \
    olmOCR-mix-pretrain \
    runs/train/ocr-qwen2-vl-8b-pretrain

Key parameters:

• Batch size: 32
• Learning rate: 5e-5
• Epochs: 1
• Data: allenai/olmOCR-mix-1025
• Trainable: Projector + LLM

Data Preparation

The model requires three types of data across two training stages:

Stage 1: Initialize Projector

• Dataset: CC3M (Conceptual Captions 3M)

Stage 2: Model Pretrain

• Data sources: PDF documents and images
• Dataset: allenai/olmOCR-mix-1025

🔬 Evaluation

OmniDocBench/Olm_bench Evaluation

bash scripts/eval/all.sh

Custom Document OCR

python llava/eval/omini_doc_bench.py \
  --model-path <model_path> \
  --input-folder <input_images> \
  --output-folder <output_markdown> \
  --text "Free OCR."

Available prompts:

• "<image>\nFree OCR." - Plain text extraction
• "<image>\n<|grounding|>Convert the document to markdown." - With layout
• "<image>\nParse the figure." - Chart/figure parsing
• "<image>\nDescribe this image in detail." - General description

Batch Evaluation with VILA-eval

vila-eval \
    --model-name NVILA-8B-OCR \
    --model-path runs/train/ocr-qwen2-vl-8b-pretrain/model \
    --conv-mode auto \
    --tags-include local

📊 Key Implementation Details

1. DeepEncoder (llava/model/multimodal_encoder/sam_clip/)

Core Components:

• deepencoder.py: Implements SAM and CLIP vision towers

  • build_sam_vit_b(): SAM-base with 768-dim, 12 layers, window attention
  • build_clip_l(): CLIP-large with 1024-dim, 24 layers, global attention
  • MlpProjector: Token compression module

• modeling_sam_clip.py: Main SAMCLIP wrapper

  • Handles multi-resolution input processing
  • Dynamic tile-based processing for high-res images
  • Token concatenation: [CLIP_cls, CLIP_patches, SAM_features]

Token Flow:

Input (1024×1024) → SAM (4096 tokens) → Conv16× (256 tokens)
                                      ↓
                  CLIP (256 tokens) → Concat → 2048-dim features

2. Image Processing (image_process.py)

# Dynamic resolution preprocessing
def dynamic_preprocess(image, min_num=2, max_num=6, image_size=640):
    """
    Splits image into tiles based on aspect ratio
    Returns: List of tile images + crop ratio
    """

Processing modes:

• Single image: Resize or pad to base size (1024×1024)
• Cropping enabled: Dynamic tiling (2-6 tiles per dimension)
• Output: Global view (1024×1024) + Local tiles (640×640 each)

3. Multimodal Projector (base_projector.py)

class MultimodalProjector:
    def __init__(self):
        self.layers = nn.Linear(2048, llm_hidden_size)
        self.image_newline = nn.Parameter(...)  # Token separator
        self.view_seperator = nn.Parameter(...)  # View separator

Token formatting:

[Local_Tiles] + [Image_Newline] + [Global_View] + [View_Separator]

4. Configuration (config.py)

Key settings:

BASE_SIZE = 1024        # Global view size
IMAGE_SIZE = 640        # Tile size
CROP_MODE = True        # Enable dynamic tiling
MIN_CROPS = 2           # Min tiles per dimension
MAX_CROPS = 6           # Max tiles per dimension
MAX_CONCURRENCY = 100   # Batch processing limit

🎨 Usage Examples

Quick Start

First, download the model from Hugging Face:

huggingface-cli download pkulium/easy_deepocr --local-dir ./easy_deepocr_sam_clip

Then use the model:

vila-infer \
    --model-path ./easy_deepocr_sam_clip \
    --conv-mode auto \
    --text "Free OCR." \
    --media "./assets/test.png"

Document with Layout

import llava

# Load model
model = llava.load("./easy_deepocr_sam_clip")

prompt = [
    Image("document.pdf"),
    "<|grounding|>Convert the document to markdown."
]
response = model.generate_content(prompt)

Chart Parsing

prompt = [Image("chart.png"), "Parse the figure."]
response = model.generate_content(prompt)
# Returns: HTML table or structured data

📈 Performance Benchmarks

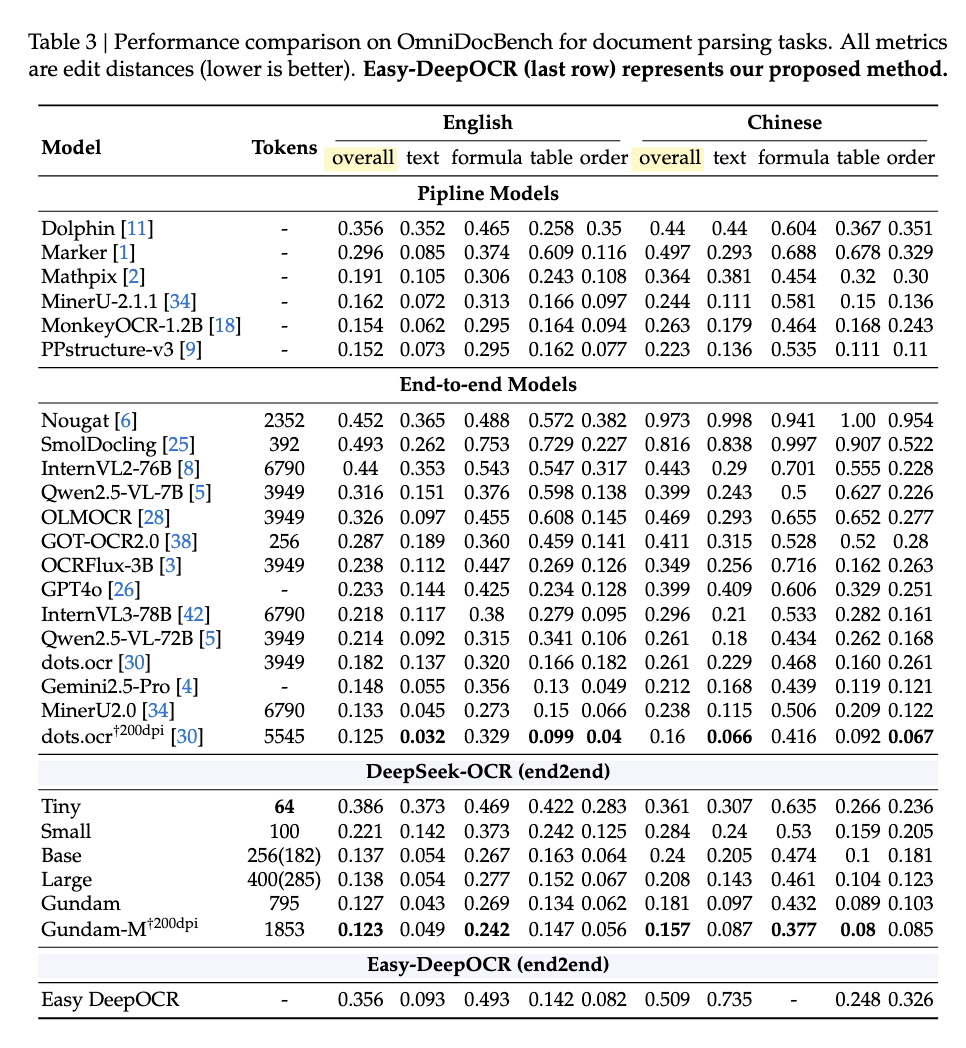

OmniDocBench Results

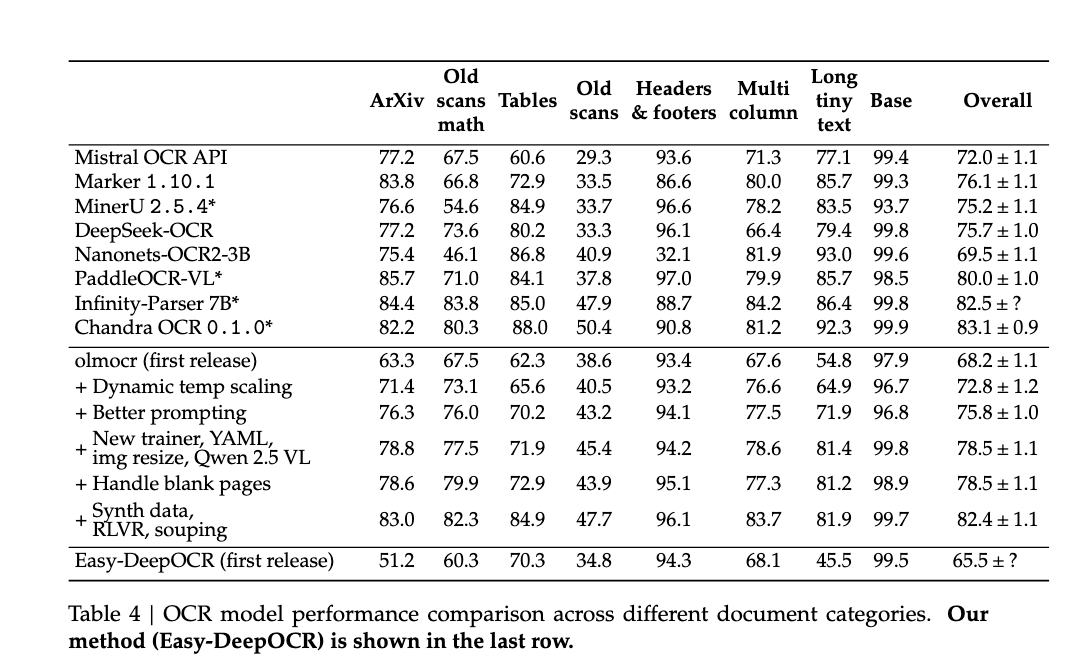

olmOCR-Bench Results

🔧 Troubleshooting

Common Issues

1. CUDA OOM during training

   # Reduce batch size or enable gradient checkpointing
   --per_device_train_batch_size 1 \
   --gradient_accumulation_steps 16 \
   --gradient_checkpointing True


2. NCCL timeout in multi-GPU training

   export NCCL_TIMEOUT=1800
   export NCCL_IB_TIMEOUT=22


3. Position_ids buffer device mismatch

   • Fixed in deepencoder.py by reinitializing position_ids after checkpoint loading

4. Distributed training hangs

   • Ensure all processes take same conditional branches (see modeling_sam_clip.py fix)

📝 Key Differences from Original Paper

This reproduction is based on the VILA codebase and has some adaptations:

1. LLM Decoder: Uses Qwen2-VL-7B instead of Deepseek-3B-MoE
2. Training Framework: VILA's training pipeline instead of Deepseek's custom framework
3. Data Loading: Adapted to VILA's data format and preprocessing
4. Multi-resolution: Simplified implementation with preset modes

🎯 Future Work

• Implement needle-in-a-haystack tests for context compression
• Add support for digital-optical text interleaved pretraining
• Optimize inference with TensorRT/vLLM
• Add LoRA fine-tuning support for domain adaptation
• Implement forgetting mechanism experiments

📚 Citation

If you find our work helpful, please consider citing it:

 @misc{DeepOCR,
  title        = {DeepOCR},
  year         = {2025},
  howpublished = {\url{https://github.com/pkulium/DeepOCR}},
  note         = {Accessed: 2025-11-04}
}

📄 License

• Code: Apache 2.0 License
• Model weights: CC-BY-NC-SA-4.0 License
• For commercial use, please contact the authors

🙏 Acknowledgments

• Original Deepseek-OCR paper and team
• VILA codebase and NVIDIA team
• SAM (Segment Anything Model) from Meta
• CLIP from OpenAI
• Qwen2 from Qwen team

---

Note: This is a research reproduction. For production deployment, consider the official Deepseek-OCR implementation.
