ENHANCING GAN PERFORMANCE THROUGH NEURAL ARCHITECTURE SEARCH AND TENSOR DECOMPOSITION (MMD-AdversarialNAS-GAN)

This repository contains code for our ICASSP 2024 paper "Enhancing GAN Performance Through Neural Architecture Search and Tensor Decomposition." by Prasanna Reddy Pulakurthi, Mahsa Mozaffari, Sohail A. Dianat, Majid Rabbani, Jamison Heard, and Raghuveer Rao. [PDF] [PPT] [Paper]

Qualitative Results

Getting Started

Installation

1. Clone this repository.

   git clone https://github.com/PrasannaPulakurthi/MMD-AdversarialNAS-GAN.git
   cd MMD-AdversarialNAS-GAN


2. Install requirements using Python 3.9.

   conda create -n mmd-nas python=3.9
   conda activate mmd-nas
   pip install -r requirements.txt


3. Install PyTorch1 and Tensorflow2 with CUDA.

   pip install torch==1.13.1+cu116 torchvision==0.14.1+cu116 torchaudio==0.13.1 --extra-index-url https://download.pytorch.org/whl/cu116


   To install other PyTorch versions compatible with your CUDA.

   • Install PyTorch
   • Install TensorFlow

Instructions for Testing, Training, Searching, and Compressing the Model.

Preparing necessary files

Files can be found at Hugging Face and Google Drive. Download the pre-calculated statistics to ./fid_stat for calculating the FID.

Testing

To test the CIFAR10 large model, download the model to ./exps/arch_train_cifar10_large/Model and test the model with scripts/test_arch_cifar10.sh

python MGPU_test_arch.py --gpu_ids 0 --num_workers 8 --dataset cifar10 --bottom_width 4 --img_size 32 --arch arch_cifar10 --draw_arch False --checkpoint arch_train_cifar10_large --genotypes_exp arch_cifar10 --latent_dim 120 --gf_dim 256 --num_eval_imgs 50000 --eval_batch_size 100 --exp_name arch_test_cifar10_large

Training

Train the weights of the generative model with the searched architecture (the architecture is saved in ./exps/arch_cifar10/Genotypes/latest_G.npy). Run the command found in scripts/train_arch_cifar10_large.sh

python MGPU_train_arch.py --gpu_ids 0 --num_workers 8 --gen_bs 128 --dis_bs 128 --dataset cifar10 --bottom_width 4 --img_size 32 --max_epoch_G 500 --n_critic 1 --arch arch_cifar10 --draw_arch False --genotypes_exp arch_cifar10 --latent_dim 120 --gf_dim 256 --df_dim 512 --g_lr 0.0002 --d_lr 0.0002 --beta1 0.0 --beta2 0.9 --init_type xavier_uniform --val_freq 5 --num_eval_imgs 50000 --exp_name arch_train_cifar10_large

Searching the Architecture

To use AdversarialNAS to search for the best architecture, run the command found in scripts/search_arch_cifar10.sh

python MGPU_search_arch.py --gpu_ids 0 --gen_bs 128 --dis_bs 128 --dataset cifar10 --bottom_width 4 --img_size 32 --max_epoch_G 25 --arch search_both_cifar10 --latent_dim 120 --gf_dim 160 --df_dim 80 --g_spectral_norm False --d_spectral_norm True --g_lr 0.0002 --d_lr 0.0002 --beta1 0.0 --beta2 0.9 --init_type xavier_uniform --n_critic 5 --val_freq 5 --derive_freq 1 --derive_per_epoch 16 --draw_arch False --exp_name search/bs120-dim160 --num_workers 8 --gumbel_softmax True

Compression

1. Compress and fine-tune all the Convolutional Layers except 9 and 13.

python MGPU_cpcompress_arch.py --gpu_ids 0 --num_workers 8 --dataset cifar10 --bottom_width 4 --img_size 32 --arch arch_cifar10 --draw_arch False --genotypes_exp arch_cifar10  --latent_dim 120 --gf_dim 256 --df_dim 512 --num_eval_imgs 50000 --eval_batch_size 100 --checkpoint arch_train_cifar10_large  --exp_name compress_train_cifar10_large --val_freq 5  --gen_bs  128 --dis_bs 128 --beta1 0.0 --beta2 0.9  --byrank --rank 256 --layers cell1.c0.ops.0.op.1 cell1.c1.ops.0.op.1 cell1.c2.ops.0.op.1 cell1.c3.ops.0.op.1 cell2.c0.ops.0.op.1 cell2.c2.ops.0.op.1 cell2.c3.ops.0.op.1 cell2.c4.ops.0.op.1 cell3.c1.ops.0.op.1 cell3.c2.ops.0.op.1 cell3.c3.ops.0.op.1 --compress-mode "allatonce" --max_epoch_G 500 --eval_before_compression

2. Compress the Fully Connected Layers except l1.

python MGPU_cpcompress_arch.py --gpu_ids 0 --num_workers 8 --dataset cifar10 --bottom_width 4 --img_size 32 --arch arch_cifar10 --draw_arch False --genotypes_exp arch_cifar10  --latent_dim 120 --gf_dim 256 --df_dim 512 --num_eval_imgs 50000 --eval_batch_size 100 --checkpoint compress_train_cifar10_large  --exp_name compress_train_cifar10_large --val_freq 5  --gen_bs  128 --dis_bs 128 --beta1 0.0 --beta2 0.9  --byrank --rank 4 --layers l2 l3 --freeze_layers l2 l3 --compress-mode "allatonce" --max_epoch_G 1 --eval_before_compression

3. To test the compressed network, download the compressed model from Google Drive to ./exps/compress_train_cifar10_large/Model

python MGPU_test_cpcompress.py --gpu_ids 0 --num_workers 8 --dataset cifar10 --bottom_width 4 --img_size 32 --arch arch_cifar10 --draw_arch False --checkpoint compress_train_cifar10_large --genotypes_exp arch_cifar10 --latent_dim 120 --gf_dim 256 --num_eval_imgs 50000 --eval_batch_size 100 --exp_name compress_test_cifar10_large  --byrank

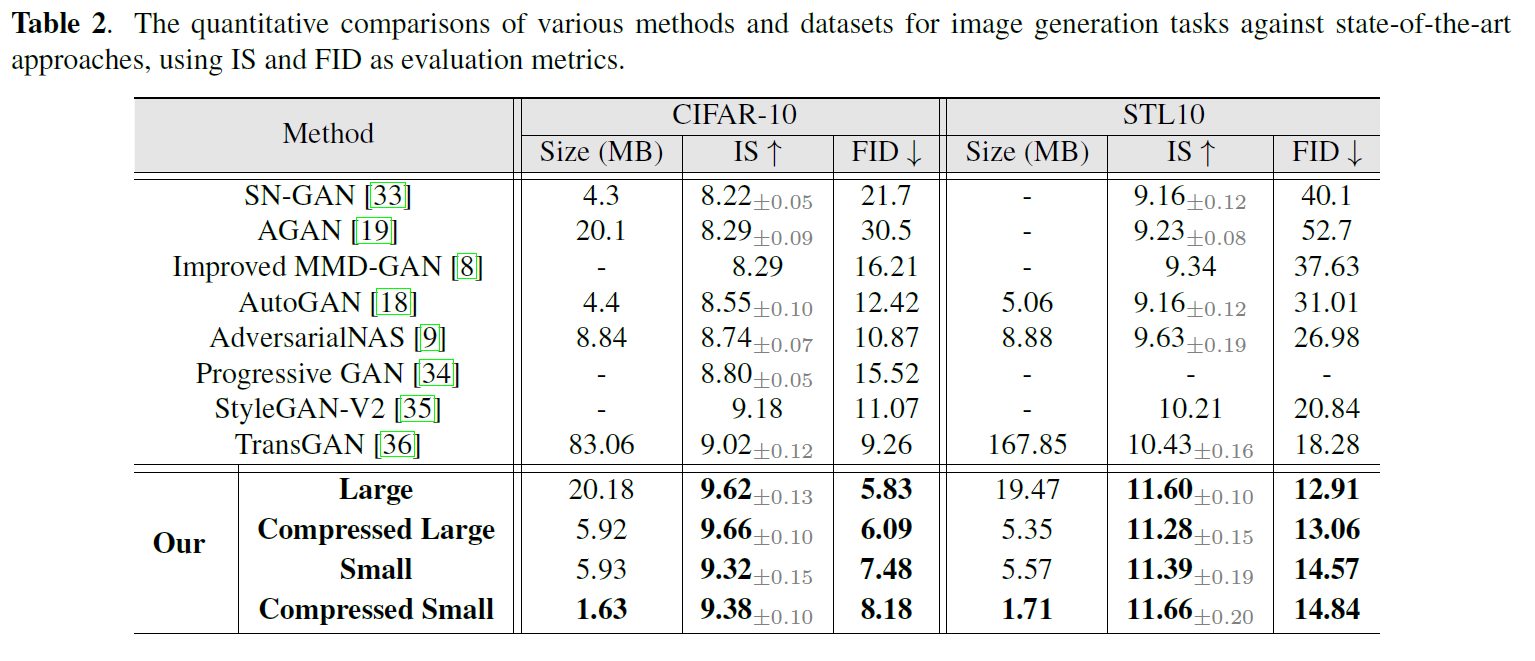

Quantitative Results

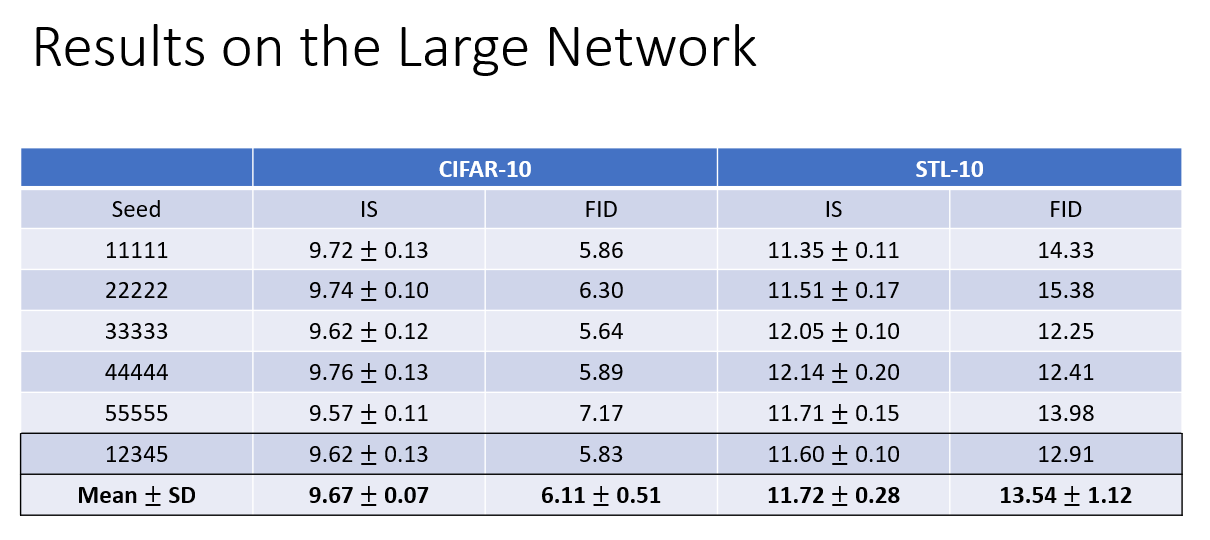

Repeatability

Citation

Please consider citing our paper in your publications if it helps your research. The following is a BibTeX reference.

@INPROCEEDINGS{10446488,
  author={Pulakurthi, Prasanna Reddy and Mozaffari, Mahsa and Dianat, Sohail A. and Rabbani, Majid and Heard, Jamison and Rao, Raghuveer},
  booktitle={ICASSP 2024 - 2024 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP)},
  title={Enhancing GAN Performance Through Neural Architecture Search and Tensor Decomposition},
  year={2024},
  volume={},
  number={},
  pages={7280-7284},
  keywords={Training;Performance evaluation;Tensors;Image coding;Image synthesis;Image edge detection;Computer architecture;Neural Architecture Search;Maximum Mean Discrepancy;Generative Adversarial Networks},
  doi={10.1109/ICASSP48485.2024.10446488}}

@ARTICLE{10732016,
  author={Pulakurthi, Prasanna Reddy and Mozaffari, Mahsa and Dianat, Sohail and Heard, Jamison and Rao, Raghuveer and Rabbani, Majid},
  journal={IEEE Access},
  title={Enhancing GANs With MMD Neural Architecture Search, PMish Activation Function, and Adaptive Rank Decomposition},
  year={2024},
  volume={12},
  number={},
  pages={174222-174244},
  keywords={Generative adversarial networks;Training;Generators;Image coding;Acute respiratory distress syndrome;Tensors;Standards;Neural networks;Image synthesis;Adaptive systems;Activation function;generative adversarial network;maximum mean discrepancy;neural architecture search;tensor decomposition},
  doi={10.1109/ACCESS.2024.3485557}}

Acknowledgement

Codebase from AdversarialNAS, MMD-PMish-NAS-GAN, TransGAN, and Tensorly.
