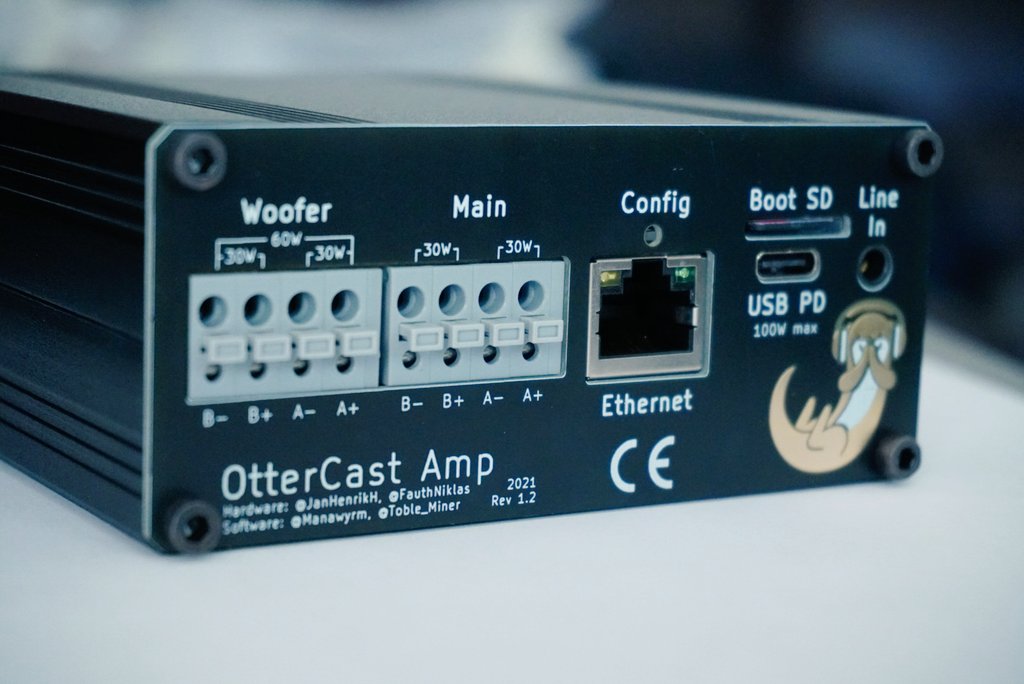

OtterCastAmp

OtterCastAmp is an open-source Sonos Amp replacement, based on a Sochip S3 SoC and pulseaudio sink/source.

How do I get one?

We are currently planning a small batch production run, stay tuned. [editors notes: It is 2024 now and noone really expected how bad covid would affect the supply chain. While all parts are available again, we are only slowly getting interested in this project again]

You don't want to wait? You can of course run a small batch on your own! Please have a look into the gerber folder, a batch size of just 5 (and up to 30) boards is supported by JLC.

Installation & Configuration

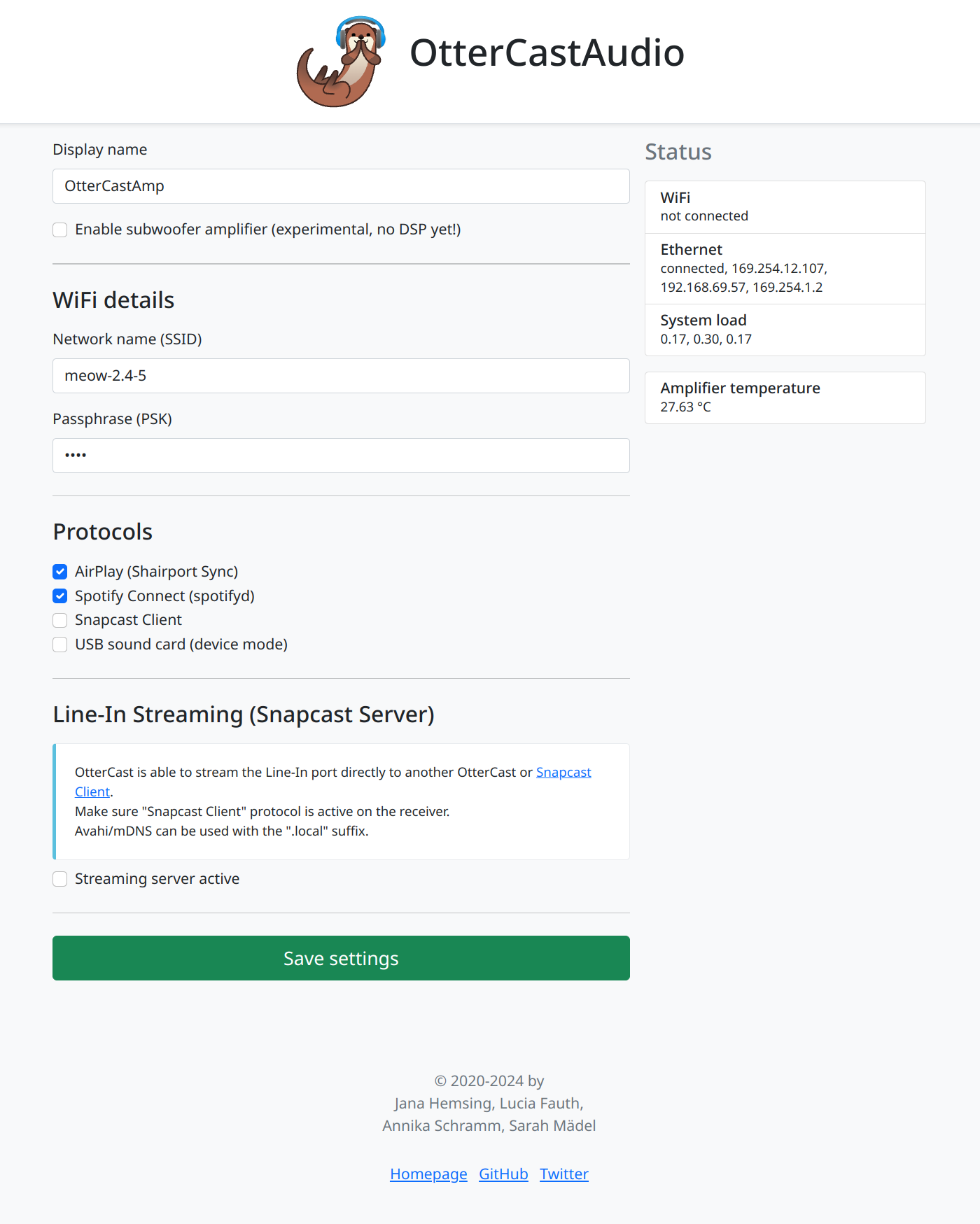

After downloading and flashing the image, OtterCastAmp can either be configured via the config.ini file or via the web-interface.

Check out our Documentation for more information!

Schematics?

Schematics!

Team

• @lucysrausch Hardware - OtterCastAmp
• @_Jana_Marie Hardware - OtterCastAudio
• @Toble_Miner Software - Embedded Linux
• @Manawyrm Software - Frontend & OTA

Do you plan a PoE version?

Maybe. (25W of power is not enough and >50W isn't popular)

Status

HW v1.0 is ordered and we already found bugs fixed in v1.2 (not ordered yet) Tested & working:

• Audio Speaker Out

• Audio Line In

• Bluetooth Audio In

• USB PD

• WiFi

• Ethernet

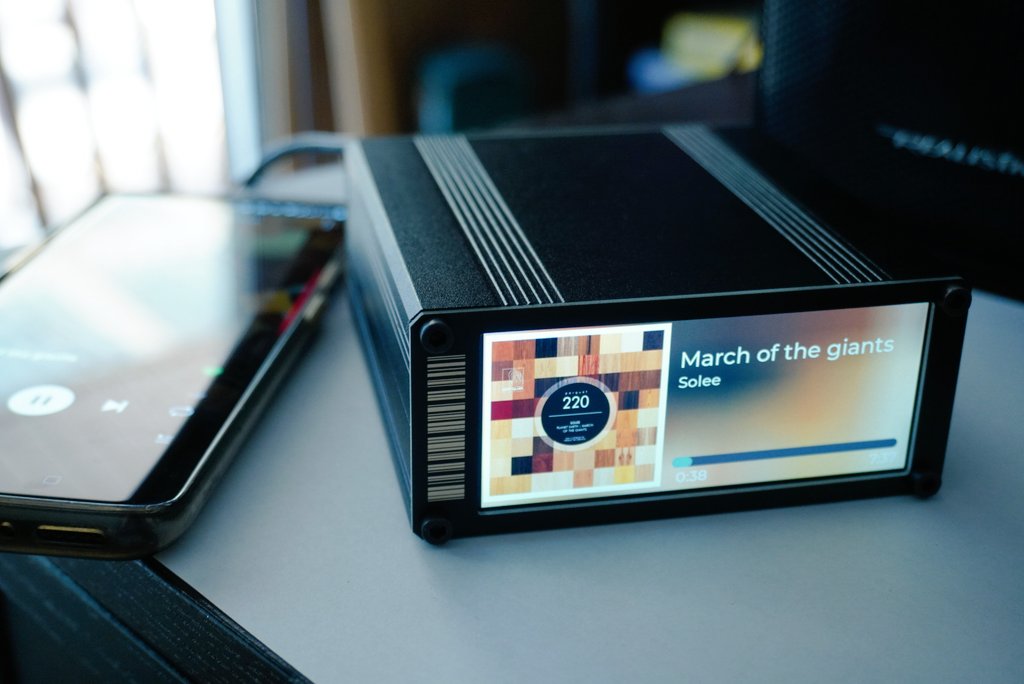

• Display

• Uart

• Webinterface (config)

• Shairport-sync

• Pulseaudio sink

• Pulseaudio source

• snapcast

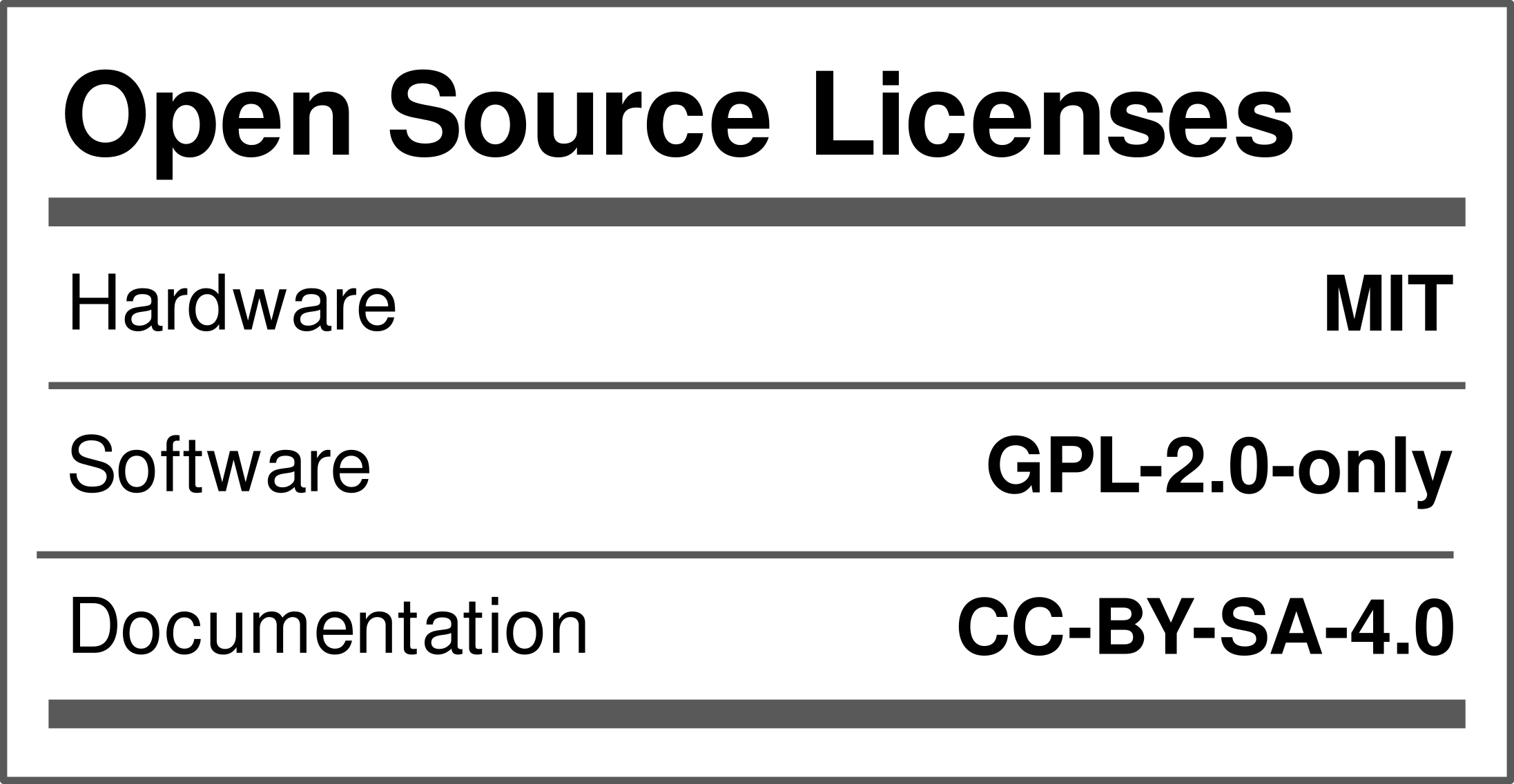

License

Note: The following files or directories are excluded from the License and are otherwise licensed

• 3D/
• datasheets/
