Looped-DiT: Looped Diffusion Transformer



Official PyTorch implementation of Looped-DiT.

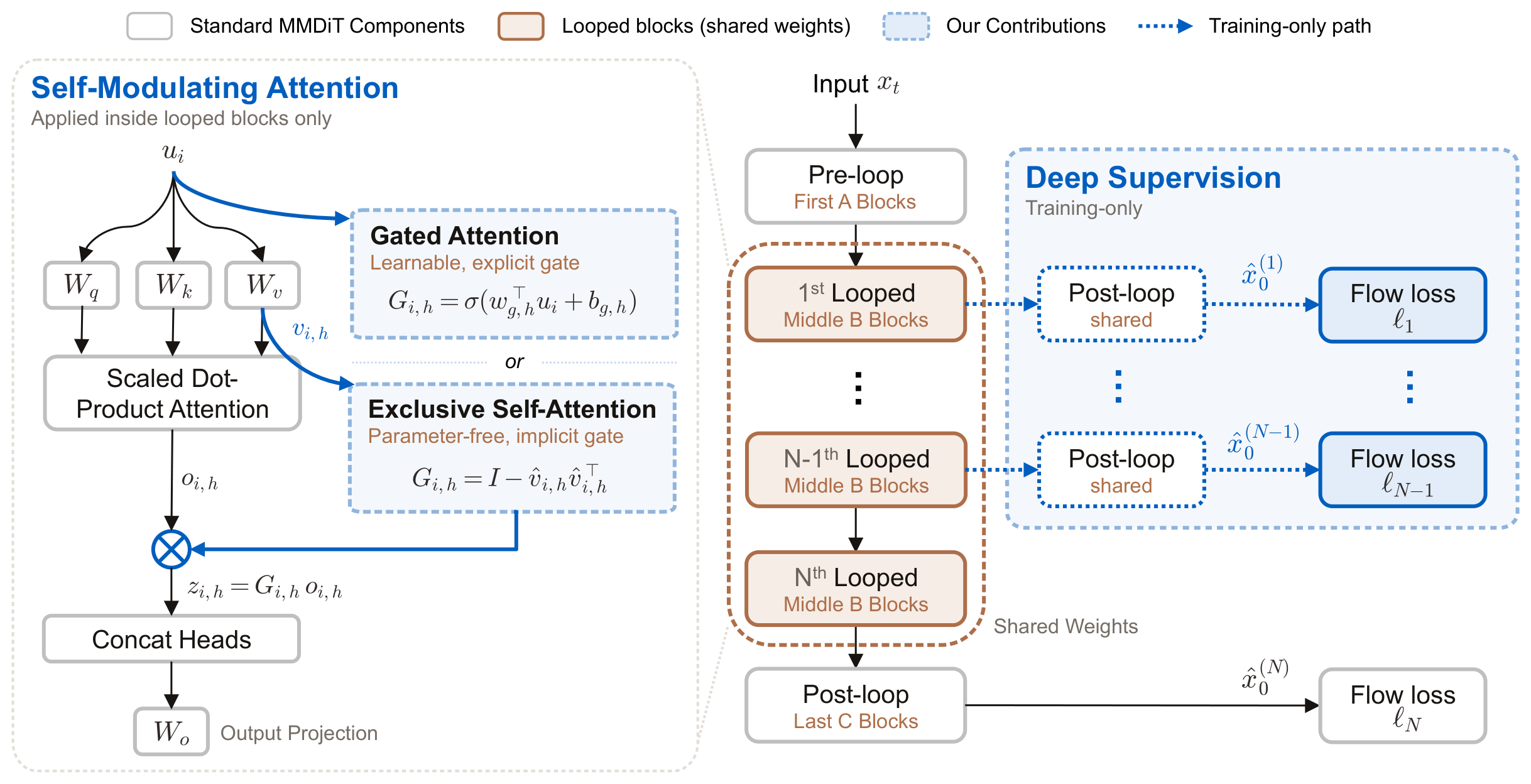

Looped-DiT scales the computation of a text-to-image diffusion transformer by running a shared group of transformer blocks several times within each denoising step: the model gets deeper without getting larger. Naive looping does not reliably help, so Looped-DiT adds two components. Deep Supervision decodes the state after every loop through the post-loop blocks and trains each of these predictions on the same clean-image target. Self-Modulating Attention (exclusive self-attention, XSA, or a head-wise attention gate) regulates the attention updates inside the loop. The backbone is the pixel-space MMDiT of MiniT2I, conditioned on a frozen FLAN-T5-Large.

This repository includes:

• Training code for Looped-DiT B/32, B/16 and L/16 (pretraining and fine-tuning).
• Inference at any loop depth.
• Evaluation on GenEval, DPG-Bench, PRISM-Bench, T2I-CoReBench, SpatialGenEval and TIIF-Short.
• Data preparation scripts for every training set.

Table of Contents

• Model Zoo
• Repository Layout
• Installation
• Inference
  • Recommended Inference Settings
• Evaluation
  • Evaluation Metrics
  • Evaluate Checkpoints
• Full Training
  • Configurations
  • Dataset Preparation
  • Pretraining
  • Fine-Tuning
  • Ablation Toggles
• Acknowledgments

Model Zoo

Scores use the EMA weights, 100 Euler steps, guidance 6.0 and loop depth 4.

Spatial denotes SpatialGenEval. TIIF denotes the short-prompt version of TIIF-Bench.

Repository Layout

.
├── configs/          # training configs (B/32, B/16, L/16) and the evaluation config
├── looped_dit/       # model, training, sampling
│   └── eval/         # benchmark image generation and scoring
├── tools/            # dataset preparation
├── tests/            # unit tests
└── assets/

Installation

Create a Python environment with a CUDA build of PyTorch (2.1 or newer), then install the dependencies:

pip install -r requirements.txt

Run all commands from the repository root. Configs refer to ${DATA_ROOT} (training data), ${ASSET_ROOT} (benchmark files) and ${OUTPUT_ROOT} (checkpoints and results in the evaluation config). They default to data/, eval_assets/ and outputs/ in the repository and can be set as environment variables.

Sanity-check the environment with the unit tests (CPU, under a minute):

python -m pytest tests

Inference

Download a checkpoint from the Model Zoo, then generate. --loops sets the loop depth, and several depths give one row each:

hf download sensenova/Looped-DiT-B16 looped-dit-b16.pt --local-dir checkpoints

python -m looped_dit.sample --checkpoint checkpoints/looped-dit-b16.pt \
    --prompt "a red cube on top of a blue sphere" --out sample.png

python -m looped_dit.sample --checkpoint checkpoints/looped-dit-b16.pt \
    --prompt "a red cube on top of a blue sphere" --loops 1 2 3 4 --out loops.png

From Python:

import torch
from looped_dit.pipeline import TextEncoder, generate, load_model

device = torch.device("cuda")
model, cfg = load_model("checkpoints/looped-dit-b16.pt", device)  # EMA weights, bf16
text_encoder = TextEncoder(cfg.text_encoder, cfg.prompt_length, device)
torch.manual_seed(0)
image = generate(model, text_encoder, ["a red cube on top of a blue sphere"], num_loops=4)[0]
image.save("sample.png")

Recommended Inference Settings

These are the settings of the paper's main results and the defaults of the scripts.

Evaluation

Evaluation Metrics

This repository does not include benchmark data. Copy the files below from the benchmark repositories into ${ASSET_ROOT}. The paths are the defaults of configs/eval.yml, and the folder of the benchmark repository a file comes from is in parentheses. The judge and scorer models (Qwen, mPLUG, CLIP) are downloaded on first use, but the Mask2Former weights are not.

The Qwen judges run locally with vLLM on 8 GPUs (set tensor_parallel_size under a benchmark to change this). GenEval (mmdet) and the judges (vLLM) usually need their own Python environments. Set them under python: in the eval config. We used mmdet 2.28.2 with mmcv-full 1.7.2 for GenEval, and vLLM 0.24 with transformers 5.12 and qwen-vl-utils 0.0.14 for the judges. TIIF-Bench is judged by GPT-4o: set OPENAI_API_KEY (api_base in the eval config accepts any OpenAI-compatible endpoint). The GenEval scorer looks for the Mask2Former config in an mmdetection 2.x source checkout, as in the GenEval instructions. With a pip-installed mmdet, set detector_config.

Evaluate Checkpoints

Set checkpoint and output_dir in configs/eval.yml, then run:

python -m looped_dit.eval.run --config configs/eval.yml

This generates the images of all six benchmarks on 8 GPUs, scores them and prints a table (scores.json in the output directory). Finished benchmarks are skipped on a rerun. The noise seed of a prompt depends on the GPU that renders it, so use 8 GPUs to reproduce a run exactly. Each step can also be run on its own, see looped_dit/eval/.

Full Training

Configurations

All models generate 512 x 512 images with a frozen FLAN-T5-Large text encoder. The looped blocks run 4 times, so B/32 and B/16 apply 32 blocks per forward pass with 17 distinct blocks (L/16: 44 with 23). The configs train with deep supervision (Final + Mean weighting) and XSA.

Dataset Preparation

Training data goes into ${DATA_ROOT}:

data/
├── cc12m_chunks/         # pretraining tensor chunks (chunk_*.pt)
├── fluxreason_chunks/
└── finetune/             # WebDataset shards of (jpg or png, txt) pairs
    ├── blip3o_60k/  dalle3/  sharegpt4o/  fine_t2i/

The pretraining chunks hold decoded 512 x 512 images, about 0.8 GB per 1,024 samples: roughly 5 TB each for CC12M and FLUX-Reason-6M.

CC12M. Pretraining uses CC12M with the LLaVA-NeXT captions of CaptionEmporium/conceptual-captions-cc12m-llavanext. Download the images with img2dataset, installed in a separate environment (it requires an older webdataset than this repository), then write tensor chunks:

hf download CaptionEmporium/conceptual-captions-cc12m-llavanext --repo-type dataset \
    --include "*.jsonl.gz" --local-dir data/cc12m_meta
python -c "import pandas as pd; df = pd.read_json('data/cc12m_meta/train.jsonl.gz', lines=True); \
df[df.status == 'success'][['url', 'caption_llava']].to_parquet('data/cc12m_meta/urls.parquet')"
img2dataset --url_list data/cc12m_meta/urls.parquet --input_format parquet \
    --url_col url --caption_col caption_llava --output_format webdataset \
    --output_folder data/cc12m_wds --image_size 512 --resize_mode center_crop \
    --encode_format jpg --number_sample_per_shard 10000 --processes_count 16 --thread_count 64
python tools/make_chunks.py --webdataset data/cc12m_wds --out data/cc12m_chunks

FLUX-Reason-6M. B/16 and L/16 also pretrain on FLUX-Reason-6M images with the dense captions released with i1: five captions per image, of which make_chunks.py keeps one, chosen at random but the same on every run. Download the FLUX-Reason part of the captions (10 GB), then point --captions at it:

hf download zlab-princeton/i1-captions --repo-type dataset --include "fluxreason/*" \
    --local-dir data/i1-captions
python tools/make_chunks.py --hf-dataset LucasFang/FLUX-Reason-6M --id-column id \
    --captions data/i1-captions/fluxreason --out data/fluxreason_chunks

Fine-tuning data. Std-120K mixes BLIP3o-60K, DALL-E 3 and the text-to-image part of ShareGPT-4o-Image with weights 0.06 / 0.016 / 0.04. B/16 and L/16 add Fine-T2I for half of the samples:

python tools/prepare_finetune_data.py --out data/finetune                      # Std-120K
python tools/prepare_finetune_data.py --out data/finetune --sources fine_t2i   # Fine-T2I

Pretraining

Launch on every node with torchrun. The global batch is 1024: each step accumulates gradients over 1024 / (micro_batch_size x GPUs) micro-batches, so that product must divide 1024 (change micro_batch_size with --set if it does not). A run resumes from the newest checkpoint in its output directory.

torchrun --nnodes 2 --nproc_per_node 8 --node_rank $NODE_RANK \
    --master_addr $MASTER_ADDR --master_port 29500 \
    -m looped_dit.train --config configs/b32_pretrain.yml --output-dir outputs/b32_pretrain

The reference setups are 2 nodes for B/32, 4 for B/16 and 8 for L/16 (8 GPUs with 80 GB each). Each data-loader worker keeps a shuffle buffer of 4,096 decoded images (about 3 GB), so pretraining needs about 150 GB of host memory per 8-GPU node. Lower shuffle_buffer or num_workers if that is too much. Add --wandb to log to Weights & Biases.

All models use AdamW with betas (0.9, 0.95) and no weight decay, gradient clipping at 0.1, bf16 autocast, noise scale 2.0, logit-normal timesteps (mean -0.8, std 0.8) and 10% prompt dropout.

Fine-Tuning

Fine-tuning starts from the pretrained weights, EMA and optimizer state and continues the step counter, without warmup (learning rate 4e-4 and EMA 0.99995 for every model):

torchrun ... -m looped_dit.train --config configs/b32_finetune.yml --output-dir outputs/b32_finetune \
    --init-from outputs/b32_pretrain/checkpoints/checkpoint_0250000.pt

Ablation Toggles

Each Looped-DiT component is a config switch, so the ablations of the paper are config edits (or command-line overrides such as --set use_xsa=false use_attn_gate=true). Each row lists only the switches to change. Everything else stays as in the shipped configs, which train with deep supervision (Final + Mean) and XSA. For example, the gated-attention row keeps deep supervision on, so add deep_supervision: false to train the gate alone:

Acknowledgments

This codebase builds on:

• MiniT2I and its PyTorch implementation: the backbone, data pipeline and training recipe.
• GenEval: the object-detection scorer in looped_dit/eval/geneval/, adapted with a progress bar and a JSON summary (MIT license).
• The authors of the datasets and benchmarks linked above.

This project is released under the MIT License.
