🦾 - IRON: Unlocking the Full Potential of NPUs - 🦾

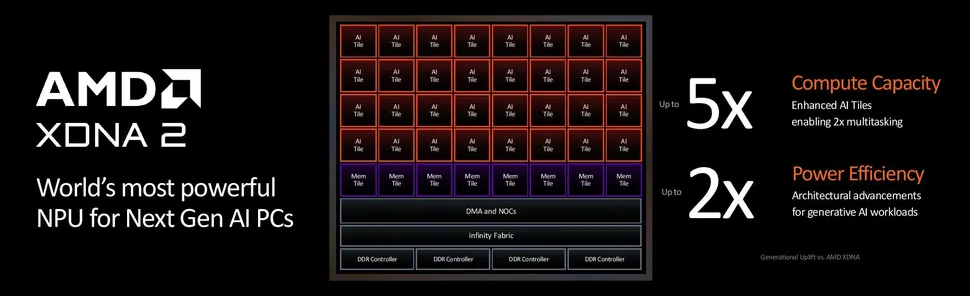

IRON is an open-source & close-to-metal Python API enabling fast and efficient execution on AMD Ryzen™ AI NPUs. It relies on language bindings around the MLIR-AIE dialect.

The IRON Python API for Ryzen™ AI NPUs is described in the following paper:

E. Hunhoff, J. Melber, K. Denolf, A. Bisca, S. Bayliss, S. Neuendorffer, J. Fifield, J. Lo, P. Vasireddy, P. James-Roxby, E. Keller. "Efficiency, Expressivity, and Extensibility in a Close-to-Metal NPU Programming Interface". In 33rd IEEE International Symposium On Field-Programmable Custom Computing Machines, May 2025.

🎯 Operator Dashboard

Use this dashboard to quickly check the status of each kernel and locate relevant setup, build, and usage information.

📌 Legend

Installation (Linux)

These instructions will guide you through everything required for building and executing a program on the Ryzen™ AI NPU, starting from a fresh bare-bones Ubuntu 24.04 or Ubuntu 24.10 install.

Initial Setup

Be sure you have the latest BIOS on your laptop or mini-PC that enables the NPU. See here.

If starting from Ubuntu 24.04 you may need to update the Linux kernel to 6.11+ by installing the Hardware Enablement (HWE) stack:

sudo apt update
sudo apt install --install-recommends linux-generic-hwe-24.04
sudo reboot

1. Install XDNA™ Driver and XRT:

   Instructions from mlir-aie repository

2. Install the packages needed for IRON and MLIR-AIE:

   # Python versions 3.10, 3.12 and 3.13 are currently supported by our wheels
   sudo apt install \
   build-essential clang clang-14 lld lld-14 python3-venv python3-pip


3. Setup a virtual environment and activate it:

   python3 -m venv ironenv
   source ironenv/bin/activate
   python3 -m pip install --upgrade pip


4. Source XRT (installed in step 1):

   source /opt/xilinx/xrt/setup.sh


5. Install required Python packages (from requirements.txt):

   MLIR_PYTHON_EXTRAS_SET_VERSION="0.0.8.3" HOST_MLIR_PYTHON_PACKAGE_PREFIX="aie" pip install -r requirements.txt


6. To test your installation, you can try to build and run the example below:

   ./operators/axpy/test.py


Building/Using & Testing Operators

All available operators can be found in operators. These each contain:

• op.py: The Python operator interface -- an easy access point to integrate operators into your project that prescribes how to compile the operator (build artifacts) and how to call it at runtime (buffer sizes, etc.)
• design.py: The implementation of the operator's NPU code. Often references a kernel in aie_kernels for the compute core code and describes the data movement using ObjectFIFOs.
• reference.py: A reference CPU implementation to validate the correctness of the NPU implementation.
• test.py: An end-to-end test that instantiates and builds the operator, runs it and verifies its outputs against the reference.

NOTE: Be sure the XRT setup script has been sourced and the Python environment is activated: source /opt/xilinx/xrt/setup.sh source /path/to/ironenv/bin/activate

To build and test all the operators:

pytest operators/ -m "not extensive"

To run the extensive test suite:

pytest operators/

To run a specific operator's tests:

pytest operators/axpy/

Git Hooks (Optional but Recommended)

To ensure your code passes CI linting checks before pushing, install the pre-push hook:

cp scripts/hooks/pre-push .git/hooks/pre-push
chmod +x .git/hooks/pre-push

The hook will run the same linting checks as CI:

• License checks (reuse)
• Python formatting (black)
• C++ formatting (clang-format)

To bypass the hook if needed: git push --no-verify

---

Copyright© 2025 Advanced Micro Devices, Inc
