SPTG-LCC: Single-shot, Pixel-level, Target-free and General LiDAR-Camera Extrinsic Self-Calibration

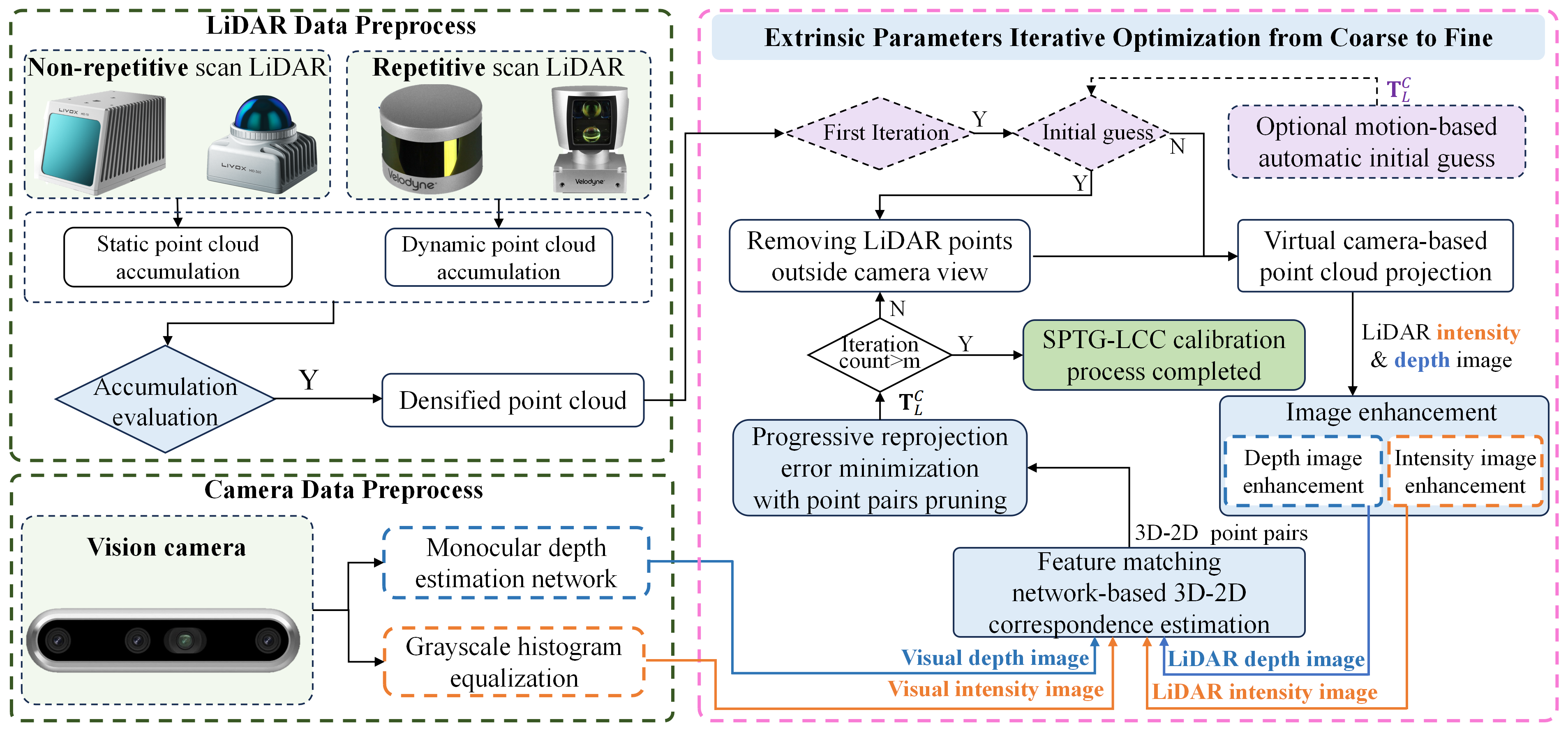

The data fusion of LiDAR and camera holds vast application prospects, with calibration as a crucial prerequisite. In this paper, we propose SPTG-LCC, a novel, general, and target-free LiDAR-camera extrinsic calibration framework. On the one hand, SPTG-LCC is open-source, which is very suitable for practitioners seeking a robust, general, and convenient target-free calibration tool. On the other hand, the four diverse datasets are open-source, which is very suitable for researchers to comprehensively evaluate feature-based target-free LiDAR-camera calibration methods.

Video Link: Video on Youtube

To Do List

The following tasks will be completed quickly and step by step.

Experimental Video

• Video Link: Video on Youtube Completed

Paper Release

• Paper Link：

Datasets open-source

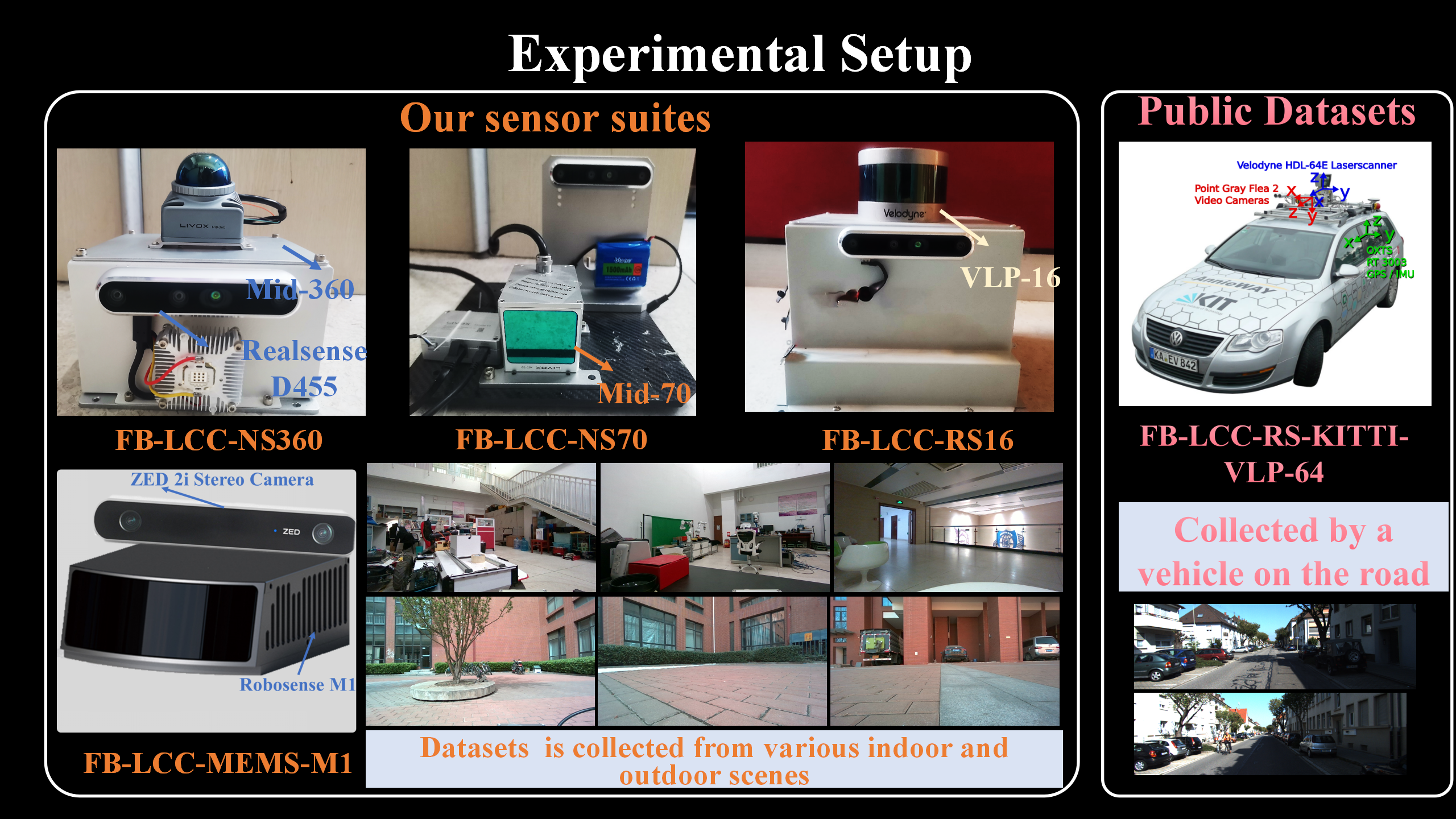

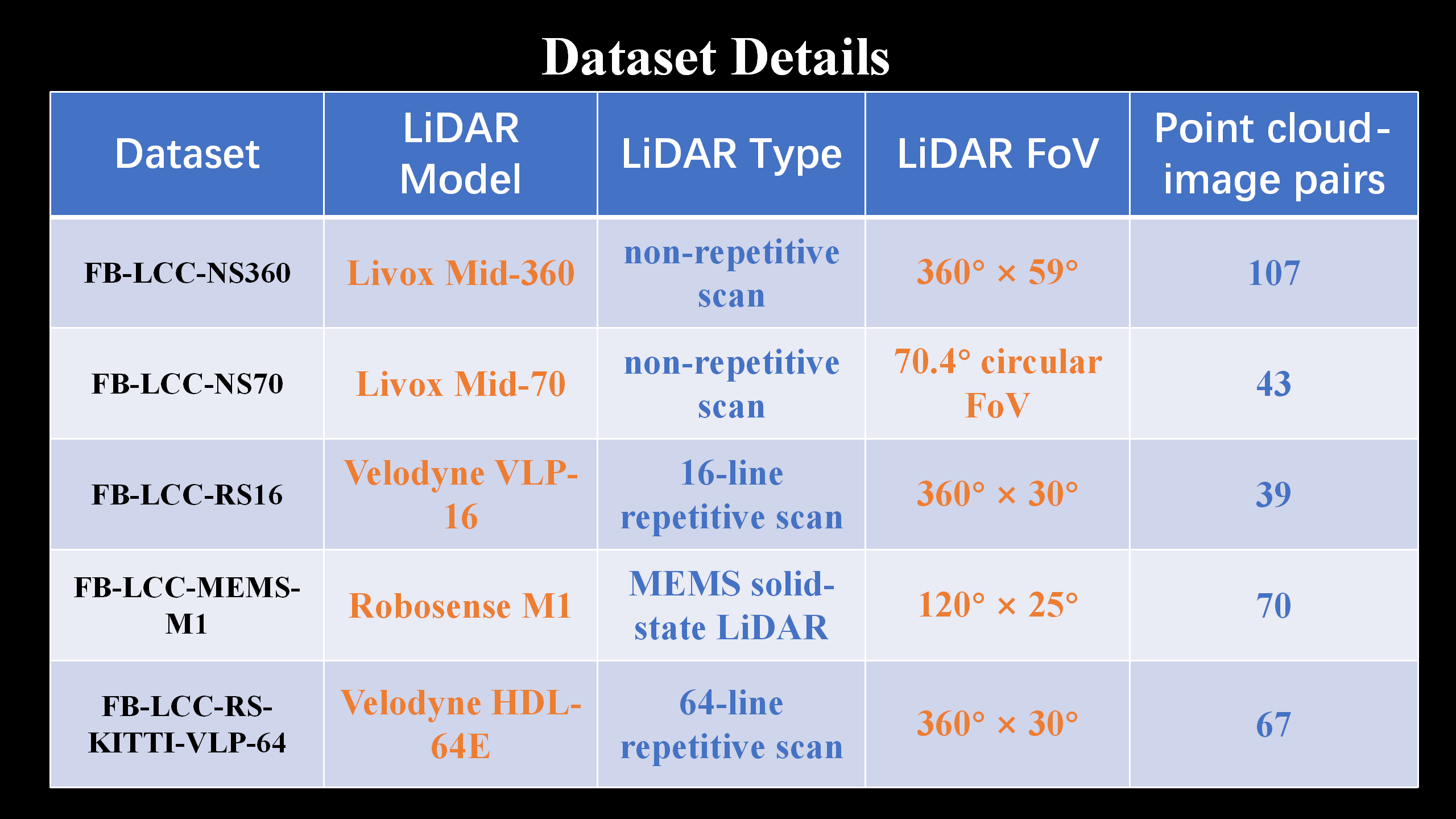

our self-assembled sensor suites as follows, where the camera is the Realsense D455 and ZED 2i. Four diverse datasets were collected using these four suites, named FB-LCC-NS360, FB-LCC-NS70, FB-LCC-RS16, and FB-LCC-MEMS-M1, which are released for evaluating feature-based LiDAR-camera calibration methods. Moreover, sequence 00 on the public KITTI odometry benchmark is evenly divided into 67 LiDAR-camera data pairs as a dataset, named FB-LCC-RS-KITTI-VLP-64.

• Reference values ​​of extrinsic parameters of the sensor suite in the dataset: Reference_calibration matrix.yaml Completed
• FB-LCC-NS360 : Baidu Cloud Disk Completed
• FB-LCC-NS70 : Baidu Cloud Disk Completed
• FB-LCC-RS16 : Baidu Cloud Disk Completed
• FB-LCC-MEMS-M1 : Baidu Cloud Disk Completed
• FB-LCC-RS-KITTI-VLP-64 : Baidu Cloud Disk Completed

Code open-source

• Docker images tool : Completed
• main code : Completed
• test code
• Optional motion-based initial guess : Completed

Simplified code and Docker image

• Simplified code
• Simplified Docker image

Important parameter description

• parameter description

Environment Setup Guide

1. main code

git clone https://github.com/NKU-MobFly-Robotics/SPTG-LCC.git

Assuming the folder where the code is downloaded locally is： /home/wyw/SPTG-LCC

Check the folder where you cloned the code and replace the example folder（/home/wyw/SPTG-LCC） in all the following commands

2. Docker images download

Docker images: Baidu Cloud Disk

3. catkin_make

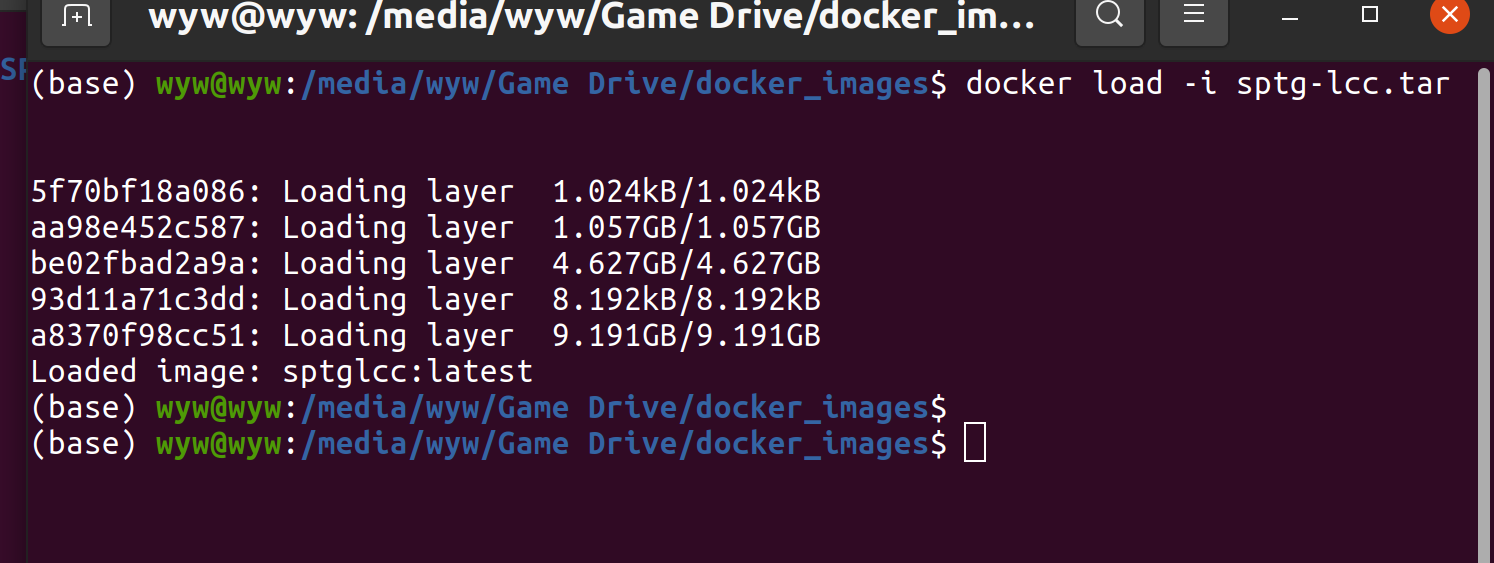

1. Building a Docker Image

docker load -i sptg-lcc.tar

2. Building a Docker container from the Docker image

sudo docker run -it -v  /home/wyw/SPTG-LCC:/calib_data -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY=$DISPLAY --net=host -e GDK_SCALE   -e GDK_DPI_SCALE  --privileged --gpus all -e NVIDIA_DRIVER_CAPABILITIES=all --name SPTG-LCC  sptglcc:latest   bash

3. Start Docker container

sudo docker start SPTG-LCC

4. Enter the Docker container

sudo docker exec -it  SPTG-LCC bash

5. catkin_make code

cd /calib_data/direct_lidar_camera

conda deactivate

source /opt/ros/noetic/setup.bash

catkin_make

4. weights download

Download the weight file and put it in the following folder respectively

1. Download EfficientLoFTR weights

cd /home/wyw/SPTG-LCC/matcher/Efficinet_LOFTR/EfficientLoFTR && mkdir weights

EfficientLoFTR weights: Baidu Cloud Disk

2. Download superpoint-Lightglue weights

cd /home/wyw/SPTG-LCC/matcher/LightGlue

superpoint: Baidu Cloud Disk superpoint_lightglue Baidu Cloud Disk

2. Download mono_depth weights

cd /home/wyw/SPTG-LCC/mono_depth/Marigold/

mono_depth weights（The entire folder）: Baidu Cloud Disk

5. Start calibration

1. Put your test rosbag into the following folder

cd /home/wyw/SPTG-LCC/SPTG-LCC/bag

The rosbag needs to contain the camera image topic, the intrinsic parameters topic, and the lidar topic.

Modify your topic name in the yaml file in the config folder

/home/wyw/SPTG-LCC/direct_lidar_camera/src/direct_visual_lidar_calibration/config

Rosbag example for testing : Baidu Cloud Disk

2. Run the script

cd /home/wyw/SPTG-LCC

chmod +x LiDAR_Camera_calib.sh

./LiDAR_Camera_calib.sh

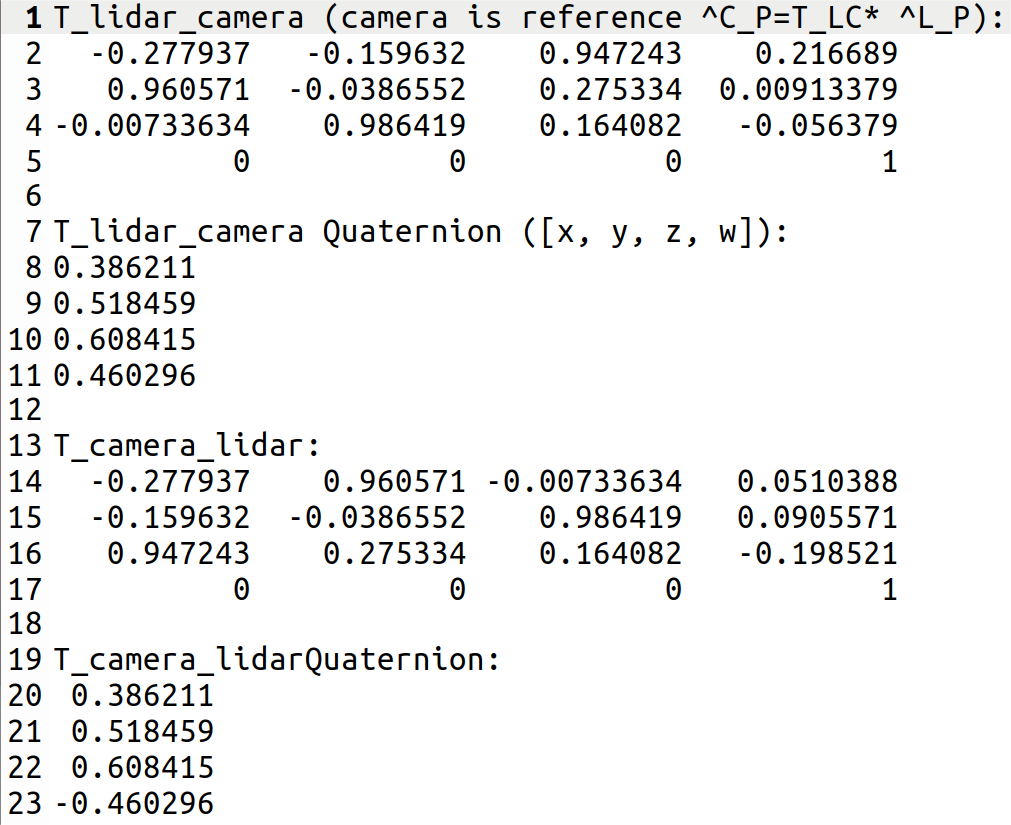

3. The results are saved in the following path

The final result is the latest txt file.

cd /home/wyw/SPTG-LCC/SPTG-LCC/results

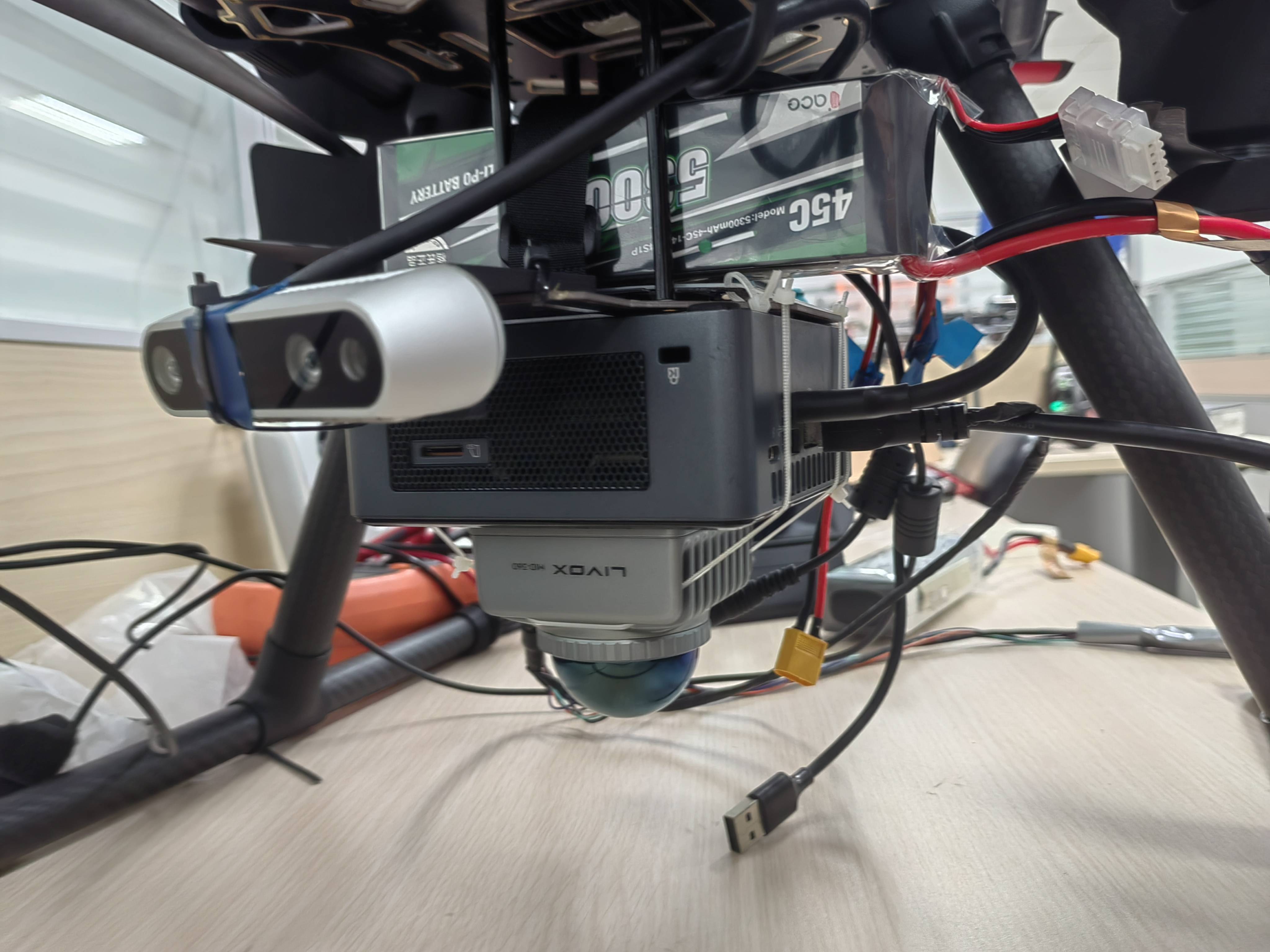

The following is the collection device and calibration results of the above test data

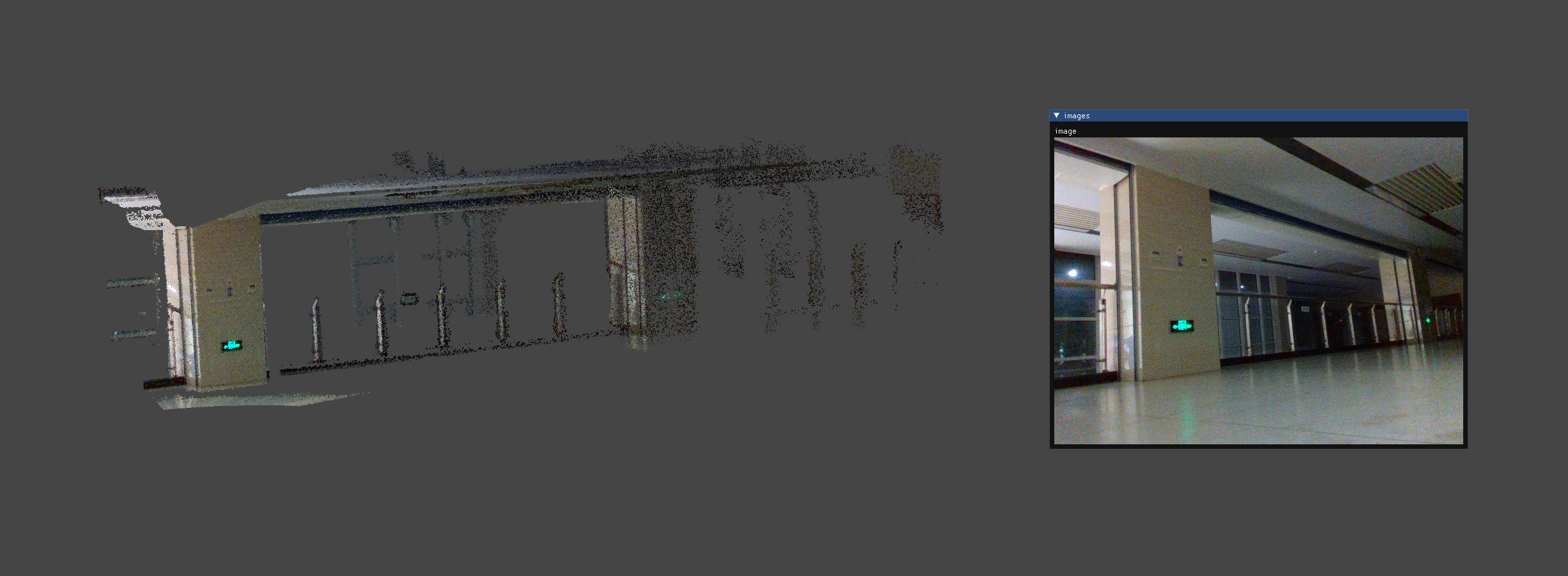

4. If you want to see the coloring effect of the point cloud

chmod +x Alignment_Effect.sh

./Alignment_Effect.sh

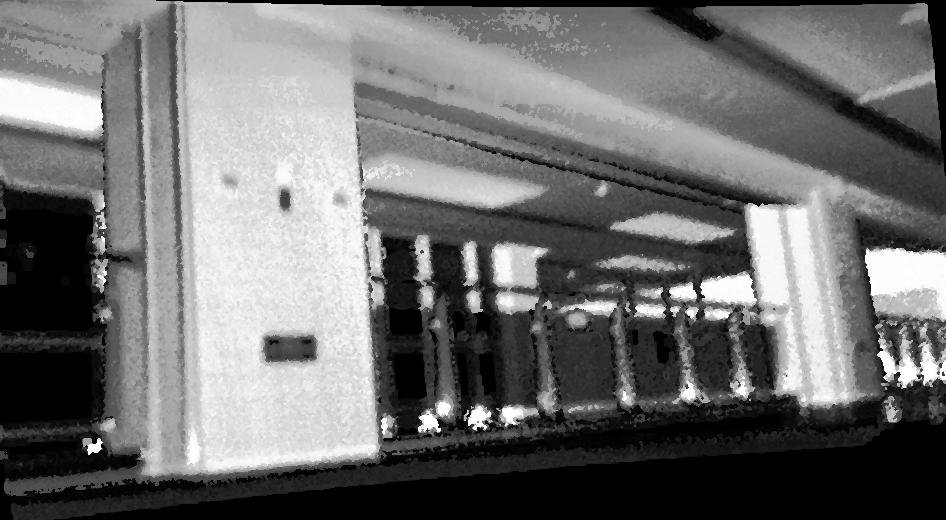

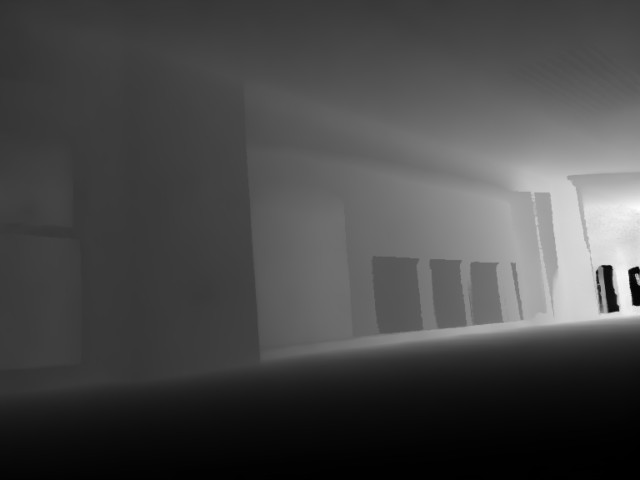

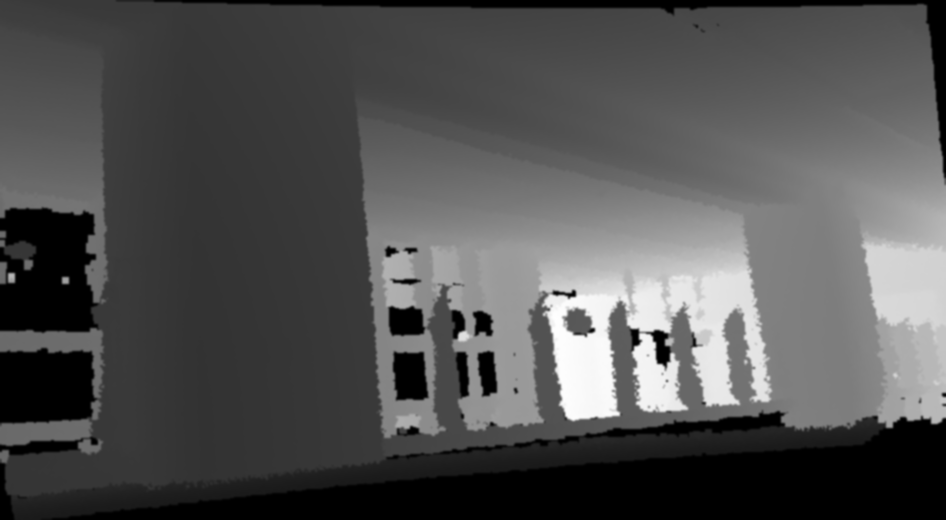

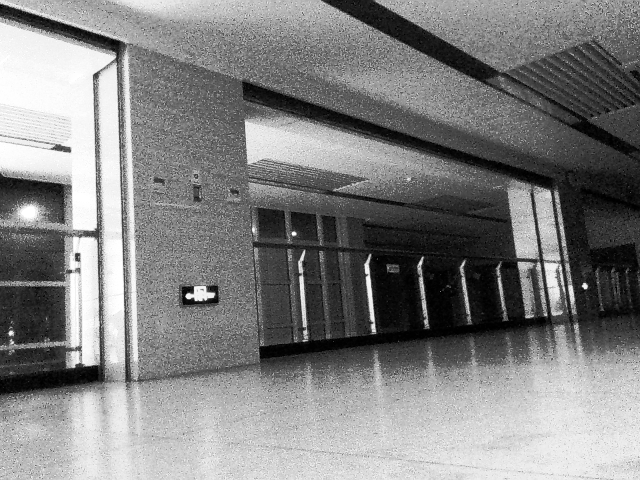

5. If you want to view LiDAR images and visual images

cd /home/wyw/SPTG-LCC/SPTG-LCC/data

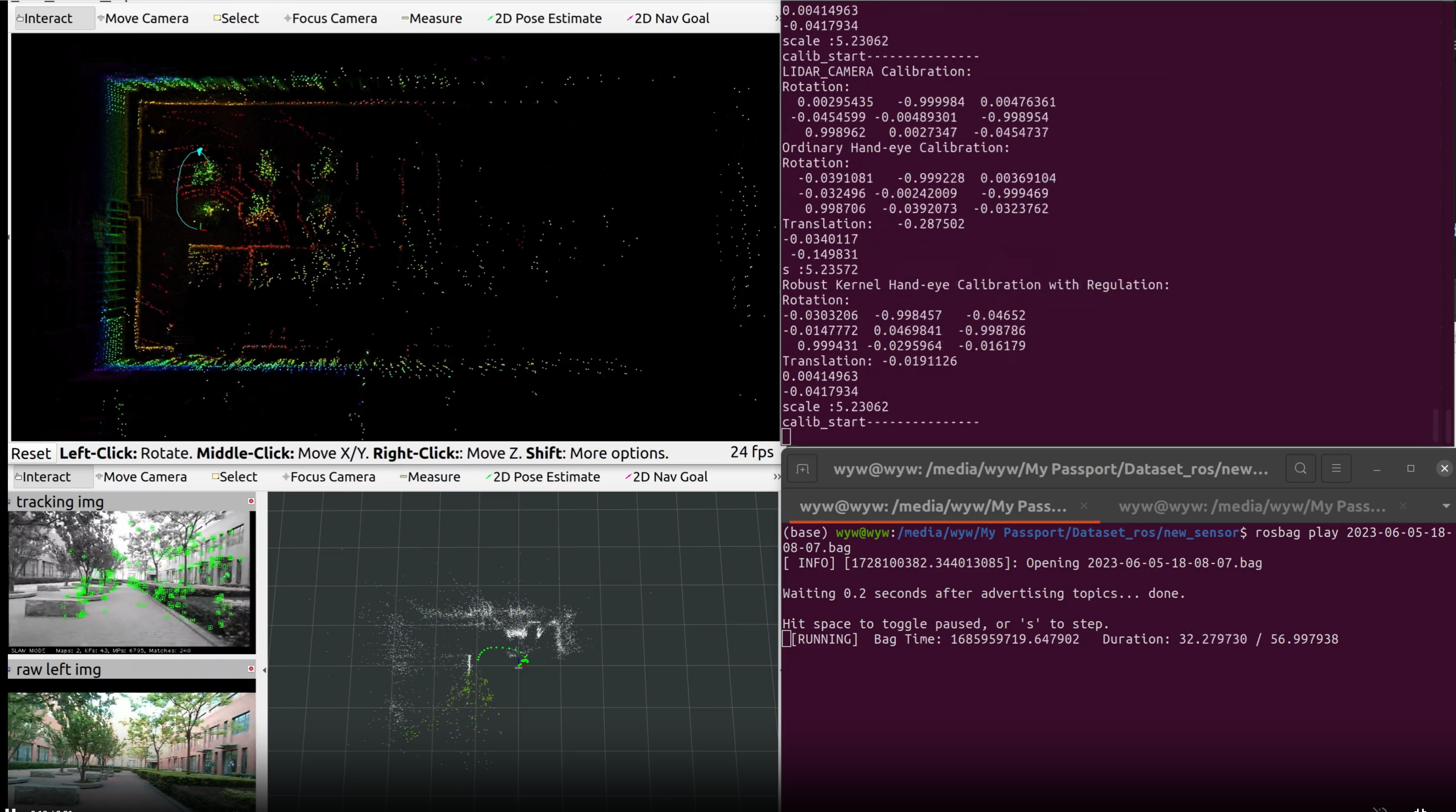

6. Optional motion-based initial guess

In addition, to deal with the problem of calibration failure in some extreme installation situations, we have released a motion-based LiDAR camera extrinsic parameters coarse calibration tool, which aims to provide a rough initial guess, and users can continue to use SPTG-LCC to complete the calibration based on the initial guess. This initial guess is fully automatic.

The Github repository link is as follows: LCC_init ：https://github.com/af-doom/LCC_init

6. Note the prerequisites

1. ubuntu and ROS

All the required C++ libraries and python libraries are packaged into the docker image. You only need to have an Ubuntu system (not dependent on a specific version) and have installed the NVIDIA driver (you can use the nvidia-smi command to test it).

2. Docker

If there is no docker on the host, you need to install docker and nvidia-container-toolkit so that docker can perform visualization and call the GPU.

Method 1-One-click installation (recommended)

wget http://fishros.com/install -O fishros && . fishros

Method 2-Docker official website

https://docs.docker.com/engine/install/ubuntu/#install-using-the-repository

3. nvidia-container-toolkit

https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/latest/install-guide.html

https://blog.csdn.net/dw14132124/article/details/140534628?spm=1001.2101.3001.6650.6&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-6-140534628-blog-140452570.235%5Ev43%5Epc_blog_bottom_relevance_base1&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-6-140534628-blog-140452570.235%5Ev43%5Epc_blog_bottom_relevance_base1&utm_relevant_index=13

Successful execution of the following command indicates successful installation

sudo apt-get install -y nvidia-container-toolkit

Acknowledgements

• We sincerely appreciate the following open-source projects: DVLC, KITTI, Lightglue, Efficient-LoFTR, Marigold, Superpoint.
• In particular, our code framework is based on DVLC(direct_visual_lidar_calibration), thanks to this great open-source work.
